Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Switch Function | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Panel Cutout Dimensions | Contact Finish | Termination Style | Mounting Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H200AA2F205NQSWITCH KEYLCK 3POS DP3T 12A 125V |
154 |
|
Datasheet |
H | Tray | Active | DP3T | 3 | Not Specified | 12A (AC), 1A (DC) | 125 V | On-On-On | 125 V | Flat Key | All | 45° | Copper | Circular - 19.30mm Dia | Silver | Quick Connect - 0.110" (2.8mm) | Panel Mount | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
H100AA2F205NQSWITCH KEYLCK 3POS SP3T 12A 125V |
106 |
|
Datasheet |
H | Tray | Active | SP3T | 3 | Not Specified | 12A (AC), 1A (DC) | 125 V | On-On-On | 125 V | Flat Key | All | 45° | Copper | Circular - 19.30mm Dia | Silver | Quick Connect - 0.110" (2.8mm) | Panel Mount | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
89165-02SWITCH KEYLOCK 3POS SPDT 20A 12V |
150 |
|
Datasheet |
- | Bulk | Active | SPDT | 3 | Not Specified | 20A (DC) | - | Off-On-Mom | 12 V | Flat Key | Center | 45° | Brass | Circular - 22.35mm Dia | Tin | Connector | Panel Mount | - | -40°C ~ 85°C |
|
|
90234-01SWITCH KEYLOCK 3POS 20A 12V |
101 |
|
Datasheet |
- | Bulk | Active | - | 3 | Not Specified | 20A (DC) | - | Off-On | 12 V | Flat Key | 1 only | 45° | - | - | - | Connector | Panel Mount | - | - |
|
H200AA2F205NBSWITCH KEYLK 3POS DP3T 0.4VA 20V |
8,003 |
|
Datasheet |
H | Bulk | Active | DP3T | 3 | Not Specified | 0.4VA (AC/DC) | 20 V | On-On-On | 20 V | Flat Key | All | 45° | Copper | Circular - 19.30mm Dia | Gold | Quick Connect - 0.110" (2.8mm) | Panel Mount | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
89997-07SWITCH KEYLOCK 3POS SPDT 20A 12V |
150 |
|
Datasheet |
- | Bulk | Active | SPDT | 3 | Not Specified | 20A (DC) | - | On-Off-On | 12 V | Flat Key | Center | 45° | Copper | Circular - 22.35mm Dia | - | Screw Terminal | Panel Mount | - | -40°C ~ 85°C |
|
2SKF131AEL01SWITCH KEYLOCK 2POS SPST 1A 120V |
322 |
|
Datasheet |
SKF | Bulk | Active | SPST | 2 | Non-Shorting (BBM) | 1A (AC) | 120 V | Off-On | - | Flat Key | 1 only | 90° | Silver (Ag) | Circular - 19.20mm Dia | - | Screw Terminal | Panel Mount | - | -30°C ~ 85°C |
|

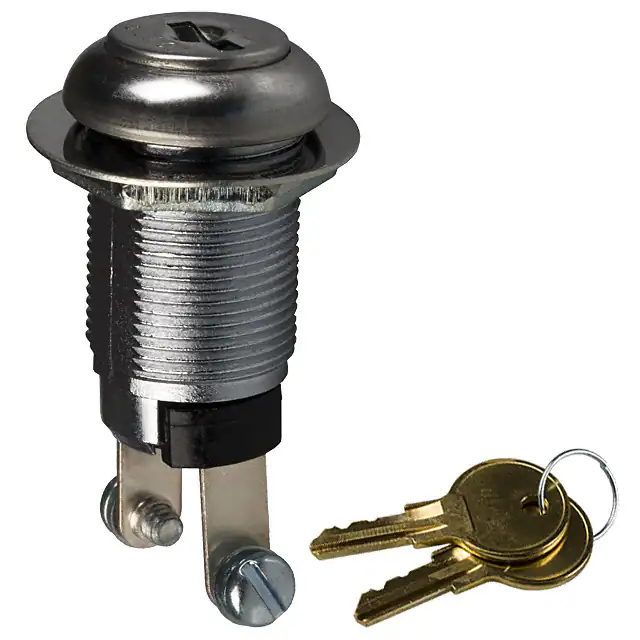

2SWK231AL101SWITCH KEYLOCK 2POS SPST 1A 120V |
4,954 |
|
Datasheet |
SWK | Bulk | Active | SPST | 2 | Non-Shorting (BBM) | 1A (AC) | 120 V | Off-Mom | - | Flat Key | 1 only | 90° | Silver (Ag) | Circular - 19.20mm Dia | - | Screw Terminal | Panel Mount | - | - |
|
|
2SKF231AEL01SWITCH KEYLOCK 2POS SPST 1A 120V |
2,771 |
|
Datasheet |
SKF | Bulk | Active | SPST | 2 | Non-Shorting (BBM) | 1A (AC) | 120 V | Off-Mom | - | Flat Key | 1 only | 90° | Silver (Ag) | Circular - 19.20mm Dia | - | Screw Terminal | Panel Mount | - | -30°C ~ 85°C |
|
AML27ABK2AC21BASWITCH KEYLOCK 2POS DPDT 3A 125V |
118 |
|
Datasheet |
AML27 | Bulk | Active | DPDT | 2 | Not Specified | 3A (AC) | 125 V | On-On | - | Flat Key | Center | 90° | - | Square - 19.05mm² | Silver | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount, Snap-In | - | - |
|
|
84809-05SWITCH KEYLOCK |
150 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KO105C1001SWITCH KEYLOCK 2POS SPST 1A 125V |
994 |
|
Datasheet |
KO | Bulk | Active | SPST | 2 | Not Specified | 1A (AC) | 125 V | Off-On | - | Tubular Key | - | 90° | Copper Alloy | Circular - 12.00mm Dia | Silver | PC Pin | Panel Mount | - | - |
|
|
MRK 1343KEY SWITCH, ON-ON, 1 POLE |
498 |
|
Datasheet |
MRK | Box | Active | SP3T | 3 | Not Specified | 200mA (AC) | 125 V | On-On-On | - | Flat Key | All | 90° | - | Circular - 12.00mm Dia | Silver | Solder Lug | Panel Mount | - | -20°C ~ 70°C |
|
|
MRK 216KEY SWITCH, MRK 216 N WITH WIRES |
500 |
|
Datasheet |
MRK | Box | Active | SPDT | 2 | Not Specified | 4A (AC) | 125 V | On-On | - | Flat Key | All | 90° | - | Circular - 19.00mm Dia | Gold | Solder Lug | Panel Mount | - | -20°C ~ 70°C |
|
SK24EG30SWITCH KEYLK 3POS DP3T 0.4VA 28V |
1,690 |
|
Datasheet |
SK | Box | Active | DP3T | 3 | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | On-On-On | 28 V | Flat Key | 2 only | 45° | Beryllium Copper | - | Gold | PC Pin | Through Hole, Right Angle | Process Sealed | -25°C ~ 70°C |
|
CKM12BFW01-006SWITCH KEYLOCK 2POS SPDT 3A 250V |
118 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | Non-Shorting (BBM) | 3A (AC) | 250 V | On-On | - | Flat Key | 1 only | 90° | Silver (Ag) | Circular - 16.00mm Dia | Silver | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
95061-05SWITCH KEYLOCK 3POS 5A 24V |
258 |
|
Datasheet |
95060 | Bulk | Active | - | 3 | Not Specified | 5A (DC) | - | Off-On-Mom | 24 V | Flat Key | 1 only | - | - | - | - | Screw Terminal | Panel Mount | - | - |
|
H1011U2F805NQSW KEY 2POS SPDT 12A 125V 5PC |
214 |
|
Datasheet |
H | Tray | Active | SPDT | 2 | Not Specified | 12A (AC), 1A (DC) | 125 V | On-On | 125 V | Flat Key | All | 90° | Copper | Circular - 19.30mm Dia | Silver | Quick Connect - 0.110" (2.8mm) | Panel Mount | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
95060-47SWITCH KEYLOCK 4POS |
118 |
|
Datasheet |
95060 | Box | Active | SP4T | 4 | Not Specified | 10A (DC) | - | On-Off-On-On | 12 V | Flat Key | 2 only | 30° | - | Circular - 21.84mm Dia | - | Connector | Panel Mount | - | - |
|
95525-ASWITCH KEYLOCK 4POS 5A 12V |
2,282 |
|
Datasheet |
95 | Bulk | Active | - | 4 | Not Specified | 5A (DC) | - | On-Off-On-Mom | 12 V | Flat Key | 2 only | - | Bronze | - | - | Screw Terminal | Panel Mount | - | - |
