Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Switch Function | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Panel Cutout Dimensions | Contact Finish | Termination Style | Mounting Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M22K-22SF20-ASWITCH KEYLOCK 2POS DPST 6A 230V |
750 |
|
Datasheet |
M22 | Bulk | Active | DPST | 2 | - | 6A (AC), 3A (DC) | 230 V | - | 24 V | Flat Key | Center | 45° | Silver-Nickel Alloy | Circular - 22.30mm Dia | Silver | Screw Terminal | - | - | - |
|
YF011U2C203NQSWITCH KEYLOCK 2POS SPDT 4A 125V |
204 |
|
Datasheet |
YF | Bulk | Active | SPDT | 2 | Not Specified | 4A (AC/DC) | 125 V | On-On | 28 V | Flat Key | All | 90° | Copper | Circular - 11.99mm Dia | Silver | Solder Lug | Panel Mount | Epoxy Sealed Terminals | - |
|
Y101136R803NQESWITCH KEYLOCK 2POS SPDT 4A 125V |
183 |
|
Datasheet |
Y | Bulk | Active | SPDT | 2 | Not Specified | 4A (AC/DC) | 125 V | On-On | 28 V | Flat Key | 1 only | 90° | Copper | Circular - 19.30mm Dia | Silver | Solder Lug | Panel Mount | Antistatic, Epoxy Sealed Terminals | - |
|
HDI1-4A-3-A1SWITCH KEYLOCK 4POS 30A 12V |
146 |
|
Datasheet |
HDI1 | Bulk | Active | - | 4 | Not Specified | 30A (DC) | - | On-Off-On-Mom | 12 V | Flat Key | - | - | Copper | Circular - 18.60mm Dia | - | Stud | Panel Mount | - | - |
|
HDI1-4A-3-B1SWITCH KEYLOCK 4POS 30A 12V |
331 |
|
Datasheet |
HDI1 | Bulk | Active | - | 4 | Not Specified | 30A (DC) | - | On-Off-On-Mom | 12 V | Flat Key | - | - | Copper | Circular - 18.60mm Dia | - | Stud | Panel Mount | - | - |
|
SK12ADW01-007SWITCH KEYLOCK 2POS SPDT 3A 125V |
1,386 |
|
Datasheet |
SK | Box | Last Time Buy | SPDT | 2 | Non-Shorting (BBM) | 3A (AC) | 125 V | On-On | - | Flat Key | All | 90° | Silver (Ag) | Circular - 12.00mm Dia | - | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
SK12ADW01-007/ULSWITCH KEYLOCK 2POS SPDT 3A 125V |
4,161 |
|
Datasheet |
SK | Box | Last Time Buy | SPDT | 2 | Non-Shorting (BBM) | 3A (AC) | 125 V | On-On | - | Flat Key | All | 90° | Silver (Ag) | Circular - 12.00mm Dia | - | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
SK12ADW01SWITCH KEYLOCK 2POS SPDT 3A 125V |
3,647 |
|
Datasheet |
SK | Box | Last Time Buy | SPDT | 2 | Non-Shorting (BBM) | 3A (AC) | 125 V | On-On | - | Flat Key | All | 90° | Silver (Ag) | Circular - 12.00mm Dia | - | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
SK13EDW01SWITCH KEYLOCK 3POS SPDT 3A 125V |
4,753 |
|
Datasheet |
SK | Box | Last Time Buy | SPDT | 3 | Non-Shorting (BBM) | 3A (AC) | 125 V | On-Off-On | - | Flat Key | 2 only | 45° | Silver (Ag) | Circular - 12.00mm Dia | - | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
SK13EDW01-005SWITCH KEYLOCK 3POS SPDT 3A 125V |
3,823 |
|
Datasheet |
SK | Box | Last Time Buy | SPDT | 3 | Non-Shorting (BBM) | 3A (AC) | 125 V | On-Off-On | - | Flat Key | 2 only | 45° | Silver (Ag) | Circular - 12.00mm Dia | - | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
SK13EDW01-001SWITCH KEYLOCK 3POS SPDT 3A 125V |
3,859 |
|
Datasheet |
SK | Box | Last Time Buy | SPDT | 3 | Non-Shorting (BBM) | 3A (AC) | 125 V | On-Off-On | - | Flat Key | 2 only | 45° | Silver (Ag) | Circular - 12.00mm Dia | - | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|

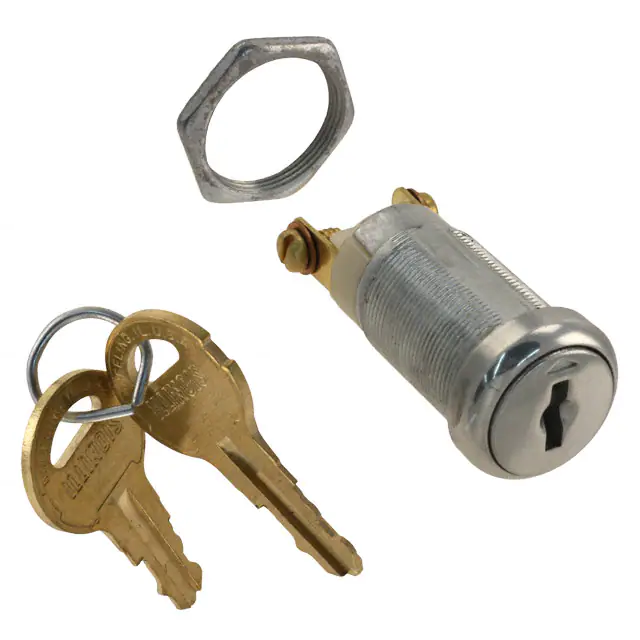

SWK121F315SWITCH KEYLOCK 2POS SPST 5A 115V |
159 |
|
Datasheet |
SWK12 | Bulk | Obsolete | SPST | 2 | Non-Shorting (BBM) | 5A (AC), 15A (DC) | 115 V | On-Off | 24 V | Flat Key | 2 only | 90° | Silver (Ag) | Circular - 19.20mm Dia | - | Screw Terminal | Panel Mount | - | -30°C ~ 85°C |
|
|
1-1437597-8SWITCH KEYLOCK 2POS SPST 1A 120V |
2,825 |
|
Datasheet |
SWK | Bag | Active | SPST | 2 | Non-Shorting (BBM) | 1A (AC) | 120 V | Off-On | - | Flat Key | 1 only | 90° | Silver (Ag) | Circular - 19.30mm Dia | - | Screw Terminal | Panel Mount | - | - |
|
|
58J8A45-01-1-05NSWITCH KEY 5POS SP5T 200MA 115V |
1,549 |
|
Datasheet |
58 | Bulk | Active | SP5T | 5 | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | On-On-On-On-On | 30 V | Flat Key | All | 45° | - | Circular - 19.05mm Dia | Gold Alloy | Solder Lug | Panel Mount | Antistatic | - |
|
|
58J9A36-01-1-03NSWITCH KEY 3POS SP3T 200MA 115V |
2,270 |
|
Datasheet |
58 | Bulk | Active | SP3T | 3 | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | On-On-On | 30 V | Flat Key | 1 and 180° | 36° | - | Circular - 19.05mm Dia | Gold Alloy | Solder Lug | Panel Mount | Antistatic | - |
|
A165K-A2M-1SWITCH KEYLOCK 2POS SPDT 5A 125V |
1,513 |
|
Datasheet |
A165K | Bulk | Active | SPDT | 2 | Not Specified | 5A (AC), 3A (DC) | 125 V | On-On | 30 V | Flat Key | All | 90° | - | Circular - 16.00mm Dia | - | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | IP65, Oil-Resistant | -10°C ~ 55°C |
|
164J2B11SWITCH KEYLOCK 2POS SPDT 5A 250V |
1,705 |
|
Datasheet |
Command | Bulk | Obsolete | SPDT | 2 | Not Specified | 5A (AC/DC) | 250 V | On-On | 24 V | Flat Key | All | 90° | Silver (Ag) | Circular - 7.95mm Dia | Gold | Solder Lug | Panel Mount | - | -20°C ~ 50°C |
|
M6K-A20S1-BSWITCH KEYLOCK 2POS SPDT 2A 250V |
2,500 |
|
Datasheet |
M6 | Retail Package | Active | SPDT | 2 | - | 2A (AC), 400mA (DC) | 250 V | On-On | 125 V | Flat Key | Left | 90° | Silver (Ag) | Circular - 16.20mm Dia | Palladium | Quick Connect - 0.110" (2.8mm) | Panel Mount | UL94 V-0, IP65 | -25°C ~ 55°C |
|
|
M6K-A20S1-CSWITCH KEYLOCK 2POS SPDT 2A 250V |
2,500 |
|
Datasheet |
M6 | Retail Package | Active | SPDT | 2 | - | 2A (AC), 400mA (DC) | 250 V | On-On | 125 V | Flat Key | Right | 90° | Silver (Ag) | Circular - 16.20mm Dia | Palladium | Quick Connect - 0.110" (2.8mm) | Panel Mount | UL94 V-0, IP65 | -25°C ~ 55°C |
|
|
M6K-A20S2-CSWITCH KEYLOCK 2POS DPDT 2A 250V |
2,500 |
|
Datasheet |
M6 | Retail Package | Active | DPDT | 2 | - | 2A (AC), 400mA (DC) | 250 V | On-On | 125 V | Flat Key | Right | 90° | Silver (Ag) | Circular - 16.20mm Dia | Palladium | Quick Connect - 0.110" (2.8mm) | Panel Mount | UL94 V-0, IP65 | -25°C ~ 55°C |
