Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Switch Function | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Panel Cutout Dimensions | Contact Finish | Termination Style | Mounting Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

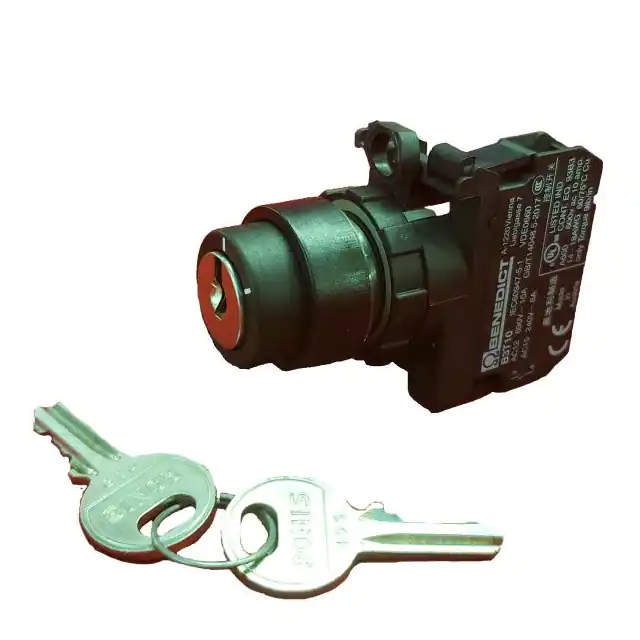

B3SAR 0/10SWITCH KEYLCK 2POS SPST 10A 600V |
2,099 |
|
Datasheet |
B3 | Box | Active | SPST | 2 | - | 10A (AC) | 600 V | Off-On | - | - | - | 60° | - | Circular - 22.50mm Dia | - | Screw Terminal | Through Hole | - | -40°C ~ 50°C |
|
1.10118.5130000SWITCH KEYLK 3POS SPDT 100MA 35V |
4,076 |
|
Datasheet |
- | Box | Obsolete | SPDT | 3 | Not Specified | 100mA (AC/DC) | 35 V | Off-On-On | 35 V | Flat Key | Center | 90° | - | Circular - 16.20mm Dia | Gold Alloy | Solder Lug | Panel Mount | - | -25°C ~ 70°C |
|
58J8P45-01-1-04NSWITCH KEY 4POS SP4T 200MA 115V |
4,224 |
|
Datasheet |
58 | Bulk | Active | SP4T | 4 | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | On-On-On-On | 30 V | Flat Key | All | 45° | - | Circular - 19.05mm Dia | Gold Alloy | PC Pin | Panel Mount | Antistatic | - |
|
|
51-377.F22DSWITCH KEYLOCKPOS 4PST 5A 250V |
1,383 |
|
Datasheet |
51 | Bulk | Active | 4PST-2NO/2NC | - | Not Specified | 5A (AC) | 250 V | On-Off, Off-On | - | Flat Key | Left | 42°, 90° | Silver (Ag) | Circular - 16.00mm Dia | - | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | IP65 | -25°C ~ 55°C |
|
XB5AG03SWITCH KEYLOCK 3POS DPST 6A 120V |
2,861 |
|
Datasheet |
Harmony XB5 | Box | Active | DPST-NO | 3 | Not Specified | 6A (AC), 550mA (DC) | 120 V | Off-On | 125 V | Flat Key | All | 45° | Silver Alloy | Circular - 22.00mm Dia | - | Screw Terminal | Panel Mount | - | -40°C ~ 70°C |
|
A22TK-2RL-12-K03SWITCH KEYLCK 2POS DPST 10A 110V |
2,122 |
|
Datasheet |
A22TK | Bulk | Active | DPST-NC + SPST-NO | 2 | Not Specified | 10A (AC/DC) | 110 V | On-Off, Off-On | 24 V | Tubular Key | Right | 90° | - | Circular - 22.30mm Dia | - | Screw Terminal | Panel Mount | IP65 | -20°C ~ 70°C |
|

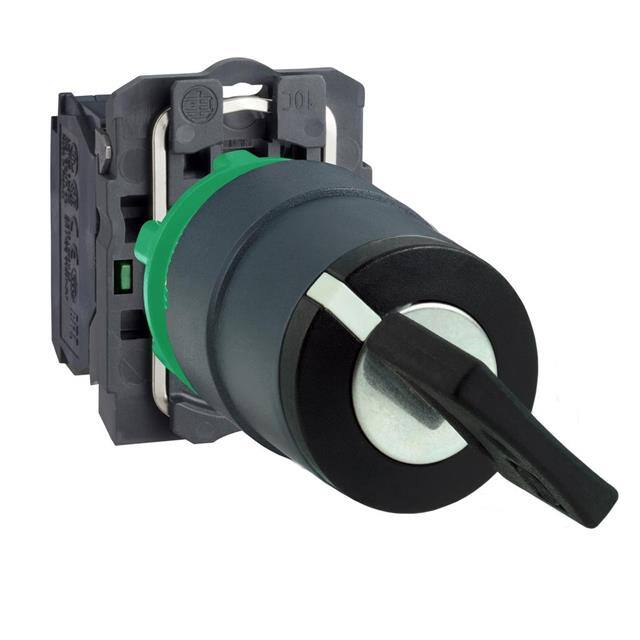

XB5AG41SWITCH KEYLOCK 2POS SPST 6A 120V |
2,712 |
|
Datasheet |
Harmony XB5 | Box | Active | SPST-NO | 2 | Not Specified | 6A (AC), 550mA (DC) | 120 V | Off-On | 125 V | Flat Key | All | 90° | Silver Alloy | Circular - 22.00mm Dia | - | Screw Terminal | Panel Mount | - | -40°C ~ 70°C |
|
|
A22TK-2LR-12-K09SWITCH KEYLCK 2POS DPST 10A 110V |
2,873 |
|
Datasheet |
A22TK | Tray | Active | DPST-NC + SPST-NO | 2 | Not Specified | 10A (AC/DC) | 110 V | On-Off, Off-On | 24 V | Tubular Key | Left | 90° | - | Circular - 22.30mm Dia | - | Screw Terminal | Panel Mount | IP65 | -20°C ~ 70°C |
|
|
44L45-06-1-02NSWITCH KEYLOCK 2POS SPDT 5A 115V |
4,625 |
|
Datasheet |
44L | Bulk | Active | SPDT | 2 | Non-Shorting (BBM) | 5A (AC), 1A (DC) | 115 V | On-On | 28 V | Tubular Key | All | 45° | Silver Alloy | Circular - 34.93mm Dia | - | Solder Lug | Panel Mount | - | - |
|
|
164J2A11SWITCH KEYLOCK 2POS SPDT 5A 250V |
1,452 |
|
Datasheet |
Command | Bulk | Active | SPDT | 2 | Not Specified | 5A (AC/DC) | 250 V | On-On | 24 V | Flat Key | Left | 90° | Silver (Ag) | Circular - 7.95mm Dia | Gold | Solder Lug | Panel Mount | - | -20°C ~ 50°C |
|
|
A22TK-2RL-01-K20SWITCH KEYLCK 2POS SPST 10A 110V |
4,323 |
|
Datasheet |
A22TK | Tray | Active | SPST-NC | 2 | Not Specified | 10A (AC/DC) | 110 V | On-Off | 24 V | Tubular Key | Right | 90° | - | Circular - 22.30mm Dia | - | Screw Terminal | Panel Mount | IP65 | -20°C ~ 70°C |
|
A22TK-2RL-12-K04SWITCH KEYLCK 2POS DPST 10A 110V |
4,464 |
|
Datasheet |
A22TK | Bulk | Active | DPST-NC + SPST-NO | 2 | Not Specified | 10A (AC/DC) | 110 V | On-Off, Off-On | 24 V | Tubular Key | Right | 90° | - | Circular - 22.30mm Dia | - | Screw Terminal | Panel Mount | IP65 | -20°C ~ 70°C |
|
|
44L45-01-1-03NSWITCH KEYLOCK 3POS SP3T 5A 115V |
4,388 |
|
Datasheet |
44L | Bulk | Active | SP3T | 3 | Non-Shorting (BBM) | 5A (AC), 1A (DC) | 115 V | On-On-On | 28 V | Tubular Key | All | 45° | Silver Alloy | Circular - 34.93mm Dia | - | Solder Lug | Panel Mount | - | - |
|
K16-632SWITCH KEYLOCK 2POS DPDT 3A 250V |
1,226 |
|
Datasheet |
K16 | Bulk | Active | DPDT | 2 | Not Specified | 3A (AC/DC) | 250 V | On-On | 110 V | Flat Key | All | 90° | Silver Alloy | Circular - 16.00mm Dia | Gold | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | - | -25°C ~ 55°C |
|
|
2-1437597-3Keylock Switch, SPST, Off-on, La |
1,356 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
Y201132V203NQSWITCH KEYLOCK 2POS DPDT 4A 125V |
2,105 |
|
Datasheet |
Y | Tray | Active | DPDT | 2 | Not Specified | 4A (AC/DC) | 125 V | On-On | 28 V | Tubular Key | 1 only | 90° | Copper | Circular - 19.30mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
H201132F205NQSWITCH KEYLCK 2POS DPDT 12A 125V |
4,582 |
|
Datasheet |
H | Bulk | Active | DPDT | 2 | Not Specified | 12A (AC), 1A (DC) | 125 V | On-On | 125 V | Flat Key | 1 only | 90° | Copper | Circular - 19.30mm Dia | Silver | Quick Connect - 0.110" (2.8mm) | Panel Mount | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
SW-R-K7A-ASWITCH KEYLOCK 2POS SPST 2A 250V |
4,747 |
|
Datasheet |
SW | Bag | Active | SPST | 2 | Not Specified | 2A (AC), 4A (DC) | 250 V | Off-On | 28 V | Flat Key | All | 60° | - | Circular - 16.00mm Dia | - | Solder Lug | Panel Mount | - | -25°C ~ 85°C |
|
KO130Z4A126SWITCH KEYLOCK 3POS SP3T 4A 125V |
4,988 |
|
Datasheet |
KO | Bulk | Active | SP3T | 3 | Not Specified | 4A (AC) | 125 V | On-On-On | - | Flat Key | All | 90° | Copper Alloy | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
P10113TCM03Q22SWITCH KEYLOCK 2POS SPDT 4A 125V |
1,702 |
|
Datasheet |
P | Tray | Active | SPDT | 2 | Not Specified | 4A (AC) | 125 V | On-On | - | Flat Key | 1 only | 90° | Copper | Circular - 20.30mm Dia | Silver | Solder Lug | Panel Mount, Snap-In | - | - |
