Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Switch Function | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Panel Cutout Dimensions | Contact Finish | Termination Style | Mounting Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

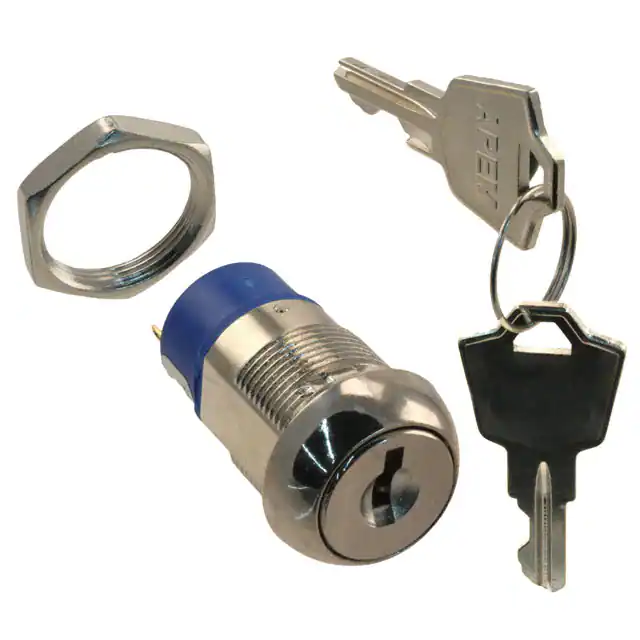

JD7509HSWITCH KEYLOCK 3POS DP3T 4A 125V |
3,991 |
|
Datasheet |
JD | Tray | Obsolete | DP3T | 3 | Not Specified | 4A (AC) | 125 V | On-On-On | - | Flat Key | 1 only | 45° | Copper Alloy | Circular - 19.00mm Dia | Gold | Solder Lug | Panel Mount | - | -30°C ~ 85°C |
|
|
JD7509JSWITCH KEYLOCK 3POS DP3T 4A 125V |
2,459 |
|
Datasheet |
JD | Bulk | Obsolete | DP3T | 3 | Not Specified | 4A (AC) | 125 V | On-On-On | - | Flat Key | All | 45° | Copper Alloy | Circular - 19.00mm Dia | Gold | Solder Lug | Panel Mount | - | -30°C ~ 85°C |
|
|
JD7509NSWITCH KEYLOCK 2POS SPDT 4A 125V |
3,323 |
|
Datasheet |
JD | Tray | Obsolete | SPDT | 2 | Not Specified | 4A (AC) | 125 V | On-On | - | Flat Key | 1 only | 90° | Copper Alloy | Circular - 19.00mm Dia | Gold | Solder Lug | Panel Mount | - | -30°C ~ 85°C |
|
|
JD7509OSWITCH KEYLOCK 2POS DPDT 4A 125V |
4,240 |
|
Datasheet |
JD | Tray | Obsolete | DPDT | 2 | Not Specified | 4A (AC) | 125 V | On-On | - | Flat Key | 1 only | 90° | Copper Alloy | Circular - 19.00mm Dia | Gold | Solder Lug | Panel Mount | - | -30°C ~ 85°C |
|
|
JD7509QSWITCH KEYLOCK 2POS DPDT 4A 125V |
2,228 |
|
Datasheet |
JD | Tray | Obsolete | DPDT | 2 | Not Specified | 4A (AC) | 125 V | On-On | - | Flat Key | 2 only | 90° | Copper Alloy | Circular - 19.00mm Dia | Gold | Solder Lug | Panel Mount | - | -30°C ~ 85°C |
|
|
JD7509RSWITCH KEYLOCK 2POS SPDT 4A 125V |
1,424 |
|
Datasheet |
JD | Tray | Obsolete | SPDT | 2 | Not Specified | 4A (AC) | 125 V | On-On | - | Flat Key | All | 90° | Copper Alloy | Circular - 19.00mm Dia | Gold | Solder Lug | Panel Mount | - | -30°C ~ 85°C |
|
|
JD7509SSWITCH KEYLOCK 2POS DPDT 4A 125V |
3,436 |
|
Datasheet |
JD | Tray | Obsolete | DPDT | 2 | Not Specified | 4A (AC) | 125 V | On-On | - | Flat Key | All | 90° | Copper Alloy | Circular - 19.00mm Dia | Gold | Solder Lug | Panel Mount | - | -30°C ~ 85°C |
|
|
JD7510ASWITCH KEYLOCK 2POS SPDT 4A 125V |
3,908 |
|
Datasheet |
JD | Bulk | Obsolete | SPDT | 2 | Not Specified | 4A (AC) | 125 V | On-Mom | - | Flat Key | 1 only | 45° | Copper Alloy | Circular - 19.00mm Dia | Gold | Solder Lug | Panel Mount | - | -30°C ~ 85°C |
|
|
JD7510ESWITCH KEYLOCK 3POS SP3T 4A 125V |
4,233 |
|
Datasheet |
JD | Tray | Obsolete | SP3T | 3 | Not Specified | 4A (AC) | 125 V | Mom-On-Mom | - | Flat Key | 1 only | 45° | Copper Alloy | Circular - 19.00mm Dia | Gold | Solder Lug | Panel Mount | - | -30°C ~ 85°C |
|
|
JD7510ISWITCH KEYLOCK 3POS SP3T 4A 125V |
4,442 |
|
Datasheet |
JD | Tray | Obsolete | SP3T | 3 | Not Specified | 4A (AC) | 125 V | On-On-Mom | - | Flat Key | 1 only | 45° | Copper Alloy | Circular - 19.00mm Dia | Gold | Solder Lug | Panel Mount | - | -30°C ~ 85°C |
|
|
JD7510JSWITCH KEYLOCK 3POS DP3T 4A 125V |
4,509 |
|
Datasheet |
JD | Bulk | Obsolete | DP3T | 3 | Not Specified | 4A (AC) | 125 V | On-On-Mom | - | Flat Key | 1 only | 45° | Copper Alloy | Circular - 19.00mm Dia | Gold | Solder Lug | Panel Mount | - | -30°C ~ 85°C |
|
|
JD7510FSWITCH KEYLOCK 3POS DP3T 4A 125V |
4,223 |
|
Datasheet |
JD | Tray | Obsolete | DP3T | 3 | Not Specified | 4A (AC) | 125 V | Mom-On-Mom | - | Flat Key | 1 only | 45° | Copper Alloy | Circular - 19.00mm Dia | Gold | Solder Lug | Panel Mount | - | -30°C ~ 85°C |
|
|
JD7510BSWITCH KEYLOCK 2POS DPDT 4A 125V |
2,585 |
|
Datasheet |
JD | Tray | Obsolete | DPDT | 2 | Not Specified | 4A (AC) | 125 V | On-Mom | - | Flat Key | 1 only | 45° | Copper Alloy | Circular - 19.00mm Dia | Gold | Solder Lug | Panel Mount | - | -30°C ~ 85°C |
|
|
JD7509PSWITCH KEYLOCK 2POS SPDT 4A 125V |
3,259 |
|
Datasheet |
JD | Tray | Obsolete | SPDT | 2 | Not Specified | 4A (AC) | 125 V | On-On | - | Flat Key | 2 only | 90° | Copper Alloy | Circular - 19.00mm Dia | Gold | Solder Lug | Panel Mount | - | -30°C ~ 85°C |
|
|
JD7509ISWITCH KEYLOCK 3POS SP3T 4A 125V |
3,538 |
|
Datasheet |
JD | Tray | Obsolete | SP3T | 3 | Not Specified | 4A (AC) | 125 V | On-On-On | - | Flat Key | All | 45° | Copper Alloy | Circular - 19.00mm Dia | Gold | Solder Lug | Panel Mount | - | -30°C ~ 85°C |
|
|
JD7509FSWITCH KEYLOCK 3POS DP3T 4A 125V |
2,913 |
|
Datasheet |
JD | Tray | Obsolete | DP3T | 3 | Not Specified | 4A (AC) | 125 V | On-On-On | - | Flat Key | 1 and 3 | 45° | Copper Alloy | Circular - 19.00mm Dia | Gold | Solder Lug | Panel Mount | - | -30°C ~ 85°C |
|
|
JD7509GSWITCH KEYLOCK 3POS SP3T 4A 125V |
2,952 |
|
Datasheet |
JD | Tray | Obsolete | SP3T | 3 | Not Specified | 4A (AC) | 125 V | On-On-On | - | Flat Key | 1 only | 45° | Copper Alloy | Circular - 19.00mm Dia | Gold | Solder Lug | Panel Mount | - | -30°C ~ 85°C |
|
|
JD7509DSWITCH KEYLOCK 3POS DP3T 4A 125V |
1,023 |
|
Datasheet |
JD | Tray | Obsolete | DP3T | 3 | Not Specified | 4A (AC) | 125 V | On-On-On | - | Flat Key | 3 only | 45° | Copper Alloy | Circular - 19.00mm Dia | Gold | Solder Lug | Panel Mount | - | -30°C ~ 85°C |
|
|
JD7509DABSWITCH KEYLOCK 4POS DP4T 4A 125V |
3,261 |
|
Datasheet |
JD | Bulk | Obsolete | DP4T | 4 | Not Specified | 4A (AC) | 125 V | On-On-On-On | - | Flat Key | All | 45° | Copper Alloy | Circular - 19.00mm Dia | Gold | Solder Lug | Panel Mount | - | -30°C ~ 85°C |
|
|
JD7509CSWITCH KEYLOCK 3POS SP3T 4A 125V |
4,234 |
|
Datasheet |
JD | Tray | Obsolete | SP3T | 3 | Not Specified | 4A (AC) | 125 V | On-On-On | - | Flat Key | 3 only | 45° | Copper Alloy | Circular - 19.00mm Dia | Gold | Solder Lug | Panel Mount | - | -30°C ~ 85°C |
