Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Switch Function | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Panel Cutout Dimensions | Contact Finish | Termination Style | Mounting Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JD7509ASWITCH KEYLOCK 3POS SP3T 4A 125V |
2,390 |
|
Datasheet |
JD | Tray | Obsolete | SP3T | 3 | Not Specified | 4A (AC) | 125 V | On-On-On | - | Flat Key | 1 only | 45° | Copper Alloy | Circular - 19.00mm Dia | Gold | Solder Lug | Panel Mount | - | -30°C ~ 85°C |
|
PLKB3120SWITCH KEYLK 2POS SPDT 500MA 30V |
2,247 |
|
Datasheet |
PLK | Tray | Obsolete | SPDT | 2 | Not Specified | 500mA (DC) | - | On-On | 30 V | Flat Key | 1 only | 90° | Brass | Circular - 16.00mm Dia | Silver | Solder Lug | Panel Mount | - | -20°C ~ 65°C |
|
|
PLKB8321SWITCH KEYLK 3POS SPDT 500MA 30V |
3,064 |
|
Datasheet |
PLK | Tray | Obsolete | SPDT | 3 | Not Specified | 500mA (DC) | - | On-On-Off | 30 V | Flat Key | All | 180° | Brass | Circular - 16.00mm Dia | Silver | Solder Lug | Panel Mount | - | -20°C ~ 65°C |
|
|
PLKB3220SWITCH KEYLK 2POS SPDT 500MA 30V |
3,581 |
|
Datasheet |
PLK | Tray | Obsolete | SPDT | 2 | Not Specified | 500mA (DC) | - | On-On | 30 V | Flat Key | All | 90° | Brass | Circular - 16.00mm Dia | Silver | Solder Lug | Panel Mount | - | -20°C ~ 65°C |
|

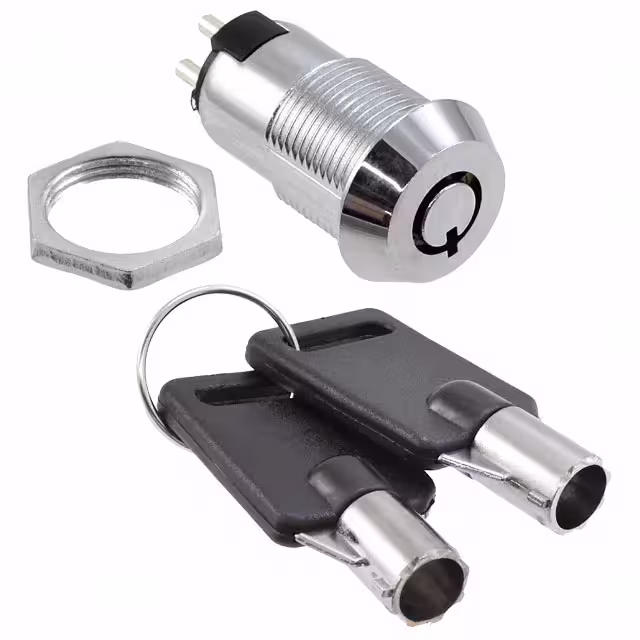

KO104A10001SWITCH KEYLOCK 2POS SPDT 3A 125V |
3,714 |
|
Datasheet |
KO | Bulk | Obsolete | SPDT | 2 | Not Specified | 3A (AC) | 125 V | On-On | - | Tubular Key | 1 only | 90° | Copper Alloy | Circular - 16.00mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
|
KO104A10002SWITCH KEYLOCK 2POS SPDT 3A 125V |
2,829 |
|
Datasheet |
KO | Bulk | Obsolete | SPDT | 2 | Not Specified | 3A (AC) | 125 V | On-On | - | Tubular Key | 1 only | 90° | Copper Alloy | Circular - 16.00mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
|
KO104A10003SWITCH KEYLOCK 2POS SPDT 3A 125V |
2,002 |
|
Datasheet |
KO | Bulk | Obsolete | SPDT | 2 | Not Specified | 3A (AC) | 125 V | On-On | - | Tubular Key | 1 only | 90° | Copper Alloy | Circular - 16.00mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
|
KO104A10004SWITCH KEYLOCK 2POS SPDT 3A 125V |
4,522 |
|
Datasheet |
KO | Bulk | Obsolete | SPDT | 2 | Not Specified | 3A (AC) | 125 V | On-On | - | Tubular Key | 1 only | 90° | Copper Alloy | Circular - 16.00mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
|
KO104A10005SWITCH KEYLOCK 2POS SPDT 3A 125V |
3,608 |
|
Datasheet |
KO | Bulk | Obsolete | SPDT | 2 | Not Specified | 3A (AC) | 125 V | On-On | - | Tubular Key | 1 only | 90° | Copper Alloy | Circular - 16.00mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
|
KO104B10002SWITCH KEYLOCK 2POS SPDT 3A 125V |
3,471 |
|
Datasheet |
KO | Bulk | Obsolete | SPDT | 2 | Not Specified | 3A (AC) | 125 V | On-On | - | Tubular Key | All | 90° | Copper Alloy | Circular - 16.00mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
|
KO104B10003SWITCH KEYLOCK 2POS SPDT 3A 125V |
1,532 |
|
Datasheet |
KO | Bulk | Obsolete | SPDT | 2 | Not Specified | 3A (AC) | 125 V | On-On | - | Tubular Key | All | 90° | Copper Alloy | Circular - 16.00mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
|
KO104B10004SWITCH KEYLOCK 2POS SPDT 3A 125V |
4,246 |
|
Datasheet |
KO | Bulk | Obsolete | SPDT | 2 | Not Specified | 3A (AC) | 125 V | On-On | - | Tubular Key | All | 90° | Copper Alloy | Circular - 16.00mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
|
KO104B10005SWITCH KEYLOCK 2POS SPDT 3A 125V |
3,637 |
|
Datasheet |
KO | Bulk | Obsolete | SPDT | 2 | Not Specified | 3A (AC) | 125 V | On-On | - | Tubular Key | All | 90° | Copper Alloy | Circular - 16.00mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
|
KO104B10006SWITCH KEYLOCK 2POS SPDT 3A 125V |
4,445 |
|
Datasheet |
KO | Bulk | Obsolete | SPDT | 2 | Not Specified | 3A (AC) | 125 V | On-On | - | Tubular Key | All | 90° | Copper Alloy | Circular - 16.00mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
|
KO104B10007SWITCH KEYLOCK 2POS SPDT 3A 125V |
2,315 |
|
Datasheet |
KO | Bulk | Obsolete | SPDT | 2 | Not Specified | 3A (AC) | 125 V | On-On | - | Tubular Key | All | 90° | Copper Alloy | Circular - 16.00mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
|
KO104B10008SWITCH KEYLOCK 2POS SPDT 3A 125V |
1,240 |
|
Datasheet |
KO | Bulk | Obsolete | SPDT | 2 | Not Specified | 3A (AC) | 125 V | On-On | - | Tubular Key | All | 90° | Copper Alloy | Circular - 16.00mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
|
KO104B10009SWITCH KEYLOCK 2POS SPDT 3A 125V |
2,256 |
|
Datasheet |
KO | Bulk | Obsolete | SPDT | 2 | Not Specified | 3A (AC) | 125 V | On-On | - | Tubular Key | All | 90° | Copper Alloy | Circular - 16.00mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
|
83518001SWITCH KEYLOCK |
2,562 |
|
Datasheet |
83518 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | Solder Lug | - | - | - |
|
|
JD83072SWITCH KEYLOCK 2POS SPST 4A 125V |
1,041 |
|
Datasheet |
JD | Tray | Active | SPST | 2 | Not Specified | 4A (AC) | 125 V | Off-On | - | Flat Key | - | 90° | - | Circular - 18.70mm Dia | Silver | - | Panel Mount | Dust Proof Shutter | - |
-10 SERIES.jpg)
|
A22RK-2ML-10SWITCH KEYLCK 2POS SPST 10A 120V |
4,519 |
|
Datasheet |
A22RK | Bulk | Obsolete | SPST-NO | 2 | Not Specified | 10A (AC) | 120 V | Off-On | - | Flat Key | Left | 90° | - | Circular - 22.30mm Dia | - | Screw Terminal | Panel Mount | IP65 | -20°C ~ 60°C |
