Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Switch Function | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Panel Cutout Dimensions | Contact Finish | Termination Style | Mounting Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
71L30-01-3-02SSWITCH KEY 2POS 3PDT 250MA 115V |
3,950 |
|
Datasheet |
71L | Bulk | Active | 3PDT | 2 | Shorting (MBB) | 250mA (AC/DC) | 115 V | On-On | 30 V | Flat Key | 1 and 180° | 30° | Silver Alloy | Circular - 19.05mm Dia | - | Solder Lug | Panel Mount | - | - |
|
|
56L30-01-4-02SSWITCH KEY 2POS 4PDT 200MA 115V |
4,299 |
|
Datasheet |
56 | Bulk | Active | 4PDT | 2 | Shorting (MBB) | 200mA (AC/DC) | 115 V | On-On | 30 V | - | - | 30° | Brass | - | Silver | Solder Lug | Panel Mount | - | - |
|
|
56L36-01-1-10N-CSWITCH KEY 10P SP10T 200MA 115V |
4,647 |
|
Datasheet |
56 | Bulk | Active | SP10T | 10 | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | - | 30 V | - | - | 36° | Brass | - | Silver | Solder Lug | Panel Mount | - | - |
|
|
MRK1012C-ZSWITCH KEYLK 2POS SPDT 0.4VA 20V |
1,338 |
|
Datasheet |
MRK | Bulk | Obsolete | SPDT | 2 | Not Specified | 0.4VA (AC/DC) | 20 V | On-On | 20 V | Flat Key | Right | 90° | - | - | Gold | PC Pin | Through Hole | - | -20°C ~ 70°C |
|
SG-D1-2A11SWITCH KEYLCK 2POS DPST 10A 110V |
3,748 |
|
Datasheet |
SG-D1 | Bulk | Obsolete | DPST-NO/NC | 2 | Not Specified | 10A (AC), 8A (DC) | 110 V | On-Off, Off-On | 24 V | Flat Key | All | 90° | - | Circular - 22.30mm Dia | - | Screw Terminal | Panel Mount | IP65 | -25°C ~ 60°C |
|
SG-D1-2B11SWITCH KEYLCK 2POS DPST 10A 110V |
1,728 |
|
Datasheet |
SG-D1 | Bulk | Obsolete | DPST-NO/NC | 2 | Not Specified | 10A (AC), 8A (DC) | 110 V | On-Off, Off-On | 24 V | Flat Key | 1 only | 90° | - | Circular - 22.30mm Dia | - | Screw Terminal | Panel Mount | IP65 | -25°C ~ 60°C |
|

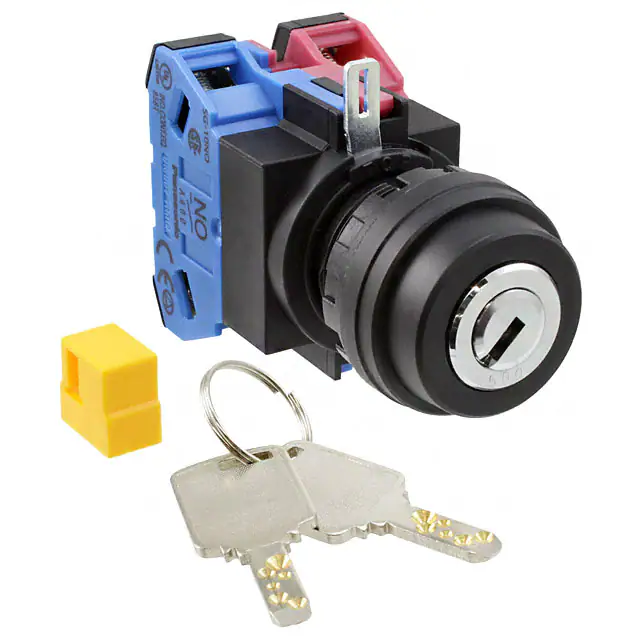

SG-D1-2C11SWITCH KEYLCK 2POS DPST 10A 110V |
4,394 |
|
Datasheet |
SG-D1 | Bulk | Obsolete | DPST-NO/NC | 2 | Not Specified | 10A (AC), 8A (DC) | 110 V | On-Off, Off-On | 24 V | Flat Key | 2 only | 90° | - | Circular - 22.30mm Dia | - | Screw Terminal | Panel Mount | IP65 | -25°C ~ 60°C |
|
SG-D1-2C22SWITCH KEYLCK 2POS 4PST 10A 110V |
3,789 |
|
Datasheet |
SG-D1 | Bulk | Obsolete | 4PST-2NO/2NC | 2 | Not Specified | 10A (AC), 8A (DC) | 110 V | On-Off, Off-On | 24 V | Flat Key | 2 only | 90° | - | Circular - 22.30mm Dia | - | Screw Terminal | Panel Mount | IP65 | -25°C ~ 60°C |
|
|
RK-1SWITCH KEYLOCK |
4,761 |
|
Datasheet |
- | Bulk | Obsolete | - | - | Not Specified | - | - | - | - | Flat Key | - | - | - | - | - | Screw Terminal | Panel Mount | - | - |
|
|
RKS11XSWITCH KEYLOCK |
3,441 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RKS11DSWITCH KEYLOCK |
1,923 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RKS11KSWITCH KEYLOCK |
2,294 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RKS10ESWITCH KEYLOCK |
4,698 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RKS10LSWITCH KEYLOCK |
3,609 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RKS12BSWITCH KEYLOCK |
2,954 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RKS12GSWITCH KEYLOCK |
2,942 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RKS10HSWITCH KEYLOCK |
4,848 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RKS10KSWITCH KEYLOCK |
2,417 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KO130NA126WIRELEADSWITCH KEYLOCK 4A |
4,539 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
KO104AWIREASSYSWITCH KEYLOCK ASSEMBLY |
2,446 |
|
Datasheet |
KO | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
