Keypad Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Switch Type | Number of Keys | Illumination | Legend Type | Key Type | Matrix (Columns x Rows) | Output Type | Legend | Legend Color | Key Color | Mounting Style | Ingress Protection | Termination Style | Operating Temperature | Panel Cutout Dimensions | Illumination Voltage (Nominal) | Contact Rating @ Voltage | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

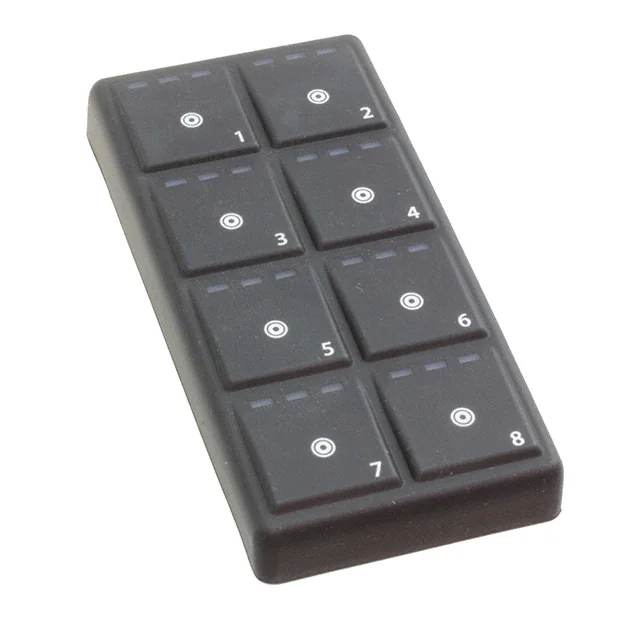

3K208-4RC3AGSWITCH KEYPAD 8KEY ILLUM |
1,863 |
|
Datasheet |
3K | Bulk | Active | Snap Dome | 8 | Illuminated | Fixed | Rubber Overlay | 2 x 4 | CAN Bus (J1939) | Targets | White | Black | Panel Mount, Front | IP67 - Dust Tight, Waterproof | Connector | -40°C ~ 85°C | Circular - 40.64mm Dia | - | - | - |
|

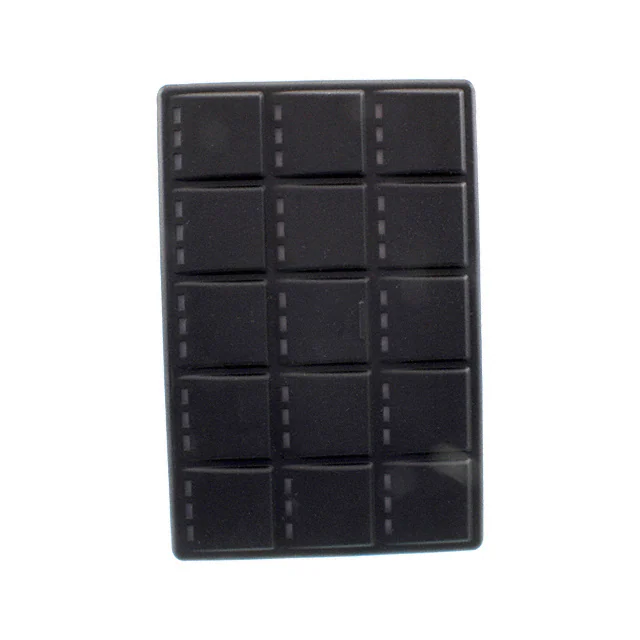

3K015-3RN3AGSWITCH KEYPAD 15KEY ILLUM |
145 |
|
Datasheet |
3K | Bulk | Active | Snap Dome | 15 | Illuminated | Fixed | Rubber Overlay | 5 x 3 | CAN Bus (CANopen) | Blank Buttons | - | Black | Panel Mount, Front | IP67 - Dust Tight, Waterproof | Connector | -40°C ~ 85°C | Circular - 57.15mm Dia | - | - | - |
|
419SWITCH KEYPAD 12KEY NON-ILLUM |
169 |
|
Datasheet |
- | Bulk | Active | Membrane (Snap Dome) | 12 | Non-Illuminated | Fixed | Polyester Overlay | 3 x 4 | Matrix | Telephone Format | White | Blue, Red | Panel Mount, Front | - | Cable with Connector | - | - | - | - | - |
|

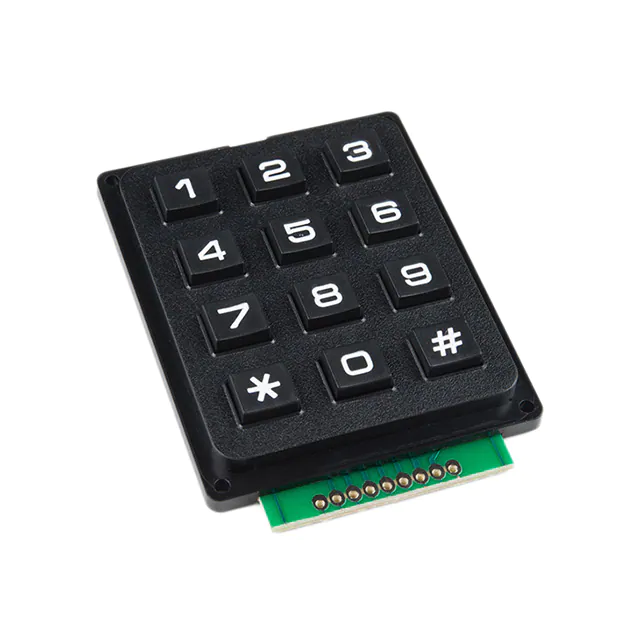

COM-14662SWITCH KEYPAD 12KEY NON-ILLUM |
167 |
|
Datasheet |
- | Bulk | Active | Conductive Rubber | 12 | Non-Illuminated | Fixed | Polymer | 3 x 4 | Matrix | Telephone Format | White | Black | Panel Mount, Front | - | Card Edge/Solder Pad | - | - | - | - | - |
|
|
3844SWITCH KEYPAD 16KEY NON-ILLUM |
178 |
|
Datasheet |
- | Bulk | Active | Conductive Rubber | 16 | Non-Illuminated | Fixed | Polymer | 4 x 4 | Matrix | Telephone Format, A ~ D | White | Black | Panel Mount, Rear | - | Card Edge/Solder Pad | - | - | - | - | - |
|
87FC3-201SWITCH KEYPAD 4KEY 0.01A 24V |
488 |
|
Datasheet |
87 | Tube | Active | Snap Dome | 4 | Non-Illuminated | Interchangeable | Transparent Key Cap | 4 x 1 | Independent Switches (SPST) | Customizable (Sold Separate) | - | White | Through Hole | - | PC Pin | -40°C ~ 80°C | - | - | 0.01A @ 24VDC | - |
|
3K041103SWITCH KEYPAD 4KEY 0.05A 24V |
314 |
|
Datasheet |
3000 | Bulk | Active | Conductive Rubber | 4 | Non-Illuminated | Fixed | Polymer | 1 x 4 | Matrix | Arrows | Gray | Translucent | Panel Mount, Front or Rear | IP54 - Dust Protected, Water Resistant | Pin Header | -10°C ~ 85°C | Rectangular - 82.50mm x 25.50mm | - | 0.05A @ 24VDC | - |
|
FMBN04BDSWITCH KEYPAD 4KEY 0.02A 24V |
127 |
|
Datasheet |
FM | Box | Active | Membrane (Snap Dome) | 4 | Non-Illuminated | Interchangeable | Polyester Overlay | 1 x 4 | Matrix | Customizable (Included) | - | Transparent | Panel Mount, Front | - | Cable with Connector | -15°C ~ 55°C | - | - | 0.02A @ 24VDC | - |
|

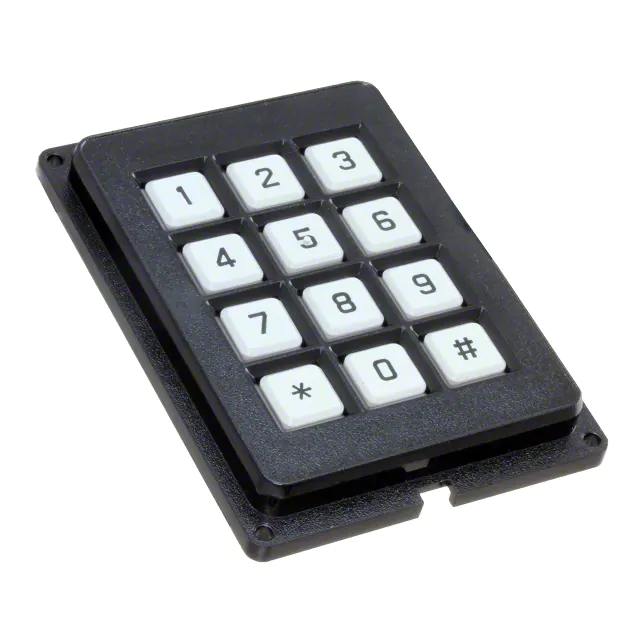

86AB2-102SWITCH KEYPAD 12KEY 0.01A 24V |
4,261 |
|
Datasheet |
86 | Bulk | Active | Snap Dome | 12 | Non-Illuminated | Fixed | Polymer | 3 x 4 | Matrix | Telephone Format | Black | White | Panel Mount, Front or Rear | IP40 | Pin Header | -40°C ~ 80°C | - | - | 0.01A @ 24VDC | - |
|
88BB2-072SWITCH KEYPAD 16KEY 0.01A 24V |
262 |
|
Datasheet |
88 | Bulk | Active | Snap Dome | 16 | Non-Illuminated | Fixed | Polyester Overlay | 4 x 4 | Matrix | 0 ~ 9, A ~ F | White | Blue | Panel Mount, Front or Rear | IP42 | Pin Header | -40°C ~ 80°C | - | - | 0.01A @ 24VDC | - |
|

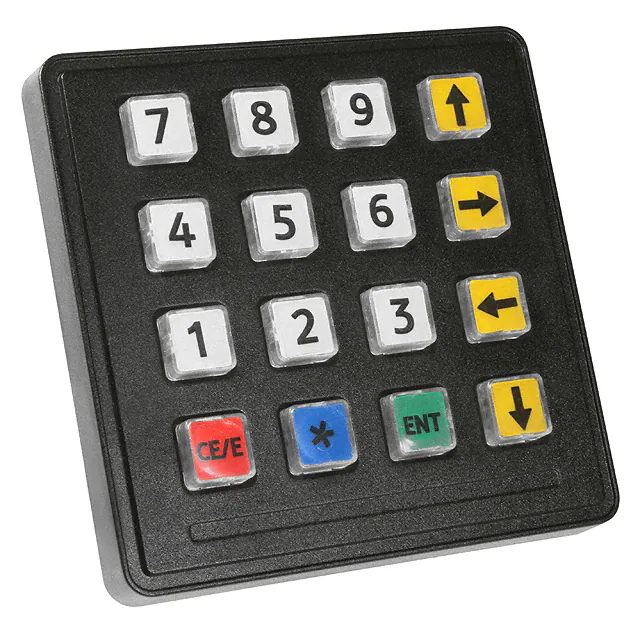

7207-1610203SWITCH KEYPAD 16KEY 0.05A 24V |
4,553 |
|
Datasheet |
720 GFX | Bulk | Active | Conductive Rubber | 16 | Non-Illuminated | Interchangeable | Transparent Key Cap | 4 x 4 | Matrix | Customizable (Included) | Black | Multiple | Panel Mount, Front or Rear | IP65 - Dust Tight, Water Resistant | Pin Header | -20°C ~ 60°C | - | - | 0.05A @ 24VDC | - |
|

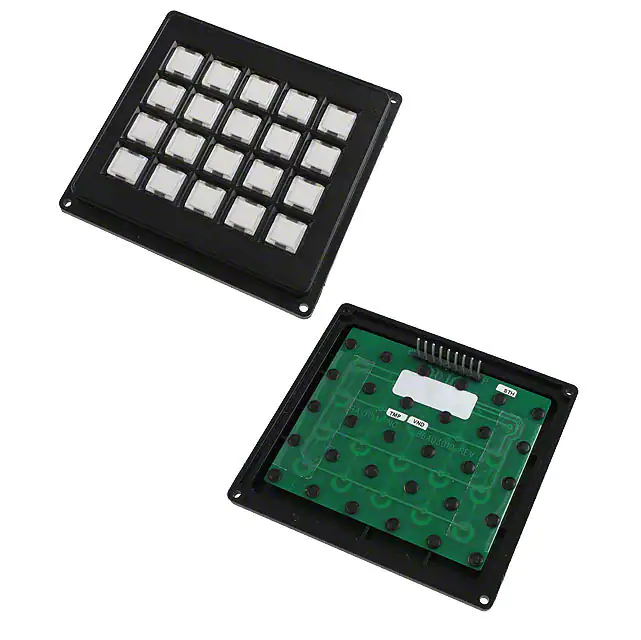

86JB2-201SWITCH KEYPAD 20KEY 0.01A 24V |
232 |
|
Datasheet |
86 | Bulk | Active | Snap Dome | 20 | Non-Illuminated | Interchangeable | Transparent Key Cap | 5 x 4 | Matrix | Customizable (Sold Separate) | - | White | Panel Mount, Front or Rear | IP40 | Pin Header | -40°C ~ 80°C | - | - | 0.01A @ 24VDC | - |
|

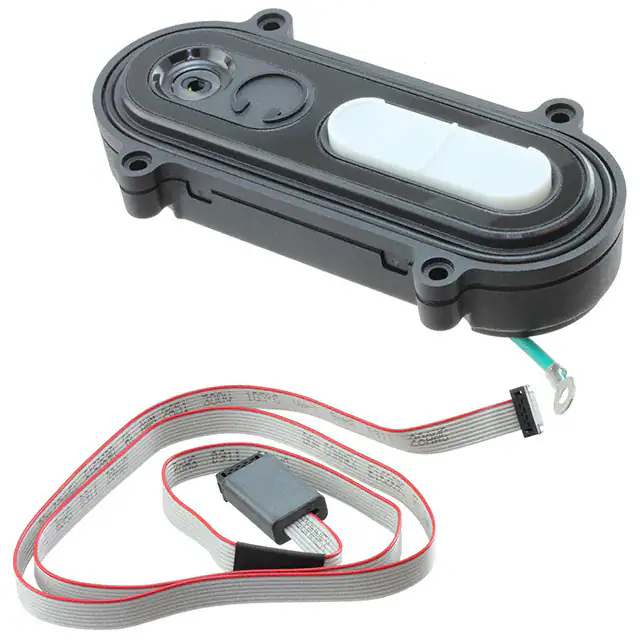

EZB2-505H03SWITCH KEYPAD 2KEY ILLUM |
3,100 |
|
Datasheet |
Nav-Bar™ | Bulk | Active | Conductive Rubber | 2 | Illuminated | - | Polymer | 2 x 1 | - | - | - | White | Panel Mount, Front | IP65 - Dust Tight, Water Resistant | Cable with Connector | -20°C ~ 70°C | - | - | - | - |
|

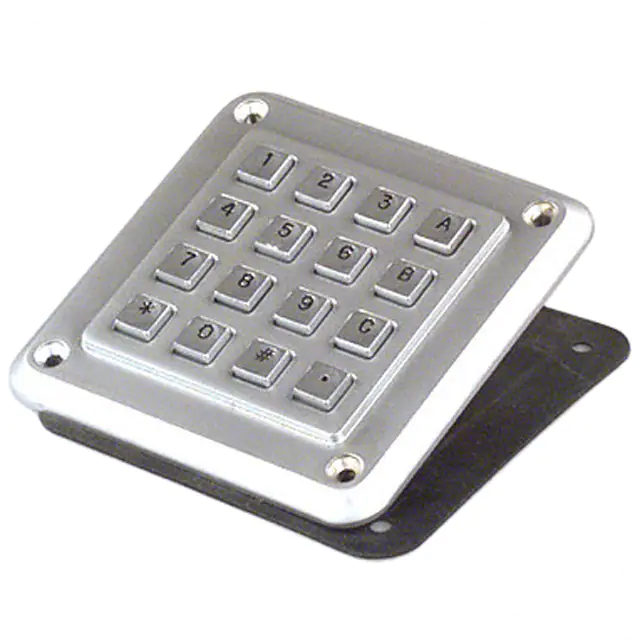

1K16T103SWITCH KEYPAD 16KEY 0.05A 24V |
3,249 |
|
Datasheet |
1000 | Bulk | Active | Conductive Rubber | 16 | Non-Illuminated | Fixed | Metal | 4 x 4 | Matrix | Telephone Format, A ~ C | Black | Silver | Panel Mount, Front or Rear | IP65 - Dust Tight, Water Resistant | Pin Header | -40°C ~ 100°C | Square - 83.00mm² | - | 0.05A @ 24VDC | Anti-Vandal |
|
FT2K0803SWITCH KEYPAD 20KEY 0.05A 24V |
1,982 |
|
Datasheet |
5000 | Bulk | Active | Conductive Rubber | 20 | Illuminated | Fixed | Polymer | 4 x 5 | Matrix | Telephone Format, Function Keys | Black, White | Multiple | Panel Mount, Rear | IP65 - Dust Tight, Water Resistant | Pin Header | -20°C ~ 60°C | Rectangular - 169.00mm x 111.00mm | - | 0.05A @ 24VDC | Display |
|
|
3K015-3RC3AGSWITCH KEYPAD 15KEY ILLUM |
107 |
|
Datasheet |
3K | Bulk | Active | Snap Dome | 15 | Illuminated | Fixed | Rubber Overlay | 5 x 3 | CAN Bus (J1939) | Blank Buttons | - | Black | Panel Mount, Front | IP67 - Dust Tight, Waterproof | Connector | -40°C ~ 85°C | Circular - 57.15mm Dia | - | - | - |
|
3K020-4RC3AGSWITCH KEYPAD 20KEY ILLUM |
113 |
|
Datasheet |
3K | Bulk | Active | Snap Dome | 20 | Illuminated | Fixed | Rubber Overlay | 5 x 4 | CAN Bus (J1939) | Blank Buttons | - | Black | Panel Mount, Front | IP67 - Dust Tight, Waterproof | Connector | -40°C ~ 85°C | Circular - 57.15mm Dia | - | - | - |
|
82-101-71SWITCH KEYPAD 1KEY 0.1A 5V |
1,544 |
|
Datasheet |
82 | Bulk | Active | Keyswitch | 1 | Non-Illuminated | Interchangeable | Transparent Key Cap | 1 x 1 | Independent Switches (SPST) | Customizable (Sold Separate) | - | Gray | Through Hole | - | PC Pin | -40°C ~ 80°C | - | - | 0.1A @ 5VDC | - |
|
|
YFT KNI 2BI1 19MEMBRANE KEYPAD |
238 |
|
Datasheet |
YFT KNI | Bulk | Active | Membrane (Snap Dome) | 2 | Non-Illuminated | Fixed | Polyester Overlay | 2 x 1 | - | - | - | Clear | Adhesive | - | Cable with Connector | - | - | - | - | - |
|
|
YFT KNI 4BI1 19MEMBRANE KEYPAD |
149 |
|
Datasheet |
YFT KNI | Bulk | Active | Membrane (Snap Dome) | 4 | Non-Illuminated | Fixed | Polyester Overlay | 4 x 1 | - | - | - | Clear | Adhesive | - | Cable with Connector | - | - | - | - | - |
