Keypad Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Switch Type | Number of Keys | Illumination | Legend Type | Key Type | Matrix (Columns x Rows) | Output Type | Legend | Legend Color | Key Color | Mounting Style | Ingress Protection | Termination Style | Operating Temperature | Panel Cutout Dimensions | Illumination Voltage (Nominal) | Contact Rating @ Voltage | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
27899SWITCH KEYPAD 16KEY NON-ILLUM |
2,863 |
|
Datasheet |
- | Bulk | Active | Membrane (Snap Dome) | 16 | Non-Illuminated | Fixed | Polyester Overlay | 4 x 4 | Matrix | Telephone Format, A ~ D | White | Blue, Red | Panel Mount, Front | - | Cable with Connector | - | - | - | - | - |
|
87CC3-201SWITCH KEYPAD 1KEY 0.01A 24V |
1,569 |
|
Datasheet |
87 | Tube | Active | Snap Dome | 1 | Non-Illuminated | Interchangeable | Transparent Key Cap | 1 x 1 | Independent Switches (SPST) | Customizable (Sold Separate) | - | White | Through Hole | - | PC Pin | -40°C ~ 80°C | - | - | 0.01A @ 24VDC | - |
|
70040103SWITCH KEYPAD 4KEY 0.05A 24V |
4,310 |
|
Datasheet |
700 | Bulk | Active | Conductive Rubber | 4 | Non-Illuminated | Interchangeable | Rubber Overlay | 1 x 4 | Matrix | Customizable (Included) | White | Gray | Panel Mount, Front or Rear | IP67 - Dust Tight, Waterproof | Pin Header | -55°C ~ 125°C | - | - | 0.05A @ 24VDC | Gray Housing |
|

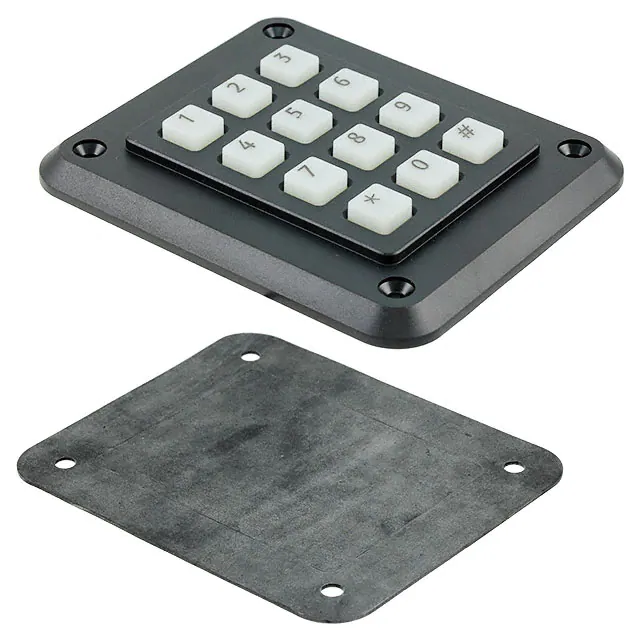

3K12T103SWITCH KEYPAD 12KEY 0.05A 24V |
2,063 |
|
Datasheet |
3000 | Bulk | Active | Conductive Rubber | 12 | Non-Illuminated | Fixed | Polymer | 3 x 4 | Matrix | Telephone Format | Gray | Translucent | Panel Mount, Front or Rear | IP54 - Dust Protected, Water Resistant | Pin Header | -10°C ~ 85°C | Rectangular - 83.00mm x 64.00mm | - | 0.05A @ 24VDC | - |
|

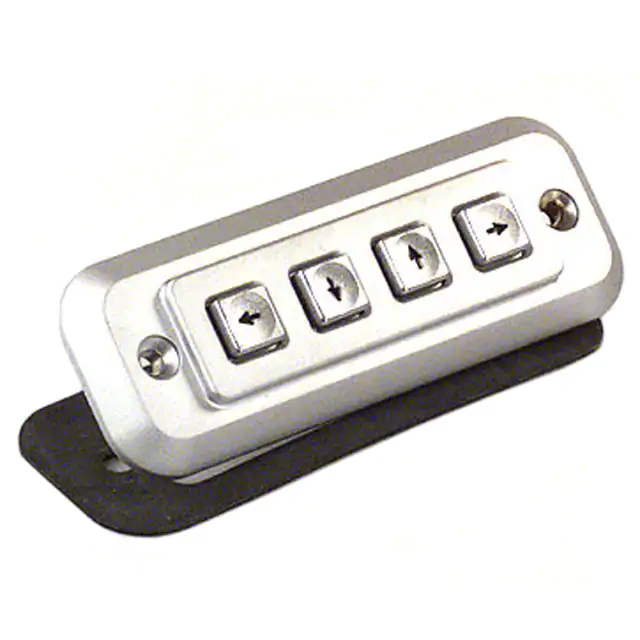

1K041103SWITCH KEYPAD 4KEY 0.05A 24V |
2,070 |
|
Datasheet |
1000 | Bulk | Active | Conductive Rubber | 4 | Non-Illuminated | Fixed | Metal | 1 x 4 | Matrix | Arrows | Black | Silver | Panel Mount, Front or Rear | IP65 - Dust Tight, Water Resistant | Pin Header | -40°C ~ 100°C | Rectangular - 82.50mm x 25.50mm | - | 0.05A @ 24VDC | Anti-Vandal |
|

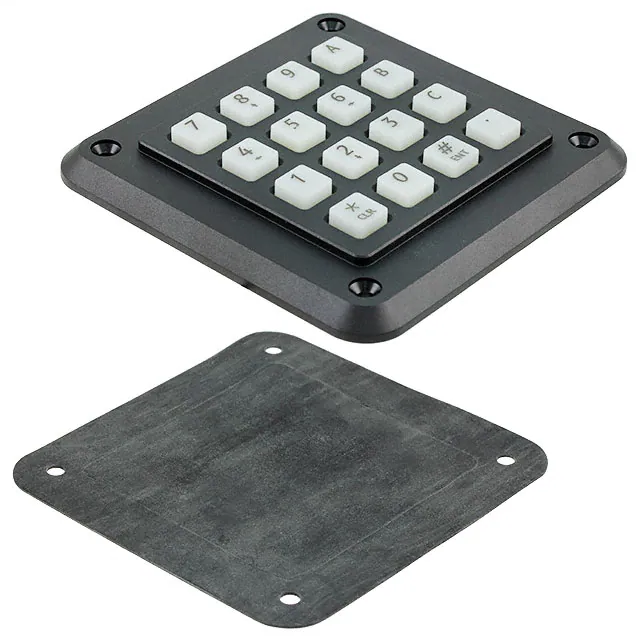

2K160103SWITCH KEYPAD 16KEY 0.05A 24V |
3,290 |
|
Datasheet |
2000 | Bulk | Active | Conductive Rubber | 16 | Non-Illuminated | Fixed | Polymer | 4 x 4 | Matrix | Calculator Format, A ~ C | Gray | Translucent | Panel Mount, Front or Rear | IP65 - Dust Tight, Water Resistant | Pin Header | -25°C ~ 85°C | Square - 83.00mm² | - | 0.05A @ 24VDC | Anti-Vandal |
|

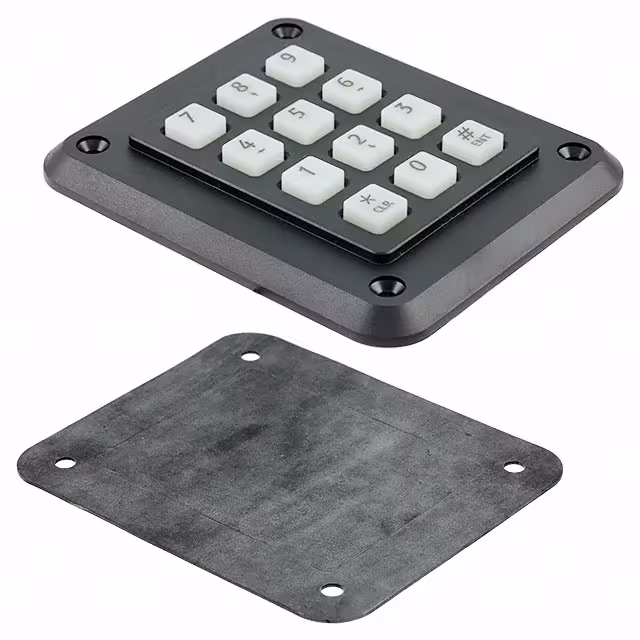

2K120103SWITCH KEYPAD 12KEY 0.05A 24V |
4,730 |
|
Datasheet |
2000 | Bulk | Active | Conductive Rubber | 12 | Non-Illuminated | Fixed | Polymer | 3 x 4 | Matrix | Calculator Format | Gray | Translucent | Panel Mount, Front or Rear | IP65 - Dust Tight, Water Resistant | Pin Header | -25°C ~ 85°C | Rectangular - 83.00mm x 64.00mm | - | 0.05A @ 24VDC | Anti-Vandal |
|

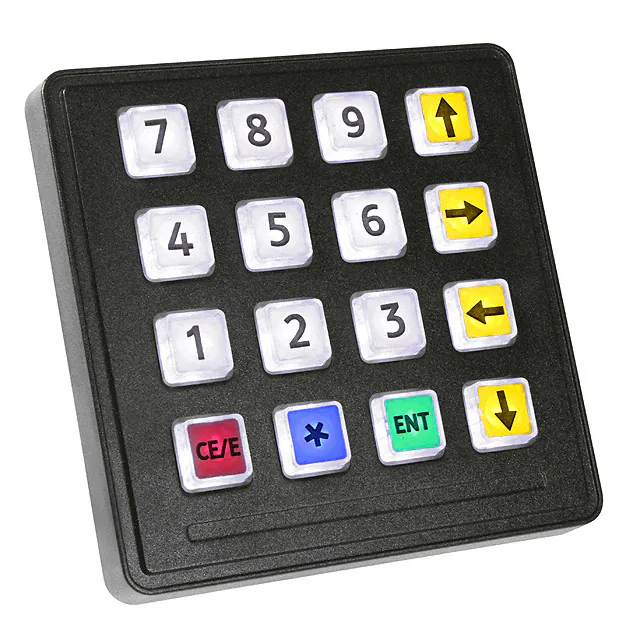

7207-161W203SWITCH KEYPAD 16KEY 0.05A 24V |
4,159 |
|
Datasheet |
720 GFX-i | Bulk | Active | Conductive Rubber | 16 | Illuminated - White | Interchangeable | Transparent Key Cap | 4 x 4 | Matrix | Customizable (Included) | Black | Multiple | Panel Mount, Front or Rear | IP65 - Dust Tight, Water Resistant | Pin Header | -20°C ~ 60°C | - | 5 VDC | 0.05A @ 24VDC | - |
|
84LS-AB2-112-NSWITCH KEYPAD 12KEY 0.01A 24V |
4,479 |
|
Datasheet |
84LS | Bulk | Active | Snap Dome | 12 | Non-Illuminated | Fixed | Rubber Overlay | 3 x 4 | Matrix | Telephone Format | White | Black | Panel Mount, Front | IP67 - Dust Tight, Waterproof | Pin Header | -55°C ~ 85°C | - | - | 0.01A @ 24VDC | Shielded |
|

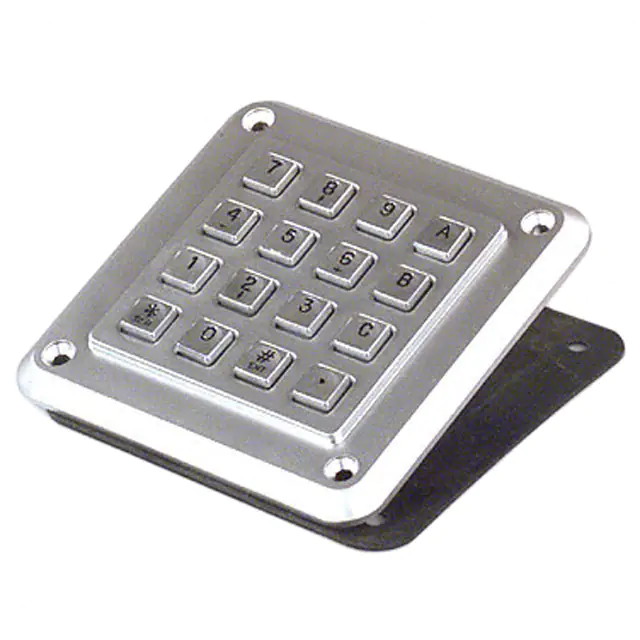

1K160103SWITCH KEYPAD 16KEY 0.05A 24V |
3,350 |
|
Datasheet |
1000 | Bulk | Active | Conductive Rubber | 16 | Non-Illuminated | Fixed | Metal | 4 x 4 | Matrix | Calculator Format, A ~ C | Black | Silver | Panel Mount, Front or Rear | IP65 - Dust Tight, Water Resistant | Pin Header | -40°C ~ 100°C | Square - 83.00mm² | - | 0.05A @ 24VDC | Anti-Vandal |
|

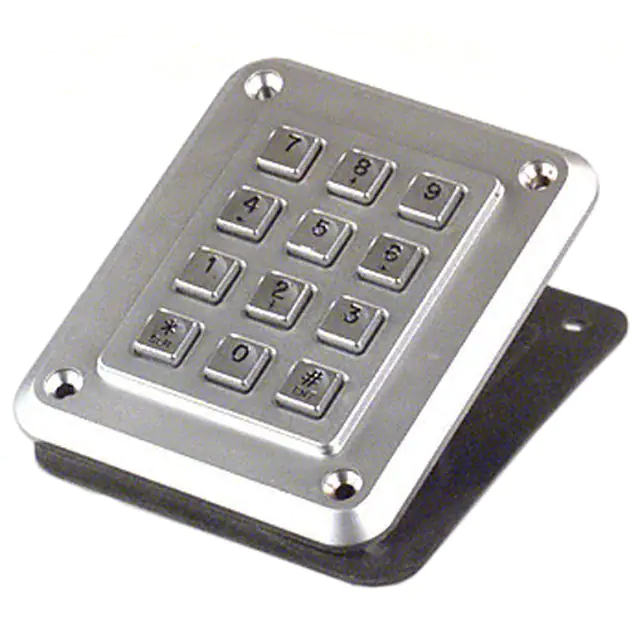

1K120103SWITCH KEYPAD 12KEY 0.05A 24V |
1,576 |
|
Datasheet |
1000 | Bulk | Active | Conductive Rubber | 12 | Non-Illuminated | Fixed | Metal | 3 x 4 | Matrix | Calculator Format | Black | Silver | Panel Mount, Front or Rear | IP65 - Dust Tight, Water Resistant | Pin Header | -40°C ~ 100°C | Rectangular - 83.00mm x 64.00mm | - | 0.05A @ 24VDC | Anti-Vandal |
|
EZB6-530003SWITCH KEYPAD 6KEY ILLUM |
1,338 |
|
Datasheet |
Nav-Bar™ | Bulk | Active | Conductive Rubber | 6 | Illuminated | Fixed | Polymer | 6 x 1 | USB | Arrows, Help Button, Select | Black | Multiple | Panel Mount, Front | IP65 - Dust Tight, Water Resistant | USB Socket | -20°C ~ 70°C | - | - | - | Audio Enabled |
|
EZ08-23001SWITCH KEYPAD 8KEY NON-ILLUM |
3,662 |
|
Datasheet |
NAV-Pad™ | Bulk | Active | Conductive Rubber | 8 | Non-Illuminated | Fixed | Polymer | - | USB | Arrows, Help Button | Black, White | Multiple | Panel Mount, Front or Rear | IP65 - Dust Tight, Water Resistant | USB Socket | -20°C ~ 60°C | Rectangular - 109.50mm x 95.50mm | - | - | Audio Enabled |
|
3K208-G2-2RC3AWSWITCH KEYPAD 8KEY ILLUM |
1,262 |
|
Datasheet |
3K | Bulk | Active | Snap Dome | 8 | Illuminated | Fixed | Rubber Overlay | 4 x 2 | CAN Bus (J1939) | Targets | White | Black | Panel Mount, Front | IP6K7/IP69K - Dust Tight, Water Resistant, Waterproof | Connector | -40°C ~ 85°C | Circular - 40.64mm Dia | - | - | - |
|
|
3K208-G2-4RC3AWSWITCH KEYPAD 8KEY ILLUM |
2,377 |
|
Datasheet |
3K | Bulk | Active | Snap Dome | 8 | Illuminated | Fixed | Rubber Overlay | 2 x 4 | CAN Bus (J1939) | Targets | White | Black | Panel Mount, Front | IP6K7/IP69K - Dust Tight, Water Resistant, Waterproof | Connector | -40°C ~ 85°C | Circular - 40.64mm Dia | - | - | - |
|
|
3K015-G2-3RC3AWSWITCH KEYPAD 15KEY ILLUM |
1,879 |
|
Datasheet |
3K | Bulk | Active | Snap Dome | 15 | Illuminated | Fixed | Rubber Overlay | 5 x 3 | CAN Bus (J1939) | Blank Buttons | Black | Black | Panel Mount, Front | IP6K7/IP69K - Dust Tight, Water Resistant, Waterproof | Connector | -40°C ~ 85°C | Circular - 57.15mm Dia | - | - | - |
|
82-150-38SWITCH KEYPAD 1KEY ILLUM 0.1A 5V |
2,513 |
|
Datasheet |
82 | Bulk | Active | Keyswitch | 1 | Illuminated - Light Source Not Included | Interchangeable | Transparent Key Cap | 1 x 1 | Independent Switches (SPST) | Customizable (Sold Separate) | - | Gray | Through Hole | - | PC Pin | -40°C ~ 80°C | - | - | 0.1A @ 5VDC | - |
|
87EC3-201SWITCH KEYPAD 3KEY 0.01A 24V |
2,519 |
|
Datasheet |
87 | Tube | Active | Snap Dome | 3 | Non-Illuminated | Interchangeable | Transparent Key Cap | 3 x 1 | Independent Switches (SPST) | Customizable (Sold Separate) | - | White | Through Hole | - | PC Pin | -40°C ~ 80°C | - | - | 0.01A @ 24VDC | - |
|
96AB2-152-RSWITCH KEYPAD 12KEY 0.005A 12V |
1,864 |
|
Datasheet |
96 | Bulk | Active | Conductive Rubber | 12 | Non-Illuminated | Fixed | Polymer | 3 x 4 | Matrix | Telephone Format | White | Black | Panel Mount, Rear | IP40 | Pin Header | -30°C ~ 80°C | Rectangular - 68.58mm x 50.80mm | - | 0.005A @ 12VDC | - |
|
86BB2-001SWITCH KEYPAD 16KEY 0.01A 24V |
3,532 |
|
Datasheet |
86 | Bulk | Active | Snap Dome | 16 | Non-Illuminated | Interchangeable | Transparent Key Cap | 4 x 4 | Matrix | Customizable (Sold Separate) | - | White | Panel Mount, Front or Rear | IP40 | Pin Header | -40°C ~ 80°C | - | - | 0.01A @ 24VDC | - |
