Keypad Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Switch Type | Number of Keys | Illumination | Legend Type | Key Type | Matrix (Columns x Rows) | Output Type | Legend | Legend Color | Key Color | Mounting Style | Ingress Protection | Termination Style | Operating Temperature | Panel Cutout Dimensions | Illumination Voltage (Nominal) | Contact Rating @ Voltage | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EZB6-430023SWITCH KEYPAD 6KEY ILLUM |
1,935 |
|
Datasheet |
Nav-Bar™ | Bulk | Active | Conductive Rubber | 6 | Illuminated | Fixed | Polymer | 6 x 1 | USB | Arrows, Help Button, Select | Black | Multiple | Panel Mount, Rear | IP65 - Dust Tight, Water Resistant | USB Socket | -20°C ~ 70°C | - | - | - | Audio Enabled |
|

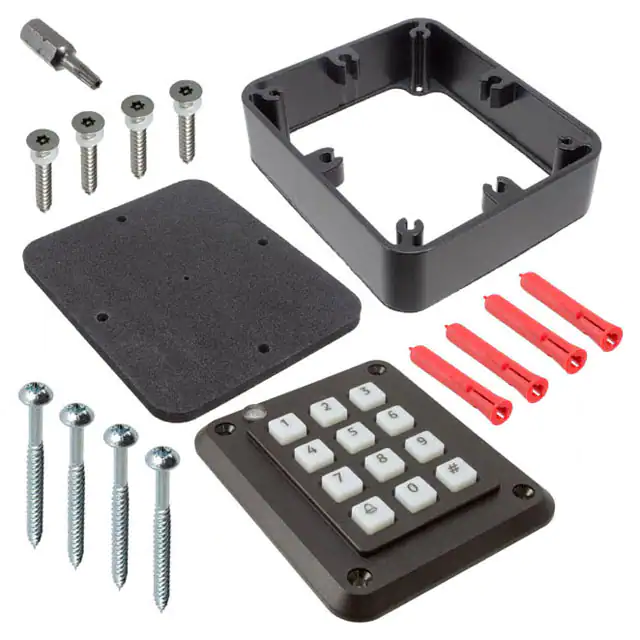

DE2KT103SWITCH KEYPAD 12KEY NON-ILLUM |
3,242 |
|
Datasheet |
AXS | Bulk | Active | Conductive Rubber | 12 | Non-Illuminated | Fixed | Polymer | 3 x 4 | Non-Standard (Controller Included) | Telephone Format | Gray | White | Panel Mount, Front | IP65 - Dust Tight, Water Resistant | Screw Terminal | -20°C ~ 70°C | - | - | - | - |
|
09-0075.3142SWITCH KEYPAD 6KEY 0.03A 32V |
2,345 |
|
Datasheet |
09 | Tray | Active | Snap Dome | 6 | Illuminated - White | Fixed | - | 3 x 2 | Matrix | - | White | Black | Panel Mount, Front | IP67 - Dust Tight, Waterproof | Cable with Connector | -40°C ~ 85°C | Rectangular - 107.10mm x 68.80mm | - | 0.03A @ 32VDC | - |
|
|
09-0075.3132SWITCH KEYPAD 6KEY 0.03A 32V |
1,513 |
|
Datasheet |
09 | Tray | Active | Snap Dome | 6 | Illuminated - White | Fixed | - | 3 x 2 | Matrix | - | White | Black | Panel Mount, Front | IP67 - Dust Tight, Waterproof | Cable with Connector | -40°C ~ 85°C | Rectangular - 107.10mm x 68.80mm | - | 0.03A @ 32VDC | - |
|
|
3K008-G2-4RC3AWSWITCH KEYPAD 8KEY ILLUM |
4,148 |
|
Datasheet |
3K | Bulk | Active | Snap Dome | 8 | Illuminated | Fixed | Rubber Overlay | 2 x 4 | CAN Bus (J1939) | Blank Buttons | Black | Black | Panel Mount, Front | IP6K7/IP69K - Dust Tight, Water Resistant, Waterproof | Connector | -40°C ~ 85°C | Circular - 40.64mm Dia | - | - | - |
|
|
3K012-G2-4RC3AWSWITCH KEYPAD 12KEY ILLUM |
4,201 |
|
Datasheet |
3K | Bulk | Active | Snap Dome | 12 | Illuminated | Fixed | Rubber Overlay | 3 x 4 | CAN Bus (J1939) | Blank Buttons | Black | Black | Panel Mount, Front | IP6K7/IP69K - Dust Tight, Water Resistant, Waterproof | Connector | -40°C ~ 85°C | Circular - 46.99mm Dia | - | - | - |
|
|
3K206-G2-2RC3AWSWITCH KEYPAD 6KEY ILLUM |
2,821 |
|
Datasheet |
3K | Bulk | Active | Snap Dome | 6 | Illuminated | Fixed | Rubber Overlay | 3 x 2 | CAN Bus (J1939) | Targets | White | Black | Panel Mount, Front | IP6K7/IP69K - Dust Tight, Water Resistant, Waterproof | Connector | -40°C ~ 85°C | - | - | - | - |
|
|
3K006-G2-2RC3AWSWITCH KEYPAD 6KEY ILLUM |
2,347 |
|
Datasheet |
3K | Bulk | Active | Snap Dome | 6 | Illuminated | Fixed | Rubber Overlay | 3 x 2 | CAN Bus (J1939) | Blank Buttons | Black | Black | Panel Mount, Front | IP6K7/IP69K - Dust Tight, Water Resistant, Waterproof | Connector | -40°C ~ 85°C | - | - | - | - |
|
|
09-0025.1112SWITCH KEYPAD 6KEY 0.03A 32V |
4,108 |
|
Datasheet |
09 | Tray | Active | Snap Dome | 6 | Illuminated - White | Fixed | - | 3 x 2 | Matrix | - | White | Black | Panel Mount, Front | IP67 - Dust Tight, Waterproof | Cable with Connector | -40°C ~ 85°C | Rectangular - 107.10mm x 68.80mm | - | 0.03A @ 32VDC | - |
|
|
09-0015.1112SWITCH KEYPAD 6KEY 0.03A 32V |
1,815 |
|
Datasheet |
09 | Tray | Active | Snap Dome | 6 | Illuminated - White | Fixed | - | 3 x 2 | Matrix | - | White | Black | Panel Mount, Front | IP67 - Dust Tight, Waterproof | Cable with Connector | -40°C ~ 85°C | Rectangular - 107.10mm x 68.80mm | - | 0.03A @ 32VDC | - |
|
|
3K208-G2-4RC3AGSWITCH KEYPAD 8KEY ILLUM |
4,762 |
|
Datasheet |
3K | Bulk | Active | Snap Dome | 8 | Illuminated | Fixed | Rubber Overlay | 2 x 4 | CAN Bus (J1939) | Targets | White | Black | Panel Mount, Front | IP6K7/IP69K - Dust Tight, Water Resistant, Waterproof | Connector | -40°C ~ 85°C | Circular - 40.64mm Dia | - | - | - |
|
|
09-0A72.3142SWITCH KEYPAD 6KEY 0.03A 32V |
3,753 |
|
Datasheet |
09 | Box | Active | Snap Dome | 6 | Illuminated - White | Fixed | - | 3 x 2 | Matrix | - | White | Black | Panel Mount, Front | IP67 - Dust Tight, Waterproof | Cable with Connector | -40°C ~ 85°C | Rectangular - 107.10mm x 68.80mm | - | 0.03A @ 32VDC | - |
|
|
09-0A72.3132SWITCH KEYPAD 6KEY 0.03A 32V |
4,317 |
|
Datasheet |
09 | Box | Active | Snap Dome | 6 | Illuminated - White | Fixed | - | 3 x 2 | Matrix | - | White | Black | Panel Mount, Front | IP67 - Dust Tight, Waterproof | Cable with Connector | -40°C ~ 85°C | Rectangular - 107.10mm x 68.80mm | - | 0.03A @ 32VDC | - |
|
|
09-0A12.1111SWITCH KEYPAD 6KEY 0.03A 32V |
1,329 |
|
Datasheet |
09 | Box | Active | Snap Dome | 6 | Illuminated - White | Fixed | - | 3 x 2 | Matrix | - | White | Black | Panel Mount, Front | IP67 - Dust Tight, Waterproof | Cable with Connector | -40°C ~ 85°C | Rectangular - 107.10mm x 68.80mm | - | 0.03A @ 32VDC | - |
|
|
09-0025.1111SWITCH KEYPAD 6KEY 0.03A 32V |
1,242 |
|
Datasheet |
09 | Tray | Active | Snap Dome | 6 | Illuminated - White | Fixed | - | 3 x 2 | Matrix | - | White | Black | Panel Mount, Front | IP67 - Dust Tight, Waterproof | Cable with Connector | -40°C ~ 85°C | Rectangular - 107.10mm x 68.80mm | - | 0.03A @ 32VDC | - |
|
|
82-150-17SWITCH KEYPAD 1KEY ILLUM 0.1A 5V |
4,279 |
|
Datasheet |
82 | Bulk | Active | Keyswitch | 1 | Illuminated - Light Source Not Included | Fixed | Polymer | 1 x 1 | Independent Switches (SPST) | No Legend | - | Gray | Through Hole | - | PC Pin | -40°C ~ 80°C | - | - | 0.1A @ 5VDC | - |
|
|
96AB2-152-RSSWITCH KEYPAD 12KEY 0.005A 12V |
2,944 |
|
Datasheet |
96 | Bulk | Obsolete | Conductive Rubber | 12 | Non-Illuminated | Fixed | Polymer | 3 x 4 | Matrix | Telephone Format | White | Black | Panel Mount, Rear | IP40 | Pin Header | -30°C ~ 80°C | Rectangular - 68.58mm x 50.80mm | - | 0.005A @ 12VDC | Shielded |
|
|
82-301-61SWITCH KEYPAD 3KEY 0.1A 5V |
3,482 |
|
Datasheet |
82 | Bulk | Active | Keyswitch | 3 | Non-Illuminated | Interchangeable | Transparent Key Cap | 3 x 1 | Independent Switches (SPST) | Customizable (Sold Separate) | - | Gray | Through Hole | - | PC Pin | -40°C ~ 80°C | - | - | 0.1A @ 5VDC | - |
|
|
87HC3-201SWITCH KEYPAD 6KEY 0.01A 24V |
2,664 |
|
Datasheet |
87 | Bulk | Active | Snap Dome | 6 | Non-Illuminated | Interchangeable | Transparent Key Cap | 6 x 1 | Independent Switches (SPST) | Customizable (Sold Separate) | - | White | Through Hole | - | PC Pin | -40°C ~ 80°C | - | - | 0.01A @ 24VDC | - |
|
|
82-601-85SWITCH KEYPAD 6KEY 0.1A 5V |
3,490 |
|
Datasheet |
82 | Bulk | Active | Keyswitch | 6 | Non-Illuminated | Fixed | Polymer | 3 x 2 | Independent Switches (SPST) | Telephone Format | White | Gray | Through Hole | - | PC Pin | -40°C ~ 80°C | - | - | 0.1A @ 5VDC | - |
