Result

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
AH14649 SWITCH SNAP ACTION SPDT 3A 125V Panasonic Electric Works	1,673	-	RFQ Sell Excess Inventory	Datasheet	AH1	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Simulated Roller	3A (AC), 2A (DC)	Through Hole	PC Pin	IP40	-	55gf	0.020" (0.5mm)	4.000gf	0.083" (2.1mm)	0.374" (9.5mm)	0.020" (0.5mm)	-25°C ~ 85°C
AH15829 SWITCH SNAP ACTION SPDT 1A 125V Panasonic Electric Works	4,105	-	RFQ Sell Excess Inventory	Datasheet	AH1	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	1A (AC/DC)	Through Hole	PC Pin	IP40	-	25gf	0.020" (0.5mm)	2.500gf	0.083" (2.1mm)	0.268" (6.80mm)	0.022" (0.55mm)	-25°C ~ 85°C
AH15849 SWITCH SNAP ACTION SPDT 1A 125V Panasonic Electric Works	2,507	-	RFQ Sell Excess Inventory	Datasheet	AH1	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Simulated Roller	1A (AC/DC)	Through Hole	PC Pin	IP40	-	26gf	0.020" (0.5mm)	2.000gf	0.083" (2.1mm)	0.374" (9.5mm)	0.020" (0.5mm)	-25°C ~ 85°C

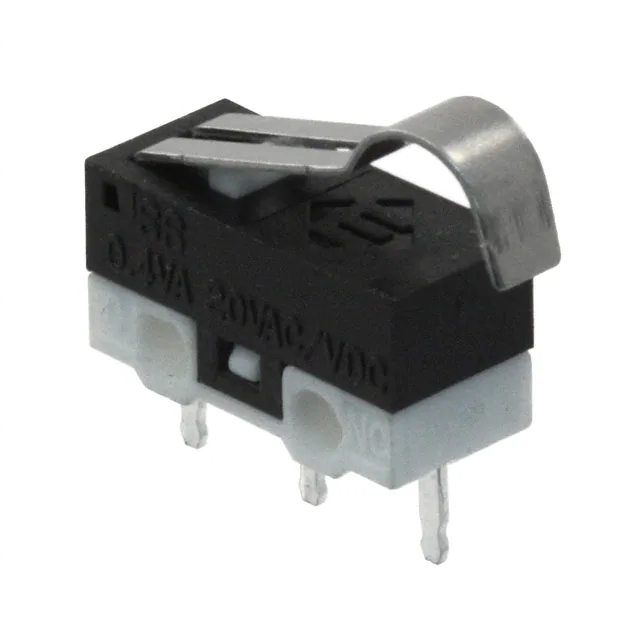

SS075R103F050P1A SWITCH SNAP ACT SPDT 0.4VA 20V E-Switch	3,222	-	RFQ Sell Excess Inventory	Datasheet	SS	Bulk	Active	SPDT	On-Mom	20 V	20 V	Lever, Simulated Roller	0.4VA (AC/DC)	Through Hole	PC Pin	-	-	50gf	-	15gf	0.053" (1.35mm)	0.380" (9.7mm)	-	-25°C ~ 75°C
SM3AQF1301L03 SWITCH LIMIT SPST-NO 5A 125V CIT Relay and Switch	3,586	-	RFQ Sell Excess Inventory	Datasheet	SM3	Bag	Active	SPST-NO	Off-Mom	125 V	-	Lever, Roller	5A (AC)	Chassis Mount	Quick Connect - 0.110" (2.8mm)	-	-	40gf	0.031" (0.80mm)	20gf	0.161" (4.1mm)	0.646" (16.4mm)	0.039" (1.0mm)	-40°C ~ 120°C
1478667-3 SWITCH SNAP ACTION SPDT 5A 125V TE Connectivity ALCOSWITCH Switches	3,268	-	RFQ Sell Excess Inventory	Datasheet	-	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Lever, Straight	5A (AC)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	-	-	60gf	0.047" (1.2mm)	10gf	0.157" (4.0mm)	0.606" (15.4mm)	0.051" (1.3mm)	-20°C ~ 130°C
DH3C-B1AA SWITCH SNAP ACTION SPDT 0.3A 30V ZF Electronics	4,579	-	RFQ Sell Excess Inventory	Datasheet	DH	Bulk	Obsolete	SPDT	On-Mom	-	30 V	Round (Pin Plunger)	300mA (DC)	Chassis Mount	Solder Lug	-	-	90gf	0.003" (0.075mm)	-	0.008" (0.2mm)	0.220" (5.6mm)	0.004" (0.1mm)	-25°C ~ 70°C
ZMA03A150P00RC SWITCH SNAP ACTION SPDT 3A 125V C&K	4,093	-	RFQ Sell Excess Inventory	Datasheet	ZMA	Tray	Active	SPDT	On-Mom	125 V	24 V	Round (Pin Plunger)	3A (AC/DC)	Through Hole, Right Angle	PC Pin	-	-	150gf	-	35gf	0.024" (0.6mm)	0.272" (6.9mm)	0.008" (0.2mm)	-40°C ~ 85°C
SM3AQF3503L02 SWITCH LIMIT SPST-NO 5A 125V CIT Relay and Switch	1,727	-	RFQ Sell Excess Inventory	Datasheet	SM3	Bag	Active	SPST-NO	Off-Mom	125 V	-	Lever, Simulated Roller	5A (AC)	Through Hole	PC Pin	-	-	95gf	0.035" (0.9mm)	30gf	0.178" (4.5mm)	0.512" (13.00mm)	0.045" (1.1mm)	-40°C ~ 120°C
SM3AQF3501L02 SWITCH LIMIT SPST-NO 5A 125V CIT Relay and Switch	3,356	-	RFQ Sell Excess Inventory	Datasheet	SM3	Bag	Active	SPST-NO	Off-Mom	125 V	-	Lever, Simulated Roller	5A (AC)	Chassis Mount	Quick Connect - 0.110" (2.8mm)	-	-	95gf	0.035" (0.9mm)	30gf	0.178" (4.5mm)	0.512" (13.00mm)	0.045" (1.1mm)	-40°C ~ 120°C
AVM35053-A SWITCH SNAP ACTION SPDT 5A 125V Panasonic Electric Works	2,601	-	RFQ Sell Excess Inventory	Datasheet	AVM3	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	5A (AC/DC)	Through Hole	PC Pin	-	-	150gf	0.004" (0.1mm)	20gf	0.024" (0.6mm)	0.330" (8.4mm)	0.015" (0.4mm)	-25°C ~ 85°C

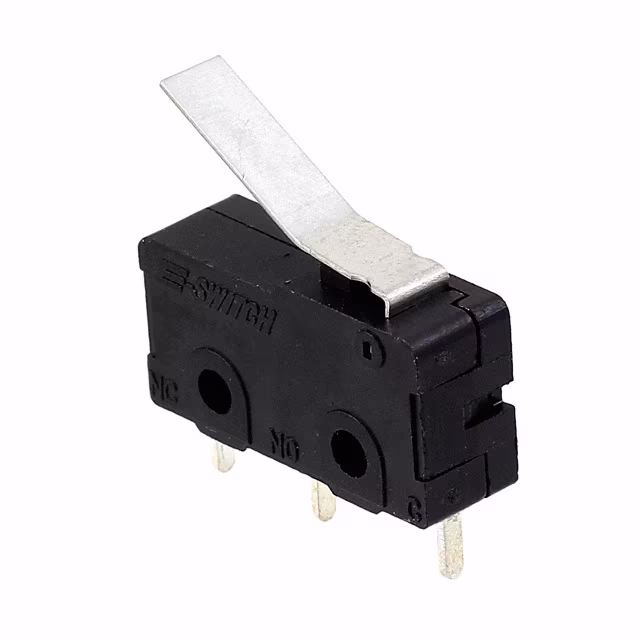

MS0850506F075P1A SWITCH SNAP ACTION SPDT 5A 125V E-Switch	1,936	-	RFQ Sell Excess Inventory	Datasheet	MS	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Leaf	5A (AC)	Through Hole	PC Pin	-	-	75gf	-	25gf	0.161" (4.1mm)	0.547" (13.9mm)	-	-25°C ~ 85°C
MS0850504F030S1A SWITCH SNAP ACTION SPDT 5A 125V E-Switch	4,878	-	RFQ Sell Excess Inventory	Datasheet	MS	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Simulated Roller	5A (AC)	Chassis Mount	Solder Lug	-	-	30gf	-	12gf	0.125" (3.2mm)	0.429" (10.9mm)	-	-25°C ~ 85°C
MS0850504F030S1C SWITCH SNAP ACT SPST-NO 5A 125V E-Switch	1,581	-	RFQ Sell Excess Inventory	Datasheet	MS	Bulk	Active	SPST-NO	Off-Mom	125 V	-	Lever, Simulated Roller	5A (AC)	Chassis Mount	Solder Lug	-	-	30gf	-	12gf	0.125" (3.2mm)	0.429" (10.9mm)	-	-25°C ~ 85°C
MS0850506F020V1A SWITCH SNAP ACTION SPDT 5A 125V E-Switch	4,273	-	RFQ Sell Excess Inventory	Datasheet	MS	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Leaf	5A (AC)	Through Hole, Right Angle	PC Pin	-	-	20gf	-	8.000gf	0.161" (4.1mm)	0.547" (13.9mm)	-	-25°C ~ 85°C
MS0850506F035P1C SWITCH SNAP ACT SPST-NO 5A 125V E-Switch	3,623	-	RFQ Sell Excess Inventory	Datasheet	MS	Bulk	Active	SPST-NO	Off-Mom	125 V	-	Lever, Leaf	5A (AC)	Through Hole	PC Pin	-	-	35gf	-	20gf	0.161" (4.1mm)	0.547" (13.9mm)	-	-25°C ~ 85°C
SM3AQF1302L01 SWITCH LIMIT SPST-NO 5A 125V CIT Relay and Switch	4,297	-	RFQ Sell Excess Inventory	Datasheet	SM3	Bag	Active	SPST-NO	Off-Mom	125 V	-	Lever, Straight	5A (AC)	Chassis Mount	Solder Lug	-	-	40gf	0.035" (0.9mm)	20gf	0.157" (4.0mm)	0.413" (10.5mm)	0.031" (0.8mm)	-40°C ~ 120°C
AH17809-A SWITCH SNAP ACTION SPDT 1A 125V Panasonic Electric Works	1,616	-	RFQ Sell Excess Inventory	Datasheet	AH1	Tube	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	1A (AC/DC)	Through Hole, Right Angle	PC Pin	-	Actuator Mounted Right Side	74gf	0.005" (0.13mm)	10gf	0.020" (0.5mm)	0.217" (5.5mm)	0.010" (0.25mm)	-25°C ~ 85°C
AV340061 SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works	2,190	-	RFQ Sell Excess Inventory	Datasheet	AV3	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	100mA (AC/DC)	Through Hole	PC Pin	-	-	25gf	0.004" (0.1mm)	2.039gf	0.024" (0.6mm)	0.331" (8.40mm)	0.015" (0.4mm)	-25°C ~ 85°C
AV3802613 SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works	1,100	-	RFQ Sell Excess Inventory	Datasheet	AV3	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	100mA (AC/DC)	Chassis Mount	Quick Connect - 0.110" (2.8mm)	-	-	50gf	0.004" (0.1mm)	7.546gf	0.024" (0.6mm)	0.331" (8.40mm)	0.015" (0.4mm)	-25°C ~ 85°C

Total 23871 Record«Prev 1... 404 405 406 407408409 410 411...1194 Next»
