Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
V15T16-SZ200 SWITCH SNAP ACTION SPDT 16A 250V Honeywell Sensing and Productivity Solutions	2,540	-	RFQ Sell Excess Inventory	Datasheet	V15	Bulk	Active	SPDT	On-Mom	250 V	-	Round (Pin Plunger)	16A (AC)	Chassis Mount	Solder Lug	-	-	200gf	0.016" (0.4mm)	50gf	0.063" (1.6mm)	0.579" (14.7mm)	0.030" (0.76mm)	-25°C ~ 125°C
V15T16-SZ100 SWITCH SNAP ACTION SPDT 16A 125V Honeywell Sensing and Productivity Solutions	3,271	-	RFQ Sell Excess Inventory	Datasheet	V15	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	16A (AC)	Chassis Mount	Solder Lug	-	-	100gf	0.020" (0.5mm)	25gf	0.060" (1.5mm)	0.579" (14.7mm)	0.030" (0.76mm)	-25°C ~ 125°C
V15T16-SZ400 SWITCH SNAP ACTION SPDT 16A 125V Honeywell Sensing and Productivity Solutions	3,736	-	RFQ Sell Excess Inventory	Datasheet	V15	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	16A (AC)	Chassis Mount	Solder Lug	-	-	400gf	0.020" (0.5mm)	-	0.060" (1.5mm)	0.579" (14.7mm)	0.030" (0.76mm)	-25°C ~ 125°C
V15T22-KC200A02 SWITCH SNAP ACT SPST-NC 22A 125V Honeywell Sensing and Productivity Solutions	3,865	-	RFQ Sell Excess Inventory	Datasheet	V15	Bulk	Active	SPST-NC	On-Mom	125 V	-	Lever, Straight	22A (AC)	Chassis Mount	Solder Lug	-	-	120gf	0.047" (1.2mm)	20gf	0.125" (3.2mm)	0.602" (15.3mm)	0.051" (1.3mm)	-25°C ~ 125°C
AH1464619-A SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works	3,118	-	RFQ Sell Excess Inventory	Datasheet	AH1	Tube	Active	SPDT	On-Mom	125 V	30 V	Lever, Simulated Roller	100mA (AC/DC)	Through Hole	PC Pin	-	-	55gf	0.020" (0.5mm)	4.079gf	0.083" (2.1mm)	0.374" (9.5mm)	0.020" (0.5mm)	-25°C ~ 85°C
PP1-4B7-2D2 SWITCH SNAP ACTION SPDT 16A 125V E-Switch	2,997	-	RFQ Sell Excess Inventory	Datasheet	PP1	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	16A (AC)	Panel Mount, Snap-In	Quick Connect - 0.250" (6.3mm)	IP40	-	500gf	-	-	-	0.378" (9.6mm)	-	0°C ~ 85°C
MBZ101A01B03B01 SNAP ACTING SWITCH MB APEM Inc.	4,633	-	RFQ Sell Excess Inventory	Datasheet	MBZ	Bulk	Active	SPST-NO	Off-Mom	250 V	-	Lever, Straight	10A (AC)	Chassis Mount	Solder Lug	-	-	285gf	0.035" (0.9mm)	-	0.178" (4.5mm)	0.421" (10.70mm)	0.059" (1.5mm)	-40°C ~ 85°C
MBZ101A01B02X01 SNAP ACTING SWITCH MBD5D APEM Inc.	1,172	-	RFQ Sell Excess Inventory	Datasheet	MBZ	Bulk	Active	SPST-NO	Off-Mom	250 V	-	Round (Pin Plunger)	10A (AC)	Chassis Mount	Solder Lug	-	-	285gf	0.005" (0.13mm)	-	0.047" (1.2mm)	0.331" (8.40mm)	0.024" (0.6mm)	-40°C ~ 85°C
SS-01GL-F-3 SWITCH SNP ACT SPST-NO 0.1A 125V Omron Electronics Inc-EMC Div	2,962	-	RFQ Sell Excess Inventory	Datasheet	SS	Bulk	Active	SPST-NO	Off-Mom	125 V	30 V	Lever, Straight	100mA (AC/DC)	Chassis Mount	Solder Lug	IP40	-	16gf	0.031" (0.8mm)	2.039gf	-	0.345" (8.8mm)	0.047" (1.2mm)	-25°C ~ 85°C
D3V-6G5M-1C24 SWITCH SNAP ACTION SPDT 6A 250V Omron Electronics Inc-EMC Div	2,293	-	RFQ Sell Excess Inventory	Datasheet	D3V	Bulk	Obsolete	SPDT	On-Mom	250 V	30 V	Lever, Roller	6A (AC/DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	120gf	0.020" (0.5mm)	15gf	0.063" (1.6mm)	0.815" (20.7mm)	0.031" (0.79mm)	-25°C ~ 105°C
V7-7B29E9-053 SWITCH SNAP ACT SPST-NO 11A 125V Honeywell Sensing and Productivity Solutions	1,581	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Obsolete	SPST-NO	Off-Mom	125 V	125 V	Lever, Straight	11A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	63gf	0.060" (1.5mm)	8.000gf	0.272" (6.9mm)	0.602" (15.3mm)	0.134" (3.4mm)	-40°C ~ 85°C
ABJ241260 SWITCH SNAP ACTION SPDT 2A 125V Panasonic Electric Works	4,024	-	RFQ Sell Excess Inventory	Datasheet	ABJ	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	2A (AC/DC)	Chassis Mount	Solder Lug	IP50 - Dust Protected	-	65gf	0.020" (0.5mm)	5.099gf	0.120" (3.0mm)	0.328" (8.3mm)	0.020" (0.5mm)	-40°C ~ 85°C
G00986922 SNAP SWITCH C&K	2,380	-	RFQ Sell Excess Inventory	Datasheet	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
V15T16-CP100-01 SWITCH SNAP ACT SPST-NO 16A 250V Honeywell Sensing and Productivity Solutions	2,829	-	RFQ Sell Excess Inventory	Datasheet	V15	Bulk	Active	SPST-NO	Off-Mom	250 V	-	Round (Pin Plunger)	16A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	100gf	0.016" (0.4mm)	25gf	0.063" (1.6mm)	0.579" (14.7mm)	0.030" (0.76mm)	-25°C ~ 125°C
V15T22-EP200 SWITCH SNAP ACT SPST-NO 22A 125V Honeywell Sensing and Productivity Solutions	2,004	-	RFQ Sell Excess Inventory	Datasheet	V15	Bulk	Active	SPST-NO	Off-Mom	125 V	-	Round (Pin Plunger)	22A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	200gf	0.020" (0.5mm)	50gf	0.060" (1.5mm)	0.579" (14.7mm)	0.030" (0.76mm)	-25°C ~ 125°C
ZM195G70S501-A SWITCH SNAP ACTION SPDT 16A 125V Honeywell Sensing and Productivity Solutions	4,534	-	RFQ Sell Excess Inventory	Datasheet	ZM	Bulk	Active	SPDT	On-Mom	125 V	-	-	16A (AC)	Chassis Mount	Quick Connect - 0.110" (2.8mm)	IP40	-	-	-	-	-	-	-	-40°C ~ 125°C
ZV50E20A01 SWITCH SNAP ACTION SPDT 6A 125V Honeywell Sensing and Productivity Solutions	3,656	-	RFQ Sell Excess Inventory	Datasheet	ZV	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	6A (AC)	Through Hole	PC Pin	-	-	146gf	0.008" (0.2mm)	35gf	0.043" (1.1mm)	0.449" (11.4mm)	0.015" (0.4mm)	-40°C ~ 120°C

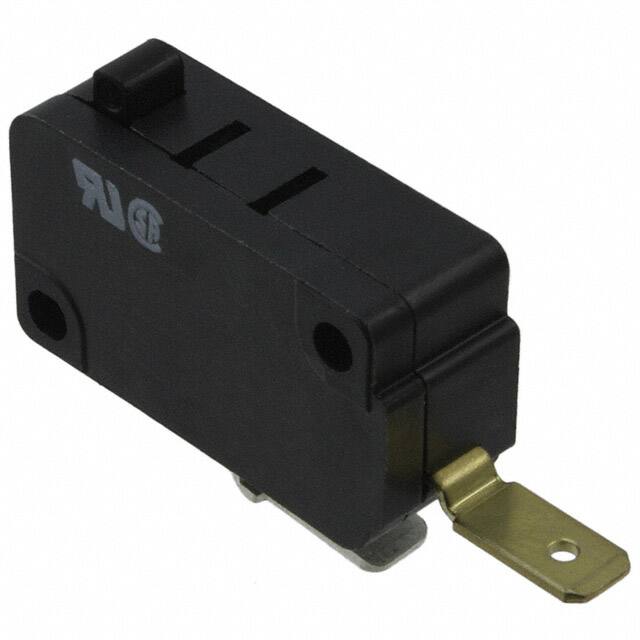

V7-1C29E7 SWITCH SNAP ACT SPST-NO 15A 125V Honeywell Sensing and Productivity Solutions	3,682	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Obsolete	SPST-NO	Off-Mom	125 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	150gf	0.010" (0.25mm)	25gf	0.047" (1.2mm)	0.579" (14.7mm)	0.050" (1.27mm)	-40°C ~ 85°C
LCA01150P00RC SWITCH SNAP ACT SPDT 0.1A 125V C&K	2,442	-	RFQ Sell Excess Inventory	Datasheet	LCA	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	100mA (AC)	Through Hole, Right Angle	PC Pin	-	-	150gf	0.008" (0.2mm)	25gf	0.043" (1.1mm)	0.340" (8.6mm)	0.015" (0.4mm)	-40°C ~ 125°C
D3V-6G4-1C24-T-K SWITCH SNAP ACTION SPDT 6A 250V Omron Electronics Inc-EMC Div	4,165	-	RFQ Sell Excess Inventory	Datasheet	D3V	Bulk	Obsolete	SPDT	On-Mom	250 V	-	Lever, Simulated Roller	6A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	60gf	0.031" (0.8mm)	6.118gf	0.157" (4.0mm)	0.738" (18.7mm)	0.062" (1.6mm)	-25°C ~ 200°C

Total 23871 Record«Prev 1... 502 503 504 505506507 508 509...1194 Next»
