Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
V7-1K29E9-000-2 SWITCH V BASIC Honeywell Sensing and Productivity Solutions	4,632	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ZMCHM9L3L SWITCH SNAP ACT SPDT 200MA 60V C&K	2,776	-	RFQ Sell Excess Inventory	Datasheet	ZM	Tray	Active	SPDT	On-Mom	-	60 V	Lever, Leaf	200mA (DC)	Through Hole, Right Angle	PC Pin	-	-	30gf	-	-	-	0.330" (8.4mm)	-	-30°C ~ 85°C
ZMCHM9L3R SWITCH SNAP ACT SPDT 200MA 60V C&K	2,986	-	RFQ Sell Excess Inventory	Datasheet	ZM	Tray	Active	SPDT	On-Mom	-	60 V	Lever, Leaf	200mA (DC)	Through Hole, Right Angle	PC Pin	-	-	30gf	-	-	-	0.330" (8.4mm)	-	-30°C ~ 85°C
JS-10120 SWITCH SUBMINI BASIC Honeywell Sensing and Productivity Solutions	1,603	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
V15T16-C1P200A03 SWITCH MICRO Honeywell Sensing and Productivity Solutions	2,055	-	RFQ Sell Excess Inventory	Datasheet	*	Tray	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
V15H16-EP400A02-K SWITCH V BASIC Honeywell Sensing and Productivity Solutions	4,467	-	RFQ Sell Excess Inventory	Datasheet	*	Tray	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
MAB104G01C06B01A SWITCH SNAP ACTION SPDT 16A 125V APEM Inc.	3,172	-	RFQ Sell Excess Inventory	Datasheet	MAB	Tray	Active	SPDT	On-Mom	125 V	-	Lever, Roller	16A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	379gf	0.016" (0.4mm)	-	0.055" (1.4mm)	0.844" (21.44mm)	0.039" (1.0mm)	-10°C ~ 105°C
MBZ101A01A01X02 SNAP ACTING SWITCH MB APEM Inc.	1,459	-	RFQ Sell Excess Inventory	Datasheet	MBZ	Bulk	Active	SPST-NC	On-Mom	250 V	-	Round (Pin Plunger)	10A (AC)	Through Hole	PC Pin	-	-	285gf	0.005" (0.13mm)	-	0.047" (1.2mm)	0.331" (8.40mm)	0.024" (0.6mm)	-40°C ~ 85°C
V7-3E29E9 SWITCH SNAP ACT SPST-NO 10A 125V Honeywell Sensing and Productivity Solutions	4,778	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Active	SPST-NO	Off-Mom	125 V	125 V	Round (Pin Plunger)	10A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	50gf	0.010" (0.25mm)	5.000gf	0.047" (1.2mm)	0.579" (14.7mm)	0.050" (1.27mm)	-40°C ~ 85°C
D3V-6G4-1C24 SWITCH SNAP ACTION SPDT 6A 250V Omron Electronics Inc-EMC Div	2,514	-	RFQ Sell Excess Inventory	Datasheet	D3V	Bulk	Obsolete	SPDT	On-Mom	250 V	-	Lever, Simulated Roller	6A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	60gf	0.031" (0.8mm)	6.118gf	0.157" (4.0mm)	0.738" (18.7mm)	0.062" (1.6mm)	-25°C ~ 105°C
ABS1112413 SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works	1,237	-	RFQ Sell Excess Inventory	Datasheet	ABS	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	100mA (AC/DC)	Chassis Mount	Quick Connect - 0.110" (2.8mm)	IP50 - Dust Protected	-	35gf	0.031" (0.80mm)	2.957gf	0.110" (2.8mm)	0.346" (8.80mm)	0.047" (1.20mm)	-40°C ~ 85°C
AVM3435P3-A SWITCH SNAP ACTION SPDT 10A 250V Panasonic Electric Works	1,642	-	RFQ Sell Excess Inventory	Datasheet	AVM3	Bulk	Active	SPDT	On-Mom	250 V	-	Lever, Straight	10A (AC)	Through Hole	PC Pin	-	-	45gf	0.040" (1.0mm)	3.059gf	0.138" (3.5mm)	0.345" (8.8mm)	0.062" (1.6mm)	-25°C ~ 85°C
ABJ141441 SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works	3,498	-	RFQ Sell Excess Inventory	Datasheet	ABJ	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Simulated Roller	100mA (AC/DC)	Chassis Mount	Solder Lug	IP50 - Dust Protected	-	40gf	0.020" (0.5mm)	3.059gf	0.120" (3.0mm)	0.386" (9.8mm)	0.020" (0.5mm)	-40°C ~ 85°C
V-15G2-1C4-K SWITCH SNAP ACTION SPDT 15A 250V Omron Electronics Inc-EMC Div	3,568	-	RFQ Sell Excess Inventory	Datasheet	V	Bulk	Obsolete	SPDT	On-Mom	250 V	125 V	Lever, Straight	15A (AC), 100mA (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	IP40	-	60gf	0.060" (1.5mm)	6.118gf	0.157" (4.0mm)	0.600" (15.2mm)	0.062" (1.6mm)	-25°C ~ 80°C
D3V-111-1C25-K SWITCH SNAP ACTION SPDT 11A 250V Omron Electronics Inc-EMC Div	2,347	-	RFQ Sell Excess Inventory	Datasheet	D3V	Bulk	Obsolete	SPDT	On-Mom	250 V	125 V	Lever, Straight	11A (AC), 600mA (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	200gf	0.025" (0.6mm)	50gf	0.063" (1.6mm)	0.600" (15.2mm)	0.031" (0.79mm)	-25°C ~ 105°C
V7-1Z20E94 SWITCH SNAP ACT SPST-NO 25A 277V Honeywell Sensing and Productivity Solutions	4,028	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Obsolete	SPST-NO	Off-Mom	277 V	-	Round (Pin Plunger)	25A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	225gf	0.010" (0.25mm)	-	0.047" (1.2mm)	0.579" (14.7mm)	0.050" (1.27mm)	-40°C ~ 85°C
V7-1Z29D94 SWITCH SNAP ACT SPST-NO 25A 277V Honeywell Sensing and Productivity Solutions	4,102	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Obsolete	SPST-NO	Off-Mom	277 V	-	Round (Pin Plunger)	25A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	225gf	0.010" (0.25mm)	20gf	0.047" (1.2mm)	0.579" (14.7mm)	0.050" (1.27mm)	-40°C ~ 85°C
V7-4A17E9-000-3 SWITCH V BASIC Honeywell Sensing and Productivity Solutions	3,427	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
V15T10-CZ050A02 SWITCH SNAP ACTION SPDT 10A 125V Honeywell Sensing and Productivity Solutions	3,827	-	RFQ Sell Excess Inventory	Datasheet	V15	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Straight	10A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	30gf	0.047" (1.2mm)	5.000gf	0.125" (3.2mm)	0.602" (15.3mm)	0.051" (1.3mm)	-25°C ~ 125°C

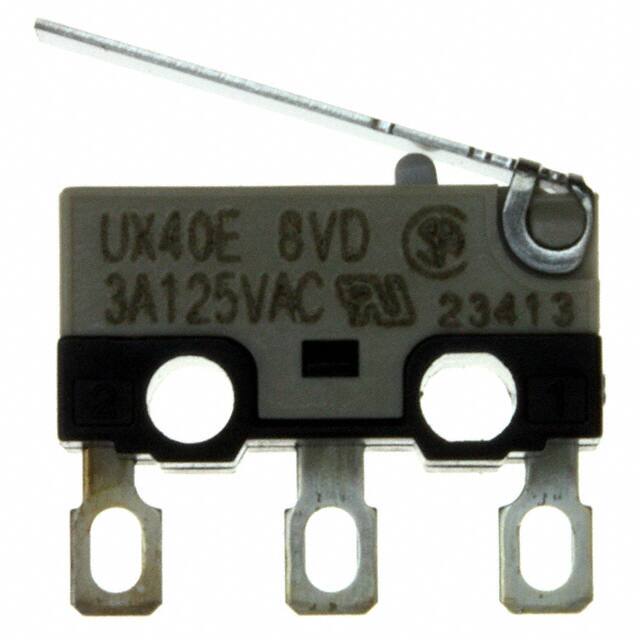

UX40E10C01 SWITCH SNAP ACTION SPDT 3A 125V Honeywell Sensing and Productivity Solutions	3,854	-	RFQ Sell Excess Inventory	Datasheet	UX	Bulk	Obsolete	SPDT	On-Mom	125 V	30 V	Lever, Straight	3A (AC), 2A (DC)	Chassis Mount	Solder Lug	-	-	50gf	0.020" (0.5mm)	5.000gf	0.083" (2.1mm)	0.268" (6.8mm)	0.022" (0.55mm)	-25°C ~ 85°C
