Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
ABJ151061 SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works	1,887	-	RFQ Sell Excess Inventory	Datasheet	ABJ	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	100mA (AC/DC)	Through Hole	PC Pin	IP50 - Dust Protected	-	200gf	0.005" (0.13mm)	25gf	0.024" (0.6mm)	0.217" (5.5mm)	0.010" (0.25mm)	-40°C ~ 85°C
ABS1416409 SWITCH SNAP ACTION SPDT 2A 125V Panasonic Electric Works	2,694	-	RFQ Sell Excess Inventory	Datasheet	ABS	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Roller	2A (AC/DC)	Chassis Mount	Solder Lug	IP50 - Dust Protected	-	40gf	0.020" (0.5mm)	3.500gf	0.100" (2.5mm)	0.571" (14.5mm)	0.032" (0.81mm)	-40°C ~ 85°C
ABS1510519 SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works	2,809	-	RFQ Sell Excess Inventory	Datasheet	ABS	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	100mA (AC/DC)	Through Hole	PC Pin	IP50 - Dust Protected	-	150gf	0.004" (0.1mm)	20gf	0.024" (0.6mm)	0.330" (8.4mm)	0.015" (0.4mm)	-40°C ~ 85°C
D3V-6G-2C23 SWITCH SNAP ACT SPST-NC 6A 250V Omron Electronics Inc-EMC Div	4,965	-	RFQ Sell Excess Inventory	Datasheet	D3V	Bulk	Active	SPST-NC	On-Mom	250 V	-	Round (Pin Plunger)	6A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	50gf	0.012" (0.3mm)	5.099gf	0.047" (1.2mm)	0.579" (14.7mm)	0.040" (1.0mm)	-25°C ~ 105°C
DH2CB1PA SWITCH SNAP ACTION SPDT 0.5A 30V ZF Electronics	3,399	-	RFQ Sell Excess Inventory	Datasheet	DH	Bulk	Obsolete	SPDT	On-Mom	-	30 V	Lever, Simulated Roller	500mA (DC)	Chassis Mount	Solder Lug	IP40	-	50gf	0.025" (0.6mm)	-	0.051" (1.3mm)	0.264" (6.7mm)	0.011" (0.3mm)	-25°C ~ 70°C
TF2EEH8VP0040W SWITCH SNAP ACT SPST-NC 6A 125V C&K	1,101	-	RFQ Sell Excess Inventory	Datasheet	TF2	Bulk	Active	SPST-NC	On-Mom	125 V	-	Round (Pin Plunger)	6A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	330gf	0.016" (0.4mm)	60gf	0.068" (1.72mm)	0.067" (1.70mm)	0.031" (0.8mm)	-40°C ~ 85°C
V-15G-1A5-K SWITCH SNAP ACTION SPDT 10A 250V Omron Electronics Inc-EMC Div	2,309	-	RFQ Sell Excess Inventory	Datasheet	V	Bulk	Active	SPDT	On-Mom	250 V	125 V	Round (Pin Plunger)	15A (AC), 100mA (DC)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	IP40	-	200gf	0.016" (0.4mm)	50gf	0.047" (1.2mm)	0.579" (14.7mm)	0.040" (1.0mm)	-25°C ~ 80°C
V15T16-CZ200A02 SWITCH SNAP ACTION SPDT 16A 125V Honeywell Sensing and Productivity Solutions	3,242	-	RFQ Sell Excess Inventory	Datasheet	V15	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Straight	16A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	-	-	-	-	-	-	-25°C ~ 125°C
V15T16-DZ400A47 SWITCH SNAP ACTION SPDT 16A 125V Honeywell Sensing and Productivity Solutions	4,284	-	RFQ Sell Excess Inventory	Datasheet	V15	Bulk	Active	SPDT	On-Mom	125 V	-	-	16A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	-	-	-	-	-	-	-25°C ~ 125°C
V15T16-EZ200A02 SWITCH SNAP ACTION SPDT 16A 125V Honeywell Sensing and Productivity Solutions	2,693	-	RFQ Sell Excess Inventory	Datasheet	V15	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Straight	16A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	-	-	-	-	-	-	-25°C ~ 125°C
D3V-6G4-1C25-T SWITCH SNAP ACTION SPDT 6A 250V Omron Electronics Inc-EMC Div	3,613	-	RFQ Sell Excess Inventory	Datasheet	D3V	Bulk	Obsolete	SPDT	On-Mom	250 V	-	Lever, Simulated Roller	6A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	125gf	0.031" (0.8mm)	14gf	0.157" (4.0mm)	0.738" (18.7mm)	0.062" (1.6mm)	-25°C ~ 200°C
LCS052P00SDC SWITCH SNAP ACTION SPDT 5A 125V C&K	4,987	-	RFQ Sell Excess Inventory	Datasheet	LCS	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	5A (AC)	Chassis Mount	Solder Lug	IP67 - Dust Tight, Waterproof	-	203gf	0.008" (0.2mm)	50gf	0.047" (1.2mm)	0.331" (8.40mm)	0.024" (0.6mm)	-40°C ~ 120°C
D3V-11-1A5-K SWITCH SNAP ACTION SPDT 11A 250V Omron Electronics Inc-EMC Div	1,095	-	RFQ Sell Excess Inventory	Datasheet	D3V	Bulk	Obsolete	SPDT	On-Mom	250 V	125 V	Round (Pin Plunger)	11A (AC), 600mA (DC)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	IP40	-	200gf	0.016" (0.4mm)	50gf	0.047" (1.2mm)	0.579" (14.7mm)	0.040" (1.0mm)	-25°C ~ 105°C
TF2CHK6ST1540C SWITCH SNAP ACTION SPDT 10A 125V C&K	3,487	-	RFQ Sell Excess Inventory	Datasheet	TF2	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Straight	10A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	50gf	0.030" (0.76mm)	7.000gf	0.140" (3.6mm)	0.600" (15.2mm)	0.051" (1.3mm)	-40°C ~ 85°C
PP1-DB7-2A2 SWITCH SNAP ACTION SPDT 16A 125V E-Switch	1,516	-	RFQ Sell Excess Inventory	Datasheet	PP1	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	16A (AC)	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	-	White Actuator	300gf	-	-	-	0.738" (18.7mm)	-	0°C ~ 85°C
ZV50E20F01 SWITCH SNAP ACTION SPDT 6A 125V Honeywell Sensing and Productivity Solutions	3,294	-	RFQ Sell Excess Inventory	Datasheet	ZV	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Lever, Roller	6A (AC)	Through Hole	PC Pin	-	-	51gf	0.032" (0.81mm)	9.000gf	0.180" (4.6mm)	0.689" (17.5mm)	0.035" (0.9mm)	-40°C ~ 120°C

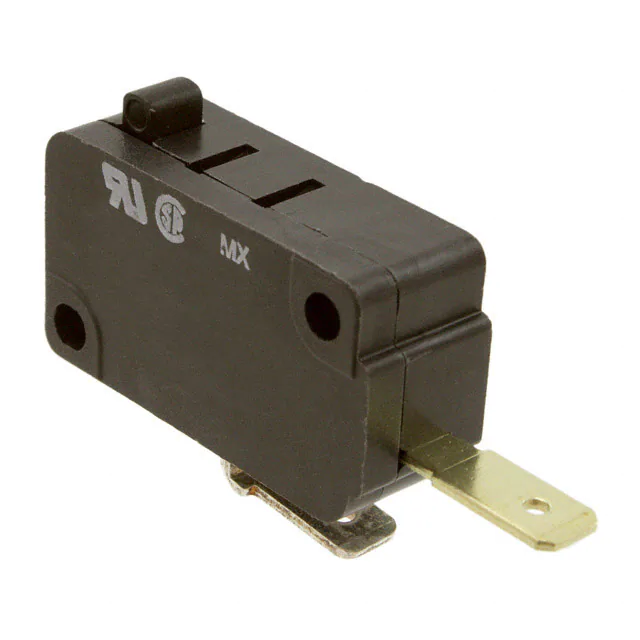

V7-1C29D7 SWITCH SNAP ACT SPST-NO 15A 125V Honeywell Sensing and Productivity Solutions	2,922	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Obsolete	SPST-NO	Off-Mom	125 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	150gf	0.010" (0.25mm)	25gf	0.047" (1.2mm)	0.579" (14.7mm)	0.050" (1.27mm)	-40°C ~ 85°C
V7-3A17D8-000-3 SWITCH SNAP ACTION SPDT 5A 125V Honeywell Sensing and Productivity Solutions	3,730	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	5A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	60gf	-	11gf	0.047" (1.2mm)	0.579" (14.7mm)	0.050" (1.27mm)	-40°C ~ 85°C
D3V-165-1C26K SWITCH SNAP ACTION SPDT 16A 250V Omron Electronics Inc-EMC Div	4,884	-	RFQ Sell Excess Inventory	Datasheet	D3V	Bulk	Active	SPDT	On-Mom	250 V	30 V	Lever, Roller	16A (AC), 10A (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	480gf	0.025" (0.6mm)	50gf	0.063" (1.6mm)	0.815" (20.7mm)	0.031" (0.79mm)	-25°C ~ 105°C
ABS4513503 SWITCH SNAP ACTION SPDT 2A 125V Panasonic Electric Works	4,229	-	RFQ Sell Excess Inventory	Datasheet	ABS	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	2A (AC/DC)	Through Hole, Right Angle	PC Pin	IP50 - Dust Protected	Actuator Mounted Right Side	45gf	0.040" (1.0mm)	3.059gf	0.138" (3.5mm)	0.345" (8.8mm)	0.062" (1.6mm)	-40°C ~ 85°C
