Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
V15T10-EZ200A06 SWITCH SNAP ACTION SPDT 10A 125V Honeywell Sensing and Productivity Solutions	4,096	-	RFQ Sell Excess Inventory	Datasheet	V15	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Roller	10A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	120gf	0.050" (1.3mm)	20gf	0.125" (3.2mm)	0.812" (20.6mm)	0.047" (1.2mm)	-25°C ~ 125°C

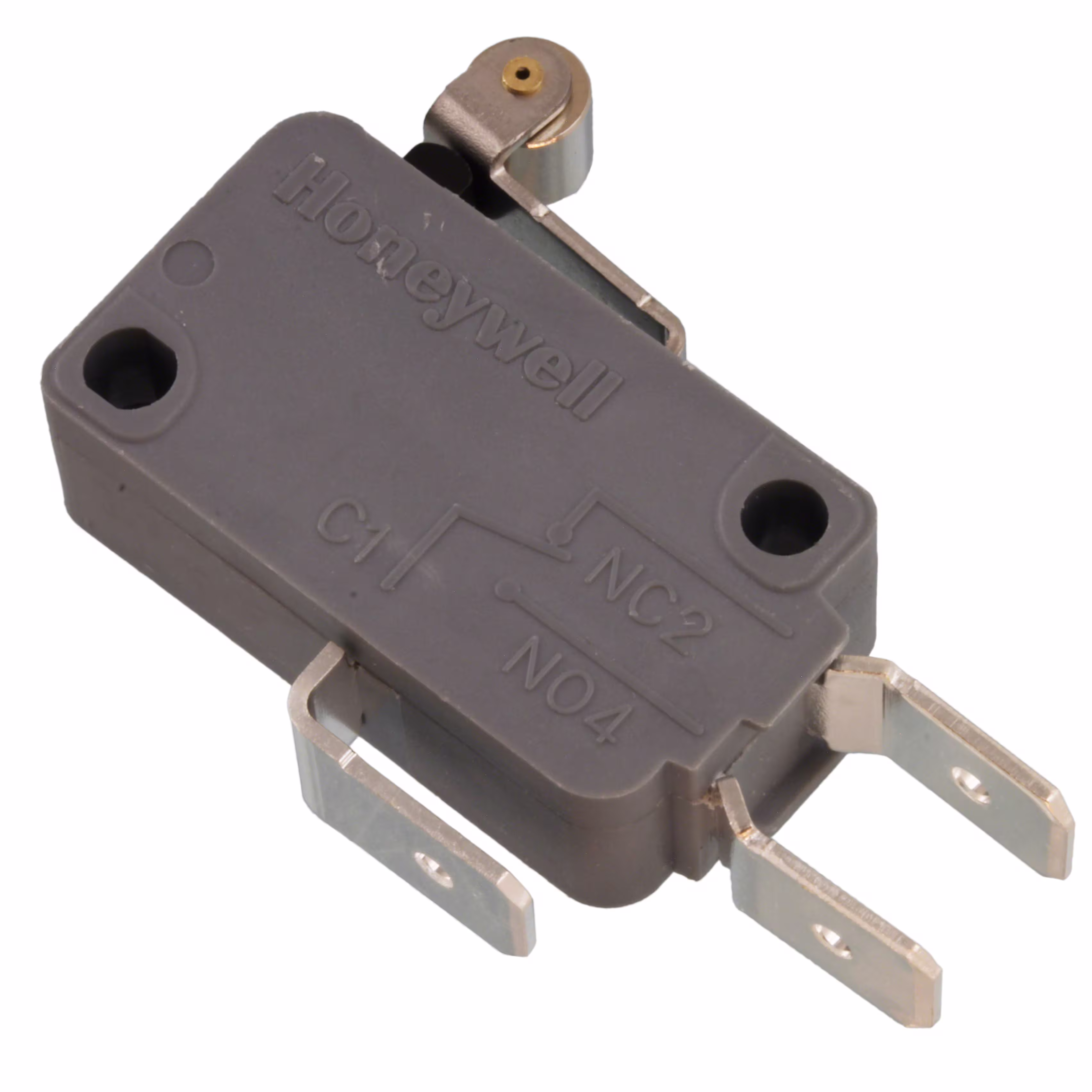

V15T16-CZ100A05 SWITCH SNAP ACTION SPDT 16A 250V Honeywell Sensing and Productivity Solutions	3,836	-	RFQ Sell Excess Inventory	Datasheet	V15	Bulk	Active	SPDT	On-Mom	250 V	-	Lever, Roller	16A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	120gf	0.016" (0.4mm)	20gf	0.063" (1.6mm)	0.812" (20.6mm)	0.030" (0.76mm)	-25°C ~ 125°C
V15T16-CZ200A05 SWITCH SNAP ACTION SPDT 16A 125V Honeywell Sensing and Productivity Solutions	1,892	-	RFQ Sell Excess Inventory	Datasheet	V15	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Roller	16A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	-	-	-	-	-	-	-25°C ~ 125°C
V15T16-CZ300A05 SWITCH SNAP ACTION SPDT 16A 125V Honeywell Sensing and Productivity Solutions	4,954	-	RFQ Sell Excess Inventory	Datasheet	V15	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Roller	16A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	-	-	-	-	-	-	-25°C ~ 125°C
V15T16-EZ200A05 SWITCH SNAP ACTION SPDT 16A 125V Honeywell Sensing and Productivity Solutions	2,092	-	RFQ Sell Excess Inventory	Datasheet	V15	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Roller	16A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	-	-	-	-	-	-	-25°C ~ 125°C
V15T16-EZ300A05 SWITCH SNAP ACTION SPDT 16A 125V Honeywell Sensing and Productivity Solutions	2,600	-	RFQ Sell Excess Inventory	Datasheet	V15	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Roller	16A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	-	-	-	-	-	-	-25°C ~ 125°C
V15H16-C2Z200 SWITCH BASIC Honeywell Sensing and Productivity Solutions	1,725	-	RFQ Sell Excess Inventory	Datasheet	*	Tray	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
V15T10-CZ100A05 SWITCH BASIC Honeywell Sensing and Productivity Solutions	3,826	-	RFQ Sell Excess Inventory	Datasheet	*	Tray	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ABS141444 SWITCH SNAP ACTION SPDT 0.1A 30V Panasonic Electric Works	4,955	-	RFQ Sell Excess Inventory	Datasheet	ABS	Bulk	Active	SPDT	On-Mom	-	30 V	Lever, Simulated Roller	100mA (DC)	Chassis Mount	Solder Lug	IP50 - Dust Protected	-	35gf	0.031" (0.80mm)	2.957gf	0.110" (2.8mm)	0.459" (11.65mm)	0.047" (1.20mm)	-40°C ~ 85°C
D3V-16-1C5-K-H SWITCH SNAP ACTION SPDT 16A 250V Omron Electronics Inc-EMC Div	4,297	-	RFQ Sell Excess Inventory	Datasheet	D3V	Bulk	Active	SPDT	On-Mom	250 V	125 V	Round (Pin Plunger)	16A (AC), 600mA (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	IP40	-	200gf	0.016" (0.4mm)	50gf	0.047" (1.2mm)	0.579" (14.7mm)	0.040" (1.0mm)	-25°C ~ 125°C
V-15G-1E5-K SWITCH SNAP ACTION SPDT 15A 250V Omron Electronics Inc-EMC Div	1,621	-	RFQ Sell Excess Inventory	Datasheet	V	Tray	Active	SPDT	On-Mom	250 V	125 V	Round (Pin Plunger)	15A (AC), 100mA (DC)	Chassis Mount	Solder, Quick Connect - 0.250" (6.3mm)	IP40	-	200gf	0.016" (0.4mm)	50gf	0.047" (1.2mm)	0.579" (14.7mm)	0.040" (1.0mm)	-25°C ~ 80°C
D2SW-P2-2M SWITCH SNAP ACT SPST-NC 2A 250V Omron Electronics Inc-EMC Div	2,213	-	RFQ Sell Excess Inventory	Datasheet	D2SW-P	Bulk	Active	SPST-NC	On-Mom	250 V	30 V	Round (Pin Plunger)	2A (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	183gf	0.006" (0.15mm)	20gf	0.024" (0.6mm)	0.330" (8.4mm)	0.015" (0.4mm)	-20°C ~ 70°C
G00987214 Linear IC's C&K	1,202	-	RFQ Sell Excess Inventory	Datasheet	ZMV	Bulk	Active	SPDT	On-Mom	125 V	24 V	Lever, Simulated Roller	3A (AC/DC)	Through Hole	PC Pin	IP67 - Dust Tight, Waterproof	-	120gf	0.020" (0.5mm)	10gf	-	0.440" (11.2mm)	0.047" (1.2mm)	-40°C ~ 85°C
V-16G-1C26-K(R) SWITCH SNAP ACTION SPDT 16A 250V Omron Electronics Inc-EMC Div	2,374	-	RFQ Sell Excess Inventory	Datasheet	V	Bulk	Active	SPDT	On-Mom	250 V	125 V	Round (Pin Plunger)	16A (AC), 100mA (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	400gf	0.016" (0.4mm)	80gf	0.047" (1.2mm)	0.579" (14.7mm)	0.040" (1.0mm)	-25°C ~ 80°C
V-16G-1C26(R) SWITCH SNAP ACTION SPDT 16A 250V Omron Electronics Inc-EMC Div	3,265	-	RFQ Sell Excess Inventory	Datasheet	V	Bulk	Obsolete	SPDT	On-Mom	250 V	125 V	Round (Pin Plunger)	16A (AC), 100mA (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	400gf	0.016" (0.4mm)	80gf	0.047" (1.2mm)	0.579" (14.7mm)	0.040" (1.0mm)	-25°C ~ 80°C
AVT34529 SWITCH SNAP ACTION SPDT 3A 125V Panasonic Electric Works	4,203	-	RFQ Sell Excess Inventory	Datasheet	AVT3	Bulk	Obsolete	SPDT	On-Mom	125 V	30 V	Lever, Roller	3A (AC/DC)	Through Hole	PC Pin	-	-	20gf	0.020" (0.5mm)	10 in-oz	0.100" (2.5mm)	0.571" (14.5mm)	0.030" (0.76mm)	-25°C ~ 85°C
V15T22-C1Z200 SWITCH SNAP ACTION SPDT 22A 125V Honeywell Sensing and Productivity Solutions	2,222	-	RFQ Sell Excess Inventory	Datasheet	V15	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	22A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	200gf	0.020" (0.5mm)	50gf	0.060" (1.5mm)	0.579" (14.7mm)	0.030" (0.76mm)	-25°C ~ 125°C
V15T22-CZ300 SWITCH SNAP ACTION SPDT 22A 125V Honeywell Sensing and Productivity Solutions	1,500	-	RFQ Sell Excess Inventory	Datasheet	V15	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	22A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	300gf	0.020" (0.5mm)	-	0.060" (1.5mm)	0.579" (14.7mm)	0.030" (0.76mm)	-25°C ~ 125°C
PP2-1H1-2D2 Switches E-Switch	3,836	-	RFQ Sell Excess Inventory	Datasheet	PP2	Bulk	Active	DPDT	On-Mom	277 V	-	Round (Pin Plunger)	10A (AC)	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	-	-	-	-	-	-	-	-	0°C ~ 85°C
V7-1C27D8-048-1 SWITCH SNAP ACT SPST-NO 15A 125V Honeywell Sensing and Productivity Solutions	1,681	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Obsolete	SPST-NO	Off-Mom	125 V	125 V	Lever, Straight	15A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	46gf	0.055" (1.4mm)	4.000gf	0.250" (6.35mm)	0.602" (15.3mm)	0.125" (3.2mm)	-40°C ~ 85°C
