Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
ZMW00AP00KWAA SWITCH SNAP ACT SPST-NC 0.1A 30V C&K	3,831	-	RFQ Sell Excess Inventory	Datasheet	ZMW	Bulk	Active	SPST-NC	On-Mom	-	30 V	Round (Pin Plunger)	100mA (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	150gf	-	-	0.030" (0.8mm)	-	0.087" (2.2mm)	-40°C ~ 85°C
ZMW00AP00KYDC SWITCH SNAP ACT SPST-NO 0.1A 30V C&K	1,604	-	RFQ Sell Excess Inventory	Datasheet	ZMW	Bulk	Active	SPST-NO	Off-Mom	-	30 V	Round (Pin Plunger)	100mA (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	150gf	-	-	0.030" (0.8mm)	-	0.087" (2.2mm)	-40°C ~ 85°C
ZMW00AP00JYAA SWITCH SNAP ACT SPST-NO 0.1A 30V C&K	3,529	-	RFQ Sell Excess Inventory	Datasheet	ZMW	Bulk	Active	SPST-NO	Off-Mom	-	30 V	Round (Pin Plunger)	100mA (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	150gf	-	-	0.030" (0.8mm)	-	0.087" (2.2mm)	-40°C ~ 85°C
ZMW00AP00JYDC SWITCH SNAP ACT SPST-NO 0.1A 30V C&K	3,833	-	RFQ Sell Excess Inventory	Datasheet	ZMW	Bulk	Active	SPST-NO	Off-Mom	-	30 V	Round (Pin Plunger)	100mA (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	150gf	-	-	0.030" (0.8mm)	-	0.087" (2.2mm)	-40°C ~ 85°C
V15T16-DZ100A06-01 SWITCH SNAP ACTION SPDT 16A 125V Honeywell Sensing and Productivity Solutions	3,576	-	RFQ Sell Excess Inventory	Datasheet	V15	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Roller	16A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	60gf	0.050" (1.3mm)	10gf	0.125" (3.2mm)	0.812" (20.6mm)	0.047" (1.2mm)	-25°C ~ 125°C
V15T16-DZ100B06-01 SWITCH SNAP ACTION SPDT 16A 125V Honeywell Sensing and Productivity Solutions	1,385	-	RFQ Sell Excess Inventory	Datasheet	V15	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Roller	16A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	-	-	-	-	-	-	-25°C ~ 125°C
V-102K-1C4 SWITCH SNAP ACTION MINI BASIC Omron Electronics Inc-EMC Div	3,195	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
HY106-6Y7-421-0000 SWITCH SNAP ACTION DPST 18A 250V E-Switch	2,820	-	RFQ Sell Excess Inventory	Datasheet	HY	Bulk	Active	DPST-NO/NC	On-Mom, Off-Mom	250 V	-	Plunger for Cap	18A (AC)	Panel Mount	Screw Terminal	-	-	3000gf	-	-	-	-	-	0°C ~ 55°C
AVM3215P3 SWITCH SNAP ACTION SPDT 10A 250V Panasonic Electric Works	3,517	-	RFQ Sell Excess Inventory	Datasheet	AVM3	Bulk	Active	SPDT	On-Mom	250 V	-	Lever, Straight	10A (AC)	Chassis Mount	Solder Lug	-	-	60gf	0.020" (0.5mm)	4.079gf	0.100" (2.5mm)	0.345" (8.8mm)	0.032" (0.81mm)	-25°C ~ 85°C
V15H22-CZ100A05 SWITCH SNAP ACTION SPDT 22A 125V Honeywell Sensing and Productivity Solutions	4,126	-	RFQ Sell Excess Inventory	Datasheet	V15	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Roller	22A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	120gf	0.031" (0.8mm)	20gf	0.060" (1.5mm)	0.812" (20.6mm)	0.015" (0.4mm)	-25°C ~ 150°C
V15S05-C1Z015B02 SWITCH SNAP ACTION SPDT 5A 125V Honeywell Sensing and Productivity Solutions	1,080	-	RFQ Sell Excess Inventory	Datasheet	V15	Bulk	Active	SPDT	On-Mom	125 V	48 V	Lever, Straight	5A (AC), 100mA (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	-	-	-	-	-	-	-25°C ~ 85°C
TFCFF5ST1640C SWITCH SNAP ACTION SPDT 1A 125V C&K	4,022	-	RFQ Sell Excess Inventory	Datasheet	TF	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	1A (AC/DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	15gf	0.045" (1.14mm)	2.000gf	0.250" (6.35mm)	0.600" (15.2mm)	0.125" (3.2mm)	-40°C ~ 85°C
D3V-161M-1C5 SWITCH SNAP ACTION SPDT 16A 250V Omron Electronics Inc-EMC Div	3,868	-	RFQ Sell Excess Inventory	Datasheet	D3V	Bulk	Active	SPDT	On-Mom	250 V	30 V	Lever, Straight	16A (AC), 10A (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	IP40	-	200gf	0.025" (0.6mm)	50gf	0.063" (1.6mm)	0.600" (15.2mm)	0.031" (0.79mm)	-25°C ~ 105°C
D2QW-C102D SWITCH SNAP ACTION SUBMINI BASIC Omron Electronics Inc-EMC Div	2,278	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
D2QW-C102H SWITCH SNAP ACTION SUBMINI BASIC Omron Electronics Inc-EMC Div	2,786	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
D2QW-C103D SWITCH SNAP ACTION SUBMINI BASIC Omron Electronics Inc-EMC Div	2,094	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
D3V-64M-1C4 SWITCH SNAP ACTION SPDT 6A 250V Omron Electronics Inc-EMC Div	1,113	-	RFQ Sell Excess Inventory	Datasheet	D3V	Bulk	Obsolete	SPDT	On-Mom	250 V	30 V	Lever, Simulated Roller	6A (AC/DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	IP40	-	60gf	0.060" (1.5mm)	6.118gf	0.157" (4.0mm)	0.738" (18.7mm)	0.062" (1.6mm)	-25°C ~ 105°C
ZW50F70JD4 SWITCH SNAP ACT SPDT-NC 6A 125V Honeywell Sensing and Productivity Solutions	2,285	-	RFQ Sell Excess Inventory	Datasheet	ZW	Tray	Obsolete	SPST-NC	On-Mom	125 V	-	Lever, Straight	6A (AC)	Chassis Mount	Quick Connect - 0.110" (2.8mm)	IP00	-	-	-	-	-	-	-	-40°C ~ 120°C

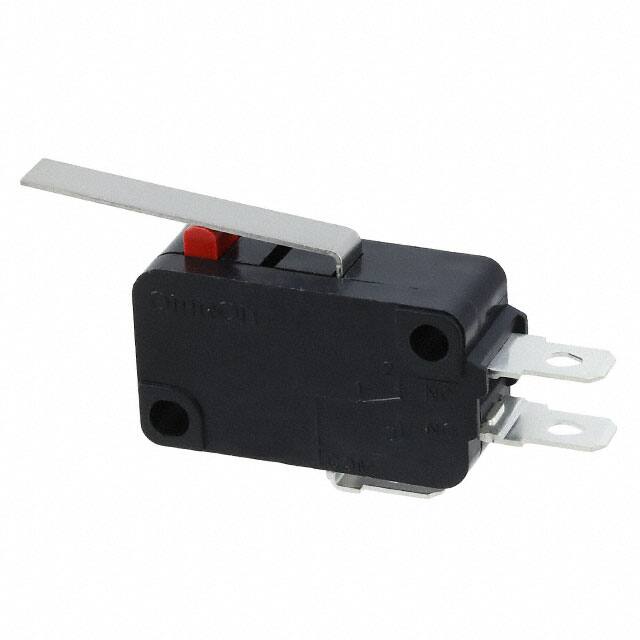

V-112-1A4 SWITCH SNAP ACTION SPDT 11A 250V Omron Electronics Inc-EMC Div	3,088	-	RFQ Sell Excess Inventory	Datasheet	V	Bulk	Active	SPDT	On-Mom	250 V	125 V	Lever, Straight	11A (AC), 600mA (DC)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	IP40	-	60gf	0.060" (1.5mm)	6.118gf	0.157" (4.0mm)	0.600" (15.2mm)	0.062" (1.6mm)	-25°C ~ 80°C
ABJ161040 SWITCH SNAP ACTION SPDT 1A 125V Panasonic Electric Works	3,583	-	RFQ Sell Excess Inventory	Datasheet	ABJ	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	1A (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	125gf	0.005" (0.13mm)	15gf	0.024" (0.6mm)	0.217" (5.5mm)	0.010" (0.25mm)	-40°C ~ 85°C
