Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
TMCJF5SP0040C SWITCH SNAP ACTION SPDT 1A 125V C&K	2,519	-	RFQ Sell Excess Inventory	Datasheet	TM	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	1A (AC/DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	150gf	0.013" (0.33mm)	60gf	0.055" (1.4mm)	0.579" (14.7mm)	0.035" (0.9mm)	-55°C ~ 150°C
V-15G5-1A5-K SWITCH SNAP ACTION SPDT 15A 250V Omron Electronics Inc-EMC Div	3,073	-	RFQ Sell Excess Inventory	Datasheet	V	Tray	Active	SPDT	On-Mom	250 V	125 V	Lever, Roller	15A (AC), 100mA (DC)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	IP40	-	240gf	0.025" (0.6mm)	50gf	0.063" (1.6mm)	0.815" (20.7mm)	0.030" (0.76mm)	-25°C ~ 80°C
V-15G5-1C6-K SWITCH SNAP ACTION SPDT 15A 250V Omron Electronics Inc-EMC Div	2,807	-	RFQ Sell Excess Inventory	Datasheet	V	Bulk	Obsolete	SPDT	On-Mom	250 V	125 V	Lever, Roller	15A (AC), 100mA (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	IP40	-	480gf	0.025" (0.6mm)	50gf	0.063" (1.6mm)	0.815" (20.7mm)	0.030" (0.76mm)	-25°C ~ 80°C
V-166-1A5(R) SWITCH SNAP ACTION SPDT 16A 250V Omron Electronics Inc-EMC Div	3,817	-	RFQ Sell Excess Inventory	Datasheet	V	Bulk	Active	SPDT	On-Mom	250 V	125 V	Lever, Roller	16A (AC), 600mA (DC)	Chassis Mount	Solder Lug	IP40	-	125gf	0.060" (1.5mm)	14gf	0.157" (4.0mm)	0.815" (20.7mm)	0.062" (1.6mm)	-25°C ~ 80°C
V-166-1A6 SWITCH SNAP ACTION MINI BASIC Omron Electronics Inc-EMC Div	1,666	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ABS1112519 SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works	3,881	-	RFQ Sell Excess Inventory	Datasheet	ABS	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	100mA (AC/DC)	Chassis Mount	Quick Connect - 0.110" (2.8mm)	IP50 - Dust Protected	-	55gf	0.031" (0.8mm)	3.500gf	0.110" (2.8mm)	0.345" (8.8mm)	0.047" (1.2mm)	-40°C ~ 85°C
ABS1113519 SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works	1,404	-	RFQ Sell Excess Inventory	Datasheet	ABS	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	100mA (AC/DC)	Chassis Mount	Quick Connect - 0.110" (2.8mm)	IP50 - Dust Protected	-	45gf	0.040" (1.0mm)	3.059gf	0.138" (3.5mm)	0.345" (8.8mm)	0.062" (1.6mm)	-40°C ~ 85°C
ABS1411519 SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works	2,378	-	RFQ Sell Excess Inventory	Datasheet	ABS	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	100mA (AC/DC)	Chassis Mount	Solder Lug	IP50 - Dust Protected	-	60gf	0.020" (0.5mm)	4.079gf	0.100" (2.5mm)	0.345" (8.8mm)	0.032" (0.81mm)	-40°C ~ 85°C
ABS1511519 SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works	2,679	-	RFQ Sell Excess Inventory	Datasheet	ABS	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	100mA (AC/DC)	Through Hole	PC Pin	IP50 - Dust Protected	-	60gf	0.020" (0.5mm)	4.079gf	0.100" (2.5mm)	0.345" (8.8mm)	0.032" (0.81mm)	-40°C ~ 85°C
ABS1512419 SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works	1,260	-	RFQ Sell Excess Inventory	Datasheet	ABS	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	100mA (AC/DC)	Through Hole	PC Pin	IP50 - Dust Protected	-	35gf	0.031" (0.8mm)	3.059gf	0.110" (2.8mm)	0.345" (8.8mm)	0.047" (1.2mm)	-40°C ~ 85°C
ABS1513519 SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works	1,266	-	RFQ Sell Excess Inventory	Datasheet	ABS	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	100mA (AC/DC)	Through Hole	PC Pin	IP50 - Dust Protected	-	45gf	0.040" (1.0mm)	3.059gf	0.138" (3.5mm)	0.345" (8.8mm)	0.062" (1.6mm)	-40°C ~ 85°C
UM50E10C01 SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	1,549	-	RFQ Sell Excess Inventory	Datasheet	UM	Bulk	Obsolete	SPDT	On-Mom	250 V	-	Lever, Straight	5A (AC)	Chassis Mount	Solder Lug	-	-	56gf	0.030" (0.76mm)	3.000gf	0.110" (2.8mm)	0.330" (8.4mm)	0.047" (1.2mm)	-25°C ~ 82°C
V7-2B29E9-048 SWITCH SNAP ACT SPST-NO 11A 125V Honeywell Sensing and Productivity Solutions	2,949	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Active	SPST-NO	Off-Mom	125 V	125 V	Lever, Straight	11A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	23gf	0.053" (1.35mm)	1.000gf	0.250" (6.35mm)	0.602" (15.3mm)	0.125" (3.2mm)	-40°C ~ 85°C
V15H16-EZ200A05 SWITCH SNAP ACTION SPDT 16A 125V Honeywell Sensing and Productivity Solutions	1,096	-	RFQ Sell Excess Inventory	Datasheet	V15	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Roller	16A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	240gf	0.031" (0.8mm)	40gf	0.060" (1.5mm)	0.812" (20.6mm)	0.015" (0.4mm)	-25°C ~ 150°C
V15T16-SZ200A05-7 SWITCH SNAP ACTION SPDT 16A 125V Honeywell Sensing and Productivity Solutions	3,636	-	RFQ Sell Excess Inventory	Datasheet	V15	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Roller	16A (AC)	Chassis Mount	Solder Lug	-	-	-	-	-	-	-	-	-25°C ~ 125°C
ABS1411419 SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works	1,890	-	RFQ Sell Excess Inventory	Datasheet	ABS	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	100mA (AC/DC)	Chassis Mount	Solder Lug	IP50 - Dust Protected	-	40gf	0.020" (0.5mm)	3.500gf	0.100" (2.5mm)	0.345" (8.8mm)	0.032" (0.81mm)	-40°C ~ 85°C
ABS1412419 SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works	1,544	-	RFQ Sell Excess Inventory	Datasheet	ABS	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	100mA (AC/DC)	Chassis Mount	Solder Lug	IP50 - Dust Protected	-	35gf	0.031" (0.8mm)	3.059gf	0.110" (2.8mm)	0.345" (8.8mm)	0.047" (1.2mm)	-40°C ~ 85°C

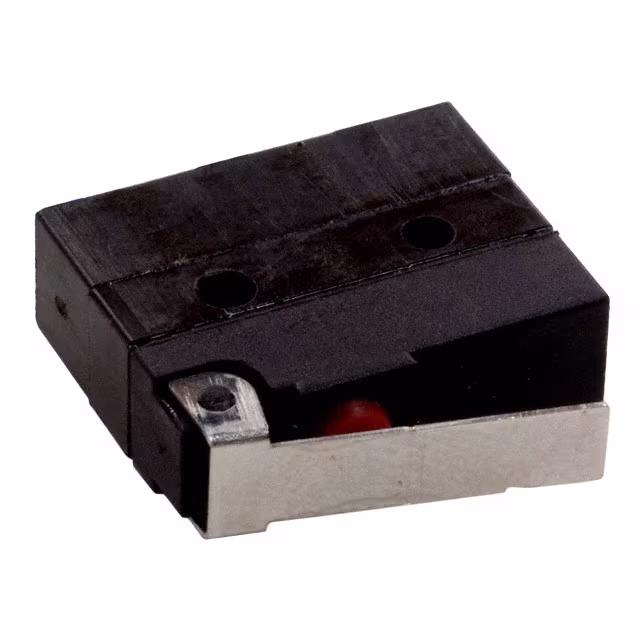

LCS05060T05QDC SWITCH SNAP ACTION SPDT 6A 125V C&K	3,239	-	RFQ Sell Excess Inventory	Datasheet	LCS	Tray	Active	SPDT	On-Mom	125 V	-	Lever, Straight	6A (AC)	Chassis Mount	Quick Connect - 0.110" (2.8mm)	-	-	20gf	0.025" (0.6mm)	-	0.170" (4.3mm)	0.345" (8.8mm)	0.035" (0.9mm)	-40°C ~ 125°C
D3V-11-1A5 SWITCH SNAP ACTION SPDT 11A 250V Omron Electronics Inc-EMC Div	1,050	-	RFQ Sell Excess Inventory	Datasheet	D3V	Bulk	Active	SPDT	On-Mom	250 V	125 V	Round (Pin Plunger)	11A (AC), 600mA (DC)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	IP40	-	200gf	0.016" (0.4mm)	50gf	0.047" (1.2mm)	0.579" (14.7mm)	0.040" (1.0mm)	-25°C ~ 105°C
HY55-01113 SWITCH SNAP ACT SPST-NO 16A 125V E-Switch	3,618	-	RFQ Sell Excess Inventory	Datasheet	HY	Bulk	Active	SPST-NO	Off-Mom	125 V	-	Trigger	16A (AC)	Panel Mount	Solder, Quick Connect - 0.250" (6.3mm)	-	-	-	-	-	-	-	-	-20°C ~ 65°C
