Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
ZW50F15FD1-Z SWITCH SNAP ACTION SPDT 5A 125V Honeywell Sensing and Productivity Solutions	1,567	-	RFQ Sell Excess Inventory	Datasheet	ZW	Tray	Obsolete	SPDT	On-Mom	125 V	-	Lever, Roller	5A (AC)	Chassis Mount	Solder Lug	IP00	-	72gf	0.025" (0.6mm)	15gf	0.170" (4.3mm)	0.571" (14.5mm)	0.035" (0.9mm)	-40°C ~ 120°C
ABV1210518 SWITCH SNAP ACTION SPDT 3A 250V Panasonic Electric Works	3,445	-	RFQ Sell Excess Inventory	Datasheet	ABV	Bulk	Active	SPDT	On-Mom	250 V	-	Round (Pin Plunger)	3A (AC)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	IP50 - Dust Protected	-	200gf	0.016" (0.4mm)	40gf	0.063" (1.6mm)	0.579" (14.7mm)	0.030" (0.76mm)	-40°C ~ 85°C
DC2C-A1LB SWITCH SNAP ACTION SPDT 10A 125V ZF Electronics	3,525	-	RFQ Sell Excess Inventory	Datasheet	DC	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Straight	10A (AC)	Chassis Mount	Solder Lug	IP67 - Dust Tight, Waterproof	-	153gf	0.031" (0.8mm)	-	0.197" (5.0mm)	0.420" (10.7mm)	0.060" (1.5mm)	-40°C ~ 120°C

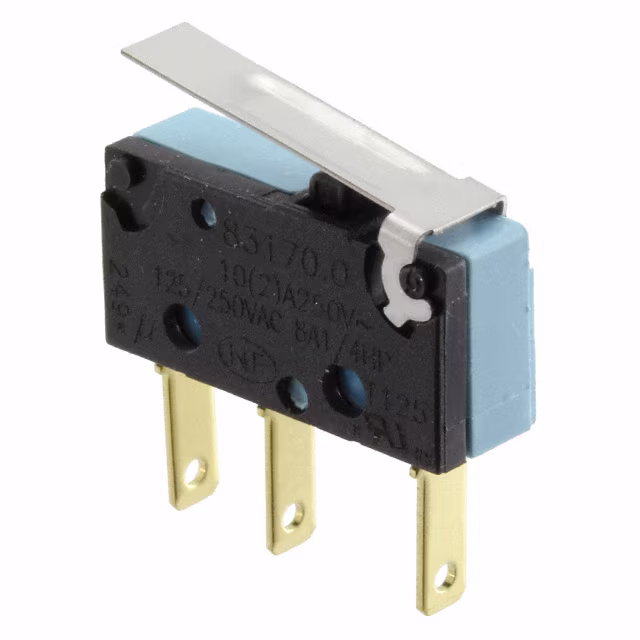

83170197 SWITCH SNAP ACTION SPDT 10A 250V Crouzet	2,289	-	RFQ Sell Excess Inventory	Datasheet	83170	Bulk	Active	SPDT	On-Mom	250 V	-	Lever, Straight	10A (AC)	Chassis Mount	Quick Connect - 0.110" (2.8mm)	-	Actuator Mounted Left Side	51gf	0.018" (0.45mm)	10gf	-	0.409" (10.4mm)	0.060" (1.5mm)	-20°C ~ 130°C
V7-7H25D8-263-1 SWITCH SNAP ACT SPST-NO 5A 125V Honeywell Sensing and Productivity Solutions	3,873	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Active	SPST-NO	Off-Mom	125 V	-	Lever, Simulated Roller	5A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	113gf	0.050" (1.3mm)	14gf	0.125" (3.2mm)	0.730" (18.5mm)	0.080" (2.03mm)	-40°C ~ 85°C
V7-2H15D8-000-2 SWITCH PLUNGER SPDT QC Honeywell Sensing and Productivity Solutions	3,497	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
V7-3E17D8-000-3 SWITCH SNAP ACTION SPDT 10A 125V Honeywell Sensing and Productivity Solutions	4,865	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Active	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	10A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	50gf	0.010" (0.25mm)	-	0.047" (1.2mm)	0.579" (14.7mm)	0.050" (1.27mm)	-40°C ~ 85°C
V7-3E19E9-000-1 SWITCH PLUNGER SPDT 10A QC Honeywell Sensing and Productivity Solutions	4,837	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
V7-5F17D8-000-3 SWITCH SNAP ACTION SPDT 3A 125V Honeywell Sensing and Productivity Solutions	4,590	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	3A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	15gf	0.010" (0.25mm)	-	0.047" (1.2mm)	0.579" (14.7mm)	0.050" (1.27mm)	-40°C ~ 85°C
TF2EEH8VA155AC SWITCH SNAP ACTION SPDT 6A 125V C&K	3,438	-	RFQ Sell Excess Inventory	Datasheet	TF2	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Roller	6A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	180gf	0.049" (1.25mm)	25gf	0.165" (4.2mm)	0.815" (20.7mm)	0.063" (1.6mm)	-40°C ~ 85°C
VM3SCQF3002L06 SWITCH LIMIT SPDT 10A 125V CIT Relay and Switch	2,423	-	RFQ Sell Excess Inventory	Datasheet	VM3S	Tray	Active	SPDT	On-Mom	125 V	36 V	Lever, Roller	10A (AC), 6A (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP67 - Dust Tight, Waterproof	-	380gf	0.040" (1.0mm)	160gf	0.067" (1.7mm)	0.799" (20.3mm)	0.012" (0.3mm)	-40°C ~ 120°C
D2QW-C073D SWITCH SNAP ACT SPST-NO 0.1A 30V Omron Electronics Inc-EMC Div	4,799	-	RFQ Sell Excess Inventory	Datasheet	D2QW	Bulk	Active	SPST-NO	Off-Mom	-	30 V	Lever, Simulated Roller	100mA (DC)	Through Hole	PC Pin	IP67 - Dust Tight, Waterproof	-	153gf	-	-	-	0.472" (12.0mm)	0.138" (3.5mm)	-40°C ~ 85°C
D3V-62M-1C24 SWITCH SNAP ACTION SPDT 6A 250V Omron Electronics Inc-EMC Div	1,324	-	RFQ Sell Excess Inventory	Datasheet	D3V	Bulk	Obsolete	SPDT	On-Mom	250 V	30 V	Lever, Straight	6A (AC/DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	60gf	0.060" (1.5mm)	6.118gf	0.157" (4.0mm)	0.600" (15.2mm)	0.062" (1.6mm)	-25°C ~ 105°C
V7-9W2AE9 SWITCH SNAP ACT SPST-NO 15A 125V Honeywell Sensing and Productivity Solutions	4,045	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Obsolete	SPST-NO	Off-Mom	125 V	-	Round (Pin Plunger)	15A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	300gf	0.010" (0.25mm)	25gf	0.047" (1.2mm)	0.579" (14.7mm)	0.050" (1.27mm)	-40°C ~ 177°C
LCGDL9P00ECU SWITCH SNAP ACTION SPDT 5A 125V C&K	3,729	-	RFQ Sell Excess Inventory	Datasheet	LC	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	5A (AC)	Chassis Mount	Solder Lug	-	-	95gf	0.004" (0.1mm)	14gf	0.030" (0.8mm)	0.330" (8.4mm)	0.010" (0.25mm)	-25°C ~ 85°C
VM3SCQF3002L01 SWITCH LIMIT SPDT 10A 125V CIT Relay and Switch	3,249	-	RFQ Sell Excess Inventory	Datasheet	VM3S	Tray	Active	SPDT	On-Mom	125 V	36 V	Lever, Roller	10A (AC), 6A (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP67 - Dust Tight, Waterproof	-	210gf	0.050" (1.3mm)	100gf	0.118" (3.0mm)	0.795" (20.2mm)	0.031" (0.8mm)	-40°C ~ 120°C
ABV1232619 SWITCH SNAP ACT SPST-NO 3A 250V Panasonic Electric Works	4,060	-	RFQ Sell Excess Inventory	Datasheet	ABV	Bulk	Active	SPST-NO	Off-Mom	250 V	-	Lever, Straight	3A (AC)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	IP50 - Dust Protected	-	180gf	0.047" (1.2mm)	20gf	0.125" (3.2mm)	0.602" (15.3mm)	0.047" (1.2mm)	-40°C ~ 85°C
ABV1234619 SWITCH SNAP ACT SPST-NO 3A 250V Panasonic Electric Works	1,550	-	RFQ Sell Excess Inventory	Datasheet	ABV	Bulk	Active	SPST-NO	Off-Mom	250 V	-	Lever, Simulated Roller	3A (AC)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	IP50 - Dust Protected	-	180gf	0.047" (1.2mm)	20gf	0.125" (3.2mm)	0.730" (18.5mm)	0.047" (1.2mm)	-40°C ~ 85°C
TFCFK6ST145AC SWITCH SNAP ACTION SPDT 11A 227V C&K	2,570	-	RFQ Sell Excess Inventory	Datasheet	TF	Bulk	Active	SPDT	On-Mom	227 V	125 V	Lever, Simulated Roller	11A (AC), 250mA (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	35gf	0.030" (0.76mm)	4.000gf	0.100" (2.54mm)	0.730" (18.5mm)	0.060" (1.5mm)	-40°C ~ 85°C
H3145AAPAEX SWITCH DETECTOR SPST-NC 5A 250V Bulgin	3,203	-	RFQ Sell Excess Inventory	Datasheet	3140	Bulk	Active	SPST-NC	On-Mom	250 V	-	Angled Toggle (Detector)	5A (AC)	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	Splash Proof	-	-	-	-	-	-	-	-
