Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
H3145DAPAEX SWITCH DETECTOR SPST-NC 5A 250V Bulgin	3,440	-	RFQ Sell Excess Inventory	Datasheet	3140	Bulk	Active	SPST-NC	On-Mom	250 V	-	Angled Toggle (Detector)	5A (AC)	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	Splash Proof	-	-	-	-	-	-	-	-
H3146DAWAEX SWITCH DETECTOR SPST-NO 5A 250V Bulgin	1,848	-	RFQ Sell Excess Inventory	Datasheet	3140	Bulk	Active	SPST-NO	Off-Mom	250 V	-	Angled Toggle (Detector)	5A (AC)	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	Splash Proof	-	-	-	-	-	-	-	-
H3145AABAEX SWITCH DETECTOR SPST-NC 5A 250V Bulgin	1,919	-	RFQ Sell Excess Inventory	Datasheet	3140	Bulk	Active	SPST-NC	On-Mom	250 V	-	Angled Toggle (Detector)	5A (AC)	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	Splash Proof	-	-	-	-	-	-	-	-
V-151-2A5 SWITCH SNAP ACT SPST-NC 15A 250V Omron Electronics Inc-EMC Div	1,910	-	RFQ Sell Excess Inventory	Datasheet	V	Bulk	Active	SPST-NC	On-Mom	250 V	125 V	Lever, Straight	15A (AC), 600mA (DC)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	IP40	-	200gf	0.025" (0.6mm)	50gf	0.063" (1.6mm)	0.600" (15.2mm)	0.030" (0.76mm)	-25°C ~ 80°C
D2HW-BR202ML SWITCH SNP ACT SPST-NC 0.1A 125V Omron Electronics Inc-EMC Div	3,052	-	RFQ Sell Excess Inventory	Datasheet	D2HW	Bulk	Active	SPST-NC	On-Mom	125 V	12 V	Round (Pin Plunger)	100mA (AC), 2A (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	Support Posts	76gf	0.010" (0.25mm)	10gf	-	0.250" (6.4mm)	0.055" (1.4mm)	-40°C ~ 85°C
D2HW-BR202MR SWITCH SNP ACT SPST-NC 0.1A 125V Omron Electronics Inc-EMC Div	4,502	-	RFQ Sell Excess Inventory	Datasheet	D2HW	Bulk	Active	SPST-NC	On-Mom	125 V	12 V	Round (Pin Plunger)	100mA (AC), 2A (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	Support Posts	76gf	0.010" (0.25mm)	10gf	-	0.250" (6.4mm)	0.055" (1.4mm)	-40°C ~ 85°C
83170474 SWITCH SNAP ACTION SPDT 5A 250V Crouzet	4,355	-	RFQ Sell Excess Inventory	Datasheet	83170	Bulk	Active	SPDT	On-Mom	250 V	-	Mushroom Button	5A (AC)	Chassis Mount	Quick Connect - 0.110" (2.8mm)	-	-	61gf	0.006" (0.15mm)	10gf	-	0.390" (9.9mm)	0.020" (0.5mm)	-20°C ~ 130°C

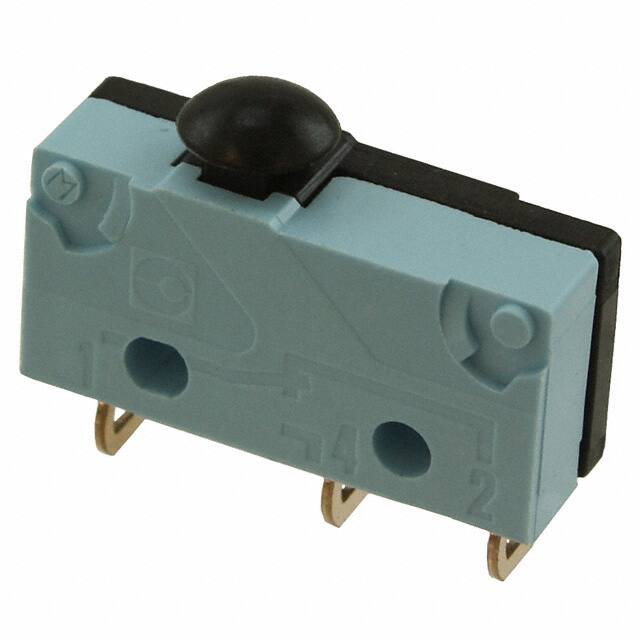

83170473 SWITCH SNAP ACTION SPDT 5A 250V Crouzet	3,272	-	RFQ Sell Excess Inventory	Datasheet	83170	Bulk	Active	SPDT	On-Mom	250 V	-	Mushroom Button	5A (AC)	Chassis Mount	Solder Lug	-	-	61gf	0.006" (0.15mm)	10gf	-	0.390" (9.9mm)	0.020" (0.5mm)	-20°C ~ 130°C
83170410 SWITCH SNAP ACTION SPDT 5A 250V Crouzet	2,293	-	RFQ Sell Excess Inventory	Datasheet	83170	Bulk	Active	SPDT	On-Mom	250 V	-	Round (Pin Plunger)	5A (AC)	Through Hole, Right Angle	PC Pin	-	-	61gf	0.006" (0.15mm)	10gf	-	0.330" (8.4mm)	0.020" (0.5mm)	-20°C ~ 130°C
83170412 SWITCH SNAP ACTION SPDT 5A 250V Crouzet	4,649	-	RFQ Sell Excess Inventory	Datasheet	83170	Bulk	Active	SPDT	On-Mom	250 V	-	Round (Pin Plunger)	5A (AC)	Through Hole, Right Angle	PC Pin	-	-	61gf	0.006" (0.15mm)	10gf	-	0.330" (8.4mm)	0.020" (0.5mm)	-20°C ~ 130°C
V7-1E15D8-022-1 SWITCH STRGHT LVR SPDT 10A QC Honeywell Sensing and Productivity Solutions	3,369	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
V-21-2C6 SWITCH SNAP ACT SPST-NC 21A 250V Omron Electronics Inc-EMC Div	2,345	-	RFQ Sell Excess Inventory	Datasheet	V	Bulk	Obsolete	SPST-NC	On-Mom	250 V	125 V	Round (Pin Plunger)	21A (AC), 600mA (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	IP40	-	400gf	0.016" (0.4mm)	80gf	0.047" (1.2mm)	0.579" (14.7mm)	0.040" (1.0mm)	-25°C ~ 80°C
ABV1214503 SWITCH SNAP ACTION SPDT 5A 250V Panasonic Electric Works	1,896	-	RFQ Sell Excess Inventory	Datasheet	ABV	Bulk	Active	SPDT	On-Mom	250 V	-	Lever, Simulated Roller	5A (AC)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	IP50 - Dust Protected	-	120gf	0.047" (1.2mm)	13gf	0.125" (3.2mm)	0.730" (18.5mm)	0.047" (1.2mm)	-40°C ~ 85°C
ABV1212603 SWITCH SNAP ACTION SPDT 5A 250V Panasonic Electric Works	2,375	-	RFQ Sell Excess Inventory	Datasheet	ABV	Bulk	Active	SPDT	On-Mom	250 V	-	Lever, Straight	5A (AC)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	IP50 - Dust Protected	-	180gf	0.047" (1.2mm)	20gf	0.125" (3.2mm)	0.602" (15.3mm)	0.047" (1.2mm)	-40°C ~ 85°C
TMCJG6ST1010C SWITCH SNAP ACTION SPDT 15A 125V C&K	1,189	-	RFQ Sell Excess Inventory	Datasheet	TM	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Straight	15A (AC), 500mA (DC)	Chassis Mount	Solder Lug	-	-	180gf	0.013" (0.33mm)	48gf	0.080" (2.0mm)	0.600" (15.2mm)	0.035" (0.9mm)	-55°C ~ 150°C
V-16G2-1C5-K (R) SWITCH SNAP ACTION SPDT 16A 250V Omron Electronics Inc-EMC Div	3,583	-	RFQ Sell Excess Inventory	Datasheet	V	Bulk	Active	SPDT	On-Mom	250 V	125 V	Lever, Straight	16A (AC), 100mA (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	IP40	-	125gf	0.060" (1.5mm)	14gf	0.157" (4.0mm)	0.600" (15.2mm)	0.062" (1.6mm)	-25°C ~ 80°C
V-10G5-1C25-K SWITCH SNAP ACTION SPDT 10A 250V Omron Electronics Inc-EMC Div	1,819	-	RFQ Sell Excess Inventory	Datasheet	V	Bulk	Obsolete	SPDT	On-Mom	250 V	125 V	Lever, Roller	10A (AC), 100mA (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	240gf	0.025" (0.6mm)	50gf	0.063" (1.6mm)	0.815" (20.7mm)	0.030" (0.76mm)	-25°C ~ 80°C
AV625264 SWITCH SNAP ACT SPST-NC 0.1A 30V Panasonic Electric Works	4,527	-	RFQ Sell Excess Inventory	Datasheet	AV6	Bulk	Active	SPST-NC	On-Mom	-	30 V	Lever, Roller	100mA (DC)	Chassis Mount	Connector	IP40	-	20gf	0.031" (0.8mm)	2.039gf	0.102" (2.6mm)	0.618" (15.7mm)	0.047" (1.2mm)	-25°C ~ 85°C
AV625564 SWITCH SNAP ACT SPST-NC 0.1A 30V Panasonic Electric Works	4,179	-	RFQ Sell Excess Inventory	Datasheet	AV6	Bulk	Active	SPST-NC	On-Mom	-	30 V	Lever, Roller	100mA (DC)	Chassis Mount	Connector	IP40	-	51gf	0.031" (0.8mm)	6.118gf	0.102" (2.6mm)	0.618" (15.7mm)	0.047" (1.2mm)	-25°C ~ 85°C
V7-4A17E9A8-1 V BASIC SWITCH Honeywell Sensing and Productivity Solutions	2,317	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Active	SPDT	On-Mom	125 V	-	-	5A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	-	-	-	-	-	-	-40°C ~ 85°C
