Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
83161431 SWITCH SNAP ACTION SPDT 10A 250V Crouzet	2,113	-	RFQ Sell Excess Inventory	Datasheet	83161	Bulk	Active	SPDT	On-Mom	250 V	-	Round (Pin Plunger)	10A (AC)	Chassis Mount	Solder Lug	-	-	51gf	0.014" (0.35mm)	10gf	-	0.579" (14.7mm)	0.047" (1.2mm)	-20°C ~ 125°C
ZW50F92AW3 SWITCH SNAP ACT SPST-NO 5A 125V Honeywell Sensing and Productivity Solutions	3,657	-	RFQ Sell Excess Inventory	Datasheet	ZW	Bulk	Obsolete	SPST-NO	Off-Mom	125 V	-	Round (Pin Plunger)	5A (AC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	203gf	0.008" (0.2mm)	50gf	0.047" (1.2mm)	0.330" (8.4mm)	0.025" (0.6mm)	-40°C ~ 105°C
V7-1X2AD8-750 SWITCH SNAP ACT SPST-NO 6A 125V Honeywell Sensing and Productivity Solutions	2,946	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Obsolete	SPST-NO	Off-Mom	125 V	-	Lever, Straight	6A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	79gf	0.0008" (0.020mm)	6.000gf	0.100" (2.5mm)	0.602" (15.3mm)	0.057" (1.45mm)	-40°C ~ 177°C
ZD30S60C02-Z SWITCH SNAP ACT SPDT 0.1A 125V Honeywell Sensing and Productivity Solutions	2,761	-	RFQ Sell Excess Inventory	Datasheet	ZD	Tray	Obsolete	SPDT	On-Mom	125 V	12 V	Lever, Straight	100mA (AC), 3A (DC)	Through Hole, Right Angle	PC Pin	IP00	Support Posts	195gf	0.025" (0.6mm)	25gf	0.138" (3.5mm)	0.291" (7.4mm)	0.053" (1.35mm)	-40°C ~ 120°C

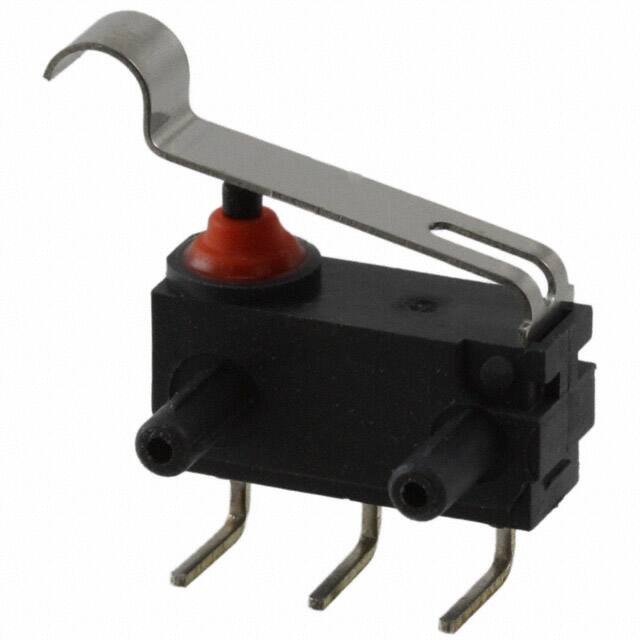

ZD30S60H02-Z SWITCH SNAP ACT SPDT 0.1A 125V Honeywell Sensing and Productivity Solutions	3,966	-	RFQ Sell Excess Inventory	Datasheet	ZD	Tray	Obsolete	SPDT	On-Mom	125 V	12 V	Lever, Simulated Roller	100mA (AC), 3A (DC)	Through Hole, Right Angle	PC Pin	IP00	Support Posts	180gf	0.027" (0.7mm)	20gf	0.150" (3.8mm)	0.420" (10.7mm)	0.060" (1.5mm)	-40°C ~ 120°C
V15W-DZ200A06-W2 SWITCH SNAP ACTION SPDT 5A 125V Honeywell Sensing and Productivity Solutions	2,546	-	RFQ Sell Excess Inventory	Datasheet	V15W	Tray	Obsolete	SPDT	On-Mom	125 V	30 V	Lever, Roller	5A (AC/DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	120gf	0.047" (1.2mm)	20gf	0.125" (3.2mm)	0.812" (20.6mm)	0.051" (1.3mm)	-40°C ~ 85°C
ABS463350 SWITCH SNAP ACT SPST-NO 2A 125V Panasonic Electric Works	3,834	-	RFQ Sell Excess Inventory	Datasheet	ABS	Bulk	Active	SPST-NO	Off-Mom	125 V	30 V	Lever, Straight	2A (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	45gf	0.040" (1.0mm)	2.957gf	0.138" (3.5mm)	0.346" (8.80mm)	0.063" (1.6mm)	-40°C ~ 85°C
ZW10F20AD1 SWITCH SNAP ACT SPDT 100MA 125V Honeywell Sensing and Productivity Solutions	2,533	-	RFQ Sell Excess Inventory	Datasheet	ZW	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	100mA (AC)	Through Hole	PC Pin	IP00	-	203gf	0.008" (0.2mm)	50gf	0.047" (1.2mm)	0.330" (8.4mm)	0.025" (0.6mm)	-40°C ~ 120°C
ABJ261460 SWITCH SNAP ACTION SPDT 2A 125V Panasonic Electric Works	4,164	-	RFQ Sell Excess Inventory	Datasheet	ABJ	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Simulated Roller	2A (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	65gf	0.020" (0.5mm)	5.000gf	0.118" (3.0mm)	0.445" (11.3mm)	0.020" (0.5mm)	-40°C ~ 85°C
V15W-EP200A05-AW1 SWITCH BASIC Honeywell Sensing and Productivity Solutions	4,220	-	RFQ Sell Excess Inventory	Datasheet	*	Tray	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
V7-1C17D8-000-3 V BASIC SWITCH Honeywell Sensing and Productivity Solutions	3,610	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Active	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	-	-	-	-	-	-	-40°C ~ 85°C
V7-4S17D8 SWITCH SNAP ACT SPDT 0.1A 125V Honeywell Sensing and Productivity Solutions	4,390	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	100mA (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	25gf	0.010" (0.25mm)	-	0.047" (1.2mm)	0.579" (14.7mm)	0.050" (1.27mm)	-40°C ~ 85°C
83170443 SWITCH SNAP ACTION SPDT 5A 250V Crouzet	2,119	-	RFQ Sell Excess Inventory	Datasheet	83170	Bulk	Active	SPDT	On-Mom	250 V	-	Lever, Simulated Roller	5A (AC)	Chassis Mount	Solder Lug	-	Actuator Mounted Left Side	20gf	0.018" (0.45mm)	3.500gf	-	0.512" (13.0mm)	0.060" (1.5mm)	-20°C ~ 130°C
83170809 SWITCH SNAP ACT SPDT 0.1A 250V Crouzet	4,425	-	RFQ Sell Excess Inventory	Datasheet	83170	Bulk	Active	SPDT	On-Mom	250 V	-	Round (Pin Plunger)	100mA (AC)	Through Hole	PC Pin	-	-	153gf	0.006" (0.15mm)	31gf	-	0.330" (8.4mm)	0.020" (0.5mm)	-20°C ~ 125°C
V-10G5-1B5-K SWITCH SNAP ACTION SPDT 10A 250V Omron Electronics Inc-EMC Div	2,771	-	RFQ Sell Excess Inventory	Datasheet	V	Tray	Obsolete	SPDT	On-Mom	250 V	125 V	Lever, Roller	10A (AC), 100mA (DC)	Chassis Mount	Screw Terminal	IP40	-	240gf	0.025" (0.6mm)	50gf	0.063" (1.6mm)	0.815" (20.7mm)	0.030" (0.76mm)	-25°C ~ 80°C
ABV1612403 SWITCH SNAP ACTION SPDT 3A 250V Panasonic Electric Works	3,578	-	RFQ Sell Excess Inventory	Datasheet	ABV	Bulk	Active	SPDT	On-Mom	250 V	-	Lever, Straight	3A (AC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	60gf	0.047" (1.2mm)	10gf	0.125" (3.2mm)	0.602" (15.3mm)	0.047" (1.2mm)	-40°C ~ 85°C
ABJ263040 SWITCH SNAP ACT SPST-NO 1A 125V Panasonic Electric Works	4,577	-	RFQ Sell Excess Inventory	Datasheet	ABJ	Bulk	Active	SPST-NO	Off-Mom	125 V	30 V	Round (Pin Plunger)	1A (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	125gf	0.005" (0.13mm)	15gf	0.024" (0.6mm)	0.276" (7.0mm)	0.010" (0.25mm)	-40°C ~ 85°C
H3005CB-BLACK SWITCH DETECT SPST-NC 0.2A 125V Bulgin	3,153	-	RFQ Sell Excess Inventory	Datasheet	3005	Bulk	Active	SPST-NC	On-Mom	125 V	-	Angled Toggle (Detector)	200mA (AC)	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	Splash Proof	-	-	-	-	-	-	-	-
V15W-EZ200-W3 SWITCH SNAP ACTION SPDT 10A 125V Honeywell Sensing and Productivity Solutions	1,033	-	RFQ Sell Excess Inventory	Datasheet	V15W	Tray	Obsolete	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	10A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	200gf	0.016" (0.4mm)	50gf	0.063" (1.6mm)	0.579" (14.7mm)	0.030" (0.76mm)	-40°C ~ 85°C
V-165-2A6 SWITCH SNAP ACT SPST-NC 21A 250V Omron Electronics Inc-EMC Div	2,706	-	RFQ Sell Excess Inventory	Datasheet	V	Bulk	Active	SPST-NC	On-Mom	250 V	125 V	Lever, Roller	21A (AC), 600mA (DC)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	IP40	-	400gf	0.016" (0.4mm)	50gf	0.047" (1.2mm)	0.579" (14.7mm)	0.039" (1.0mm)	-25°C ~ 105°C
