Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
TFCGK6SP004AC SWITCH SNAP ACTION SPDT 11A 277V C&K	1,843	-	RFQ Sell Excess Inventory	Datasheet	TF	Bulk	Active	SPDT	On-Mom	277 V	125 V	Round (Pin Plunger)	11A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	75gf	0.010" (0.25mm)	15gf	0.047" (1.2mm)	0.579" (14.7mm)	0.050" (1.27mm)	-40°C ~ 85°C
V7-1S10D8 SWITCH SNAP ACT SPDT 0.1A 125V Honeywell Sensing and Productivity Solutions	1,143	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	100mA (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	150gf	0.010" (0.25mm)	25gf	0.047" (1.2mm)	0.579" (14.7mm)	0.050" (1.27mm)	-40°C ~ 85°C
ABS1610403 SWITCH SNAP ACTION SPDT 2A 125V Panasonic Electric Works	3,186	-	RFQ Sell Excess Inventory	Datasheet	ABS	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	2A (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	100gf	0.004" (0.1mm)	15gf	0.024" (0.6mm)	0.331" (8.40mm)	0.015" (0.4mm)	-40°C ~ 85°C
ABS163051 SWITCH SNP ACT SPST-NO 0.1A 125V Panasonic Electric Works	3,503	-	RFQ Sell Excess Inventory	Datasheet	ABS	Bulk	Active	SPST-NO	Off-Mom	125 V	30 V	Round (Pin Plunger)	100mA (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	150gf	0.004" (0.1mm)	20gf	0.024" (0.6mm)	0.331" (8.40mm)	0.015" (0.4mm)	-40°C ~ 85°C
V-10-1B4 SWITCH SNAP ACTION SPDT 10A 250V Omron Electronics Inc-EMC Div	2,957	-	RFQ Sell Excess Inventory	Datasheet	V	Bulk	Active	SPDT	On-Mom	250 V	125 V	Round (Pin Plunger)	10A (AC), 600mA (DC)	Chassis Mount	Screw Terminal	IP40	-	100gf	0.016" (0.4mm)	20gf	0.047" (1.2mm)	0.579" (14.7mm)	0.040" (1.0mm)	-25°C ~ 80°C
ABV1212413 SWITCH SNAP ACTION SPDT 3A 250V Panasonic Electric Works	3,275	-	RFQ Sell Excess Inventory	Datasheet	ABV	Bulk	Active	SPDT	On-Mom	250 V	-	Lever, Straight	3A (AC)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	IP50 - Dust Protected	-	60gf	0.047" (1.2mm)	10gf	0.125" (3.2mm)	0.602" (15.3mm)	0.047" (1.2mm)	-40°C ~ 85°C
V-165-1A6 SWITCH SNAP ACTION SPDT 16A 250V Omron Electronics Inc-EMC Div	2,505	-	RFQ Sell Excess Inventory	Datasheet	V	Bulk	Active	SPDT	On-Mom	250 V	125 V	Lever, Roller	16A (AC), 600mA (DC)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	IP40	-	480gf	0.025" (0.6mm)	50gf	0.063" (1.6mm)	0.815" (20.7mm)	0.030" (0.76mm)	-25°C ~ 80°C
V7-3E13E7-000-1 SWITCH PIN PLUNGER SPDT 10A Honeywell Sensing and Productivity Solutions	1,701	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
V7-1X2AD8-022-1 SWITCH V BASIC Honeywell Sensing and Productivity Solutions	3,991	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
V7-2A1AD8C9-000-1 SWITCH V BASIC Honeywell Sensing and Productivity Solutions	1,852	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
V7-4A13E9D8-000-1 SWITCH V BASIC Honeywell Sensing and Productivity Solutions	4,287	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ABV121540R SWITCH SNAP ACTION SPDT 3A 250V Panasonic Electric Works	2,880	-	RFQ Sell Excess Inventory	Datasheet	ABV	Bulk	Active	SPDT	On-Mom	250 V	-	Lever, Roller	3A (AC)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	IP50 - Dust Protected	-	110gf	0.020" (0.5mm)	20gf	0.063" (1.6mm)	0.815" (20.7mm)	0.031" (0.8mm)	-40°C ~ 85°C
V7-3S17D8-022 SWITCH SNAP ACT SPDT 100MA 125V Honeywell Sensing and Productivity Solutions	4,538	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Straight	100mA (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	30gf	0.030" (0.76mm)	1.000gf	0.120" (3.0mm)	0.600" (15.2mm)	0.085" (2.16mm)	-40°C ~ 85°C
83170437 SWITCH SNAP ACTION SPDT 5A 250V Crouzet	1,051	-	RFQ Sell Excess Inventory	Datasheet	83170	Bulk	Active	SPDT	On-Mom	250 V	-	Lever, Straight	5A (AC)	Chassis Mount	Solder Lug	-	Actuator Mounted Left Side	20gf	0.018" (0.45mm)	3.500gf	-	0.409" (10.4mm)	0.060" (1.5mm)	-20°C ~ 130°C
83170445 SWITCH SNAP ACTION SPDT 5A 250V Crouzet	2,641	-	RFQ Sell Excess Inventory	Datasheet	83170	Bulk	Active	SPDT	On-Mom	250 V	-	Lever, Straight	5A (AC)	Chassis Mount	Quick Connect - 0.110" (2.8mm)	-	Actuator Mounted Left Side	20gf	0.018" (0.45mm)	3.500gf	-	0.409" (10.4mm)	0.060" (1.5mm)	-20°C ~ 130°C
83170447 SWITCH SNAP ACTION SPDT 5A 250V Crouzet	1,054	-	RFQ Sell Excess Inventory	Datasheet	83170	Bulk	Active	SPDT	On-Mom	250 V	-	Lever, Straight	5A (AC)	Chassis Mount	Quick Connect - 0.110" (2.8mm)	-	Actuator Mounted Left Side	15gf	0.025" (0.6mm)	2.500gf	-	0.437" (11.1mm)	0.079" (2.0mm)	-20°C ~ 130°C

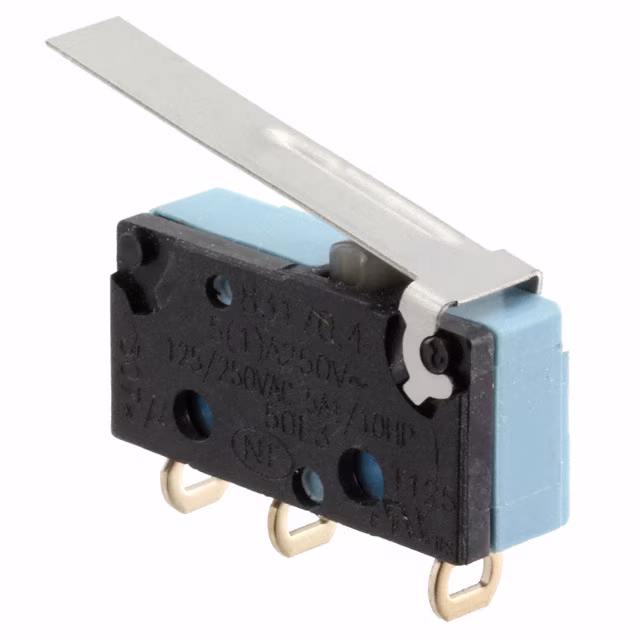

83170440 SWITCH SNAP ACTION SPDT 5A 250V Crouzet	4,346	-	RFQ Sell Excess Inventory	Datasheet	83170	Bulk	Active	SPDT	On-Mom	250 V	-	Lever, Straight	5A (AC)	Chassis Mount	Solder Lug	-	Actuator Mounted Left Side	15gf	0.025" (0.6mm)	2.500gf	-	0.437" (11.1mm)	0.079" (2.0mm)	-20°C ~ 130°C
83170481 SWITCH SNAP ACTION SPDT 5A 250V Crouzet	1,567	-	RFQ Sell Excess Inventory	Datasheet	83170	Bulk	Active	SPDT	On-Mom	250 V	-	Mushroom Button	5A (AC)	Through Hole	PC Pin	-	-	61gf	0.006" (0.15mm)	10gf	-	0.390" (9.9mm)	0.020" (0.5mm)	-20°C ~ 130°C
83161407 SWITCH SNAP ACTION SPDT 10A 250V Crouzet	1,801	-	RFQ Sell Excess Inventory	Datasheet	83161	Bulk	Active	SPDT	On-Mom	250 V	-	Round (Pin Plunger)	10A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	51gf	0.014" (0.35mm)	10gf	-	0.579" (14.7mm)	0.047" (1.2mm)	-20°C ~ 125°C
83161404 SWITCH SNAP ACT SPST-NO 10A 250V Crouzet	3,303	-	RFQ Sell Excess Inventory	Datasheet	83161	Bulk	Active	SPST-NO	Off-Mom	250 V	-	Round (Pin Plunger)	10A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	51gf	0.014" (0.35mm)	10gf	-	0.579" (14.7mm)	0.047" (1.2mm)	-20°C ~ 125°C
