Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
E3101BABAEX SWITCH DETECTOR SPST-NO 5A 250V Bulgin	1,671	-	RFQ Sell Excess Inventory	Datasheet	3100	Bulk	Active	SPST-NO	Off-Mom	250 V	-	Angled Toggle (Detector)	5A (AC)	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	Splash Proof	-	-	-	-	-	-	-	-
E3101DABAEX SWITCH DETECTOR SPST-NO 5A 250V Bulgin	1,581	-	RFQ Sell Excess Inventory	Datasheet	3100	Bulk	Active	SPST-NO	Off-Mom	250 V	-	Angled Toggle (Detector)	5A (AC)	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	Splash Proof	-	-	-	-	-	-	-	-
E3101DAPAEX SWITCH DETECTOR SPST-NO 5A 250V Bulgin	1,893	-	RFQ Sell Excess Inventory	Datasheet	3100	Bulk	Active	SPST-NO	Off-Mom	250 V	-	Angled Toggle (Detector)	5A (AC)	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	Splash Proof	-	-	-	-	-	-	-	-
E3101CAPAEX SWITCH DETECTOR SPST-NO 5A 250V Bulgin	3,721	-	RFQ Sell Excess Inventory	Datasheet	3100	Bulk	Active	SPST-NO	Off-Mom	250 V	-	Angled Toggle (Detector)	5A (AC)	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	Splash Proof	-	-	-	-	-	-	-	-
E3101CABAEX SWITCH DETECTOR SPST-NO 5A 250V Bulgin	3,927	-	RFQ Sell Excess Inventory	Datasheet	3100	Bulk	Active	SPST-NO	Off-Mom	250 V	-	Angled Toggle (Detector)	5A (AC)	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	Splash Proof	-	-	-	-	-	-	-	-
E3101BAPAEX SWITCH DETECTOR SPST-NO 5A 250V Bulgin	3,470	-	RFQ Sell Excess Inventory	Datasheet	3100	Bulk	Active	SPST-NO	Off-Mom	250 V	-	Angled Toggle (Detector)	5A (AC)	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	Splash Proof	-	-	-	-	-	-	-	-
E3101BAWAEX SWITCH DETECTOR SPST-NO 5A 250V Bulgin	4,573	-	RFQ Sell Excess Inventory	Datasheet	3100	Bulk	Active	SPST-NO	Off-Mom	250 V	-	Angled Toggle (Detector)	5A (AC)	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	Splash Proof	-	-	-	-	-	-	-	-
E3101DAWAEX SWITCH DETECTOR SPST-NO 5A 250V Bulgin	3,454	-	RFQ Sell Excess Inventory	Datasheet	3100	Bulk	Active	SPST-NO	Off-Mom	250 V	-	Angled Toggle (Detector)	5A (AC)	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	Splash Proof	-	-	-	-	-	-	-	-
E3101CAWAEX SWITCH DETECTOR SPST-NO 5A 250V Bulgin	2,550	-	RFQ Sell Excess Inventory	Datasheet	3100	Bulk	Active	SPST-NO	Off-Mom	250 V	-	Angled Toggle (Detector)	5A (AC)	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	Splash Proof	-	-	-	-	-	-	-	-

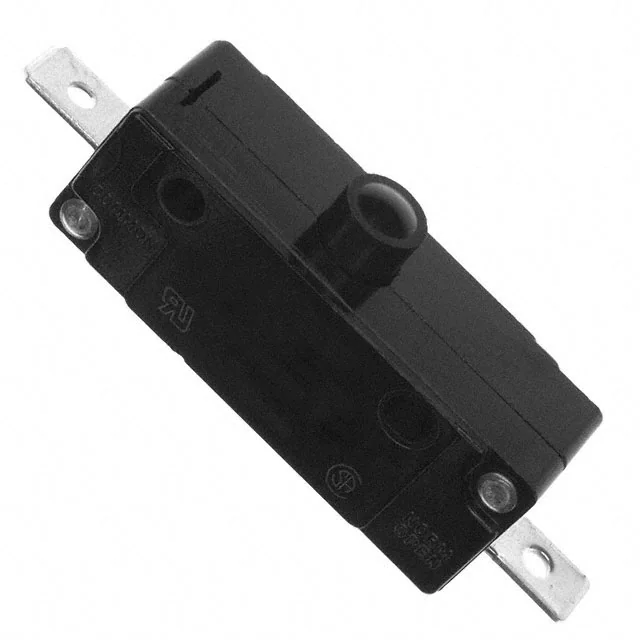

ASKHF3P04AC SWITCH SNAP ACTION SPDT 25A 125V C&K	1,388	-	RFQ Sell Excess Inventory	Datasheet	A	Tray	Active	SPDT	On-Mom	125 V	24 V	Round (Pin Plunger)	25A (AC), 2A (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	567gf	-	85gf	0.050" (1.27mm)	-	0.050" (1.27mm)	-55°C ~ 85°C
AV6302643-A SWITCH SNAP ACT SPST-NO 0.1A 30V Panasonic Electric Works	2,294	-	RFQ Sell Excess Inventory	Datasheet	AV6	Bulk	Active	SPST-NO	Off-Mom	-	30 V	Round (Pin Plunger)	100mA (DC)	Chassis Mount	Connector	IP40	-	51gf	0.004" (0.1mm)	4.079gf	0.024" (0.6mm)	0.330" (8.4mm)	0.015" (0.4mm)	-25°C ~ 85°C
VM3SAGF3002L02 SWITCH LIMIT SPST-NO 10A 125V CIT Relay and Switch	2,304	-	RFQ Sell Excess Inventory	Datasheet	VM3S	Tray	Active	SPST-NO	Off-Mom	125 V	36 V	Lever, Simulated Roller	10A (AC), 6A (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP67 - Dust Tight, Waterproof	-	200gf	0.060" (1.5mm)	180gf	0.118" (3.0mm)	0.720" (18.3mm)	0.024" (0.6mm)	-40°C ~ 120°C
VM3SBGF3002L02 SWITCH LIMIT SPST-NC 10A 125V CIT Relay and Switch	3,638	-	RFQ Sell Excess Inventory	Datasheet	VM3S	Tray	Active	SPST-NC	On-Mom	125 V	36 V	Lever, Simulated Roller	10A (AC), 6A (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP67 - Dust Tight, Waterproof	-	200gf	0.060" (1.5mm)	180gf	0.118" (3.0mm)	0.720" (18.3mm)	0.024" (0.6mm)	-40°C ~ 120°C
VM3SBGF3002L03 SWITCH LIMIT SPST-NC 10A 125V CIT Relay and Switch	2,280	-	RFQ Sell Excess Inventory	Datasheet	VM3S	Tray	Active	SPST-NC	On-Mom	125 V	36 V	Lever, Straight	10A (AC), 6A (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP67 - Dust Tight, Waterproof	-	180gf	0.060" (1.5mm)	80gf	0.138" (3.5mm)	0.587" (14.90mm)	0.039" (1.0mm)	-40°C ~ 120°C
VM3SAGF3002L03 SWITCH LIMIT SPST-NO 10A 125V CIT Relay and Switch	3,486	-	RFQ Sell Excess Inventory	Datasheet	VM3S	Tray	Active	SPST-NO	Off-Mom	125 V	36 V	Lever, Straight	10A (AC), 6A (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP67 - Dust Tight, Waterproof	-	180gf	0.060" (1.5mm)	80gf	0.138" (3.5mm)	0.587" (14.90mm)	0.039" (1.0mm)	-40°C ~ 120°C
MWZ101C01C01X05 SNAP ACTING SWITCH MB APEM Inc.	1,592	-	RFQ Sell Excess Inventory	Datasheet	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
D2VW-5L1B-2HS SWITCH SNAP ACT SPST-NC 5A 125V Omron Electronics Inc-EMC Div	4,501	-	RFQ Sell Excess Inventory	Datasheet	D2VW	Bulk	Active	SPST-NC	On-Mom	125 V	30 V	Lever, Straight	5A (AC/DC)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	IP67 - Dust Tight, Waterproof	-	60gf	0.080" (2.0mm)	5.099gf	0.354" (9.0mm)	0.600" (15.2mm)	0.125" (3.2mm)	-40°C ~ 85°C
V-106-1C25 SWITCH SNAP ACTION SPDT 10A 250V Omron Electronics Inc-EMC Div	4,729	-	RFQ Sell Excess Inventory	Datasheet	V	Bulk	Active	SPDT	On-Mom	250 V	125 V	Lever, Roller	10A (AC), 600mA (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	125gf	0.060" (1.5mm)	14gf	0.157" (4.0mm)	0.815" (20.7mm)	0.062" (1.6mm)	-25°C ~ 80°C
83170449 SWITCH SNAP ACTION SPDT 5A 250V Crouzet	1,144	-	RFQ Sell Excess Inventory	Datasheet	83170	Bulk	Active	SPDT	On-Mom	250 V	-	Lever, Roller	5A (AC)	Chassis Mount	Quick Connect - 0.110" (2.8mm)	-	Actuator Mounted Left Side	20gf	0.018" (0.45mm)	3.500gf	-	0.606" (15.4mm)	0.060" (1.5mm)	-20°C ~ 130°C
83161873 SWITCH SNAP ACT SPDT 0.1A 250V Crouzet	2,532	-	RFQ Sell Excess Inventory	Datasheet	83161	Bulk	Active	SPDT	On-Mom	250 V	-	Round (Pin Plunger)	100mA (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	82gf	0.014" (0.35mm)	20gf	-	0.579" (14.7mm)	0.047" (1.2mm)	-20°C ~ 125°C
