Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
VM3SBGF3002L06 SWITCH LIMIT SPST-NC 10A 125V CIT Relay and Switch	3,493	-	RFQ Sell Excess Inventory	Datasheet	VM3S	Tray	Active	SPST-NC	On-Mom	125 V	36 V	Lever, Roller	10A (AC), 6A (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP67 - Dust Tight, Waterproof	-	380gf	0.040" (1.0mm)	160gf	0.067" (1.7mm)	0.799" (20.3mm)	0.012" (0.3mm)	-40°C ~ 120°C
VM3SAGF3002L06 SWITCH LIMIT SPST-NO 10A 125V CIT Relay and Switch	4,620	-	RFQ Sell Excess Inventory	Datasheet	VM3S	Tray	Active	SPST-NO	Off-Mom	125 V	36 V	Lever, Roller	10A (AC), 6A (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP67 - Dust Tight, Waterproof	-	380gf	0.040" (1.0mm)	160gf	0.067" (1.7mm)	0.799" (20.3mm)	0.012" (0.3mm)	-40°C ~ 120°C
AP-HN01 SWITCH AUX CONTACT 1NC Altech Corporation	3,621	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
83170864 SWITCH SNAP ACTION SPDT 5A 250V Crouzet	3,246	-	RFQ Sell Excess Inventory	Datasheet	83170	Bulk	Active	SPDT	On-Mom	250 V	-	Lever, Straight	5A (AC)	Chassis Mount	Solder Lug	-	-	153gf	0.006" (0.15mm)	30gf	-	0.497" (12.6mm)	0.020" (0.5mm)	-40°C ~ 125°C
V7-2S17D8-201 SWITCH SNAP ACT SPDT 0.1A 125V Honeywell Sensing and Productivity Solutions	4,366	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Roller	100mA (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	90gf	0.015" (0.38mm)	7.000gf	0.047" (1.2mm)	0.812" (20.6mm)	0.040" (1.0mm)	-40°C ~ 85°C
V7-1S17D8-201 SWITCH SNAP ACT SPDT 100MA 125V Honeywell Sensing and Productivity Solutions	3,094	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Roller	100mA (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	170gf	0.012" (0.3mm)	20gf	0.047" (1.2mm)	0.812" (20.6mm)	0.040" (1.0mm)	-40°C ~ 85°C
V7-2S17D8-207 SWITCH V BASIC Honeywell Sensing and Productivity Solutions	1,374	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

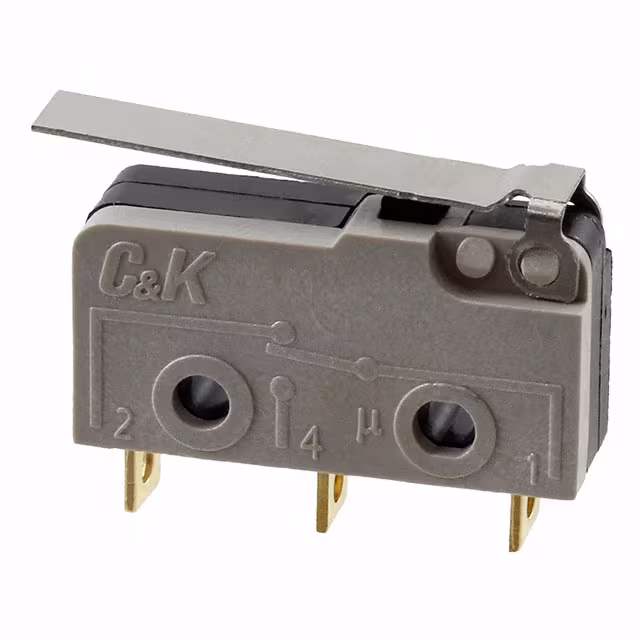

LCGGF5T10EC SWITCH SNAP ACTION SPDT 1A 125V C&K	4,587	-	RFQ Sell Excess Inventory	Datasheet	LC	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	1A (AC/DC)	Chassis Mount	Solder Lug	-	-	48gf	0.035" (0.9mm)	6.000gf	0.140" (3.6mm)	0.340" (8.6mm)	0.029" (0.74mm)	-25°C ~ 85°C
ZW50F91FW1-B-Z SWITCH SNAP ACTION SPDT 6A 125V Honeywell Sensing and Productivity Solutions	1,813	-	RFQ Sell Excess Inventory	Datasheet	ZW	Box	Obsolete	SPDT	On-Mom	125 V	-	Lever, Roller	6A (AC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	-	-	-	-	-	-	-40°C ~ 120°C
VM3SAGF3002L01 SWITCH LIMIT SPST-NO 10A 125V CIT Relay and Switch	2,306	-	RFQ Sell Excess Inventory	Datasheet	VM3S	Tray	Active	SPST-NO	Off-Mom	125 V	36 V	Lever, Roller	10A (AC), 6A (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP67 - Dust Tight, Waterproof	-	210gf	0.050" (1.3mm)	100gf	0.118" (3.0mm)	0.795" (20.2mm)	0.031" (0.8mm)	-40°C ~ 120°C

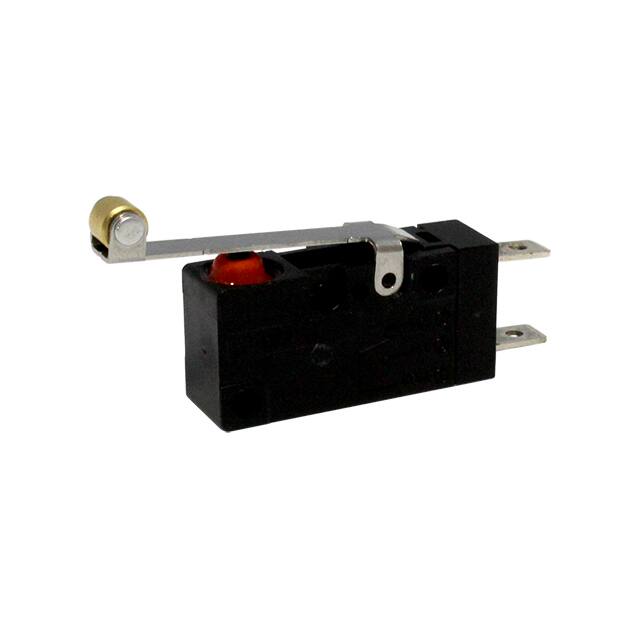

VM3SBGF3002L01 SWITCH LIMIT SPST-NC 10A 125V CIT Relay and Switch	1,093	-	RFQ Sell Excess Inventory	Datasheet	VM3S	Tray	Active	SPST-NC	On-Mom	125 V	36 V	Lever, Roller	10A (AC), 6A (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP67 - Dust Tight, Waterproof	-	210gf	0.050" (1.3mm)	100gf	0.118" (3.0mm)	0.795" (20.2mm)	0.031" (0.8mm)	-40°C ~ 120°C
D2QW-C083M SWITCH SNAP ACTION SUBMINI BASIC Omron Electronics Inc-EMC Div	1,544	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
D2QW-C083MR SWITCH SNAP ACTION SUBMINI BASIC Omron Electronics Inc-EMC Div	3,445	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ZW50F99CW1-B SWITCH SNAP ACTION SPDT 5A 125V Honeywell Sensing and Productivity Solutions	3,591	-	RFQ Sell Excess Inventory	Datasheet	ZW	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Straight	5A (AC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	66gf	0.028" (0.7mm)	13gf	0.188" (4.8mm)	0.345" (8.8mm)	0.039" (1.0mm)	-40°C ~ 105°C
ZW50F91HW1 SWITCH SNAP ACTION SPDT 5A 125V Honeywell Sensing and Productivity Solutions	2,623	-	RFQ Sell Excess Inventory	Datasheet	ZW	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Lever, Simulated Roller	5A (AC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	95gf	0.026" (0.65mm)	19gf	0.180" (4.6mm)	0.420" (10.7mm)	0.039" (1.0mm)	-40°C ~ 105°C
D2MV01L221C3 SWITCH SNAP ACT SPDT 0.1A 125V Omron Electronics Inc-EMC Div	1,340	-	RFQ Sell Excess Inventory	Datasheet	D2MV	Bulk	Obsolete	SPDT	On-Mom	125 V	30 V	Lever, Roller	100mA (AC/DC)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	IP40	-	50gf	0.016" (0.4mm)	4.079gf	0.067" (1.7mm)	0.815" (20.7mm)	0.040" (1.0mm)	-25°C ~ 80°C
V15W-SZ200A04-W201 SWITCH BASIC Honeywell Sensing and Productivity Solutions	1,834	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
V7-4A17D8-407 SWITCH PLUNGR SPDT 5A SILVR QC Honeywell Sensing and Productivity Solutions	4,149	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Formed	5A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	17gf	-	-	-	-	-	-40°C ~ 85°C
V15W11-EZ100-W2 SWITCH SNAP ACTION SPDT 5A 125V Honeywell Sensing and Productivity Solutions	2,245	-	RFQ Sell Excess Inventory	Datasheet	V15W	Bulk	Obsolete	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	5A (AC/DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	100gf	0.016" (0.4mm)	25gf	0.063" (1.6mm)	0.579" (14.7mm)	0.031" (0.79mm)	-40°C ~ 85°C
83163222 SWITCH SNAP ACTION SPDT 16A 250V Crouzet	1,777	-	RFQ Sell Excess Inventory	Datasheet	83161	Bulk	Obsolete	SPDT	On-Mom	250 V	-	Lever, Roller	16A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	82gf	0.014" (0.35mm)	20gf	-	0.806" (20.5mm)	0.047" (1.2mm)	-20°C ~ 125°C
