Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
D2HW-ER231M BY OMR SWITCH SNAP ACTION SUBMINI BASIC Omron Electronics Inc-EMC Div	1,371	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TMCJG6SA1010C SWITCH SNAP ACTION SPDT 15A 125V C&K	3,379	-	RFQ Sell Excess Inventory	Datasheet	TM	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Solder Lug	-	-	180gf	0.013" (0.33mm)	48gf	0.071" (1.8mm)	0.812" (20.6mm)	0.035" (0.9mm)	-55°C ~ 150°C
V15T22-CZ200A03-K1 SWITCH BASIC Honeywell Sensing and Productivity Solutions	3,782	-	RFQ Sell Excess Inventory	Datasheet	*	Tray	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TFCGK6VA155BC SWITCH SNAP ACTION SPDT 11A 227V C&K	3,776	-	RFQ Sell Excess Inventory	Datasheet	TF	Bulk	Active	SPDT	On-Mom	227 V	125 V	Lever, Roller	11A (AC), 250mA (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	45gf	0.030" (0.76mm)	5.000gf	0.100" (2.54mm)	0.810" (20.57mm)	0.065" (1.7mm)	-40°C ~ 85°C

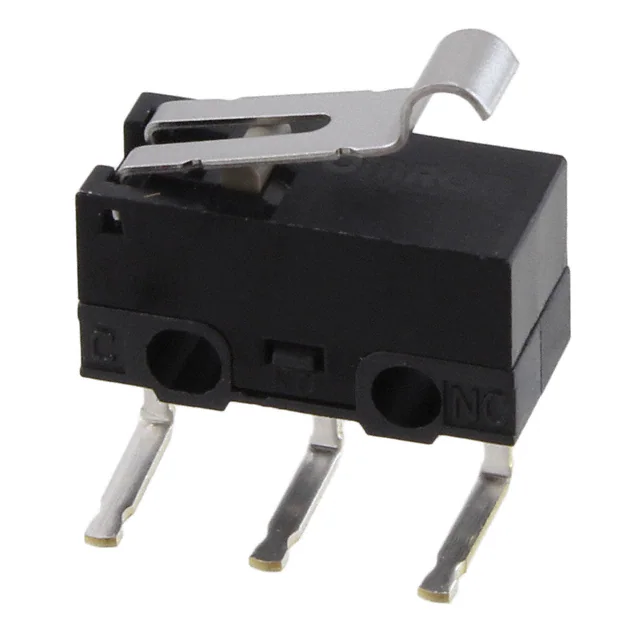

D2F-01L3-A1 SWITCH SNAP ACTION SPDT 0.1A 30V Omron Electronics Inc-EMC Div	2,532	-	RFQ Sell Excess Inventory	Datasheet	D2F	Bulk	Active	SPDT	On-Mom	-	30 V	Lever, Simulated Roller	100mA (DC)	Through Hole, Right Angle	PC Pin	IP40	Actuator Mounted Left Side	80gf	0.018" (0.45mm)	5.099gf	-	0.335" (8.5mm)	0.020" (0.5mm)	-40°C ~ 85°C
311SM3-H2 SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	4,331	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Obsolete	SPDT	On-Mom	250 V	30 V	Lever, Straight	5A (AC/DC)	Through Hole	PC Pin	-	-	15gf	0.110" (2.8mm)	2.039gfm	0.310" (7.9mm)	0.280" (7.1mm)	0.057" (1.45mm)	-55°C ~ 125°C
V7-1X2AE9F1-000-1 V BASIC SWITCH Honeywell Sensing and Productivity Solutions	1,063	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Active	SPST-NO	Off-Mom	125 V	-	Round (Pin Plunger)	6A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	-	-	-	-	-	-	-40°C ~ 177°C
V7-1X2AE986-000-2 V BASIC SWITCH Honeywell Sensing and Productivity Solutions	3,320	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Active	SPST-NO	Off-Mom	125 V	-	Round (Pin Plunger)	6A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	-	-	-	-	-	-	-40°C ~ 177°C
D2HW-BR212ML SWITCH SNP ACT SPST-NC 0.1A 125V Omron Electronics Inc-EMC Div	4,410	-	RFQ Sell Excess Inventory	Datasheet	D2HW	Tray	Active	SPST-NC	On-Mom	125 V	12 V	Lever, Straight	100mA (AC), 2A (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	Support Posts	76gf	0.020" (0.5mm)	7.138gf	-	0.295" (7.5mm)	0.062" (1.6mm)	-40°C ~ 85°C
D2HW-BR281M SWITCH SNAP ACT SPDT 0.1A 125V Omron Electronics Inc-EMC Div	3,094	-	RFQ Sell Excess Inventory	Datasheet	D2HW	Tray	Active	SPDT	On-Mom	125 V	12 V	Lever, Leaf	100mA (AC), 2A (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	Support Posts	92gf	0.027" (0.7mm)	5.099gf	-	0.606" (15.4mm)	0.110" (2.8mm)	-40°C ~ 85°C
D2HW-BL212M SWITCH SNP ACT SPST-NC 0.1A 125V Omron Electronics Inc-EMC Div	1,239	-	RFQ Sell Excess Inventory	Datasheet	D2HW	Bulk	Active	SPST-NC	On-Mom	125 V	12 V	Lever, Straight	100mA (AC), 2A (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	Support Posts	76gf	0.020" (0.5mm)	7.138gf	-	0.295" (7.5mm)	0.062" (1.6mm)	-40°C ~ 85°C
D2HW-BL213M SWITCH SNP ACT SPST-NO 0.1A 125V Omron Electronics Inc-EMC Div	3,912	-	RFQ Sell Excess Inventory	Datasheet	D2HW	Bulk	Active	SPST-NO	Off-Mom	125 V	12 V	Lever, Straight	100mA (AC), 2A (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	Support Posts	76gf	0.020" (0.5mm)	7.138gf	-	0.295" (7.5mm)	0.062" (1.6mm)	-40°C ~ 85°C
D2HW-BL222M SWITCH SNP ACT SPST-NC 0.1A 125V Omron Electronics Inc-EMC Div	2,844	-	RFQ Sell Excess Inventory	Datasheet	D2HW	Bulk	Active	SPST-NC	On-Mom	125 V	12 V	Lever, Straight	100mA (AC), 2A (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	Support Posts	50gf	0.031" (0.8mm)	3.059gf	-	0.366" (9.3mm)	0.098" (2.5mm)	-40°C ~ 85°C
D2HW-BL222ML SWITCH SNP ACT SPST-NC 0.1A 125V Omron Electronics Inc-EMC Div	1,486	-	RFQ Sell Excess Inventory	Datasheet	D2HW	Bulk	Active	SPST-NC	On-Mom	125 V	12 V	Lever, Straight	100mA (AC), 2A (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	Support Posts	50gf	0.031" (0.8mm)	3.059gf	-	0.366" (9.3mm)	0.098" (2.5mm)	-40°C ~ 85°C
D2HW-BL222MR SWITCH SNP ACT SPST-NC 0.1A 125V Omron Electronics Inc-EMC Div	1,899	-	RFQ Sell Excess Inventory	Datasheet	D2HW	Bulk	Active	SPST-NC	On-Mom	125 V	12 V	Lever, Straight	100mA (AC), 2A (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	Support Posts	50gf	0.031" (0.8mm)	3.059gf	-	0.366" (9.3mm)	0.098" (2.5mm)	-40°C ~ 85°C
D2HW-BL223MR SWITCH SNP ACT SPST-NO 0.1A 125V Omron Electronics Inc-EMC Div	4,037	-	RFQ Sell Excess Inventory	Datasheet	D2HW	Bulk	Active	SPST-NO	Off-Mom	125 V	12 V	Lever, Straight	100mA (AC), 2A (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	Support Posts	50gf	0.031" (0.8mm)	3.059gf	-	0.366" (9.3mm)	0.098" (2.5mm)	-40°C ~ 85°C
D2HW-BL232M SWITCH SNP ACT SPST-NC 0.1A 125V Omron Electronics Inc-EMC Div	1,488	-	RFQ Sell Excess Inventory	Datasheet	D2HW	Bulk	Active	SPST-NC	On-Mom	125 V	12 V	Lever, Simulated Roller	100mA (AC), 2A (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	Support Posts	66gf	0.020" (0.5mm)	5.099gf	-	0.440" (11.2mm)	0.075" (1.9mm)	-40°C ~ 85°C
D2HW-BL232ML SWITCH SNP ACT SPST-NC 0.1A 125V Omron Electronics Inc-EMC Div	2,328	-	RFQ Sell Excess Inventory	Datasheet	D2HW	Bulk	Active	SPST-NC	On-Mom	125 V	12 V	Lever, Simulated Roller	100mA (AC), 2A (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	Support Posts	66gf	0.020" (0.5mm)	5.099gf	-	0.440" (11.2mm)	0.075" (1.9mm)	-40°C ~ 85°C
D2HW-BL232MR SWITCH SNP ACT SPST-NC 0.1A 125V Omron Electronics Inc-EMC Div	2,177	-	RFQ Sell Excess Inventory	Datasheet	D2HW	Bulk	Active	SPST-NC	On-Mom	125 V	12 V	Lever, Simulated Roller	100mA (AC), 2A (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	Support Posts	66gf	0.020" (0.5mm)	5.099gf	-	0.440" (11.2mm)	0.075" (1.9mm)	-40°C ~ 85°C
D2HW-BL233M SWITCH SNP ACT SPST-NO 0.1A 125V Omron Electronics Inc-EMC Div	2,903	-	RFQ Sell Excess Inventory	Datasheet	D2HW	Bulk	Active	SPST-NO	Off-Mom	125 V	12 V	Lever, Simulated Roller	100mA (AC), 2A (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	Support Posts	66gf	0.020" (0.5mm)	5.099gf	-	0.440" (11.2mm)	0.075" (1.9mm)	-40°C ~ 85°C
