Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
83181002 SWITCH SNAP ACTION SPDT 6A 250V Crouzet	2,209	-	RFQ Sell Excess Inventory	Datasheet	83180	Bulk	Active	SPDT	On-Mom	250 V	24 V	Round (Pin Plunger)	6A (AC/DC)	Chassis Mount	Quick Connect - 0.110" (2.8mm)	IP67 - Dust Tight, Waterproof	-	255gf	0.004" (0.1mm)	82gf	-	0.330" (8.4mm)	0.025" (0.6mm)	-40°C ~ 125°C
83181011 SWITCH SNAP ACTION SPDT 6A 250V Crouzet	4,917	-	RFQ Sell Excess Inventory	Datasheet	83180	Bulk	Active	SPDT	On-Mom	250 V	24 V	Round (Pin Plunger)	6A (AC/DC)	Through Hole, Right Angle	PC Pin	IP67 - Dust Tight, Waterproof	-	255gf	0.004" (0.1mm)	82gf	-	0.330" (8.4mm)	0.025" (0.6mm)	-40°C ~ 125°C
83181007 SWITCH SNAP ACTION SPDT 6A 250V Crouzet	1,889	-	RFQ Sell Excess Inventory	Datasheet	83180	Bulk	Active	SPDT	On-Mom	250 V	24 V	Round (Pin Plunger)	6A (AC/DC)	Through Hole	PC Pin	IP67 - Dust Tight, Waterproof	-	255gf	0.004" (0.1mm)	82gf	-	0.330" (8.4mm)	0.025" (0.6mm)	-40°C ~ 125°C
83181008 SWITCH SNAP ACTION SPDT 6A 250V Crouzet	1,693	-	RFQ Sell Excess Inventory	Datasheet	83180	Bulk	Active	SPDT	On-Mom	250 V	24 V	Round (Pin Plunger)	6A (AC/DC)	Through Hole, Right Angle	PC Pin	IP67 - Dust Tight, Waterproof	-	255gf	0.004" (0.1mm)	82gf	-	0.330" (8.4mm)	0.025" (0.6mm)	-40°C ~ 125°C
83181010 SWITCH SNAP ACTION SPDT 6A 250V Crouzet	1,799	-	RFQ Sell Excess Inventory	Datasheet	83180	Bulk	Active	SPDT	On-Mom	250 V	24 V	Round (Pin Plunger)	6A (AC/DC)	Through Hole, Right Angle	PC Pin	IP67 - Dust Tight, Waterproof	-	255gf	0.004" (0.1mm)	82gf	-	0.330" (8.4mm)	0.025" (0.6mm)	-40°C ~ 125°C
83181006 SWITCH SNAP ACTION SPDT 6A 250V Crouzet	2,916	-	RFQ Sell Excess Inventory	Datasheet	83180	Bulk	Active	SPDT	On-Mom	250 V	24 V	Round (Pin Plunger)	6A (AC/DC)	Through Hole	PC Pin	IP67 - Dust Tight, Waterproof	-	255gf	0.004" (0.1mm)	82gf	-	0.330" (8.4mm)	0.025" (0.6mm)	-40°C ~ 125°C
V15W2-EP200A05-W2 BASIC SWITCH-HAZARDOUS AREA Honeywell Sensing and Productivity Solutions	4,182	-	RFQ Sell Excess Inventory	Datasheet	V15W2	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Roller	5A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP67 - Dust Tight, Waterproof	-	200gf	0.020" (0.5mm)	40gf	0.047" (1.2mm)	0.812" (20.6mm)	0.039" (1.0mm)	-25°C ~ 85°C
V15W2-EP200B01-W2 BASIC SWITCH-HAZARDOUS AREA Honeywell Sensing and Productivity Solutions	3,165	-	RFQ Sell Excess Inventory	Datasheet	V15W2	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Straight	5A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP67 - Dust Tight, Waterproof	-	90gf	0.045" (1.1mm)	90gf	0.138" (3.5mm)	0.618" (15.7mm)	0.047" (1.2mm)	-25°C ~ 85°C
ABV1635619 SWITCH SNAP ACT SPST-NO 3A 250V Panasonic Electric Works	2,280	-	RFQ Sell Excess Inventory	Datasheet	ABV	Bulk	Active	SPST-NO	Off-Mom	250 V	-	Lever, Roller	3A (AC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	320gf	0.020" (0.5mm)	60gf	0.063" (1.6mm)	0.815" (20.7mm)	0.030" (0.76mm)	-40°C ~ 85°C
ABV1634509 SWITCH SNAP ACT SPST-NO 5A 250V Panasonic Electric Works	4,906	-	RFQ Sell Excess Inventory	Datasheet	ABV	Bulk	Active	SPST-NO	Off-Mom	250 V	-	Lever, Simulated Roller	5A (AC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	120gf	0.047" (1.2mm)	13gf	0.125" (3.2mm)	0.730" (18.5mm)	0.047" (1.2mm)	-40°C ~ 85°C
9-1616336-8 SWITCH SNAP ACTION TE Connectivity Aerospace, Defense and Marine	4,691	-	RFQ Sell Excess Inventory	Datasheet	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ABV1615413R SWITCH SNAP ACTION SPDT 1A 250V Panasonic Electric Works	3,736	-	RFQ Sell Excess Inventory	Datasheet	ABV	Bulk	Active	SPDT	On-Mom	250 V	-	Lever, Roller	1A (AC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	110gf	0.020" (0.5mm)	20gf	0.063" (1.6mm)	0.815" (20.7mm)	0.030" (0.76mm)	-40°C ~ 85°C
831613C5.0 SWITCH SNAP ACTION SPDT 16A 250V Crouzet	3,607	-	RFQ Sell Excess Inventory	Datasheet	83161	Bulk	Active	SPDT	On-Mom	250 V	-	Round (Pin Plunger)	16A (AC)	Chassis Mount	Screw Terminal	-	-	82gf	0.014" (0.35mm)	20gf	-	0.579" (14.7mm)	0.047" (1.2mm)	-20°C ~ 125°C
ABJ361841 SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works	1,828	-	RFQ Sell Excess Inventory	Datasheet	ABJ	Bulk	Obsolete	SPDT	On-Mom	125 V	30 V	Lever, Leaf	100mA (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	100gf	0.040" (1.0mm)	20gf	0.236" (6.0mm)	0.630" (16.0mm)	0.098" (2.5mm)	-40°C ~ 85°C
D2QW-C002ML SWITCH SNAP ACTION SUBMINI BASIC Omron Electronics Inc-EMC Div	1,318	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
D2QW-C002MR SWITCH SNAP ACTION SUBMINI BASIC Omron Electronics Inc-EMC Div	4,109	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ABV1614509 SWITCH SNAP ACTION SPDT 5A 250V Panasonic Electric Works	3,591	-	RFQ Sell Excess Inventory	Datasheet	ABV	Bulk	Active	SPDT	On-Mom	250 V	-	Lever, Simulated Roller	5A (AC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	120gf	0.047" (1.2mm)	13gf	0.125" (3.2mm)	0.730" (18.5mm)	0.047" (1.2mm)	-40°C ~ 85°C

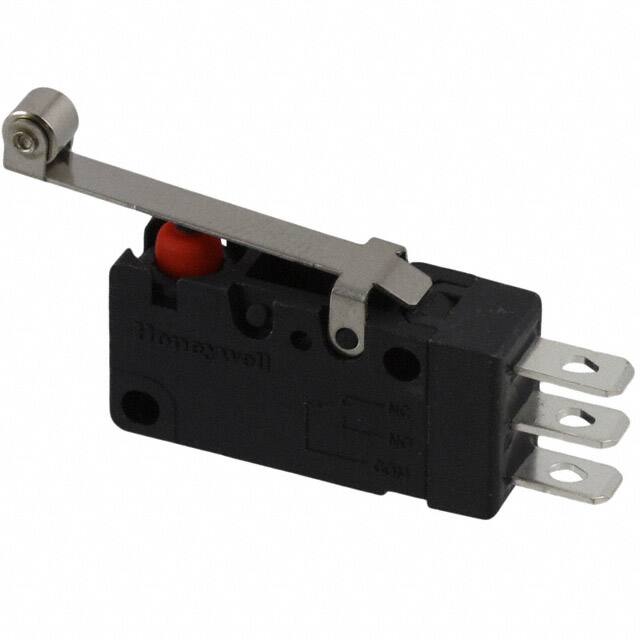

V15W11DZ200A06-AW1 SWITCH SNAP ACT SPDT 100MA 125V Honeywell Sensing and Productivity Solutions	4,629	-	RFQ Sell Excess Inventory	Datasheet	V15W	Tray	Obsolete	SPDT	On-Mom	125 V	48 V	Lever, Roller	100mA (AC/DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	120gf	0.047" (1.2mm)	20gf	0.125" (3.2mm)	0.812" (20.6mm)	0.051" (1.3mm)	-40°C ~ 85°C
ABV1635409 SWITCH SNAP ACT SPST-NO 3A 250V Panasonic Electric Works	3,372	-	RFQ Sell Excess Inventory	Datasheet	ABV	Bulk	Active	SPST-NO	Off-Mom	250 V	-	Lever, Roller	3A (AC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	110gf	0.020" (0.5mm)	20gf	0.063" (1.6mm)	0.815" (20.7mm)	0.030" (0.76mm)	-40°C ~ 85°C
83262028 SWITCH SNAP ACTION SPDT 20A 250V Crouzet	1,975	-	RFQ Sell Excess Inventory	Datasheet	V3D	Bulk	Active	SPDT	On-Mom	250 V	-	Lever, Roller	20A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	102gf	0.031" (0.8mm)	25gf	-	0.806" (20.5mm)	0.079" (2.0mm)	-20°C ~ 125°C
