Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
87316-00 SWITCH AUTO OPERATOR CONTROL Honeywell Sensing and Productivity Solutions	3,848	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Not For New Designs	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ABV1615503R SWITCH SNAP ACTION SPDT 5A 250V Panasonic Electric Works	1,797	-	RFQ Sell Excess Inventory	Datasheet	ABV	Bulk	Active	SPDT	On-Mom	250 V	-	Lever, Roller	5A (AC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	220gf	0.020" (0.5mm)	40gf	0.063" (1.6mm)	0.815" (20.7mm)	0.030" (0.76mm)	-40°C ~ 85°C
ABV1620619 SWITCH SNAP ACT SPST-NC 3A 250V Panasonic Electric Works	4,441	-	RFQ Sell Excess Inventory	Datasheet	ABV	Bulk	Obsolete	SPST-NC	On-Mom	250 V	-	Round (Pin Plunger)	3A (AC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	300gf	0.016" (0.4mm)	60gf	0.063" (1.6mm)	0.579" (14.7mm)	0.030" (0.76mm)	-40°C ~ 85°C
11SM98-T SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	3,815	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Obsolete	SPDT	On-Mom	250 V	30 V	Round (Pin Plunger)	5A (AC/DC)	Chassis Mount	Solder Turret	-	-	141gf	0.004" (0.1mm)	28gf	0.020" (0.5mm)	0.321" (8.2mm)	0.005" (0.13mm)	-55°C ~ 125°C
ABV1612618 SWITCH SNAP ACTION SPDT 3A 250V Panasonic Electric Works	4,752	-	RFQ Sell Excess Inventory	Datasheet	ABV	Bulk	Obsolete	SPDT	On-Mom	250 V	-	Lever, Straight	3A (AC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	180gf	0.047" (1.2mm)	20gf	0.125" (3.2mm)	0.602" (15.3mm)	0.047" (1.2mm)	-40°C ~ 85°C
11SM3-T2-MSC SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	3,314	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Obsolete	SPDT	On-Mom	250 V	30 V	Round (Pin Plunger)	5A (AC/DC)	Chassis Mount	Solder Turret	-	-	141gf	0.004" (0.1mm)	28gf	0.020" (0.5mm)	0.330" (8.4mm)	0.005" (0.13mm)	-55°C ~ 125°C
83186002 SWITCH SNAP ACTION SPDT 6A 250V Crouzet	1,316	-	RFQ Sell Excess Inventory	Datasheet	83180	Bulk	Active	SPDT	On-Mom	250 V	24 V	Round (Pin Plunger)	6A (AC/DC)	Chassis Mount	Quick Connect - 0.110" (2.8mm)	IP67 - Dust Tight, Waterproof	-	255gf	0.004" (0.1mm)	82gf	-	0.330" (8.4mm)	0.025" (0.6mm)	-40°C ~ 125°C
83186006 SWITCH SNAP ACTION SPDT 6A 250V Crouzet	3,637	-	RFQ Sell Excess Inventory	Datasheet	83180	Bulk	Active	SPDT	On-Mom	250 V	24 V	Round (Pin Plunger)	6A (AC/DC)	Through Hole	PC Pin	IP67 - Dust Tight, Waterproof	-	255gf	0.004" (0.1mm)	82gf	-	0.330" (8.4mm)	0.025" (0.6mm)	-40°C ~ 125°C
V15W-WC150A04-KW3 SWITCH BASIC Honeywell Sensing and Productivity Solutions	1,239	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
V15W-WC200A04-KW3 SWITCH BASIC Honeywell Sensing and Productivity Solutions	2,285	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
V7-1B17D8-048-S SWITCH SNAP ACTION SPDT 11A 125V Honeywell Sensing and Productivity Solutions	2,708	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Straight	11A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	Actuator Seal Boot	50gf	0.050" (1.3mm)	4.000gf	0.236" (6.0mm)	0.610" (15.5mm)	0.115" (2.9mm)	-40°C ~ 85°C
TFS01SA0540C SWITCH SNAP ACT SPDT 0.1A 125V C&K	1,687	-	RFQ Sell Excess Inventory	Datasheet	TFS	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Roller	100mA (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	200gf	0.020" (0.5mm)	30gf	0.083" (2.1mm)	0.812" (20.6mm)	0.039" (1.0mm)	-40°C ~ 85°C
ZW50F15CD1 SWITCH SNAP ACTION SPDT 6A 125V Honeywell Sensing and Productivity Solutions	3,310	-	RFQ Sell Excess Inventory	Datasheet	ZW	Tray	Active	SPDT	On-Mom	125 V	-	Lever, Straight	6A (AC)	Chassis Mount	Solder Lug	IP00	-	-	-	-	-	-	-	-40°C ~ 120°C

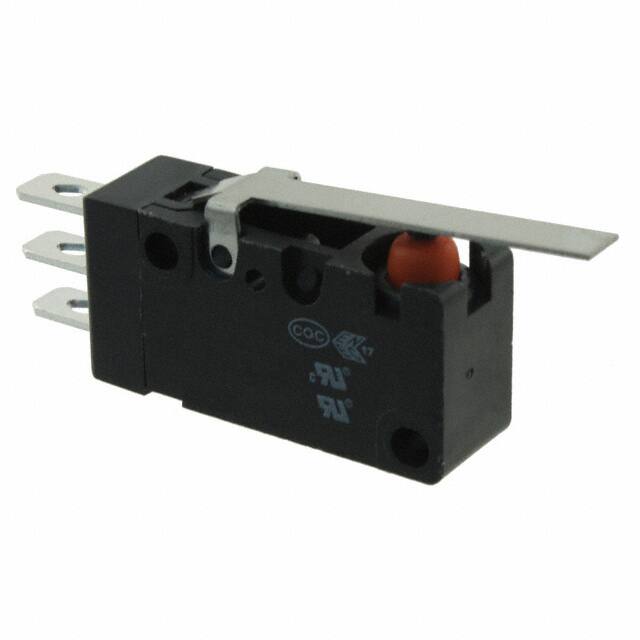

V15W11DZ200A02-AW1 SWITCH SNAP ACT SPDT 100MA 125V Honeywell Sensing and Productivity Solutions	2,491	-	RFQ Sell Excess Inventory	Datasheet	V15W	Tray	Obsolete	SPDT	On-Mom	125 V	48 V	Lever, Straight	100mA (AC/DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	120gf	0.047" (1.2mm)	10gf	0.125" (3.2mm)	0.602" (15.3mm)	0.051" (1.3mm)	-40°C ~ 85°C
TFECJ6VP004AC SWITCH SNAP ACTION SPDT 15A 277V C&K	1,524	-	RFQ Sell Excess Inventory	Datasheet	TF	Bulk	Active	SPDT	On-Mom	277 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	225gf	0.010" (0.25mm)	56gf	0.047" (1.2mm)	0.579" (14.7mm)	0.050" (1.27mm)	-40°C ~ 85°C
TMCJD6ST1440C SWITCH SNAP ACTION SPDT 10A 125V C&K	1,879	-	RFQ Sell Excess Inventory	Datasheet	TM	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Simulated Roller	10A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	90gf	0.050" (1.3mm)	20gf	0.140" (3.6mm)	0.745" (18.9mm)	0.062" (1.6mm)	-55°C ~ 150°C
ABV1622413 SWITCH SNAP ACT SPST-NC 1A 250V Panasonic Electric Works	3,146	-	RFQ Sell Excess Inventory	Datasheet	ABV	Bulk	Active	SPST-NC	On-Mom	250 V	-	Lever, Straight	1A (AC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	60gf	0.047" (1.2mm)	10gf	0.125" (3.2mm)	0.602" (15.3mm)	0.047" (1.2mm)	-40°C ~ 85°C
ABV1632413 SWITCH SNAP ACT SPST-NO 1A 250V Panasonic Electric Works	2,160	-	RFQ Sell Excess Inventory	Datasheet	ABV	Bulk	Active	SPST-NO	Off-Mom	250 V	-	Lever, Straight	1A (AC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	60gf	0.047" (1.2mm)	10gf	0.125" (3.2mm)	0.602" (15.3mm)	0.047" (1.2mm)	-40°C ~ 85°C
X0230013 SWITCH SNAP ACTION SPDT 12A 250V Crouzet	4,363	-	RFQ Sell Excess Inventory	Datasheet	83170	Box	Active	SPDT	On-Mom	250 V	-	Round (Pin Plunger)	12A (AC)	Chassis Mount	Solder Lug	IP40	-	224gf	0.006" (0.15mm)	-	-	-	0.020" (0.5mm)	-40°C ~ 150°C
V3L-63 SWITCH SIM ROLL SPDT 15A SOLDER Honeywell Sensing and Productivity Solutions	2,335	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
