Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
V7-1C27D855-002 SWITCH SNAP ACT SPST-NO 15A 125V Honeywell Sensing and Productivity Solutions	2,398	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Active	SPST-NO	Off-Mom	125 V	125 V	Lever, Straight	15A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	160gf	0.015" (0.38mm)	15gf	0.060" (1.5mm)	0.600" (15.2mm)	0.035" (0.9mm)	-40°C ~ 85°C
D2SW-3L1-3M SWITCH SNAP ACT SPST-NO 3A 125V Omron Electronics Inc-EMC Div	1,625	-	RFQ Sell Excess Inventory	Datasheet	D2SW	Bulk	Active	SPST-NO	Off-Mom	125 V	30 V	Lever, Straight	3A (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	60gf	0.031" (0.8mm)	6.118gf	-	0.345" (8.8mm)	0.040" (1.0mm)	-40°C ~ 85°C
TMCJD6ST1540C SWITCH SNAP ACTION SPDT 10A 125V C&K	3,932	-	RFQ Sell Excess Inventory	Datasheet	TM	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Straight	10A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	80gf	0.032" (0.81mm)	20gf	0.161" (4.1mm)	0.600" (15.2mm)	0.075" (1.9mm)	-55°C ~ 150°C
TFCGK6ST1440C SWITCH SNAP ACTION SPDT 11A 277V C&K	1,785	-	RFQ Sell Excess Inventory	Datasheet	TF	Bulk	Active	SPDT	On-Mom	277 V	125 V	Lever, Simulated Roller	11A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	50gf	0.030" (0.76mm)	5.000gf	0.100" (2.5mm)	0.730" (18.5mm)	0.060" (1.5mm)	-40°C ~ 85°C
TFCJJ3SP004AC SWITCH SNAP ACTION SPDT 21A 277V C&K	4,132	-	RFQ Sell Excess Inventory	Datasheet	TF	Bulk	Active	SPDT	On-Mom	277 V	-	Round (Pin Plunger)	21A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	75gf	0.100" (2.54mm)	15gf	0.020" (0.5mm)	0.264" (6.7mm)	0.060" (1.5mm)	-40°C ~ 85°C
TFCJJ3ST165AC SWITCH SNAP ACTION SPDT 21A 227V C&K	2,305	-	RFQ Sell Excess Inventory	Datasheet	TF	Bulk	Active	SPDT	On-Mom	227 V	-	Lever, Straight	21A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	22gf	0.045" (1.14mm)	2.000gf	0.250" (6.35mm)	0.600" (15.2mm)	0.125" (3.2mm)	-40°C ~ 85°C
V15T16-SZ300A05-01 SWITCH SNAP ACTION SPDT 16A 125V Honeywell Sensing and Productivity Solutions	2,130	-	RFQ Sell Excess Inventory	Datasheet	V15	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Roller	16A (AC)	Chassis Mount	Solder Lug	-	-	-	-	-	-	-	-	-25°C ~ 125°C
TFCCH8SP0040C SWITCH SNAP ACTION SPDT 5A 277V C&K	2,734	-	RFQ Sell Excess Inventory	Datasheet	TF	Bulk	Active	SPDT	On-Mom	277 V	-	Round (Pin Plunger)	5A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	15gf	0.010" (0.25mm)	6.000gf	0.047" (1.2mm)	0.579" (14.7mm)	0.050" (1.27mm)	-40°C ~ 85°C
ZD30S10A01 SWITCH SNAP ACTION SPDT 3A 125V Honeywell Sensing and Productivity Solutions	2,282	-	RFQ Sell Excess Inventory	Datasheet	ZD	Bulk	Active	SPDT	On-Mom	125 V	12 V	Round (Pin Plunger)	3A (AC/DC)	Chassis Mount	Solder Lug	IP00	-	130gf	0.012" (0.3mm)	13gf	0.030" (0.8mm)	0.120" (3.05mm)	0.030" (0.76mm)	-40°C ~ 120°C
V7-6C18D8-048 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	2,206	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Straight	15A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	141gf	0.086" (2.2mm)	-	0.250" (6.35mm)	0.579" (14.7mm)	0.090" (2.3mm)	-40°C ~ 85°C
V15W-WC050A03-W2 SWITCH V15W BASIC SPNC Honeywell Sensing and Productivity Solutions	3,185	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
HY106-6Y7-421-00YT SWITCH SNAP ACTION DPST 18A 250V E-Switch	4,310	-	RFQ Sell Excess Inventory	Datasheet	HY	Bulk	Active	DPST-NO/NC	On-Mom, Off-Mom	250 V	-	Plunger for Cap	18A (AC)	Panel Mount	Screw Terminal	-	-	3000gf	-	-	-	-	-	0°C ~ 55°C
ABV1215519R SWITCH SNAP ACTION SPDT 3A 250V Panasonic Electric Works	2,994	-	RFQ Sell Excess Inventory	Datasheet	ABV	Bulk	Active	SPDT	On-Mom	250 V	-	Lever, Roller	3A (AC)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	IP50 - Dust Protected	-	220gf	0.020" (0.5mm)	40gf	0.063" (1.6mm)	0.815" (20.7mm)	0.030" (0.76mm)	-40°C ~ 85°C
1520269-7 SWITCH SNAP ACTION SPST 16A 125V TE Connectivity ALCOSWITCH Switches	1,041	-	RFQ Sell Excess Inventory	Datasheet	8632	Bulk	Obsolete	SPST-NO	On-Off	125 V	-	-	16A (AC)	Chassis Mount	Screw Terminal	-	-	-	-	-	-	-	-	-
ASKHC2J04AW SWITCH SNAP ACT SPST-NC 15A 125V C&K	3,223	-	RFQ Sell Excess Inventory	Datasheet	A	Tray	Active	SPST-NC	On-Mom	125 V	-	Overtravel Plunger	15A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	567gf	-	85gf	0.050" (1.27mm)	-	0.187" (4.75mm)	-55°C ~ 85°C
V-163-3C26 SWITCH SNAP ACT SPST-NO 16A 250V Omron Electronics Inc-EMC Div	1,293	-	RFQ Sell Excess Inventory	Datasheet	V	Bulk	Active	SPST-NO	Off-Mom	250 V	125 V	Lever, Straight	16A (AC), 600mA (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	130gf	0.110" (2.8mm)	12gf	0.354" (9.0mm)	0.600" (15.2mm)	0.079" (2.0mm)	-25°C ~ 80°C
VM3SCGF3002L06 SWITCH LIMIT SPDT 10A 125V CIT Relay and Switch	3,993	-	RFQ Sell Excess Inventory	Datasheet	VM3S	Tray	Active	SPDT	On-Mom	125 V	36 V	Lever, Roller	10A (AC), 6A (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP67 - Dust Tight, Waterproof	-	380gf	0.040" (1.0mm)	160gf	0.067" (1.7mm)	0.799" (20.3mm)	0.012" (0.3mm)	-40°C ~ 120°C

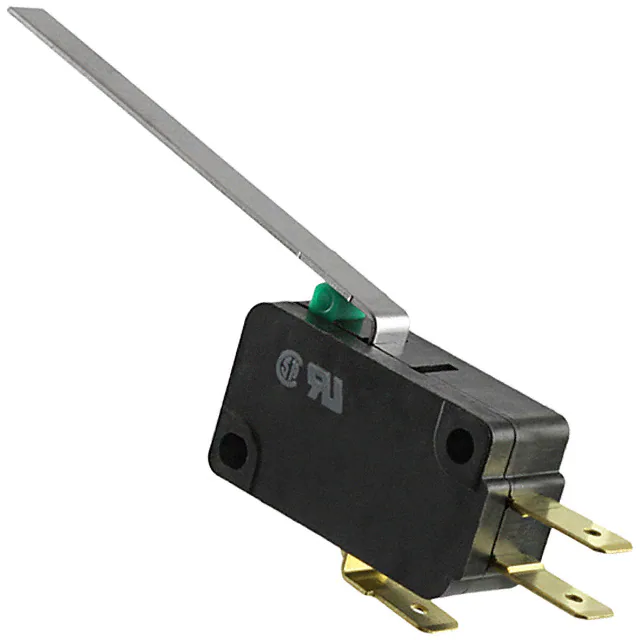

V7-3S17D8-148 SWITCH SNAP ACT SPDT 100MA 125V Honeywell Sensing and Productivity Solutions	1,298	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Straight	100mA (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	8.000gf	0.103" (2.6mm)	0.510gf	0.460" (11.7mm)	0.602" (15.3mm)	0.205" (5.2mm)	-40°C ~ 85°C
V15W11EC025B01KAW1 SWITCH SNP ACT SPST-NC 0.1A 125V Honeywell Sensing and Productivity Solutions	1,509	-	RFQ Sell Excess Inventory	Datasheet	V15W	Bulk	Obsolete	SPST-NC	On-Mom	125 V	48 V	Lever, Straight	100mA (AC/DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	25gf	0.016" (0.4mm)	5.000gf	0.063" (1.6mm)	0.602" (15.3mm)	0.031" (0.79mm)	-40°C ~ 85°C
83183001 SWITCH SNAP ACTION SPDT 3A 250V Crouzet	2,654	-	RFQ Sell Excess Inventory	Datasheet	83180	Bulk	Active	SPDT	On-Mom	250 V	24 V	Round (Pin Plunger)	3A (AC/DC)	Chassis Mount	Solder Lug	IP67 - Dust Tight, Waterproof	-	255gf	0.004" (0.1mm)	82gf	-	0.330" (8.4mm)	0.025" (0.6mm)	-40°C ~ 125°C
