Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature

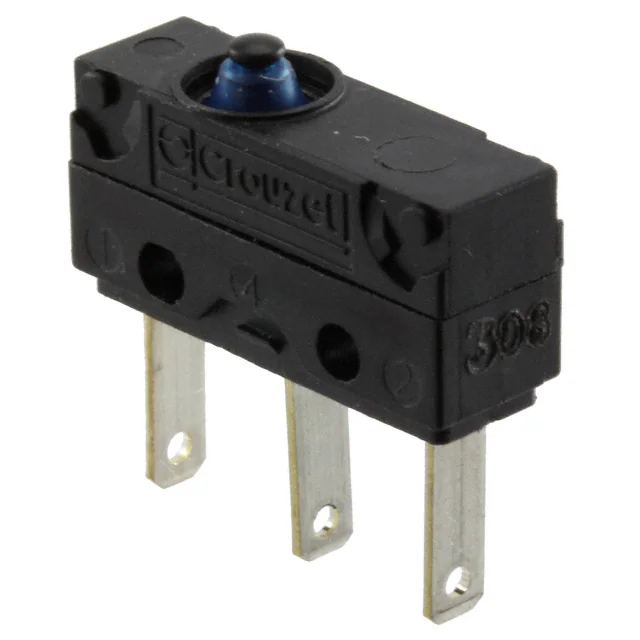

83183002 SWITCH SNAP ACTION SPDT 3A 250V Crouzet	3,740	-	RFQ Sell Excess Inventory	Datasheet	83180	Bulk	Active	SPDT	On-Mom	250 V	24 V	Round (Pin Plunger)	3A (AC/DC)	Chassis Mount	Quick Connect - 0.110" (2.8mm)	IP67 - Dust Tight, Waterproof	-	255gf	0.004" (0.1mm)	82gf	-	0.330" (8.4mm)	0.025" (0.6mm)	-40°C ~ 125°C
ABV1630403 SWITCH SNAP ACT SPST-NO 3A 250V Panasonic Electric Works	1,742	-	RFQ Sell Excess Inventory	Datasheet	ABV	Tube	Active	SPST-NO	Off-Mom	250 V	-	Round (Pin Plunger)	3A (AC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	100gf	0.016" (0.4mm)	25gf	0.063" (1.6mm)	0.579" (14.7mm)	0.030" (0.76mm)	-40°C ~ 85°C
TFS10ST20WCCBS SWITCH SNAP ACTION SPDT 10A 125V C&K	4,489	-	RFQ Sell Excess Inventory	Datasheet	TFS	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Straight	10A (AC)	Chassis Mount	Wire Leads	IP40	-	90gf	0.045" (1.1mm)	10gf	0.020" (0.5mm)	0.264" (6.7mm)	0.060" (1.5mm)	-40°C ~ 85°C
AV632264-A SWITCH SNAP ACTION Panasonic Electric Works	4,219	-	RFQ Sell Excess Inventory	Datasheet	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ASGGF5P04AC SWITCH SNAP ACTION SPDT 1A 125V C&K	2,631	-	RFQ Sell Excess Inventory	Datasheet	A	Tray	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	1A (AC/DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	227gf	-	28gf	0.050" (1.27mm)	-	0.050" (1.27mm)	-55°C ~ 85°C
TFEEJ6ST104AY SWITCH SNAP ACT SPST-NO 15A 277V C&K	3,496	-	RFQ Sell Excess Inventory	Datasheet	TF	Bulk	Active	SPST-NO	Off-Mom	277 V	125 V	Lever, Straight	15A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	400gf	0.015" (0.38mm)	110gf	0.060" (1.5mm)	0.600" (15.2mm)	0.030" (0.76mm)	-40°C ~ 85°C
VM3SCGF3002L01 SWITCH LIMIT SPDT 10A 125V CIT Relay and Switch	4,590	-	RFQ Sell Excess Inventory	Datasheet	VM3S	Tray	Active	SPDT	On-Mom	125 V	36 V	Lever, Roller	10A (AC), 6A (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP67 - Dust Tight, Waterproof	-	210gf	0.050" (1.3mm)	100gf	0.118" (3.0mm)	0.795" (20.2mm)	0.031" (0.8mm)	-40°C ~ 120°C
V15T22-CZ300A59 SWITCH BASIC V Honeywell Sensing and Productivity Solutions	3,462	-	RFQ Sell Excess Inventory	Datasheet	*	Tray	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TMCGD6ST254AC SWITCH SNAP ACTION SPDT 10A 125V C&K	2,540	-	RFQ Sell Excess Inventory	Datasheet	TM	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Straight	10A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	30gf	0.070" (1.8mm)	4.000gf	0.330" (8.4mm)	0.600" (15.2mm)	0.100" (2.54mm)	-55°C ~ 150°C

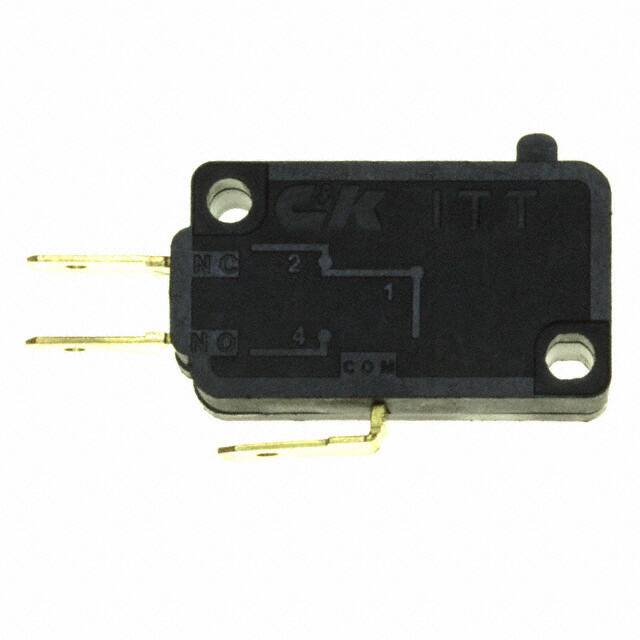

TFCDH8SP0040C SWITCH SNAP ACTION SPDT 5A 277V C&K	1,316	-	RFQ Sell Excess Inventory	Datasheet	TF	Bulk	Active	SPDT	On-Mom	277 V	-	Round (Pin Plunger)	5A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	25gf	0.010" (0.25mm)	10gf	0.047" (1.2mm)	0.579" (14.7mm)	0.050" (1.27mm)	-40°C ~ 85°C

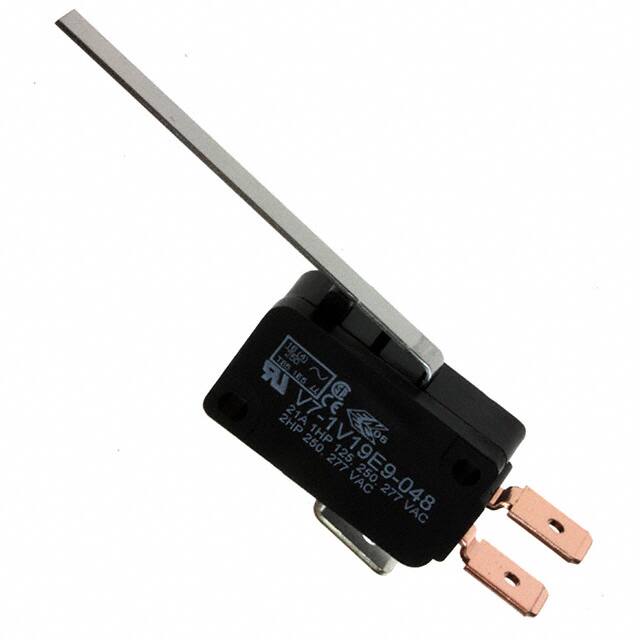

V7-1V19E9-048 SWITCH SNAP ACTION SPDT 21A 125V Honeywell Sensing and Productivity Solutions	1,960	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Straight	21A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	55gf	0.055" (1.4mm)	3.000gf	0.250" (6.35mm)	0.606" (15.4mm)	0.120" (3.05mm)	-40°C ~ 85°C
V7-1Z19E9-022 SWITCH SNAP ACTION SPDT 25A 277V Honeywell Sensing and Productivity Solutions	4,853	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Active	SPDT	On-Mom	277 V	-	Lever, Straight	25A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	225gf	-	-	-	-	-	-40°C ~ 85°C
ABJ473840 SWITCH SNAP ACT SPST-NO 1A 125V Panasonic Electric Works	1,384	-	RFQ Sell Excess Inventory	Datasheet	ABJ	Bulk	Active	SPST-NO	Off-Mom	125 V	30 V	Lever, Leaf	1A (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	130gf	0.020" (0.5mm)	22gf	0.102" (2.6mm)	0.420" (10.7mm)	0.055" (1.4mm)	-40°C ~ 85°C
ABJ573840 SWITCH SNAP ACT SPST-NO 1A 125V Panasonic Electric Works	3,364	-	RFQ Sell Excess Inventory	Datasheet	ABJ	Bulk	Active	SPST-NO	Off-Mom	125 V	30 V	Lever, Leaf	1A (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	130gf	0.020" (0.5mm)	22gf	0.102" (2.6mm)	0.420" (10.7mm)	0.055" (1.4mm)	-40°C ~ 85°C
ABV1612413 SWITCH SNAP ACTION SPDT 1A 250V Panasonic Electric Works	3,665	-	RFQ Sell Excess Inventory	Datasheet	ABV	Bulk	Active	SPDT	On-Mom	250 V	-	Lever, Straight	1A (AC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	60gf	0.047" (1.2mm)	10gf	0.125" (3.2mm)	0.602" (15.3mm)	0.047" (1.2mm)	-40°C ~ 85°C
D2VW-01L1A-1HS SWITCH SNAP ACT SPDT 0.1A 125V Omron Electronics Inc-EMC Div	3,235	-	RFQ Sell Excess Inventory	Datasheet	D2VW	Tray	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	100mA (AC/DC)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	IP67 - Dust Tight, Waterproof	-	200gf	0.020" (0.5mm)	20gf	0.063" (1.6mm)	0.600" (15.2mm)	0.030" (0.76mm)	-40°C ~ 85°C
83161098 SWITCH SNAP ACTION SPDT 16A 250V Crouzet	4,183	-	RFQ Sell Excess Inventory	Datasheet	83161	Bulk	Active	SPDT	On-Mom	250 V	-	Telescopic Plunger	16A (AC)	Panel Mount	Quick Connect - 0.250" (6.3mm)	-	-	306gf	0.014" (0.35mm)	102gf	-	0.846" (21.5mm)	0.045" (1.1mm)	-20°C ~ 125°C
ABS463840 SWITCH SNAP ACT SPST-NO 2A 125V Panasonic Electric Works	2,207	-	RFQ Sell Excess Inventory	Datasheet	ABS	Bulk	Active	SPST-NO	Off-Mom	125 V	30 V	Lever, Leaf	2A (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	90gf	0.040" (1.0mm)	17gf	0.178" (4.5mm)	0.571" (14.50mm)	0.100" (2.5mm)	-40°C ~ 85°C
ZW10E90AW3-001 SWITCH SNP ACT SPDT-NO 0.1A 125V Honeywell Sensing and Productivity Solutions	1,488	-	RFQ Sell Excess Inventory	Datasheet	ZW	Box	Obsolete	SPST-NO	Off-Mom	125 V	-	Round (Pin Plunger)	100mA (AC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	150gf	-	-	-	-	-	-40°C ~ 120°C
V7-7B17D862-201 SWITCH SNAP ACTION SPDT 11A 125V Honeywell Sensing and Productivity Solutions	3,818	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Roller	11A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	283gf	0.013" (0.33mm)	28gf	0.055" (1.4mm)	0.806" (20.5mm)	0.035" (0.9mm)	-40°C ~ 85°C
