Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
ABV1634513 SWITCH SNAP ACT SPST-NO 3A 250V Panasonic Electric Works	4,285	-	RFQ Sell Excess Inventory	Datasheet	ABV	Bulk	Active	SPST-NO	Off-Mom	250 V	-	Lever, Simulated Roller	3A (AC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	120gf	0.047" (1.2mm)	13gf	0.125" (3.2mm)	0.730" (18.5mm)	0.047" (1.2mm)	-40°C ~ 85°C
TMCJG6SP0040C SWITCH SNAP ACTION SPDT 15A 125V C&K	1,587	-	RFQ Sell Excess Inventory	Datasheet	TM	Bulk	Active	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	150gf	0.013" (0.33mm)	60gf	0.055" (1.4mm)	0.579" (14.7mm)	0.035" (0.9mm)	-55°C ~ 150°C
10-10064 LIMIT SWITCH Honeywell Sensing and Productivity Solutions	2,083	-	RFQ Sell Excess Inventory	Datasheet	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ABS5610318 SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works	4,654	-	RFQ Sell Excess Inventory	Datasheet	ABS	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	100mA (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	75gf	0.004" (0.1mm)	10gf	0.024" (0.6mm)	0.330" (8.4mm)	0.015" (0.4mm)	-40°C ~ 85°C
83262023 SWITCH SNAP ACTION SPDT 20A 250V Crouzet	4,020	-	RFQ Sell Excess Inventory	Datasheet	V3D	Bulk	Active	SPDT	On-Mom	250 V	-	Lever, Straight	20A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	102gf	0.031" (0.8mm)	25gf	-	0.606" (15.4mm)	0.079" (2.0mm)	-20°C ~ 125°C
831614C6.CB.MR SWITCH SNAP ACTION 6A 3-16 Crouzet	1,138	-	RFQ Sell Excess Inventory	Datasheet	-	Box	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
VM3SCGF3002L00 SWITCH LIMIT SPDT 10A 125V CIT Relay and Switch	4,630	-	RFQ Sell Excess Inventory	Datasheet	VM3S	Tray	Active	SPDT	On-Mom	125 V	36 V	Round (Pin Plunger)	10A (AC), 6A (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP67 - Dust Tight, Waterproof	-	320gf	0.031" (0.80mm)	250gf	0.080" (2.0mm)	0.581" (14.75mm)	0.024" (0.6mm)	-40°C ~ 120°C
ABV1215413R SWITCH SNAP ACTION SPDT 1A 250V Panasonic Electric Works	2,735	-	RFQ Sell Excess Inventory	Datasheet	ABV	Bulk	Active	SPDT	On-Mom	250 V	-	Lever, Roller	1A (AC)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	IP50 - Dust Protected	-	110gf	0.020" (0.5mm)	20gf	0.063" (1.6mm)	0.815" (20.7mm)	0.030" (0.76mm)	-40°C ~ 85°C
V-155-1B5 SWITCH SNAP ACTION SPDT 15A 250V Omron Electronics Inc-EMC Div	2,789	-	RFQ Sell Excess Inventory	Datasheet	V	Bulk	Active	SPDT	On-Mom	250 V	125 V	Lever, Roller	15A (AC), 600mA (DC)	Chassis Mount	Screw Terminal	IP40	-	240gf	0.025" (0.6mm)	50gf	0.063" (1.6mm)	0.815" (20.7mm)	0.030" (0.76mm)	-25°C ~ 80°C
TMCGD6SP0040W SWITCH SNAP ACT SPST-NC 10A 125V C&K	4,738	-	RFQ Sell Excess Inventory	Datasheet	TM	Bulk	Active	SPST-NC	On-Mom	125 V	125 V	Round (Pin Plunger)	10A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	75gf	0.013" (0.33mm)	28gf	0.055" (1.4mm)	0.579" (14.7mm)	0.035" (0.9mm)	-55°C ~ 150°C
D2MV11C2 SWITCH SNAP ACTION SPDT 1A 125V Omron Electronics Inc-EMC Div	4,456	-	RFQ Sell Excess Inventory	Datasheet	D2MV	Bulk	Obsolete	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	1A (AC/DC)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	IP40	-	25gf	0.010" (0.25mm)	1.020gf	0.047" (1.2mm)	0.579" (14.7mm)	0.051" (1.3mm)	-25°C ~ 80°C
V7-1V29E9-263 SWITCH SNAP ACT SPST-NO 21A 125V Honeywell Sensing and Productivity Solutions	2,326	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Active	SPST-NO	Off-Mom	125 V	-	Lever, Simulated Roller	21A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	110gf	0.025" (0.6mm)	7.000gf	0.114" (2.9mm)	0.730" (18.5mm)	0.062" (1.6mm)	-40°C ~ 85°C
TFS01ST2040C SWITCH SNAP ACT SPDT 0.1A 125V C&K	4,413	-	RFQ Sell Excess Inventory	Datasheet	TFS	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Straight	100mA (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	90gf	0.045" (1.1mm)	10gf	0.200" (5.1mm)	0.591" (15.00mm)	0.047" (1.2mm)	-40°C ~ 85°C
AV6322643-A SWITCH SNAP ACT SPST-NO 0.1A 30V Panasonic Electric Works	2,091	-	RFQ Sell Excess Inventory	Datasheet	AV6	Bulk	Active	SPST-NO	Off-Mom	-	30 V	Lever, Straight	100mA (DC)	Chassis Mount	Connector	IP40	-	20gf	0.031" (0.8mm)	2.039gf	0.102" (2.6mm)	0.394" (10.0mm)	0.047" (1.2mm)	-25°C ~ 85°C
AV6342643-A SWITCH SNAP ACT SPST-NO 0.1A 30V Panasonic Electric Works	4,213	-	RFQ Sell Excess Inventory	Datasheet	AV6	Bulk	Active	SPST-NO	Off-Mom	-	30 V	Lever, Simulated Roller	100mA (DC)	Chassis Mount	Connector	IP40	-	20gf	0.031" (0.8mm)	2.039gf	0.102" (2.6mm)	0.480" (12.2mm)	0.047" (1.2mm)	-25°C ~ 85°C
VM3SCGF3002L04 SWITCH LIMIT SPDT 10A 125V CIT Relay and Switch	1,795	-	RFQ Sell Excess Inventory	Datasheet	VM3S	Tray	Active	SPDT	On-Mom	125 V	36 V	Lever, Straight	10A (AC), 6A (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP67 - Dust Tight, Waterproof	-	300gf	0.040" (1.0mm)	250gf	0.080" (2.0mm)	0.591" (15.00mm)	0.020" (0.5mm)	-40°C ~ 120°C
ABV1630503 SWITCH SNAP ACT SPST-NO 5A 250V Panasonic Electric Works	3,335	-	RFQ Sell Excess Inventory	Datasheet	ABV	Bulk	Active	SPST-NO	Off-Mom	250 V	-	Round (Pin Plunger)	5A (AC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	200gf	0.016" (0.4mm)	40gf	0.063" (1.6mm)	0.579" (14.7mm)	0.030" (0.76mm)	-40°C ~ 85°C
VM3SCGF3002L02 SWITCH LIMIT SPDT 10A 125V CIT Relay and Switch	2,292	-	RFQ Sell Excess Inventory	Datasheet	VM3S	Tray	Active	SPDT	On-Mom	125 V	36 V	Lever, Simulated Roller	10A (AC), 6A (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP67 - Dust Tight, Waterproof	-	200gf	0.060" (1.5mm)	180gf	0.118" (3.0mm)	0.720" (18.3mm)	0.024" (0.6mm)	-40°C ~ 120°C

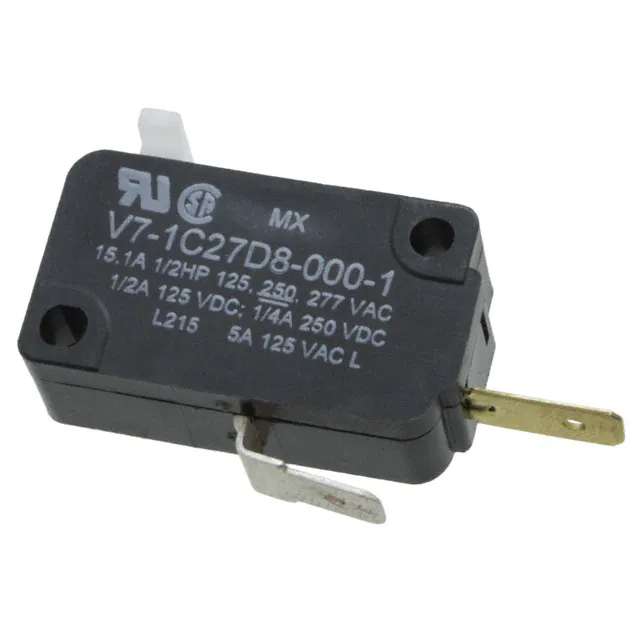

V7-1C27D8-000-1 SWITCH SNAP ACT SPST-NO 15A 125V Honeywell Sensing and Productivity Solutions	3,306	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Obsolete	SPST-NO	Off-Mom	125 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	150gf	0.010" (0.25mm)	25gf	0.047" (1.2mm)	0.630" (16.0mm)	0.030" (0.76mm)	-40°C ~ 85°C
V7-1B17D8-122-1 SWITCH STRGHT LVR SPDT 11A QC Honeywell Sensing and Productivity Solutions	4,455	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
