Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
TMCJG6ST1060C SWITCH SNAP ACTION SPDT 15A 125V C&K	2,648	-	RFQ Sell Excess Inventory	Datasheet	TM	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Straight	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	28gf	0.013" (0.33mm)	15gf	0.080" (2.0mm)	0.600" (15.2mm)	0.035" (0.9mm)	-55°C ~ 150°C
ASQM16420 SWITCH SNP ACT SPST-NC 0.05A 16V Panasonic Electric Works	2,537	-	RFQ Sell Excess Inventory	Datasheet	ASQM1	Bulk	Active	SPST-NC	On-Mom	-	16 V	Round (Pin Plunger)	50mA (DC)	Chassis Mount	Solder Lug	IP67 - Dust Tight, Waterproof	-	122gf	-	-	-	0.280" (7.1mm)	0.065" (1.7mm)	-40°C ~ 85°C
ASQM16430 SWITCH SNP ACT SPST-NO 0.05A 16V Panasonic Electric Works	3,740	-	RFQ Sell Excess Inventory	Datasheet	ASQM1	Bulk	Active	SPST-NO	Off-Mom	-	16 V	Round (Pin Plunger)	50mA (DC)	Chassis Mount	Solder Lug	IP67 - Dust Tight, Waterproof	-	122gf	-	-	-	0.280" (7.1mm)	0.065" (1.7mm)	-40°C ~ 85°C
D2VW-5L3-3 SWITCH SNAP ACT SPST-NO 5A 125V Omron Electronics Inc-EMC Div	2,090	-	RFQ Sell Excess Inventory	Datasheet	D2VW	Bulk	Active	SPST-NO	Off-Mom	125 V	30 V	Lever, Simulated Roller	5A (AC/DC)	Chassis Mount	Solder, Quick Connect - 0.187" (4.7mm)	IP67 - Dust Tight, Waterproof	-	120gf	0.031" (0.8mm)	15gf	0.157" (4.0mm)	0.738" (18.7mm)	0.062" (1.6mm)	-40°C ~ 85°C
V7-1S19D8-369 SWITCH SNAP ACT SPDT 100MA 125V Honeywell Sensing and Productivity Solutions	2,231	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Formed	100mA (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	100gf	0.022" (0.56mm)	10gf	0.102" (2.6mm)	0.764" (19.4mm)	0.057" (1.45mm)	-40°C ~ 85°C
TFCCH8SP004AC SWITCH SNAP ACTION SPDT 5A 277V C&K	3,887	-	RFQ Sell Excess Inventory	Datasheet	TF	Bulk	Active	SPDT	On-Mom	277 V	-	Round (Pin Plunger)	5A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	15gf	0.010" (0.25mm)	6.000gf	0.047" (1.2mm)	0.579" (14.7mm)	0.050" (1.27mm)	-40°C ~ 85°C
ABV1630413 SWITCH SNAP ACT SPST-NO 1A 250V Panasonic Electric Works	3,740	-	RFQ Sell Excess Inventory	Datasheet	ABV	Tube	Active	SPST-NO	Off-Mom	250 V	-	Round (Pin Plunger)	1A (AC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	100gf	0.016" (0.4mm)	25gf	0.063" (1.6mm)	0.579" (14.7mm)	0.030" (0.76mm)	-40°C ~ 85°C
50000058-003 SWITCH SEALED Honeywell Sensing and Productivity Solutions	2,039	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TFCJJ6VT154AC SWITCH SNAP ACTION SPDT 15A 277V C&K	1,975	-	RFQ Sell Excess Inventory	Datasheet	TF	Bulk	Active	SPDT	On-Mom	277 V	125 V	Lever, Straight	15A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	80gf	0.030" (0.76mm)	8.000gf	0.110" (2.8mm)	0.600" (15.2mm)	0.065" (1.7mm)	-40°C ~ 85°C
V15W2-EZ100A05-W21 SWITCH BASIC HAZARDOUS AREA Honeywell Sensing and Productivity Solutions	2,761	-	RFQ Sell Excess Inventory	Datasheet	*	Tray	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ASKHF3T04AY SWITCH SNAP ACT SPST-NO 25A 125V C&K	2,879	-	RFQ Sell Excess Inventory	Datasheet	A	Tray	Active	SPST-NO	Off-Mom	125 V	24 V	Lever, Straight	25A (AC), 2A (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	113gf	-	14gf	0.312" (7.9mm)	0.312" (7.9mm)	0.187" (4.75mm)	-55°C ~ 85°C
TFECK6ST1640C SWITCH SNAP ACTION SPDT 11A 277V C&K	1,113	-	RFQ Sell Excess Inventory	Datasheet	TF	Bulk	Active	SPDT	On-Mom	277 V	125 V	Lever, Straight	11A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	70gf	0.045" (1.1mm)	10gf	0.250" (6.35mm)	0.600" (15.2mm)	0.125" (3.2mm)	-40°C ~ 85°C

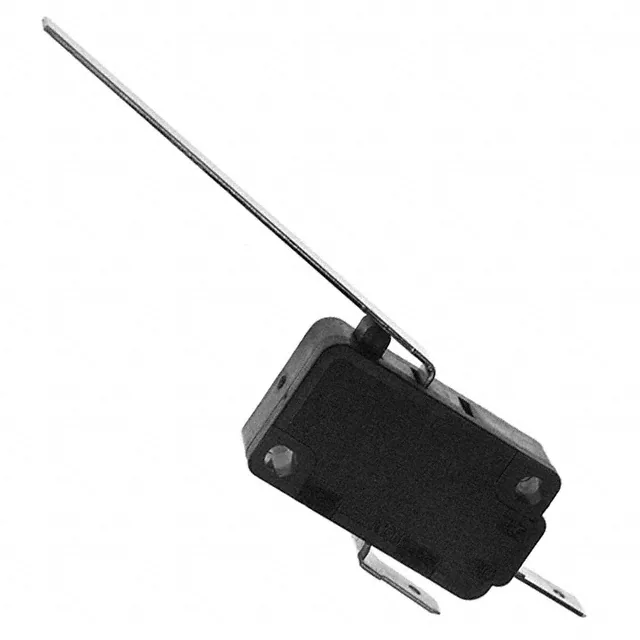

TFCGK6ST2640Y SWITCH SNAP ACT SPST-NO 11A 277V C&K	3,928	-	RFQ Sell Excess Inventory	Datasheet	TF	Bulk	Active	SPST-NO	Off-Mom	277 V	125 V	Lever, Straight	11A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	12gf	0.100" (2.54mm)	1.500gf	0.500" (12.7mm)	0.600" (15.2mm)	0.235" (6.0mm)	-40°C ~ 85°C
ABV1612509 SWITCH SNAP ACTION SPDT 5A 250V Panasonic Electric Works	3,301	-	RFQ Sell Excess Inventory	Datasheet	ABV	Bulk	Active	SPDT	On-Mom	250 V	-	Lever, Straight	5A (AC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	120gf	0.047" (1.2mm)	13gf	0.125" (3.2mm)	0.602" (15.3mm)	0.047" (1.2mm)	-40°C ~ 85°C
ZW50F70SD1-A SWITCH SNAP ACTION SPDT 6A 125V Honeywell Sensing and Productivity Solutions	3,723	-	RFQ Sell Excess Inventory	Datasheet	ZW	Tray	Active	SPDT	On-Mom	125 V	-	-	6A (AC)	Chassis Mount	Quick Connect - 0.110" (2.8mm)	IP00	-	-	-	-	-	-	-	-40°C ~ 120°C
V15W2-EP100-AW2 BASIC SWITCH-HAZARDOUS AREA Honeywell Sensing and Productivity Solutions	3,714	-	RFQ Sell Excess Inventory	Datasheet	V15W2	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	5A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP67 - Dust Tight, Waterproof	-	100gf	0.016" (0.4mm)	15gf	0.047" (1.2mm)	0.583" (14.8mm)	0.039" (1.0mm)	-25°C ~ 85°C
V15W2-EP200-W2 BASIC SWITCH-HAZARDOUS AREA Honeywell Sensing and Productivity Solutions	2,399	-	RFQ Sell Excess Inventory	Datasheet	V15W2	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	5A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP67 - Dust Tight, Waterproof	-	200gf	0.016" (0.4mm)	40gf	0.047" (1.2mm)	0.583" (14.8mm)	0.039" (1.0mm)	-25°C ~ 85°C
V15W-WZ200-W3 SWITCH SNAP ACTION SPDT 10A 125V Honeywell Sensing and Productivity Solutions	3,854	-	RFQ Sell Excess Inventory	Datasheet	V15W	Tray	Obsolete	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	10A (AC), 500mA (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	200gf	0.016" (0.4mm)	50gf	0.063" (1.6mm)	0.579" (14.7mm)	0.030" (0.76mm)	-40°C ~ 85°C
TMCGD6ST1840C SWITCH SNAP ACTION SPDT 10A 125V C&K	3,076	-	RFQ Sell Excess Inventory	Datasheet	TM	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Straight	10A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	20gf	0.080" (2.0mm)	4.000gf	0.374" (9.5mm)	0.600" (15.2mm)	0.160" (4.06mm)	-55°C ~ 150°C
V7-7A19D8-374 SWITCH SNAP ACTION SPDT 5A 125V Honeywell Sensing and Productivity Solutions	2,815	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Formed	5A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	200gf	0.019" (0.47mm)	28gf	0.081" (2.05mm)	0.846" (21.5mm)	0.047" (1.2mm)	-40°C ~ 85°C
