Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
V7-1A17D8-057 SWITCH SNAP ACTION SPDT 5A 125V Honeywell Sensing and Productivity Solutions	2,440	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Straight	5A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	38gf	0.070" (1.8mm)	3.000gf	0.300" (7.6mm)	0.602" (15.3mm)	0.146" (3.7mm)	-40°C ~ 85°C
TFCGK6ST1840Y SWITCH SNAP ACT SPST-NO 11A 277V C&K	1,700	-	RFQ Sell Excess Inventory	Datasheet	TF	Bulk	Active	SPST-NO	Off-Mom	277 V	125 V	Lever, Straight	11A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	20gf	0.062" (1.6mm)	2.000gf	0.300" (7.6mm)	0.600" (15.2mm)	0.155" (3.9mm)	-40°C ~ 85°C
V15W-WZ200A05-W3 SWITCH BASIC Honeywell Sensing and Productivity Solutions	1,252	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
D2SW-01-3MS SWITCH SNAP ACT SPST-NO 0.1A 30V Omron Electronics Inc-EMC Div	4,159	-	RFQ Sell Excess Inventory	Datasheet	D2SW	Bulk	Active	SPST-NO	Off-Mom	-	30 V	Round (Pin Plunger)	100mA (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	180gf	0.004" (0.1mm)	30gf	0.025" (0.65mm)	0.330" (8.4mm)	0.020" (0.5mm)	-40°C ~ 85°C
D2SW-01L1M-0 SWITCH SNAP ACTION SPDT 0.1A 30V Omron Electronics Inc-EMC Div	4,042	-	RFQ Sell Excess Inventory	Datasheet	D2SW	Bulk	Active	SPDT	On-Mom	-	30 V	Lever, Straight	100mA (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	60gf	0.031" (0.8mm)	6.000gf	-	0.345" (8.8mm)	0.039" (1.0mm)	-40°C ~ 85°C
TFECJ6SP0040C SWITCH SNAP ACTION SPDT 15A 277V C&K	2,734	-	RFQ Sell Excess Inventory	Datasheet	TF	Bulk	Active	SPDT	On-Mom	277 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	225gf	0.010" (0.25mm)	56gf	0.047" (1.2mm)	0.579" (14.7mm)	0.050" (1.27mm)	-40°C ~ 85°C
D2QW-C003M SWITCH SNAP ACTION SUBMINI BASIC Omron Electronics Inc-EMC Div	4,541	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AP-HCM02 SWITCH AUX MINI CONTACTOR Altech Corporation	1,507	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AP-HCM11 SWITCH AUX MINI CONTACTOR Altech Corporation	4,912	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AP-HCM20 SWITCH AUX MINI CONTACTOR Altech Corporation	3,041	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
LCGDL9P00EC SWITCH SNAP ACTION SPDT 5A 125V C&K	3,466	-	RFQ Sell Excess Inventory	Datasheet	LC	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	5A (AC)	Chassis Mount	Solder Lug	-	-	94gf	0.004" (0.1mm)	14gf	0.030" (0.8mm)	0.330" (8.4mm)	0.010" (0.25mm)	-25°C ~ 85°C
V7-2S17E9-420 SWITCH SNAP ACT SPDT 0.1A 125V Honeywell Sensing and Productivity Solutions	3,210	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Formed	100mA (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	76gf	0.015" (0.38mm)	6.000gf	0.065" (1.65mm)	0.602" (15.3mm)	0.039" (1.0mm)	-40°C ~ 85°C
V7-5D17E9 SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	4,654	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	1A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	15gf	0.010" (0.25mm)	-	0.047" (1.2mm)	0.579" (14.7mm)	0.050" (1.27mm)	-40°C ~ 85°C
DS1D7BQ3 SWITCH SNAP ACTION SPDT 16A 125V C&K	4,638	-	RFQ Sell Excess Inventory	Datasheet	DS	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	16A (AC)	Panel Mount, Snap-In	Quick Connect - 0.250" (6.3mm)	-	-	425gf	-	-	-	0.770" (19.5mm)	0.398" (10.1mm)	-40°C ~ 85°C

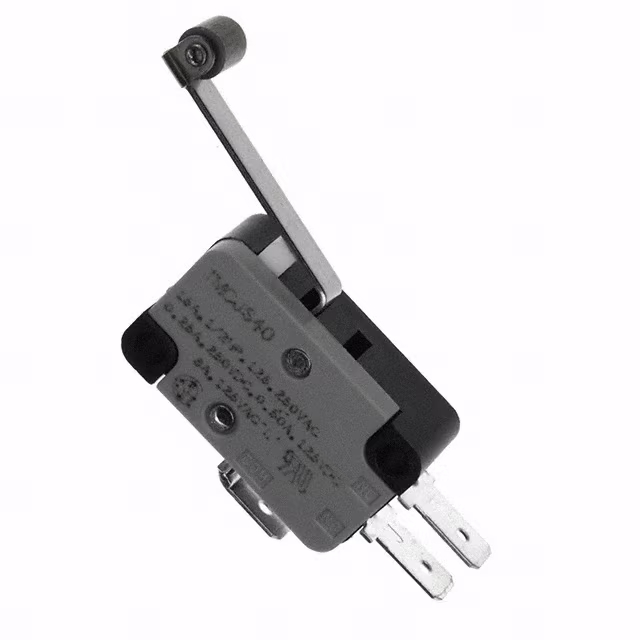

TMCJG6SA2540C SWITCH SNAP ACTION SPDT 15A 125V C&K	4,228	-	RFQ Sell Excess Inventory	Datasheet	TM	Tray	Active	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	45gf	0.070" (1.8mm)	10gf	0.312" (7.9mm)	0.812" (20.6mm)	0.125" (3.2mm)	-55°C ~ 150°C
ABS1610409 SWITCH SNAP ACTION SPDT 2A 125V Panasonic Electric Works	2,226	-	RFQ Sell Excess Inventory	Datasheet	ABS	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	2A (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	100gf	0.004" (0.1mm)	15gf	0.024" (0.6mm)	0.330" (8.4mm)	0.015" (0.4mm)	-40°C ~ 85°C
ABV1636413 SWITCH SNAP ACT SPST-NO 1A 250V Panasonic Electric Works	1,449	-	RFQ Sell Excess Inventory	Datasheet	ABV	Bulk	Active	SPST-NO	Off-Mom	250 V	-	Lever, Roller	1A (AC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	60gf	0.047" (1.2mm)	10gf	0.125" (3.2mm)	0.815" (20.7mm)	0.047" (1.2mm)	-40°C ~ 85°C
V7-6C23E9-398 SWITCH MICRO Honeywell Sensing and Productivity Solutions	3,565	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ABS1616319 SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Electric Works	4,479	-	RFQ Sell Excess Inventory	Datasheet	ABS	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Roller	100mA (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	30gf	0.020" (0.5mm)	2.039gf	0.100" (2.5mm)	0.571" (14.5mm)	0.032" (0.81mm)	-40°C ~ 85°C
TMCJG6VT1010Y SWITCH SNAP ACT SPST-NO 15A 125V C&K	2,701	-	RFQ Sell Excess Inventory	Datasheet	TM	Bulk	Active	SPST-NO	Off-Mom	125 V	125 V	Lever, Straight	15A (AC), 500mA (DC)	Chassis Mount	Solder Lug	-	-	180gf	0.013" (0.33mm)	48gf	0.080" (2.0mm)	0.600" (15.2mm)	0.035" (0.9mm)	-55°C ~ 150°C
