Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
83242200 SWITCH SNAP ACTION DPST 6A 250V Crouzet	3,498	-	RFQ Sell Excess Inventory	Datasheet	PBX	Bulk	Active	DPST-NO/NC	On-Mom, Off-Mom	250 V	250 V	Round (Pin Plunger)	6A (AC), 600mA (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	IP67 - Dust Tight, Waterproof	-	663gf	0.040" (1.0mm)	-	-	0.260" (6.6mm)	-	-50°C ~ 85°C
83242030 SWITCH SNAP ACTION DPST 6A 250V Crouzet	2,497	-	RFQ Sell Excess Inventory	Datasheet	PBX	Bulk	Active	DPST-NO/NC	On-Mom, Off-Mom	250 V	250 V	Round (Pin Plunger)	6A (AC), 600mA (DC)	Chassis Mount	Screw Terminal	IP40	-	663gf	0.040" (1.0mm)	-	-	0.260" (6.6mm)	-	-50°C ~ 85°C
X-10GM22-B SWITCH SNAP ACTION SPDT 10A 30V Omron Automation and Safety	4,995	-	RFQ Sell Excess Inventory	Datasheet	X	Tray	Active	SPDT	On-Mom	-	30 V	Lever, Roller	10A (DC)	Chassis Mount	Screw Terminal	IP00	-	700gf	0.060" (1.5mm)	155gf	-	1.266" (32.2mm)	0.079" (2.0mm)	-25°C ~ 80°C
X-10GW21-B SWITCH SNAP ACTION SPDT 10A 30V Omron Automation and Safety	4,481	-	RFQ Sell Excess Inventory	Datasheet	X	Tray	Active	SPDT	On-Mom	-	30 V	Lever, Straight	10A (DC)	Chassis Mount	Screw Terminal	IP00	-	250gf	0.065" (1.7mm)	32gf	-	0.815" (20.7mm)	0.083" (2.1mm)	-25°C ~ 80°C
Z-15G55-MR 1M SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	2,423	-	RFQ Sell Excess Inventory	Datasheet	Z	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	15A (AC), 6A (DC)	Chassis Mount	Cable Leads	IP62	Cable Length 1m	430gf	0.002" (0.05mm)	114gf	0.087" (2.2mm)	0.625" (15.9mm)	0.005" (0.13mm)	-15°C ~ 80°C
D4V-8108SZ-N SWITCH LIMIT ADJUSTABLE ROLLER Omron Automation and Safety	1,674	-	RFQ Sell Excess Inventory	Datasheet	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
D4V-8104SZ-N SWITCH LIMIT ROLLER LEVER Omron Automation and Safety	4,099	-	RFQ Sell Excess Inventory	Datasheet	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

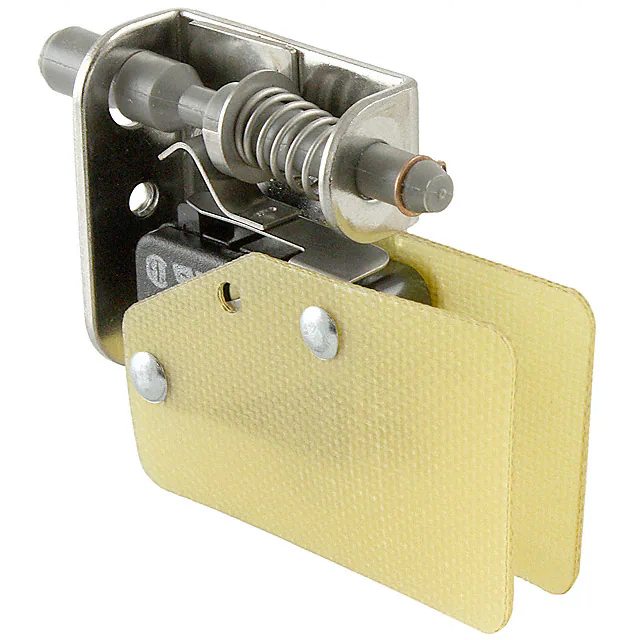

22AC2-UL SWITCH SNAP ACT SPDT 0.16A 125V Honeywell Sensing and Productivity Solutions	2,473	-	RFQ Sell Excess Inventory	Datasheet	AC	Bulk	Active	SPDT	On-Mom	125 V	125 V	Push-Pull Plunger	160mA (AC/DC)	Chassis Mount	Screw Terminal	-	-	1814gf	-	-	-	0.203" (5.2mm)	0.125" (3.2mm)	-18°C ~ 82°C
XCKN2108G11 SWITCH LIMIT DPST 3A 240V Telemecanique Sensors	3,071	-	RFQ Sell Excess Inventory	Datasheet	XC	Box	Active	DPST-NO/NC	On-Mom, Off-Mom	240 V	250 V	Spring, Rod	3A (AC), 100mA (DC)	Chassis Mount	Screw Terminal	IP65 - Dust Tight, Water Resistant	-	-	-	-	-	-	-	-25°C ~ 70°C
LSZ65FD SWITCH LIMIT Honeywell Sensing and Productivity Solutions	2,936	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
83895001 FOOT SWITCH PLASTIC Crouzet	4,468	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
83806051 SWITCH SNAP ACTION SPDT 5A 250V Crouzet	4,532	-	RFQ Sell Excess Inventory	Datasheet	83800	Bulk	Active	SPDT (DB/DM)	On-Mom	250 V	-	Spring, Coil	5A (AC)	Chassis Mount	Plug In	IP65 - Dust Tight, Water Resistant	-	122gf	2°	-	-	-	-	-10°C ~ 70°C
XEP4E1FD SWITCH SNAP ACT SPDT 1.5A 240V Telemecanique Sensors	4,257	-	RFQ Sell Excess Inventory	Datasheet	OsiSense XC	Box	Active	SPDT	On-On	240 V	250 V	Round (Pin Plunger)	1.5A (AC), 100mA (DC)	Chassis Mount	Cable Leads	IP67 - Dust Tight, Waterproof	-	-	-	-	-	-	-	-40°C ~ 105°C
SI-LS31PBD SWITCH SAFETY LIMIT Banner Engineering Corporation	2,689	-	RFQ Sell Excess Inventory	Datasheet	-	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
NGCMA00PX07R LIMIT SWITCH Honeywell Sensing and Productivity Solutions	3,676	-	RFQ Sell Excess Inventory	Datasheet	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
NGCMB02BX01L-L40 SWITCH LIMIT Honeywell Sensing and Productivity Solutions	1,314	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
83240013 SWITCH SNAP ACTION DPST 6A 250V Crouzet	2,541	-	RFQ Sell Excess Inventory	Datasheet	PBX	Bulk	Active	DPST-NO/NC	On-Mom, Off-Mom	250 V	250 V	Lever, Roller	6A (AC), 600mA (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	IP40	-	275gf	0.070" (1.8mm)	-	-	0.654" (16.6mm)	-	-50°C ~ 85°C
83240210 SWITCH SNAP ACTION DPST 6A 250V Crouzet	3,765	-	RFQ Sell Excess Inventory	Datasheet	PBX	Bulk	Active	DPST-NO/NC	On-Mom, Off-Mom	250 V	250 V	Round (Pin Plunger)	6A (AC), 600mA (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	IP67 - Dust Tight, Waterproof	-	459gf	0.040" (1.0mm)	-	-	0.260" (6.6mm)	-	-50°C ~ 85°C
83240043 SWITCH SNAP ACTION DPST 6A 250V Crouzet	2,200	-	RFQ Sell Excess Inventory	Datasheet	PBX	Bulk	Active	DPST-NO/NC	On-Mom, Off-Mom	250 V	250 V	Lever, Roller	6A (AC), 600mA (DC)	Chassis Mount	Screw Terminal	IP40	-	275gf	0.070" (1.8mm)	-	-	0.654" (16.6mm)	-	-50°C ~ 85°C
NGCPA10BX07C SWITCH LIMIT Honeywell Sensing and Productivity Solutions	2,707	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
