Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
D4N-2D62 SWITCH SNAP ACT 3PST-NC 3A 240V Omron Automation and Safety	3,840	-	RFQ Sell Excess Inventory	Datasheet	D4N	Bulk	Active	3PST-NC	On-Mom	240 V	250 V	Lever, Roller	3A (AC), 270mA (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	510gf	0.060" (1.5mm)	82gf	0.157" (4.0mm)	1.457" (37.0mm)	0.197" (5.0mm)	-30°C ~ 70°C
83240220 SWITCH SNAP ACTION DPST 6A 250V Crouzet	3,771	-	RFQ Sell Excess Inventory	Datasheet	PBX	Bulk	Active	DPST-NO/NC	On-Mom, Off-Mom	250 V	250 V	Round (Pin Plunger)	6A (AC), 600mA (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	459gf	0.040" (1.0mm)	-	-	0.260" (6.6mm)	-	-50°C ~ 85°C
83240004 SWITCH SNAP ACTION DPST 6A 250V Crouzet	2,339	-	RFQ Sell Excess Inventory	Datasheet	PBX	Bulk	Active	DPST-NO/NC	On-Mom, Off-Mom	250 V	250 V	Lever, Roller	6A (AC), 600mA (DC)	Panel Mount	Quick Connect - 0.250" (6.3mm)	IP40	-	275gf	0.070" (1.8mm)	-	-	0.654" (16.6mm)	-	-50°C ~ 85°C
83240023 SWITCH SNAP ACTION DPST 6A 250V Crouzet	3,381	-	RFQ Sell Excess Inventory	Datasheet	PBX	Bulk	Active	DPST-NO/NC	On-Mom, Off-Mom	250 V	250 V	Lever, Roller	6A (AC), 600mA (DC)	Chassis Mount	Screw Terminal	IP40	-	275gf	0.070" (1.8mm)	-	-	0.654" (16.6mm)	-	-50°C ~ 85°C
83242023 SWITCH SNAP ACTION DPST 6A 250V Crouzet	4,887	-	RFQ Sell Excess Inventory	Datasheet	PBX	Bulk	Active	DPST-NO/NC	On-Mom, Off-Mom	250 V	250 V	Lever, Roller	6A (AC), 600mA (DC)	Chassis Mount	Screw Terminal	IP40	-	398gf	0.070" (1.8mm)	-	-	0.654" (16.6mm)	-	-50°C ~ 85°C
83242220 SWITCH SNAP ACTION DPST 6A 250V Crouzet	1,294	-	RFQ Sell Excess Inventory	Datasheet	PBX	Bulk	Active	DPST-NO/NC	On-Mom, Off-Mom	250 V	250 V	Round (Pin Plunger)	6A (AC), 600mA (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	663gf	0.040" (1.0mm)	-	-	0.260" (6.6mm)	-	-50°C ~ 85°C
83242004 SWITCH SNAP ACTION DPST 6A 250V Crouzet	2,809	-	RFQ Sell Excess Inventory	Datasheet	PBX	Bulk	Active	DPST-NO/NC	On-Mom, Off-Mom	250 V	250 V	Lever, Roller	6A (AC), 600mA (DC)	Panel Mount	Quick Connect - 0.250" (6.3mm)	IP40	-	398gf	0.070" (1.8mm)	-	-	0.654" (16.6mm)	-	-50°C ~ 85°C
83242005 SWITCH SNAP ACTION DPST 6A 250V Crouzet	1,162	-	RFQ Sell Excess Inventory	Datasheet	PBX	Bulk	Active	DPST-NO/NC	On-Mom, Off-Mom	250 V	250 V	Lever, Roller	6A (AC), 600mA (DC)	Panel Mount	Quick Connect - 0.250" (6.3mm)	IP40	-	398gf	0.070" (1.8mm)	-	-	0.654" (16.6mm)	-	-50°C ~ 85°C
BZ-3AST SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	4,384	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	15A (AC), 1A (DC)	Chassis Mount	Screw Terminal	-	-	454 ~ 737gf	0.005" (0.13mm)	113gf	0.025" (0.65mm)	1.110" (28.2mm)	0.060" (1.5mm)	-55°C ~ 85°C
XCMN2106L1 SWITCH LIMIT DPST 1.5A 240V Telemecanique Sensors	1,434	-	RFQ Sell Excess Inventory	Datasheet	XC	Box	Active	DPST-NO/NC	On-Mom, Off-Mom	240 V	250 V	Spring, Cat Whisker	1.5A (AC), 100mA (DC)	Chassis Mount	Cable Leads	IP65 - Dust Tight, Water Resistant	-	-	-	-	-	-	-	-25°C ~ 70°C
XCMN2121L1 SWITCH SNAP ACT DPST 1.5A 240V Telemecanique Sensors	1,021	-	RFQ Sell Excess Inventory	Datasheet	XC	Box	Active	DPST-NO/NC	On-Mom, Off-Mom	240 V	250 V	Lever, Roller	1.5A (AC), 100mA (DC)	Chassis Mount	Cable Leads	IP65 - Dust Tight, Water Resistant	-	-	-	-	-	-	-	-25°C ~ 70°C
51SM1-T SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	3,801	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	250 V	30 V	Round (Pin Plunger)	5A (AC/DC)	Chassis Mount	Solder Turret	-	-	141gf	0.006" (0.15mm)	28gf	0.030" (0.8mm)	0.406" (10.3mm)	0.008" (0.2mm)	-55°C ~ 125°C
NGCMB20BX01L-L40 SWITCH LIMIT Honeywell Sensing and Productivity Solutions	2,943	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
XCKS159H29 SWITCH LIMIT DPST 3A 240V Telemecanique Sensors	2,315	-	RFQ Sell Excess Inventory	Datasheet	XCKS	Box	Active	DPST-NO/NC	On-Mom, Off-Mom	240 V	250 V	Side Rotary, Adjustable Rod	3A (AC), 270mA (DC)	Chassis Mount	Screw Terminal	IP66/IP67 - Dust Tight, Water Resistant, Waterproof	-	-	-	-	-	-	-	-25°C ~ 70°C
XCKS159 SWITCH LIMIT DPST 3A 240V Telemecanique Sensors	1,743	-	RFQ Sell Excess Inventory	Datasheet	XCKS	Box	Active	DPST-NO/NC	On-Mom, Off-Mom	240 V	250 V	Side Rotary, Rod Spring	3A (AC), 270mA (DC)	Chassis Mount	Screw Terminal	IP66/IP67 - Dust Tight, Water Resistant, Waterproof	-	-	-	-	-	-	-	-25°C ~ 70°C
83141016 SWITCH SNAP ACTION SPDT SLDR Crouzet	4,773	-	RFQ Sell Excess Inventory	Datasheet	83141	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
NGCMB10AX01L SWITCH SNAP ACTION DPST 6A 120V Honeywell Sensing and Productivity Solutions	1,634	-	RFQ Sell Excess Inventory	Datasheet	NGC	Bulk	Active	DPST-NO/NC	On-Mom, Off-Mom	120 V	125 V	Cross Roller Plunger	6A (AC), 550mA (DC)	Chassis Mount	Cable Leads	IP67 - Dust Tight, Waterproof	-	1122gf	0.047" (1.2mm)	306gf	0.083" (2.1mm)	0.083" (2.1mm)	0.193" (4.9mm)	-25°C ~ 75°C

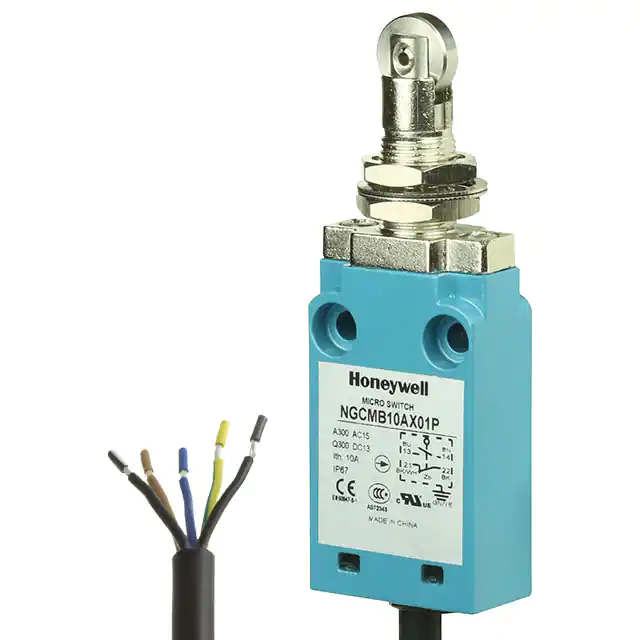

NGCMB10AX01P SWITCH SNAP ACTION DPST 6A 120V Honeywell Sensing and Productivity Solutions	4,853	-	RFQ Sell Excess Inventory	Datasheet	NGC	Bulk	Active	DPST-NO/NC	On-Mom, Off-Mom	120 V	125 V	Roller Plunger	6A (AC), 550mA (DC)	Panel Mount	Cable Leads	IP67 - Dust Tight, Waterproof	-	1122gf	0.047" (1.2mm)	306gf	0.083" (2.1mm)	0.083" (2.1mm)	0.193" (4.9mm)	-25°C ~ 75°C
NGCPC10BX07J SWITCH LIMIT Honeywell Sensing and Productivity Solutions	2,362	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
GLDA03D SWITCH SNAP ACTION SPDT 6A 120V Honeywell Sensing and Productivity Solutions	4,253	-	RFQ Sell Excess Inventory	Datasheet	GLS	Bulk	Obsolete	SPDT (BBM)	On-Mom	120 V	125 V	Lever, Roller	6A (AC), 550mA (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	953gf	0.050" (1.3mm)	-	0.138" (3.5mm)	1.409" (35.8mm)	0.205" (5.2mm)	-40°C ~ 85°C
