Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
1SX92 SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	3,096	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	1A (AC)	Through Hole	PC Pin	-	-	141gf	0.007" (0.18mm)	28gf	0.030" (0.8mm)	0.320" (8.13mm)	0.004" (0.1mm)	-53°C ~ 121°C
GLCA05A1A SWITCH SNAP ACTION DPST 6A 120V Honeywell Sensing and Productivity Solutions	1,319	-	RFQ Sell Excess Inventory	Datasheet	GLS	Bulk	Obsolete	DPST-NO (DM)	Off-Mom	120 V	125 V	Side Rotary, Roller	6A (AC), 550mA (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	Nylon Roller	12gfm	12°	-	26°	26°	49°	-40°C ~ 85°C
BA-3SQ1T SWITCH SNAP ACTION SPDT 25A 125V Honeywell Sensing and Productivity Solutions	4,306	-	RFQ Sell Excess Inventory	Datasheet	BA	Bulk	Obsolete	SPDT (DB/DM)	On-Mom	125 V	125 V	Overtravel Plunger	25A (AC), 1A (DC)	Panel Mount	Screw Terminal	-	-	737 ~ 1077gf	0.015" (0.38mm)	283gf	0.065" (1.65mm)	0.859" (21.8mm)	0.219" (5.6mm)	-55°C ~ 85°C
91MCE16-P2P SWITCH SNAP ACTION DPST 6A 120V Honeywell Sensing and Productivity Solutions	4,573	-	RFQ Sell Excess Inventory	Datasheet	91MCE	Bulk	Not For New Designs	DPST-NO/NC	On-Mom, Off-Mom	120 V	125 V	Side Rotary, Roller	6A (AC), 550mA (DC)	Chassis Mount	Cable Leads	IP67 - Dust Tight, Waterproof	Cable Length 2m	18gfm	10°	4.078gfm	20°	-	50°	-25°C ~ 85°C
91MCE16-S2P SWITCH SNAP ACTION DPST 6A 120V Honeywell Sensing and Productivity Solutions	4,950	-	RFQ Sell Excess Inventory	Datasheet	91MCE	Bulk	Not For New Designs	DPST-NO/NC	On-Mom, Off-Mom	120 V	125 V	Side Rotary, Roller	6A (AC), 550mA (DC)	Chassis Mount	Cable Leads	IP67 - Dust Tight, Waterproof	Cable Length 2m	14gfm	13°	-	20°	-	50°	-25°C ~ 85°C
91MCE16-P1BP SWITCH SNAP ACTION DPST 6A 120V Honeywell Sensing and Productivity Solutions	2,029	-	RFQ Sell Excess Inventory	Datasheet	91MCE	Bulk	Not For New Designs	DPST-NO/NC	On-Mom, Off-Mom	120 V	125 V	Side Rotary, Roller	6A (AC), 550mA (DC)	Chassis Mount	Cable Leads	IP67 - Dust Tight, Waterproof	Cable Length 1m	18gfm	10°	4.078gfm	20°	-	50°	-25°C ~ 85°C
91MCE16-SBQ SWITCH SNAP ACTION DPST 6A 120V Honeywell Sensing and Productivity Solutions	2,296	-	RFQ Sell Excess Inventory	Datasheet	91MCE	Bulk	Not For New Designs	DPST-NO/NC	On-Mom, Off-Mom	120 V	125 V	Side Rotary, Roller	6A (AC), 550mA (DC)	Chassis Mount	Connector	IP67 - Dust Tight, Waterproof	-	14gfm	13°	-	20°	-	50°	-25°C ~ 85°C
91MCE16-S2 SWITCH SNAP ACTION DPST 6A 120V Honeywell Sensing and Productivity Solutions	4,393	-	RFQ Sell Excess Inventory	Datasheet	91MCE	Bulk	Not For New Designs	DPST-NO/NC	On-Mom, Off-Mom	120 V	125 V	Side Rotary, Roller	6A (AC), 550mA (DC)	Chassis Mount	Cable Leads	IP67 - Dust Tight, Waterproof	Cable Length 2m	14gfm	13°	-	20°	-	50°	-25°C ~ 85°C
91MCE16-PBPQ SWITCH SNAP ACTION LIMIT Honeywell Sensing and Productivity Solutions	2,076	-	RFQ Sell Excess Inventory	Datasheet	91MCE	-	Not For New Designs	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
91MCE16-SBPQ SWITCH LIMIT Honeywell Sensing and Productivity Solutions	4,203	-	RFQ Sell Excess Inventory	Datasheet	91MCE	-	Not For New Designs	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3SE03RB SWITCH LIMIT RECEPTACLE 2NO/2NC Siemens	1,788	-	RFQ Sell Excess Inventory	Datasheet	-	Box	Active	DPST-NC	-	-	-	-	-	Chassis Mount	Screw Terminal	-	-	-	-	-	-	-	-	-
NGCMA00PX01C SWITCH LIMIT Honeywell Sensing and Productivity Solutions	3,329	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
10BS210 SWITCH SNAP ACTION SPDT 20A 125V Honeywell Sensing and Productivity Solutions	2,285	-	RFQ Sell Excess Inventory	Datasheet	BS	Bulk	Active	SPDT	On-Mom	125 V	-	Adjustable Plunger	20A (AC)	Chassis Mount	Screw Terminal	-	-	312 ~ 567gf	0.007" (0.18mm)	283gf	-	0.640" (16.3mm)	0.010" (0.25mm)	-
XCNR2110P20 SWITCH LIMIT DPST 3A 240V PLNGR Telemecanique Sensors	4,435	-	RFQ Sell Excess Inventory	Datasheet	XC	Box	Active	DPST-NO/NC	On-Mom, Off-Mom	240 V	250 V	Round (Pin Plunger)	3A (AC), 100mA (DC)	Chassis Mount	Screw Terminal	IP65 - Dust Tight, Water Resistant	-	-	-	-	-	-	-	-25°C ~ 70°C
XCMN2121L2 SWITCH LIMIT DPST 1.5A 240V Telemecanique Sensors	2,323	-	RFQ Sell Excess Inventory	Datasheet	XC	Box	Active	DPST-NO/NC	On-Mom, Off-Mom	240 V	250 V	Lever, Roller	1.5A (AC), 100mA (DC)	Chassis Mount	Cable Leads	IP65 - Dust Tight, Water Resistant	-	-	-	-	-	-	-	-25°C ~ 70°C
XCMN2107L1 SWITCH LIMIT DPST 1.5A 240V Telemecanique Sensors	1,311	-	RFQ Sell Excess Inventory	Datasheet	XC	Box	Active	DPST-NO/NC	On-Mom, Off-Mom	240 V	250 V	Spring, Rod	1.5A (AC), 100mA (DC)	Chassis Mount	Cable Leads	IP65 - Dust Tight, Water Resistant	-	-	-	-	-	-	-	-25°C ~ 70°C

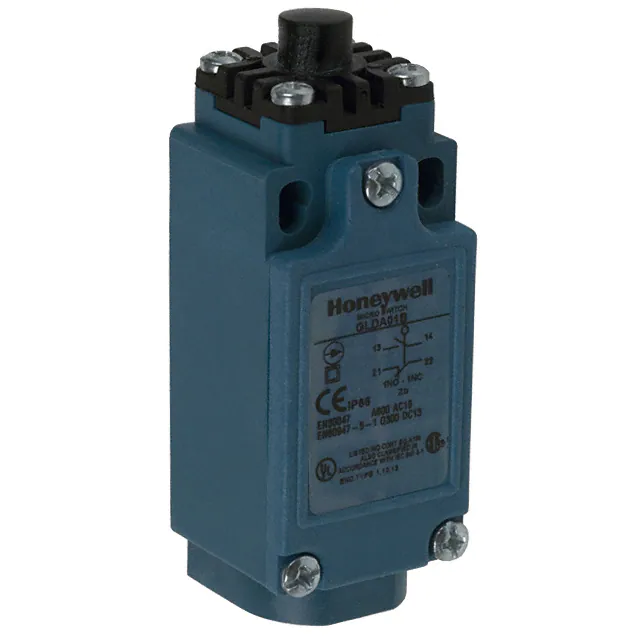

GLDA01B SWITCH SNAP ACTION SPDT 6A 120V Honeywell Sensing and Productivity Solutions	2,587	-	RFQ Sell Excess Inventory	Datasheet	GLS	Bulk	Active	SPDT	On-Mom	120 V	125 V	Round (Pin Plunger)	6A (AC), 550mA (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	1632gf	0.035" (0.9mm)	-	0.120" (3.0mm)	0.710" (18.0mm)	0.118" (3.0mm)	-40°C ~ 85°C
600.8816.015 SWITCH LIMIT PLASTIC BODY Altech Corporation	4,000	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
NGCMB30AX01A2A NGC SWITCH Honeywell Sensing and Productivity Solutions	3,242	-	RFQ Sell Excess Inventory	Datasheet	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
83228001 SWITCH SNAP ACTION SPDT 5A 250V Crouzet	3,212	-	RFQ Sell Excess Inventory	Datasheet	83228	Bulk	Active	SPDT	On-Mom	250 V	-	Round (Pin Plunger)	5A (AC)	Through Hole	PC Pin	-	-	173gf	0.005" (0.13mm)	41gf	-	0.077" (1.95mm)	0.006" (0.15mm)	-55°C ~ 100°C
