Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
51.901B FOOT SWITCHFK1SU1LBK SPDTMOMSLDR Altech Corporation	3,392	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
51.901G FOOT SWITCHFK1SU1LGY SPDTMOMSLDR Altech Corporation	2,871	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
NGCPA40AX01P SWITCH LIMIT Honeywell Sensing and Productivity Solutions	3,177	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

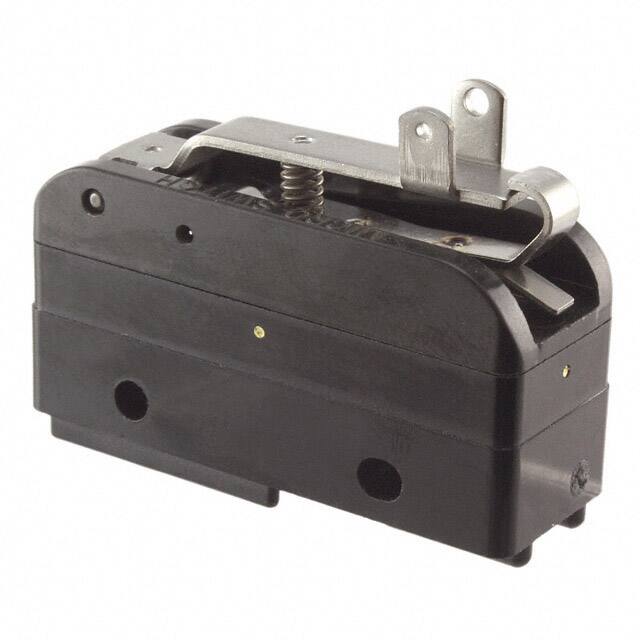

BZ-RW9223312 SWITCH SNAP ACTION SPDT 10A 125V Honeywell Sensing and Productivity Solutions	2,273	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Roller	10A (AC)	Chassis Mount	Solder Lug	-	-	340gf	0.001" (0.025mm)	113gf	0.015" (0.4mm)	1.193" (30.3mm)	0.100" (2.54mm)	-55°C ~ 85°C
D4N-1D31 SWITCH SNAP ACT 3PST-NC 3A 240V Omron Automation and Safety	4,836	-	RFQ Sell Excess Inventory	Datasheet	D4N	Bulk	Obsolete	3PST-NC	On-Mom	240 V	250 V	Round (Pin Plunger)	3A (AC), 270mA (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	663gf	0.040" (1.0mm)	153gf	0.080" (2.0mm)	0.715" (18.2mm)	0.158" (4.0mm)	-30°C ~ 70°C
D4N-2F72 SWITCH SNAP ACTION 3PST 3A 240V Omron Automation and Safety	4,361	-	RFQ Sell Excess Inventory	Datasheet	D4N	Bulk	Obsolete	3PST-2NC/1NO (MBB)	On-Mom, Off-Mom	240 V	250 V	Lever, Roller	3A (AC), 270mA (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	510gf	-	82gf	0.157" (4.0mm)	1.028" (26.1mm)	0.197" (5.0mm)	-30°C ~ 70°C
D4N-1225 SWITCH SNAP ACT DPST-NC 3A 240V Omron Automation and Safety	2,297	-	RFQ Sell Excess Inventory	Datasheet	D4N	Bulk	Active	DPST-NC	On-Mom	240 V	250 V	Side Rotary, Roller	3A (AC), 270mA (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	Metal Lever, Metal Roller	510gf	14°	51gf	18°	-	40°	-30°C ~ 70°C
D4N-1C62 SWITCH SNAP ACTION 3PST 3A 240V Omron Automation and Safety	1,403	-	RFQ Sell Excess Inventory	Datasheet	D4N	Bulk	Active	3PST-2NC/1NO	On-Mom, Off-Mom	240 V	250 V	Lever, Roller	3A (AC), 270mA (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	510gf	-	82gf	0.157" (4.0mm)	1.457" (37.0mm)	0.197" (5.0mm)	-30°C ~ 70°C
D4N-1D62 SWITCH SNAP ACT 3PST-NC 3A 240V Omron Automation and Safety	3,126	-	RFQ Sell Excess Inventory	Datasheet	D4N	Bulk	Active	3PST-NC	On-Mom	240 V	250 V	Lever, Roller	3A (AC), 270mA (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	510gf	0.060" (1.5mm)	82gf	0.157" (4.0mm)	1.457" (37.0mm)	0.197" (5.0mm)	-30°C ~ 70°C
D4N-1D72 SWITCH SNAP ACT 3PST-NC 3A 240V Omron Automation and Safety	2,419	-	RFQ Sell Excess Inventory	Datasheet	D4N	Bulk	Active	3PST-NC	On-Mom	240 V	250 V	Lever, Roller	3A (AC), 270mA (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	510gf	0.060" (1.5mm)	82gf	0.157" (4.0mm)	1.063" (27.0mm)	0.197" (5.0mm)	-30°C ~ 70°C
D4N-1F32 SWITCH SNAP ACTION 3PST 3A 240V Omron Automation and Safety	1,717	-	RFQ Sell Excess Inventory	Datasheet	D4N	Bulk	Active	3PST-2NC/1NO (MBB)	On-Mom, Off-Mom	240 V	250 V	Roller Plunger	3A (AC), 270mA (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	663gf	-	153gf	0.110" (2.8mm)	1.100" (28.0mm)	0.158" (4.0mm)	-30°C ~ 70°C
D4N-2C72 SWITCH SNAP ACTION 3PST 3A 240V Omron Automation and Safety	4,329	-	RFQ Sell Excess Inventory	Datasheet	D4N	Bulk	Active	3PST-2NC/1NO	On-Mom, Off-Mom	240 V	250 V	Lever, Roller	3A (AC), 270mA (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	510gf	-	82gf	0.157" (4.0mm)	1.063" (27.0mm)	0.197" (5.0mm)	-30°C ~ 70°C
D4N-2D72 SWITCH SNAP ACT 3PST-NC 3A 240V Omron Automation and Safety	3,494	-	RFQ Sell Excess Inventory	Datasheet	D4N	Bulk	Active	3PST-NC	On-Mom	240 V	250 V	Lever, Roller	3A (AC), 270mA (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	510gf	0.060" (1.5mm)	82gf	0.157" (4.0mm)	1.063" (27.0mm)	0.197" (5.0mm)	-30°C ~ 70°C
D4N-6131 SWITCH SNAP ACTION DPST 3A 240V Omron Automation and Safety	3,483	-	RFQ Sell Excess Inventory	Datasheet	D4N	Bulk	Active	DPST-NO/NC	On-Mom, Off-Mom	240 V	250 V	Round (Pin Plunger)	3A (AC), 270mA (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	663gf	0.040" (1.0mm)	153gf	0.080" (2.0mm)	0.710" (18.0mm)	0.158" (4.0mm)	-30°C ~ 70°C
D4N-8231 SWITCH SNAP ACT DPST-NC 3A 240V Omron Automation and Safety	1,936	-	RFQ Sell Excess Inventory	Datasheet	D4N	Bulk	Active	DPST-NC	On-Mom	240 V	250 V	Round (Pin Plunger)	3A (AC), 270mA (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	663gf	0.040" (1.0mm)	153gf	0.080" (2.0mm)	0.710" (18.0mm)	0.158" (4.0mm)	-30°C ~ 70°C
A-20GQ22 SWITCH SNAP ACTION SPDT 20A 125V Omron Automation and Safety	2,231	-	RFQ Sell Excess Inventory	Datasheet	A	Bulk	Active	SPDT	On-Mom	125 V	30 V	Roller Plunger	20A (AC), 6A (DC)	Panel Mount	Solder Lug	IP00	-	630gf	0.014" (0.35mm)	280gf	0.051" (1.3mm)	1.313" (33.4mm)	0.141" (3.6mm)	-25°C ~ 80°C
Z-15GK55-MR 0.5M SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	4,347	-	RFQ Sell Excess Inventory	Datasheet	Z	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	15A (AC), 6A (DC)	Chassis Mount	Cable Leads	IP62	Cable Length 0.5m	540gf	0.002" (0.05mm)	114gf	0.090" (2.3mm)	1.110" (28.2mm)	0.062" (1.6mm)	-15°C ~ 80°C
X-10GQ22-B7-K1 SWITCH BASIC Omron Automation and Safety	2,042	-	RFQ Sell Excess Inventory	Datasheet	X	Bulk	Last Time Buy	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
NGCMB00PX01A2B COMPACT LIMIT SWITCH Honeywell Sensing and Productivity Solutions	4,169	-	RFQ Sell Excess Inventory	Datasheet	NGC	Bulk	Active	DPST-NO/NC	On-Mom, Off-Mom	120 V	125 V	Side Rotary, Adjustable Roller	6A (AC), 550mA (DC)	Chassis Mount	Connector	IP67 - Dust Tight, Waterproof	-	1122gf	0.047" (1.2mm)	306gf	0.083" (2.1mm)	-	0.193" (4.9mm)	-25°C ~ 75°C
BZ-3YQ18T SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	1,721	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	250 V	-	Roller Plunger	5A (AC)	Panel Mount	Screw Terminal	-	-	454 ~ 737gf	0.004" (0.1mm)	113gf	0.030" (0.8mm)	1.313" (33.4mm)	0.141" (3.6mm)	-55°C ~ 85°C
