Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
Z-15GW4455-M19R 1M SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	3,611	-	RFQ Sell Excess Inventory	Datasheet	Z	Bulk	Discontinued	SPDT	On-Mom	125 V	30 V	Lever, Roller	15A (AC), 6A (DC)	Chassis Mount	Cable Leads	IP62	-	-	-	-	-	-	-	-15°C ~ 80°C
GLDC05C SWITCH LIMIT Honeywell Sensing and Productivity Solutions	3,805	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
GLCA03C-6 SWITCH SNAP ACTION SPDT 6A 120V Honeywell Sensing and Productivity Solutions	3,193	-	RFQ Sell Excess Inventory	Datasheet	GLS	Bulk	Obsolete	SPDT (BBM)	On-Mom	120 V	125 V	Roller Plunger	6A (AC), 550mA (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	1632gf	0.035" (0.9mm)	-	0.120" (3.0mm)	1.100" (28.0mm)	0.118" (3.0mm)	-40°C ~ 85°C
91MCE18-P3B SWITCH SNAP ACTION DPST 6A 120V Honeywell Sensing and Productivity Solutions	3,552	-	RFQ Sell Excess Inventory	Datasheet	91MCE	Bulk	Not For New Designs	DPST-NO/NC	On-Mom, Off-Mom	120 V	125 V	Round (Pin Plunger)	6A (AC), 550mA (DC)	Chassis Mount	Cable Leads	IP67 - Dust Tight, Waterproof	Cable Length 3m	1122gf	0.031" (0.8mm)	-	0.071" (1.8mm)	-	0.125" (3.2mm)	-25°C ~ 85°C
91MCE2-P3B SWITCH SNAP ACTION DPST 6A 120V Honeywell Sensing and Productivity Solutions	3,181	-	RFQ Sell Excess Inventory	Datasheet	91MCE	Bulk	Not For New Designs	DPST-NO/NC	On-Mom, Off-Mom	120 V	125 V	Roller Plunger	6A (AC), 550mA (DC)	Chassis Mount	Cable Leads	IP67 - Dust Tight, Waterproof	Cable Length 3m	1122gf	0.031" (0.8mm)	-	0.071" (1.8mm)	-	0.125" (3.2mm)	-25°C ~ 85°C
91MCE2-S3B SWITCH SNAP ACTION DPST 6A 120V Honeywell Sensing and Productivity Solutions	4,249	-	RFQ Sell Excess Inventory	Datasheet	91MCE	Bulk	Not For New Designs	DPST-NO/NC	On-Mom, Off-Mom	120 V	125 V	Roller Plunger	6A (AC), 550mA (DC)	Chassis Mount	Cable Leads	IP67 - Dust Tight, Waterproof	Cable Length 3m	816gf	0.055" (1.4mm)	-	0.063" (1.6mm)	-	0.134" (3.4mm)	-25°C ~ 85°C
91MCE3-S3B SWITCH SNAP ACTION DPST 6A 120V Honeywell Sensing and Productivity Solutions	2,704	-	RFQ Sell Excess Inventory	Datasheet	91MCE	Bulk	Not For New Designs	DPST-NO/NC	On-Mom, Off-Mom	120 V	125 V	Cross Roller Plunger	6A (AC), 550mA (DC)	Chassis Mount	Cable Leads	IP67 - Dust Tight, Waterproof	Cable Length 3m	816gf	0.055" (1.4mm)	-	0.063" (1.6mm)	-	0.134" (3.4mm)	-25°C ~ 85°C
GLDA01A1Y LIMIT SWITCH Honeywell Sensing and Productivity Solutions	3,775	-	RFQ Sell Excess Inventory	Datasheet	GLD	Bulk	Active	SPDT	On-Mom	120 V	125 V	Side Rotary, Roller	6A (AC), 550mA (DC)	Chassis Mount	Screw Terminal	IP66 - Dust Tight, Water Resistant	-	12gf	12°	-	26°	26°	44°	-40°C ~ 85°C
83139104 SWITCH SNAP ACTION SPDT 5A 125V Crouzet	1,760	-	RFQ Sell Excess Inventory	Datasheet	83139	Bulk	Active	SPDT (DB/DM)	On-Mom	125 V	-	Round (Pin Plunger)	5A (AC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	Cable Length 0.5m, Explosion Proof	306gf	0.014" (0.35mm)	61gf	-	0.343" (8.7mm)	0.011" (0.3mm)	-40°C ~ 85°C
83123032 SWITCH SNAP ACTION SPDT 5A 250V Crouzet	4,478	-	RFQ Sell Excess Inventory	Datasheet	83123	Bulk	Active	SPDT	On-Mom	250 V	-	Round (Pin Plunger)	5A (AC)	Chassis Mount	Cable Leads	IP66 - Dust Tight, Water Resistant	-	540gf	0.008" (0.2mm)	153gf	-	0.450" (11.4mm)	0.008" (0.2mm)	0°C ~ 85°C
83112001 SWITCH SNAP ACTION SPDT 10A 250V Crouzet	4,111	-	RFQ Sell Excess Inventory	Datasheet	83112	Bulk	Active	SPDT (DB/DM)	On-Mom	250 V	-	Round (Pin Plunger)	10A (AC)	Chassis Mount	Screw Terminal	-	-	408gf	0.020" (0.5mm)	102gf	-	0.451" (11.45mm)	0.026" (0.7mm)	-20°C ~ 85°C

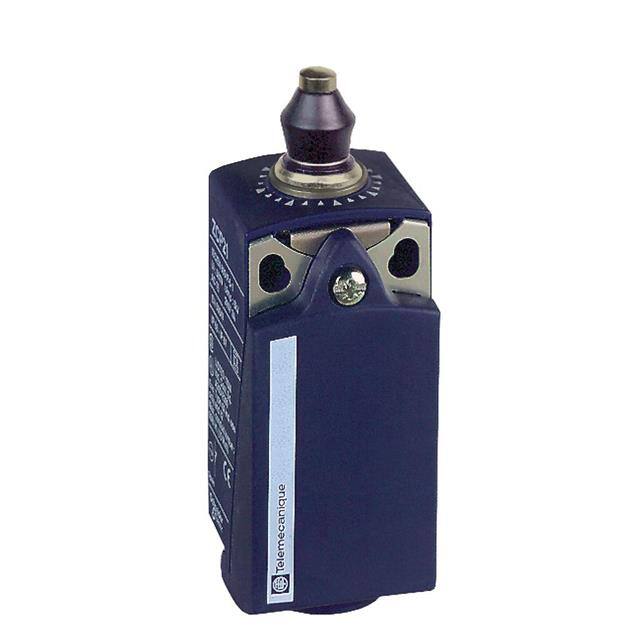

XCKP2111G11 SWITCH LIMIT DPST 3A 240V Telemecanique Sensors	2,123	-	RFQ Sell Excess Inventory	Datasheet	XCKP	Box	Active	DPST-NO/NC	On-Mom, Off-Mom	240 V	250 V	Round (Pin Plunger)	3A (AC), 270mA (DC)	Chassis Mount	Screw Terminal	IP66/IP67 - Dust Tight, Water Resistant, Waterproof	-	-	-	-	-	-	-	-25°C ~ 70°C
LSZ65EE SWITCH LIMIT Honeywell Sensing and Productivity Solutions	1,279	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Z-01HDA55-B5V SWITCH DRIPPROF 0.1A SPRNG PLNG Omron Automation and Safety	3,027	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
GLDC01A1B SWITCH SNAP ACTION SPDT 6A 120V Honeywell Sensing and Productivity Solutions	2,298	-	RFQ Sell Excess Inventory	Datasheet	GLS	Bulk	Active	SPDT	On-Mom	120 V	125 V	Side Rotary, Roller	6A (AC), 550mA (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	Steel Roller	12gfm	12°	-	26°	26°	49°	-40°C ~ 85°C
608.3000.222 SWITCH LIMIT Altech Corporation	1,412	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
608.3000.224 SWITCH LIMIT Altech Corporation	3,167	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
608.3000.226 SWITCH LIMIT Altech Corporation	2,596	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
608.3000.227 SWITCH LIMIT Altech Corporation	2,482	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
608.3000.261 SWITCH LIMIT Altech Corporation	3,622	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
