Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
21SM368-0111 SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	1,116	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	1A (AC/DC)	Chassis Mount	Solder Lug	-	-	85gf	0.002" (0.05mm)	28gf	0.030" (0.8mm)	0.330" (8.4mm)	0.005" (0.13mm)	-55°C ~ 125°C
XCKD2110P16 SWITCH LIMIT DPST 3A 240V Telemecanique Sensors	4,519	-	RFQ Sell Excess Inventory	Datasheet	XCKD	Box	Active	DPST-NO/NC	On-Mom, Off-Mom	240 V	250 V	Round (Pin Plunger)	3A (AC), 270mA (DC)	Chassis Mount	Screw Terminal	IP66/IP67 - Dust Tight, Water Resistant, Waterproof	-	-	-	-	-	-	-	-25°C ~ 70°C
XCKN2539G11 SWITCH LIMIT DPST 3A 240V Telemecanique Sensors	2,245	-	RFQ Sell Excess Inventory	Datasheet	XC	Box	Active	DPST-NO/NC	On-Mom, Off-Mom	240 V	250 V	Side Rotary, Roller	3A (AC), 100mA (DC)	Chassis Mount	Screw Terminal	IP65 - Dust Tight, Water Resistant	-	-	-	-	-	-	-	-25°C ~ 70°C

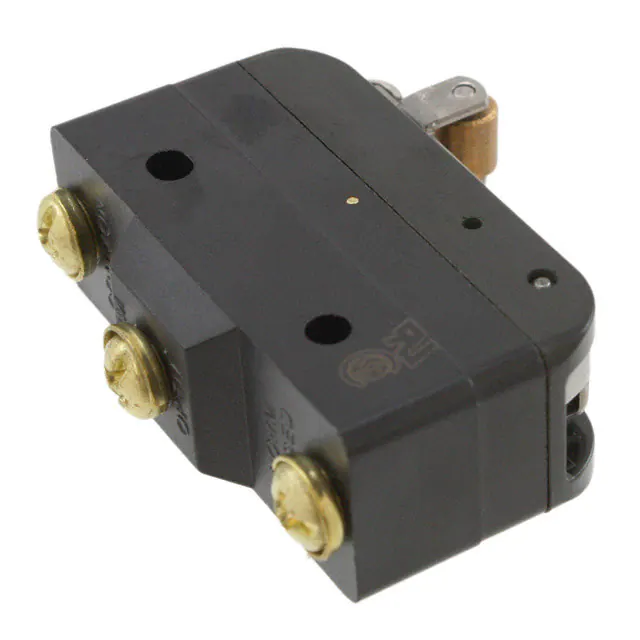

BZ-RW922-A2 SWITCH SNAP ACTION SPDT 10A 125V Honeywell Sensing and Productivity Solutions	4,670	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Roller	10A (AC)	Chassis Mount	Screw Terminal	-	-	340gf	0.001" (0.025mm)	113gf	0.015" (0.4mm)	1.235" (31.4mm)	0.100" (2.54mm)	-55°C ~ 85°C
D4N-1C20 SWITCH SNAP ACTION 3PST 3A 240V Omron Automation and Safety	3,614	-	RFQ Sell Excess Inventory	Datasheet	D4N	Bulk	Active	3PST-2NC/1NO	On-Mom, Off-Mom	240 V	250 V	Side Rotary, Roller	3A (AC), 270mA (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	Resin Lever, Resin Roller	510gf	-	51gf	18°	-	40°	-30°C ~ 70°C
D4N-6E32 SWITCH SNAP ACTION DPST 3A 240V Omron Automation and Safety	3,061	-	RFQ Sell Excess Inventory	Datasheet	D4N	Bulk	Active	DPST-NO/NC (MBB)	On-Mom, Off-Mom	240 V	250 V	Roller Plunger	3A (AC), 270mA (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	663gf	-	153gf	0.110" (2.8mm)	1.100" (28.0mm)	0.158" (4.0mm)	-30°C ~ 70°C
XCMN2102L8 SWITCH LIMIT DPST 1.5A 240V Telemecanique Sensors	3,465	-	RFQ Sell Excess Inventory	Datasheet	XC	Box	Active	DPST-NO/NC	On-Mom, Off-Mom	240 V	250 V	Roller Plunger	1.5A (AC), 100mA (DC)	Chassis Mount	Cable Leads	IP65 - Dust Tight, Water Resistant	-	-	-	-	-	-	-	-25°C ~ 70°C
XCNT2128P16TQ LMT SWITCH SPRNG ROD NITRILE BOO Telemecanique Sensors	3,140	-	RFQ Sell Excess Inventory	Datasheet	XCNT	Bulk	Active	DPST-NO/NC	On-Off, Off-On	240 V	250 V	Lever, Roller	3A (AC), 100mA (DC)	Chassis Mount	Screw Terminal	IP65 - Dust Tight, Water Resistant	-	-	-	-	-	-	-	-25°C ~ 70°C
XCKS501 SWITCH LIMIT DPST 3A 240V Telemecanique Sensors	4,305	-	RFQ Sell Excess Inventory	Datasheet	XC	Box	Active	DPST-NO/NC	On-Mom, Off-Mom	240 V	250 V	Round (Pin Plunger)	3A (AC), 270mA (DC)	Chassis Mount	Screw Terminal	IP66/IP67 - Dust Tight, Water Resistant, Waterproof	-	-	-	-	-	-	-	-25°C ~ 70°C
XCKS102H7 SWITCH SNAP ACTION DPST 3A 240V Telemecanique Sensors	3,107	-	RFQ Sell Excess Inventory	Datasheet	XC	Box	Active	DPST-NO/NC	On-Mom, Off-Mom	240 V	250 V	Roller Plunger	3A (AC), 270mA (DC)	Chassis Mount	Screw Terminal	IP66/IP67 - Dust Tight, Water Resistant, Waterproof	-	-	-	-	-	-	-	-25°C ~ 70°C
608.8803.003 SWITCH LIMIT PLASTIC BODY Altech Corporation	1,621	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
XCKP2502P20 SWITCH LIMIT 10A 240V Telemecanique Sensors	1,783	-	RFQ Sell Excess Inventory	Datasheet	XCKP	Box	Active	-	-	240 V	-	-	10A (AC)	-	-	-	-	-	-	-	-	-	-	-
XCKT2510N12 SWITCH LIMIT DPST 3A 240V Telemecanique Sensors	3,055	-	RFQ Sell Excess Inventory	Datasheet	XC	Box	Active	DPST-NO/NC	On-Mom, Off-Mom	240 V	250 V	Round (Pin Plunger)	3A (AC), 270mA (DC)	Chassis Mount	Screw Terminal	IP66/IP67 - Dust Tight, Water Resistant, Waterproof	-	-	-	-	-	-	-	-25°C ~ 70°C
4SX7-T-0515 SWITCH SNAP ACTION BASIC Honeywell Sensing and Productivity Solutions	4,927	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	-	-	Round (Pin Plunger)	-	Chassis Mount	Solder Turret	-	-	-	-	-	-	-	-	-55°C ~ 125°C
BZE6-2AQ SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	2,467	-	RFQ Sell Excess Inventory	Datasheet	E6	Bulk	Obsolete	SPDT (DB/DM)	On-Mom	125 V	125 V	Round (Pin Plunger)	15A (AC), 1A (DC)	Chassis Mount	Screw Terminal	IP40	-	397 ~ 680gf	0.005" (0.13mm)	113gf	0.025" (0.65mm)	1.500" (38.1mm)	0.219" (5.6mm)	-32°C ~ 71°C
608.3000.215 SWITCH LIMIT Altech Corporation	4,558	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
608.3000.217 SWITCH LIMIT Altech Corporation	2,386	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
608.3000.219 SWITCH LIMIT Altech Corporation	1,260	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
608.3000.220 SWITCH LIMIT Altech Corporation	2,141	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
608.3000.221 SWITCH LIMIT Altech Corporation	1,925	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
