Linear, Compass (ICs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Technology | Axis | Sensing Range | Voltage - Supply | Current - Supply (Max) | Output Type | Current - Output (Max) | Resolution | Bandwidth | Operating Temperature | Grade | Mounting Style | Qualification | Supplier Device Package | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AA003-02SENSOR MR WHEAT BRDG 8SOIC |
3,952 |
|
Datasheet |
AA | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Magnetoresistive | Single | 0.2mT ~ 1.4mT | 1V ~ 24V | - | Wheatstone Bridge | - | - | - | -50°C ~ 125°C | - | Surface Mount | - | 8-SOIC | Temperature Compensated |
|
SS494B-T3SOLID STATE SENSOR-HALL EFFECT |
2,336 |
|
Datasheet |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MLX90333LDC-BCT-000-SPSENSOR HALL ANALOG/PWM 8SOIC |
2,824 |
|
Datasheet |
Triaxis® | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | Hall Effect | X, Y, Z | 20mT ~ 70mT (X,Y), 24mT ~ 140mT (Z) | 4.5V ~ 5.5V | 16mA | Analog, PWM | 30mA | 12 b | - | -40°C ~ 150°C | - | Surface Mount | - | 8-SOIC | Programmable |
|
|
SS49E-T2SOLID STATE SENSOR |
2,113 |
|
Datasheet |
SS49E | TO-226-3, TO-92-3 Short Body | Bulk | Active | Hall Effect | Single | - | 2.7V ~ 6.5V | 10mA | Analog Voltage | 1.5mA | - | - | -40°C ~ 85°C | - | Through Hole | - | TO-92-3 | - |
|
|
MLX90333EDC-BCH-000-SPSENSOR HALL ANALOG/PWM 8SOIC |
1,093 |
|
Datasheet |
Triaxis® | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | Hall Effect | X, Y, Z | 20mT ~ 70mT (X,Y), 24mT ~ 140mT (Z) | 4.5V ~ 5.5V | 16mA | Analog, PWM | 30mA | 12 b | - | -40°C ~ 85°C | - | Surface Mount | - | 8-SOIC | Programmable |
|
|
MLX90333EDC-BCH-100-SPSENSOR HALL EFFECT SPI 8SOIC |
2,125 |
|
Datasheet |
Triaxis® | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | Hall Effect | X, Y, Z | 20mT ~ 70mT (X,Y), 24mT ~ 140mT (Z) | 4.5V ~ 5.5V | 16mA | SPI | 30mA | 12 b | - | -40°C ~ 85°C | - | Surface Mount | - | 8-SOIC | Programmable |
|
|
MLX90333EDC-BCT-000-SPSENSOR HALL ANALOG/PWM 8SOIC |
2,348 |
|
Datasheet |
Triaxis® | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | Hall Effect | X, Y, Z | 20mT ~ 70mT (X,Y), 24mT ~ 140mT (Z) | 4.5V ~ 5.5V | 16mA | Analog, PWM | 30mA | 12 b | - | -40°C ~ 85°C | - | Surface Mount | - | 8-SOIC | Programmable |
|
SS496A-SPSENSOR HALL EFFECT ANALOG SMD |
4,366 |
|
Datasheet |
SS490 | 3-SMD, Gull Wing | Tape & Reel (TR) | Active | Hall Effect | Single | ±84mT | 4.5V ~ 10.5V | 8.7mA | Analog Voltage | 10mA | - | - | -40°C ~ 150°C | - | Surface Mount | - | SMD | Temperature Compensated |
|
MMC5883MASENSOR MR I2C 16LGA |
1,788 |
|
Datasheet |
- | 16-VFLGA | Tape & Reel (TR) | Obsolete | Magnetoresistive | X, Y, Z | ±0.8mT | 2.16V ~ 3.6V | 120µA | I2C | - | 16 b | 600Hz | -40°C ~ 85°C | - | Surface Mount | - | 16-LGA (3x3) | Temperature Compensated |
|
|
MLX90293EGO-ADM-000-SPSENSOR HALL LINEAR PROGR 16TSSOP |
2,839 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) | Tube | Not For New Designs | Hall Effect | Single | ±150mT | 4.5V ~ 5.5V | 10mA | Analog, PWM, SENT | 30mA | 12 b | - | -40°C ~ 85°C | - | Surface Mount | - | 16-TSSOP | Programmable, Temperature Compensated |
|
|
MLX90293EGO-ADM-100-SPSENSOR HALL LINEAR PROGR 16TSSOP |
3,835 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) | Tube | Not For New Designs | Hall Effect | Single | ±150mT | 4.5V ~ 5.5V | 10mA | Analog, PWM, SENT | 30mA | 12 b | - | -40°C ~ 85°C | - | Surface Mount | - | 16-TSSOP | Programmable, Temperature Compensated |
|
SS495A1-SPSENSOR HALL EFFECT ANALOG SMD |
1,656 |
|
Datasheet |
SS490 | 3-SMD, Gull Wing | Tape & Reel (TR) | Active | Hall Effect | Single | ±67mT | 4.5V ~ 10.5V | 8.7mA | Analog Voltage | 10mA | - | - | -40°C ~ 150°C | - | Surface Mount | - | SMD | Temperature Compensated |
|
HMC6042-TRSENSOR MR WHEAT BRDG 20LCC |
3,777 |
|
Datasheet |
- | 20-LCC | Tape & Reel (TR) | Obsolete | Magnetoresistive | X, Y | ±0.6mT | 2.4V ~ 3.6V | 25mA | Wheatstone Bridge | 3.6mA | - | 10kHz | -40°C ~ 125°C | - | Surface Mount | - | - | - |
|
|
AA002-02SENSOR MR WHEAT BRDG 8SOIC |
4,918 |
|
Datasheet |
AA | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Magnetoresistive | Single | 0.15mT ~ 1.05mT | 1V ~ 24V | - | Wheatstone Bridge | - | - | - | -50°C ~ 125°C | - | Surface Mount | - | 8-SOIC | Temperature Compensated |
|
|
ALT025-14ELinear IC's |
4,258 |
|
Datasheet |
- | 4-XFLGA | Bulk | Active | Magnetoresistive | Single | ±10mT | 10V | - | Wheatstone Bridge | - | - | 350kHz | -40°C ~ 125°C | - | Surface Mount | - | 4-ULLGA (1.1x1.1) | - |
|
HMC1022-TRSENSOR MR WHEAT BRDG 16SOIC |
1,537 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetoresistive | X, Y | ±0.6mT | 2V ~ 25V | - | Wheatstone Bridge | - | - | 5MHz | -40°C ~ 125°C | - | Surface Mount | - | 16-SOIC | - |
|
|
MLX90293LDC-ADM-100-RESENSOR HALL LINEAR PROGR 16TSSOP |
1,913 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Not For New Designs | Hall Effect | Single | ±150mT | 4.5V ~ 5.5V | 10mA | Analog, PWM, SENT | 30mA | 12 b | - | -40°C ~ 150°C | - | Surface Mount | - | 8-SOIC | Programmable, Temperature Compensated |
|
KMZ51,115SENSOR MR ANALOG 8SO |
3,954 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Magnetoresistive | Single | - | 5V ~ 8V | - | Analog Voltage | - | - | - | -40°C ~ 125°C | - | Surface Mount | - | 8-SO | - |
|

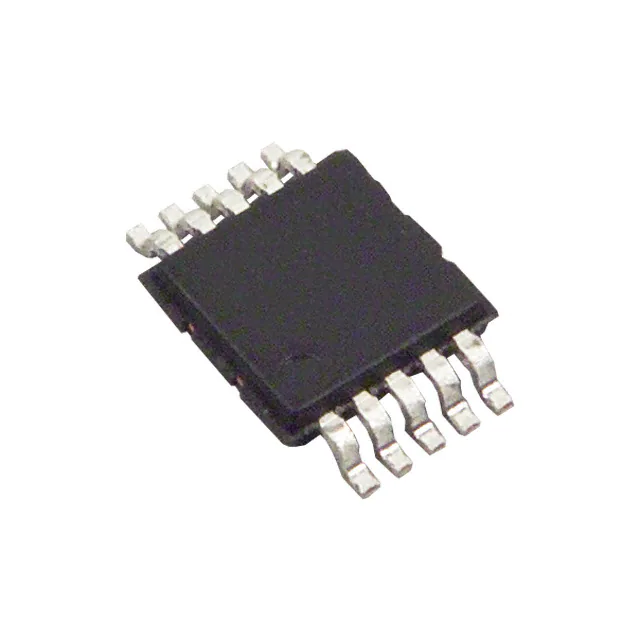

HMC1052SENSOR MR WHEAT BRDG 10MSOP |
1,029 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Magnetoresistive | X, Y | ±0.6mT | 1.8V ~ 20V | - | Wheatstone Bridge | - | - | 5MHz | -40°C ~ 125°C | - | Surface Mount | - | 10-MSOP | - |
|
MLX90363EGO-ABB-000-RESENSOR HALL EFFECT SPI 16TSSOP |
4,285 |
|
Datasheet |
Triaxis® | 16-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Hall Effect | X, Y, Z | 20mT ~ 70mT, 24mT ~ 126mT | 4.5V ~ 5.5V | 15.5mA | SPI | 30mA | 14 b | - | -40°C ~ 85°C | - | Surface Mount | - | 16-TSSOP | Programmable |
