Linear, Compass (ICs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Technology | Axis | Sensing Range | Voltage - Supply | Current - Supply (Max) | Output Type | Current - Output (Max) | Resolution | Bandwidth | Operating Temperature | Grade | Mounting Style | Qualification | Supplier Device Package | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLX90333LGO-BCH-100-SPSENSOR HALL EFFECT SPI 16TSSOP |
3,248 |
|
Datasheet |
Triaxis® | 16-TSSOP (0.173", 4.40mm Width) | Bulk | Active | Hall Effect | X, Y, Z | 20mT ~ 70mT (X,Y), 24mT ~ 140mT (Z) | 4.5V ~ 5.5V | 16mA | SPI | 30mA | 12 b | - | -40°C ~ 150°C | - | Surface Mount | - | 16-TSSOP | Programmable |
|
|
MLX90333LGO-BCT-000-SPSENSOR HALL ANALOG/PWM 16TSSOP |
3,296 |
|
Datasheet |
Triaxis® | 16-TSSOP (0.173", 4.40mm Width) | Bulk | Active | Hall Effect | X, Y, Z | 20mT ~ 70mT (X,Y), 24mT ~ 140mT (Z) | 4.5V ~ 5.5V | 16mA | Analog, PWM | 30mA | 12 b | - | -40°C ~ 150°C | - | Surface Mount | - | 16-TSSOP | Programmable |
|
SS496A1-T2SENSOR HALL ANALOG RADIAL LEAD |
1,739 |
|
Datasheet |
SS490 | 3-SIP | Cut Tape (CT) | Active | Hall Effect | Single | ±84mT | 4.5V ~ 10.5V | 8.7mA | Analog Voltage | 10mA | - | - | -40°C ~ 150°C | - | Through Hole | - | Radial Lead | Temperature Compensated |
|
AK8963NSENSOR HALL I2C/SPI 16QFN |
1,805 |
|
Datasheet |
- | 16-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Hall Effect | X, Y, Z | ±4.9mT | 2.4V ~ 3.6V | 10mA | I2C, SPI | - | 16 b | - | -30°C ~ 85°C | - | Surface Mount | - | 16-QFN (3x3) | Sleep Mode |
|
TMR2105GTMR SENSOR MAG FIELD 1000 OE |
2,808 |
|
Datasheet |
- | 4-SMD, No Lead | Bulk | Obsolete | Magnetoresistive | Single | - | 7V | 16µA (Typ) | Wheatstone Bridge | - | - | - | -40°C ~ 125°C | - | Surface Mount | - | 4-LGA (2x1.5) | Temperature Compensated |
|
TMR2109STMR SENSOR MAG FIELD 1000 OE |
3,628 |
|
Datasheet |
- | SC-74A, SOT-753 | Bulk | Obsolete | Magnetoresistive | Single | ±25mT | 0.5V ~ 7V | - | Wheatstone Bridge | - | - | - | -40°C ~ 125°C | - | Surface Mount | - | SOT-23-5L | - |
|
|
TMR2111STMR SENSOR MAG FIELD 200 OE |
4,715 |
|
Datasheet |
- | SC-74A, SOT-753 | Bulk | Obsolete | Magnetoresistive | Single | ±4mT | 0.5V ~ 7V | - | Wheatstone Bridge | - | - | - | -40°C ~ 125°C | - | Surface Mount | - | SOT-23-5L | - |
|
|
TMR2110STMR SENSOR MAG FIELD 500 OE |
3,694 |
|
Datasheet |
- | SC-74A, SOT-753 | Bulk | Obsolete | Magnetoresistive | Single | ±10mT | 0.5V ~ 7V | - | Wheatstone Bridge | - | - | - | -40°C ~ 125°C | - | Surface Mount | - | SOT-23-5L | - |
|
|
TMR2108STMR SENSOR MAG FIELD 1600 OE |
3,323 |
|
Datasheet |
- | SC-74A, SOT-753 | Bulk | Obsolete | Magnetoresistive | Single | ±50mT | 0.5V ~ 7V | - | Wheatstone Bridge | - | - | - | -40°C ~ 125°C | - | Surface Mount | - | SOT-23-5L | - |
|

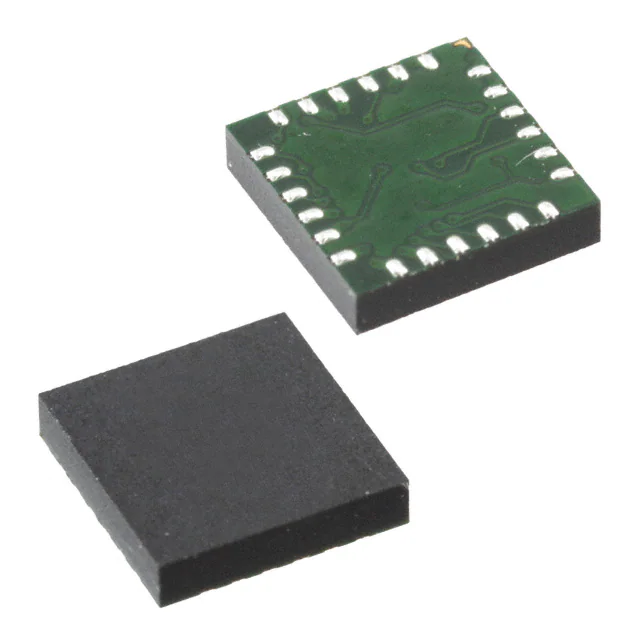

HMC6352-TRSENSOR MR I2C 24LCC |
4,535 |
|
Datasheet |
- | 24-LQFN | Tape & Reel (TR) | Obsolete | Magnetoresistive | X, Y | ±0.2mT | 2.7V ~ 5.2V | 10mA | I2C | - | - | - | -20°C ~ 70°C | - | Surface Mount | - | 24-LCC (6.5x6.5) | Sleep Mode, Temperature Compensated |
|
SS94A1FSENSOR HALL ANALOG CERAMIC SIP |
3,708 |
|
Datasheet |
SS94 | 3-SIP | Bulk | Active | Hall Effect | Single | ±10mT | 6.6V ~ 12.6V | 30mA | Analog Voltage | 1mA | - | - | -40°C ~ 125°C | - | Through Hole | - | Ceramic SIP | - |
|
HMC1021ZSENSOR MR WHEAT BRIDGE 8PIN |
3,933 |
|
Datasheet |
- | 8-SIP | Tube | Obsolete | Magnetoresistive | Single | ±0.6mT | 2V ~ 25V | - | Wheatstone Bridge | - | - | 5MHz | -40°C ~ 125°C | - | Through Hole | - | 8- Pin SIP | - |
|
HMC1002SENSOR MR WHEAT BRDG 20SOIC |
3,541 |
|
Datasheet |
- | 20-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Magnetoresistive | X, Y | ±0.2mT | 5V ~ 12V | - | Wheatstone Bridge | - | - | 5MHz | -40°C ~ 85°C | - | Surface Mount | - | 20-SOIC | - |
|
SS94B1ASENSOR HALL EFFECT ANALOG 3SIP |
4,909 |
|
Datasheet |
SS94 | 3-SIP | Bulk | Obsolete | Hall Effect | Single | ±67mT | 4.5V ~ 12V | 11mA | Analog Voltage | 2mA | - | - | -50°C ~ 150°C | - | Through Hole | - | 3-SIP | - |
|
HMC6052SENSOR MR I2C 14LCC |
4,921 |
|
Datasheet |
- | 14-VFQFN Exposed Pad | Tube | Obsolete | Magnetoresistive | X, Y | ±0.2mT | 2.5V ~ 3.6V | 9mA | I2C | - | - | 1kHz | -45°C ~ 120°C | - | Surface Mount | - | 14-LCC (3.5x3.5) | Sleep Mode |
|
HMC1051ZLSENSOR MR WHEAT BRDG 8LCC |
4,881 |
|
Datasheet |
- | 8-LCC | Tube | Obsolete | Magnetoresistive | Single | ±0.6mT | 1.8V ~ 20V | - | Wheatstone Bridge | - | - | 5MHz | -40°C ~ 125°C | - | Surface Mount | - | 8-LCC | - |
|
SS94A2DSENSOR HALL ANALOG CERAMIC SIP |
4,640 |
|
Datasheet |
SS94 | 3-SIP | Bulk | Active | Hall Effect | Single | ±250mT | 6.6V ~ 12.6V | 30mA | Analog Voltage | 1mA | - | - | -40°C ~ 125°C | - | Through Hole | - | Ceramic SIP | - |
|
|
08330000188HALL EFFECT SENSOR KH-M8EB30-DNS |
3,557 |
|
Datasheet |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
08330000186HALL EFFECT SENSOR KH-M12EB20-DP |
2,868 |
|
Datasheet |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
91SS16-3SENSOR HALL EFFECT ANALOG MODULE |
2,666 |
|
Datasheet |
91SS | - | Bulk | Active | Hall Effect | Single | ±40mT | 8V ~ 16V | 19mA | Analog Voltage | 10mA | - | - | -40°C ~ 150°C | - | - | - | Module | - |
