Linear, Compass (ICs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Technology | Axis | Sensing Range | Voltage - Supply | Current - Supply (Max) | Output Type | Current - Output (Max) | Resolution | Bandwidth | Operating Temperature | Grade | Mounting Style | Qualification | Supplier Device Package | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
91SS12-2SENSOR HALL EFFECT ANALOG TO92-3 |
3,729 |
|
Datasheet |
91SS | 3-SIP | Bulk | Not For New Designs | Hall Effect | Single | ±40mT | 8V ~ 16V | 19mA | Analog Voltage | 10mA | - | - | -40°C ~ 150°C | - | Through Hole | - | TO-92-3 | - |
|
08330000065HALL EFFECT SENSOR KH1-M8EB45-DP |
1,647 |
|
Datasheet |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
08330000070HALL EFFECT SENSOR KHD1-M12MB60- |
4,047 |
|
Datasheet |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

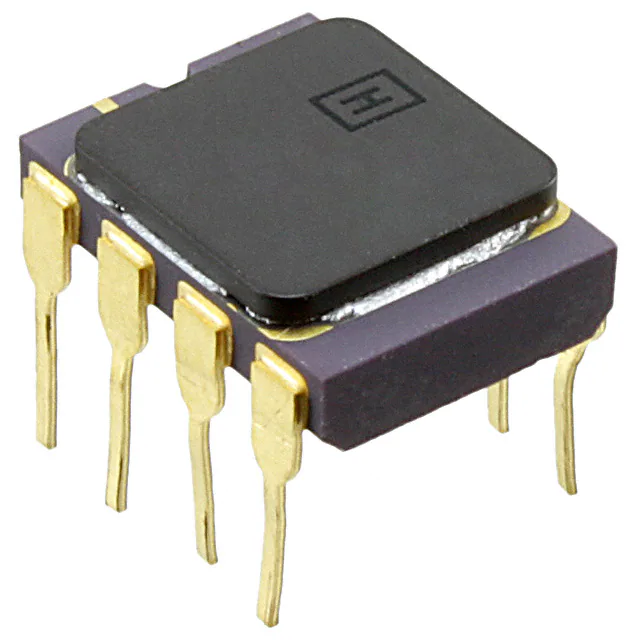

HMC1021DSENSOR MR WHEAT BRDG 8CDIP |
2,295 |
|
Datasheet |
- | 8-CDIP (0.300", 7.62mm) | Bulk | Obsolete | Magnetoresistive | Single | ±0.6mT | 2V ~ 25V | - | Wheatstone Bridge | - | - | 5MHz | -55°C ~ 225°C | - | Through Hole | - | 8-CDIP | - |
|
|
PT5DC-60-N34-FR-10Z-M6M60IN STRING POT SENSOR |
2,335 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HAL805UT-KSENSOR HALL ANALOG TO92-UT |
3,789 |
|
Datasheet |
HAL® 805 | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Bulk | Obsolete | Hall Effect | Single | ±1mT | 4.5V ~ 5.5V | 10mA | Analog Voltage | 1mA | 12 b | 2kHz | -40°C ~ 140°C (TJ) | - | Through Hole | - | TO-92UT-1 | Programmable, Temperature Compensated |
|

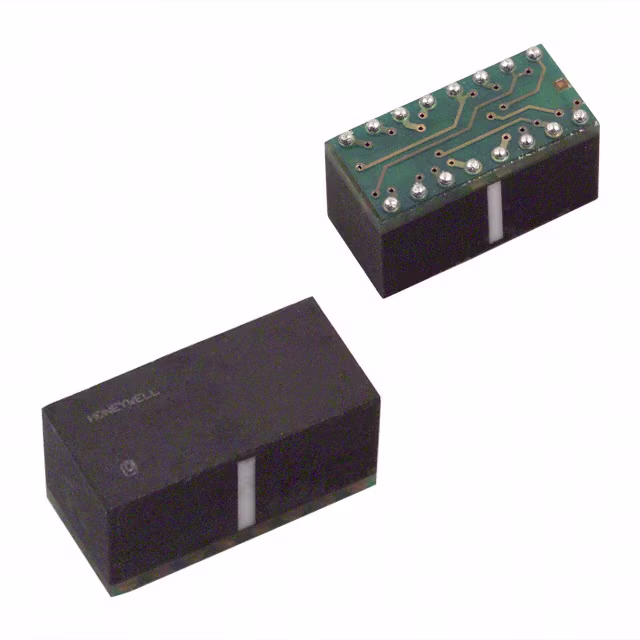

HMC1023SENSOR MR WHEAT BRDG 16BGA |
2,940 |
|
Datasheet |
- | 16-BGA | Bulk | Obsolete | Magnetoresistive | X, Y, Z | ±0.6mT | 1.8V ~ 12V | - | Wheatstone Bridge | - | - | 5MHz | -40°C ~ 125°C | - | Surface Mount | - | 16-BGA | - |
|
MLX90215EVA-AAA-106-BUSENSOR HALL EFFECT ANALOG 4SIP |
2,335 |
|
Datasheet |
- | 4-SSIP Module | Bulk | Obsolete | Hall Effect | Single | - | 4.5V ~ 5.5V | 6.5mA | Analog Voltage | 2mA | 10 b | 1.3kHz | -40°C ~ 85°C | - | Through Hole | - | 4-SIP | Temperature Compensated |
|
ZMY20MTASENSOR MR ANALOG SOT223 |
1,854 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Magnetoresistive | X, Y | - | 12V | - | Analog Voltage | - | - | - | -25°C ~ 125°C | - | Surface Mount | - | SOT-223-3 | Internal Magnet |
|
ZMZ20MSENSOR MR ANALOG 4SIP |
1,265 |
|
Datasheet |
- | 4-SSIP | Bulk | Obsolete | Magnetoresistive | X, Y | - | 12V | - | Analog Voltage | - | - | - | -40°C ~ 150°C | - | Through Hole | - | 4-SIP | Internal Magnet |
|
TLE4990HAXA1SENSOR HALL ANALOG SSO3-10 |
3,765 |
|
Datasheet |
- | 3-SSIP, SSO-3-10 | Tape & Box (TB) | Obsolete | Hall Effect | Single | ±200mT | 4.5V ~ 5.5V | 5.5mA | Analog Voltage | 1.2mA | - | - | -40°C ~ 150°C | - | Through Hole | - | PG-SSO-3-10 | Programmable, Temperature Compensated |
|
KMZ52,118SENSOR MR ANALOG 16SO |
2,031 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Magnetoresistive | Single | - | 5V ~ 8V | - | Analog Voltage | - | - | - | -40°C ~ 125°C | - | Surface Mount | - | 16-SO | - |
|
A1301ELHLT-TSENSOR HALL EFFECT ANALOG SOT23W |
1,860 |
|
Datasheet |
- | SOT-23W | Tape & Reel (TR) | Obsolete | Hall Effect | Single | - | 4.5V ~ 6V | 11mA | Analog Voltage | 10mA | - | 20kHz | -40°C ~ 85°C | - | Surface Mount | - | SOT-23W | - |
|
A1301EUA-TSENSOR HALL EFFECT ANALOG 3SIP |
2,206 |
|
Datasheet |
- | 3-SSIP | Bulk | Obsolete | Hall Effect | Single | - | 4.5V ~ 6V | 11mA | Analog Voltage | 10mA | - | 20kHz | -40°C ~ 85°C | - | Through Hole | - | 3-SIP | - |
|
|
A1302EUA-TSENSOR HALL EFFECT ANALOG 3SIP |
4,451 |
|
Datasheet |
- | 3-SSIP | Bulk | Obsolete | Hall Effect | Single | - | 4.5V ~ 6V | 11mA | Analog Voltage | 10mA | - | 20kHz | -40°C ~ 85°C | - | Through Hole | - | 3-SIP | - |
|
|
A1321ELHLTSENSOR HALL EFFECT ANALOG SOT23W |
2,640 |
|
Datasheet |
- | SOT-23W | Tape & Reel (TR) | Obsolete | Hall Effect | Single | - | 4.5V ~ 5.5V | 8mA | Analog Voltage | 10mA | - | 30kHz | -40°C ~ 85°C | - | Surface Mount | - | SOT-23W | Temperature Compensated |
|
|
A1321ELHLT-TSENSOR HALL EFFECT ANALOG SOT23W |
2,846 |
|
Datasheet |
- | SOT-23W | Tape & Reel (TR) | Obsolete | Hall Effect | Single | - | 4.5V ~ 5.5V | 8mA | Analog Voltage | 10mA | - | 30kHz | -40°C ~ 85°C | - | Surface Mount | - | SOT-23W | Temperature Compensated |
|
|
A1321EUASENSOR HALL EFFECT ANALOG 3SIP |
1,310 |
|
Datasheet |
- | 3-SSIP | Bulk | Obsolete | Hall Effect | Single | - | 4.5V ~ 5.5V | 8mA | Analog Voltage | 10mA | - | 30kHz | -40°C ~ 85°C | - | Through Hole | - | 3-SIP | Temperature Compensated |
|
|
A1321EUA-TSENSOR HALL EFFECT ANALOG 3SIP |
1,013 |
|
Datasheet |
- | 3-SSIP | Bulk | Obsolete | Hall Effect | Single | - | 4.5V ~ 5.5V | 8mA | Analog Voltage | 10mA | - | 30kHz | -40°C ~ 85°C | - | Through Hole | - | 3-SIP | Temperature Compensated |
|
|
A1321LLHLTSENSOR HALL EFFECT ANALOG SOT23W |
4,134 |
|
Datasheet |
- | SOT-23W | Tape & Reel (TR) | Obsolete | Hall Effect | Single | - | 4.5V ~ 5.5V | 8mA | Analog Voltage | 10mA | - | 30kHz | -40°C ~ 150°C | - | Surface Mount | - | SOT-23W | Temperature Compensated |
