Configuration PROMs for FPGAs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Programmable | Programmable Type | Voltage - Supply | Operating Temperature | Mounting Style | Memory Size | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AT17LV512A-10PUIC FPGA EEPROM 512K ALTERA 8DIP |
420 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Verified | Serial EEPROM | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole | 512kb | 8-PDIP |
|
EPCQ4ASI8NIC CONFIG DEVICE 4MBIT 8SOIC |
12,114 |
|
Datasheet |
EPCQ-A | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Verified | In System Programmable | 2.7V ~ 3.6V | -40°C ~ 85°C | Surface Mount | 4MB | 8-SOIC |
|
|
AT17LV256-10PUIC SRL CONFIG EEPROM 256K 8-DIP |
883 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Verified | Serial EEPROM | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole | 256Kb | 8-PDIP |
|
AT17LV256-10NUIC EEPROM FPGA 256KB 8-SOIC |
200 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Verified | Serial EEPROM | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount | 256Kb | 8-SOIC |
|
|
EPCQ16ASI8NIC CONFIG DEVICE 16MBIT 8SOIC |
26,898 |
|
Datasheet |
EPCQ-A | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Verified | In System Programmable | 2.7V ~ 3.6V | -40°C ~ 85°C | Surface Mount | 16Mb | 8-SOIC |
|
|
AT17LV010-10PUIC SRL CONFIG EEPROM 1M 8-DIP |
133 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Verified | Serial EEPROM | 3V ~ 3.6V | -40°C ~ 85°C | Through Hole | 1Mb | 8-PDIP |
|
|
EPCQ32ASI8NIC CONFIG DEVICE 32MBIT 8SOIC |
1,958 |
|
Datasheet |
EPCQ-A | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | In System Programmable | 2.7V ~ 3.6V | -40°C ~ 85°C | Surface Mount | 32Mb | 8-SOIC |
|
EPCQ64ASI16NIC CONFIG DEVICE 64MBIT 16SOIC |
3,031 |
|
Datasheet |
EPCQ-A | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | In System Programmable | 2.7V ~ 3.6V | -40°C ~ 85°C | Surface Mount | 64Mb | 16-SOIC |
|
|
EPCQ128ASI16NIC CONFIG DEVICE 128MBIT 16SOIC |
7,131 |
|
Datasheet |
EPCQ-A | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Verified | In System Programmable | 2.7V ~ 3.6V | -40°C ~ 85°C | Surface Mount | 128Mb | 16-SOIC |
|
AT17LV512A-10JUIC CONFIG SEEPROM 512K 20PLCC |
128 |
|
Datasheet |
- | 20-LCC (J-Lead) | Tube | Active | Verified | Serial EEPROM | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount | 512kb | 20-PLCC (9x9) |
|
|
AT17LV512-10JUIC SRL CONFG EEPROM 512K 20-PLCC |
101 |
|
Datasheet |
- | 20-LCC (J-Lead) | Tube | Active | Verified | Serial EEPROM | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount | 512kb | 20-PLCC (9x9) |
|
|
AT17LV010-10JUIC SRL CONFIG EEPROM 1M 20-PLCC |
838 |
|
Datasheet |
- | 20-LCC (J-Lead) | Tube | Active | Not Verified | Serial EEPROM | 3V ~ 3.6V | -40°C ~ 85°C | Surface Mount | 1Mb | 20-PLCC (9x9) |
|
AT17LV002-10CUIC SRL CONFIG EEPROM 2M 8-LAP |
370 |
|
Datasheet |
- | 8-TDFN | Tube | Active | Not Verified | Serial EEPROM | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount | 2Mb | 8-LAP (6x6) |
|
AT17LV002-10SUIC EEPROM SRL CONFG 2M LV 20SOIC |
465 |
|
Datasheet |
- | 20-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | Serial EEPROM | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount | 2Mb | 20-SOIC |
|
AT17LV040-10TQUIC CONFIG SEEPROM 4M 3.3V 44TQFP |
111 |
|
Datasheet |
- | 44-TQFP | Tray | Active | Not Verified | Serial EEPROM | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount | 4Mb | 44-TQFP (10x10) |
|
EPC1064VLC20CONFIG MEMORY, 64KX1, SERIAL |
392 |
|
Datasheet |
EPC | 20-LCC (J-Lead) | Bulk | Active | Not Verified | OTP | 3V ~ 3.6V | 0°C ~ 70°C (TA) | Surface Mount | 64kb | 20-PLCC (9x9) |
|
EPC1064TC32CONFIG MEMORY, 64KX1, SERIAL |
1,386 |
|
Datasheet |
EPC | 32-TQFP | Bulk | Active | Not Verified | OTP | 4.75V ~ 5.25V | 0°C ~ 70°C (TA) | Surface Mount | 65kb | 32-TQFP (7x7) |
|
|
EPC1064VTC32CONFIG MEMORY, 64KX1, SERIAL |
528 |
|
Datasheet |
EPC | 32-TQFP | Bulk | Active | Not Verified | OTP | 3V ~ 3.6V | 0°C ~ 70°C (TA) | Surface Mount | 64kb | 32-TQFP (7x7) |
|

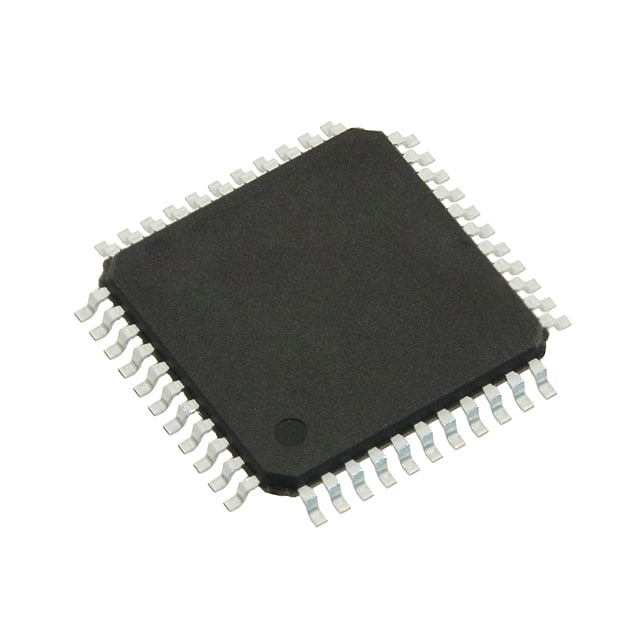

XC17S200AVQ44IIC PROM SER 200000 I-TEMP 44VQFP |
1,879 |
|
Datasheet |
- | 44-TQFP | Tray | Obsolete | Not Verified | OTP | 3V ~ 3.6V | -40°C ~ 85°C | Surface Mount | 2Mb | 44-VQFP (10x10) |
|
XC1736EPC20CIC PROM SER C-TEMP 36K 20-PLCC |
2,949 |
|
Datasheet |
- | 20-LCC (J-Lead) | Tube | Obsolete | Not Verified | OTP | 4.75V ~ 5.25V | 0°C ~ 70°C | Surface Mount | 36kb | 20-PLCC (9x9) |
