Navigation Switches, Joystick
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Actuator Type | Functions, Extra | Output | Voltage - Supply | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Contact Material | Contact Finish | Operating Temperature | Resistance | Termination Style | Mounting Style | Panel Cutout Dimensions | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RS2 KRSA BK S CSWITCH NAV ROCKER 100MA 30V |
4,293 |
|
Datasheet |
RS | Bulk | Obsolete | Navigation Switch, 1 - Axis | Rocker | - | Digital (Mechanical Switch) | - | 2-Way Directional | 100mA (DC) | - | 30 V | - | - | -25°C ~ 85°C | - | Card Edge | Panel Mount | - | IP65 - Dust Tight, Water Resistant | - |
|
|
RS1 KRSA BK S CSWITCH NAV ROCKER 100MA 30V |
2,840 |
|
Datasheet |
RS | Bulk | Obsolete | Navigation Switch, 1 - Axis | Rocker | - | Digital (Mechanical Switch) | - | 2-Way Directional | 100mA (DC) | - | 30 V | - | - | -25°C ~ 85°C | - | Card Edge | Panel Mount | - | IP65 - Dust Tight, Water Resistant | - |
|

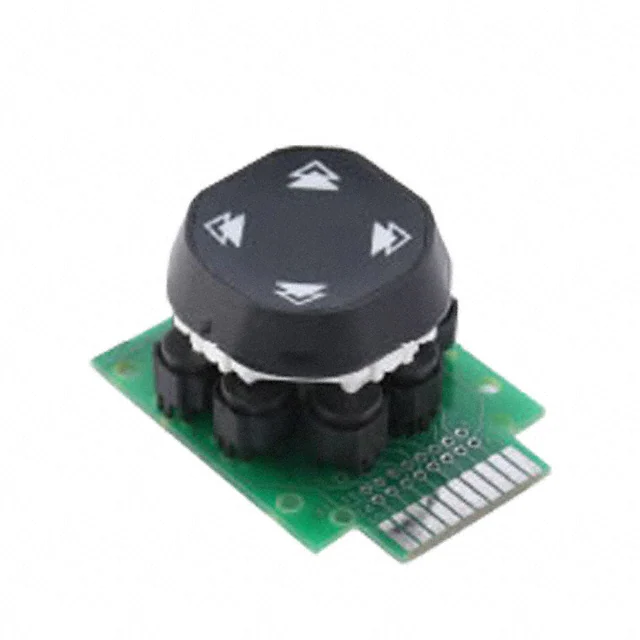

QS2 KQS1 BK N CSWITCH NAV ROCKER 100MA 30V |
4,319 |
|
Datasheet |
QS | Bulk | Obsolete | Navigation Switch, 2 - Axis | Rocker | - | Digital (Mechanical Switch) | - | 4-Way Directional | 100mA (DC) | - | 30 V | - | - | -25°C ~ 85°C | - | Card Edge | Panel Mount | - | IP65 - Dust Tight, Water Resistant | - |
|
|
QS1 KQS1 BK N CSWITCH NAV ROCKER 100MA 30V |
4,076 |
|
Datasheet |
QS | Bulk | Obsolete | Navigation Switch, 2 - Axis | Rocker | - | Digital (Mechanical Switch) | - | 4-Way Directional | 100mA (DC) | - | 30 V | - | - | -25°C ~ 85°C | - | Card Edge | Panel Mount | - | IP65 - Dust Tight, Water Resistant | - |
|
|
QS1 KQS1 BK S CSWITCH NAV ROCKER 100MA 30V |
2,425 |
|
Datasheet |
QS | Bulk | Obsolete | Navigation Switch, 2 - Axis | Rocker | - | Digital (Mechanical Switch) | - | 4-Way Directional | 100mA (DC) | - | 30 V | - | - | -25°C ~ 85°C | - | Card Edge | Panel Mount | - | IP65 - Dust Tight, Water Resistant | - |
|
QSA4S 3.5N H1 G8 AGSWITCH NAVIGATION DGTL 50MA 30V |
2,898 |
|
Datasheet |
QSA | Tray | Obsolete | Navigation Switch, 2 - Axis | Plunger for Cap | - | Digital (Mechanical Switch) | - | 4-Way Directional | 50mA (DC) | - | 30 V | Nickel | Gold | -40°C ~ 85°C | - | Gull Wing | Surface Mount | - | - | - |
|

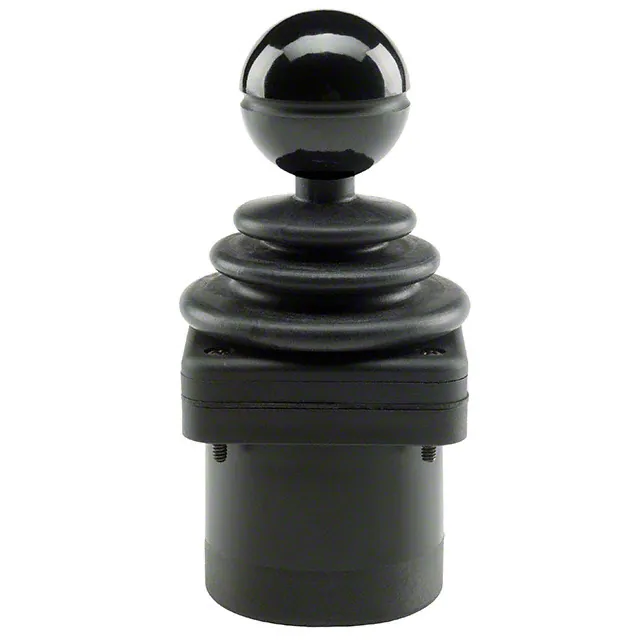

HFX2-10S10SWITCH JOYSTICK BALL TIP HALL |
2,215 |
|
Datasheet |
HFX Series II | Bulk | Active | Joystick, 2 - Axis | Ball Tip | - | Analog (Hall Effect) | 5VDC | 360° Directional | - | - | - | - | - | -40°C ~ 85°C | - | Wire Leads | Panel Mount | Circular - 46.00mm Dia | IP65 - Dust Tight, Water Resistant | - |
|
HFX2-11S10SWITCH JOYSTICK HALL EFFECT |
1,380 |
|
Datasheet |
HFX Series II | Bulk | Active | Joystick, 2 - Axis | Joystick | - | Analog (Hall Effect) | 5VDC | 360° Directional | - | - | - | - | - | -40°C ~ 85°C | - | Wire Leads | Panel Mount | Circular - 46.00mm Dia | IP65 - Dust Tight, Water Resistant | - |
|
HFX2-22S10SWITCH JOYSTICK HALL EFFECT |
3,256 |
|
Datasheet |
HFX Series II | Bulk | Obsolete | Joystick, 2 - Axis | Joystick | 1 Pushbutton | Analog (Hall Effect) | 5VDC | 360° Directional | - | - | - | - | - | -40°C ~ 85°C | - | Wire Leads | Panel Mount | Circular - 46.00mm Dia | IP65 - Dust Tight, Water Resistant | - |
|

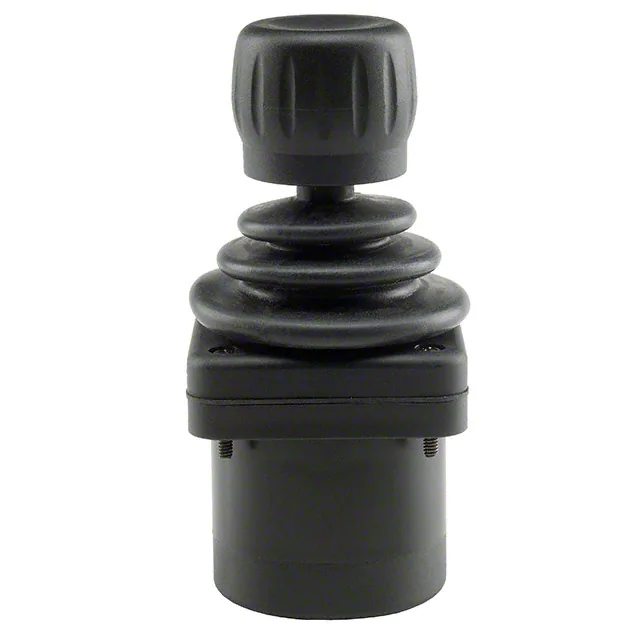

HT36S10SWITCH JOYSTICK HALL EFFECT |
3,141 |
|
Datasheet |
HT | Bulk | Obsolete | Joystick, 3 - Axis | Joystick | - | Analog (Hall Effect) | 5VDC | 2-Way Rotational, 360° Directional | - | - | - | - | - | -40°C ~ 85°C | - | Wire Leads | Panel Mount | Circular - 46.00mm Dia | IP65 - Dust Tight, Water Resistant | - |
|
MS-23N00S000SWITCH JOYSTICK HALL EFFECT |
4,938 |
|
Datasheet |
HFX Series III | Bulk | Active | Joystick, 2 - Axis | Joystick | - | Analog (Hall Effect) | 5VDC | 360° Directional | - | - | - | - | - | -40°C ~ 85°C | - | Wire Leads | Panel Mount | Circular - 54.40mm Dia | IP68 - Dust Tight, Waterproof | - |
|

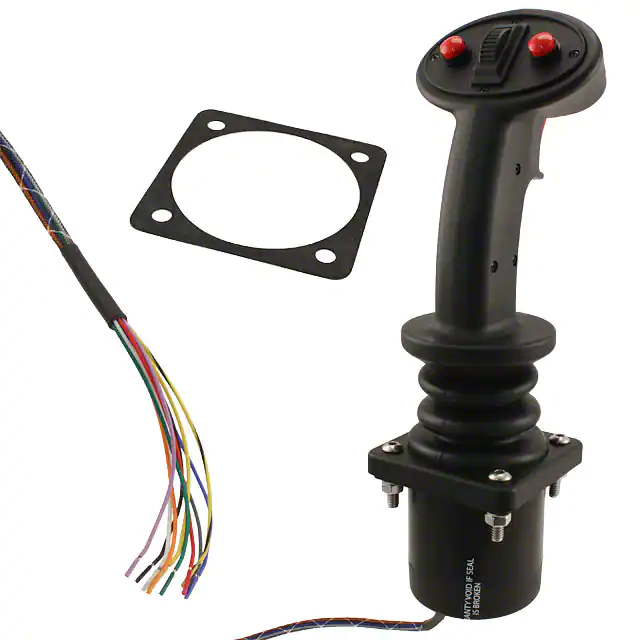

HG-432IS000-TSWITCH JOYSTICK HALL EFFECT |
2,269 |
|
Datasheet |
HG | Bulk | Obsolete | Joystick, 3 - Axis | Joystick | 2 Pushbuttons, 2-Way Thumbwheel | Analog (Hall Effect) | 5VDC | 2-Way Rotational, 360° Directional | - | - | - | - | - | -25°C ~ 70°C | - | Wire Leads | Panel Mount | Circular - 71.40mm Dia | IP65 - Dust Tight, Water Resistant | - |
|
HG-3340S000-USWITCH JOYSTICK HALL EFFECT |
3,530 |
|
Datasheet |
HG | Bulk | Active | Joystick, 2 - Axis | Joystick | 4 Pushbuttons | Digital (Hall Effect Over USB Interface) | 5VDC | 360° Directional | - | - | - | - | - | -25°C ~ 70°C | - | Cable with Connector | Panel Mount | Circular - 71.40mm Dia | IP65 - Dust Tight, Water Resistant | - |
|

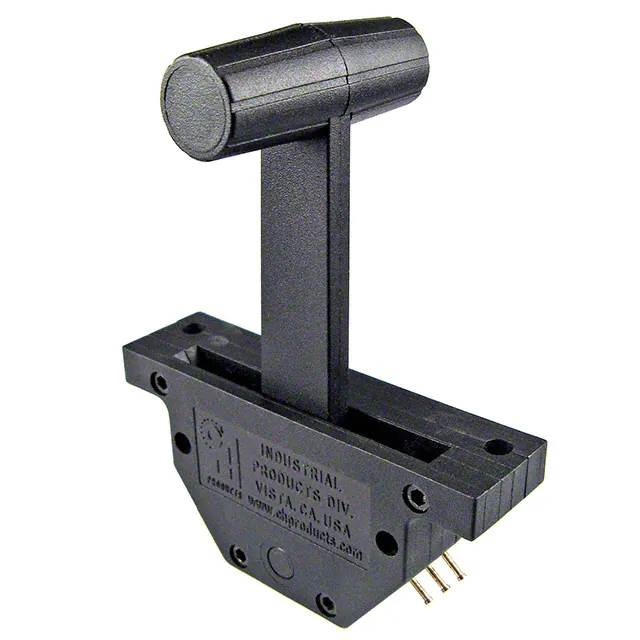

TBF-POSWITCH JOYSTICK T-HANDLE HALL |
1,845 |
|
Datasheet |
HFX T-Bar Fader | Bulk | Obsolete | Joystick, 1 - Axis | T-Handle | - | Analog (Hall Effect) | 5VDC | 2-Way Directional | - | - | - | - | - | -40°C ~ 85°C | - | Solder Turret | Panel Mount | - | - | - |
|

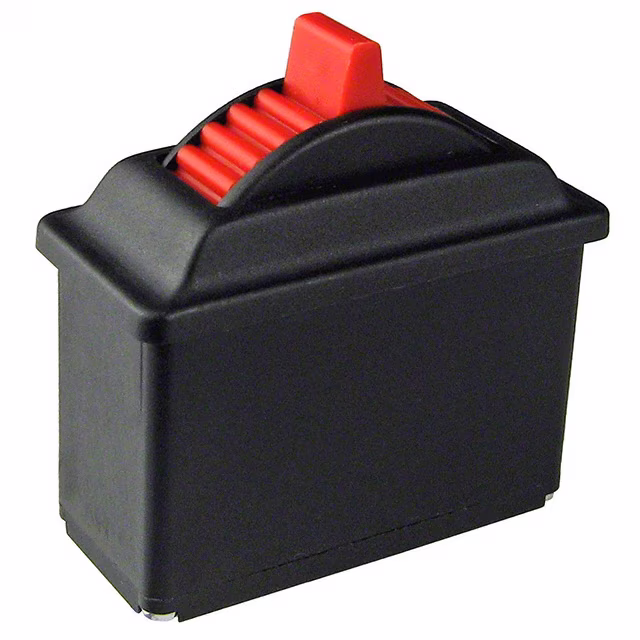

HTW-00-REDSWITCH THUMBWHEEL HALL EFFECT |
1,637 |
|
Datasheet |
TW | Bulk | Obsolete | Thumbwheel, 1 - Axis | Thumbwheel | - | Analog (Hall Effect) | 5VDC | 2-Way Directional | - | - | - | - | - | -40°C ~ 85°C | - | Wire Leads | Panel Mount | Rectangular - 36.45mm x 16.05mm | - | Red Actuator |
|

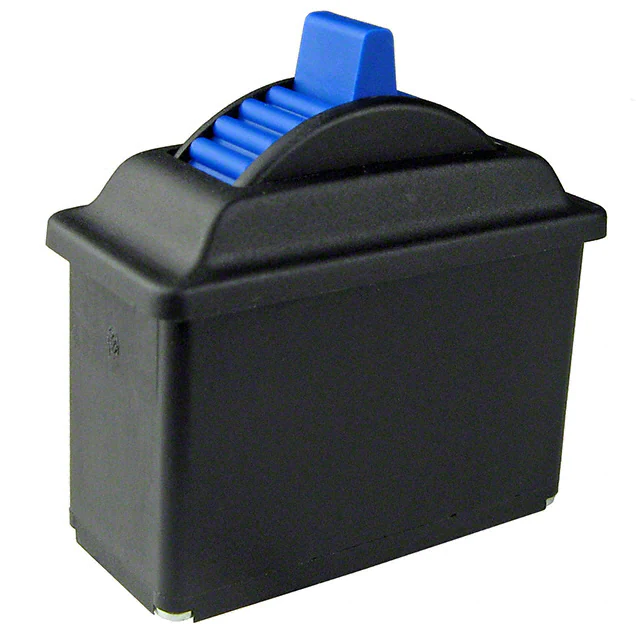

HTW-00-BLUESWITCH THUMBWHEEL HALL EFFECT |
1,647 |
|
Datasheet |
TW | Bulk | Obsolete | Thumbwheel, 1 - Axis | Thumbwheel | - | Analog (Hall Effect) | 5VDC | 2-Way Directional | - | - | - | - | - | -40°C ~ 85°C | - | Wire Leads | Panel Mount | Rectangular - 36.45mm x 16.05mm | - | Blue Actuator |
|

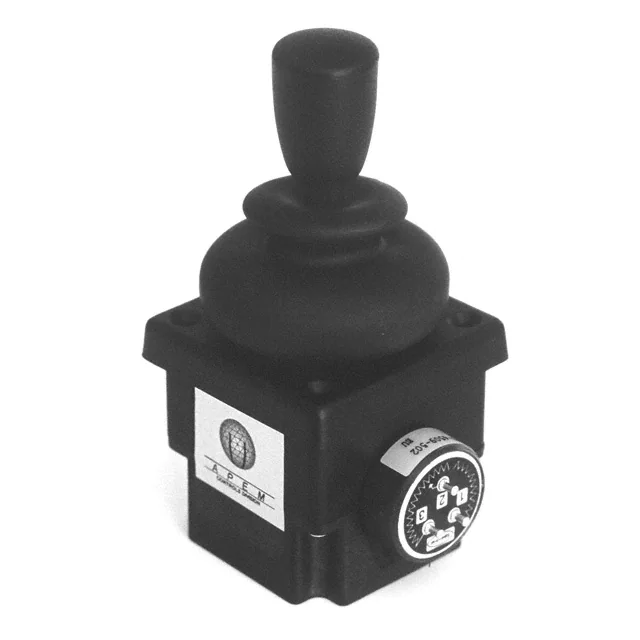

4R182S1E3200SWITCH JOYSTICK ANALOG |
2,326 |
|
Datasheet |
4000 | Bulk | Active | Joystick, 1 - Axis | Joystick | - | Analog (Resistive) | - | 2-Way Directional | - | - | - | - | - | -20°C ~ 55°C | 5 kOhms | Wire Leads | Panel Mount | Circular - 23.00mm Dia | IP65 - Dust Tight, Water Resistant | - |
|

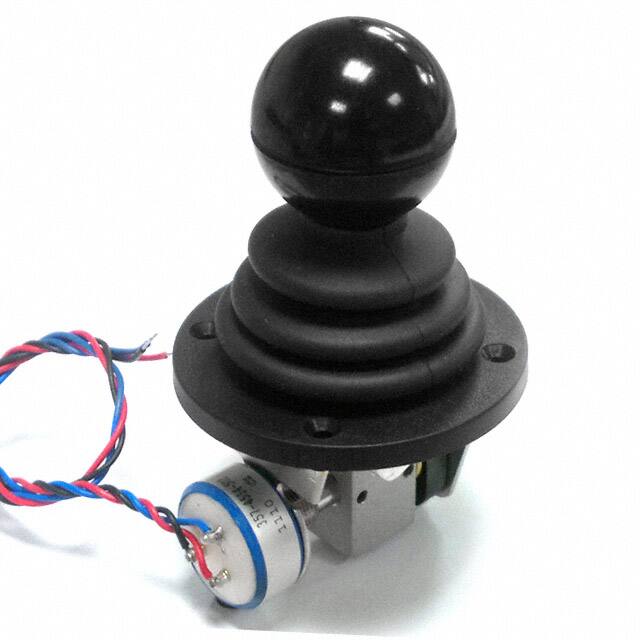

4P182F1C5500SWITCH JOYSTICK BALL TIP ANALOG |
1,690 |
|
Datasheet |
4000 | Bulk | Obsolete | Joystick, 1 - Axis | Ball Tip | - | Analog (Resistive) | - | 2-Way Directional | - | - | - | - | - | -20°C ~ 55°C | 5 kOhms | Wire Leads | Panel Mount | Circular - 23.00mm Dia | IP65 - Dust Tight, Water Resistant | - |
|
THX-32N1001D0SWITCH JOYSTICK HALL EFFECT |
4,471 |
|
Datasheet |
THX | Bulk | Active | Joystick, 1 - Axis | Joystick | 1 Pushbutton | Analog (Hall Effect) | 5VDC | 2-Way Directional | - | - | - | - | - | -40°C ~ 85°C | - | Wire Leads | Panel Mount | - | - | - |
|
HFX45S00USWITCH JOYSTICK HALL EFFECT |
4,288 |
|
Datasheet |
HFX Series I | Bulk | Obsolete | Joystick, 3 - Axis | Joystick | 2 Pushbuttons | Digital (Hall Effect Over USB Interface) | 5VDC | 2-Way Rotational, 360° Directional | - | - | - | - | - | -40°C ~ 85°C | - | Cable with Connector | Panel Mount | Circular - 35.56mm Dia | IP65 - Dust Tight, Water Resistant | - |
