Navigation Switches, Joystick
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Actuator Type | Functions, Extra | Output | Voltage - Supply | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Contact Material | Contact Finish | Operating Temperature | Resistance | Termination Style | Mounting Style | Panel Cutout Dimensions | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XKBA1422SWITCH JOYSTICK COMPLETE |
1,381 |
|
Datasheet |
Harmony XK | Box | Obsolete | Joystick, 2 - Axis | Joystick | - | - | - | 4-Way Directional | - | - | - | - | - | -20°C ~ 70°C | - | Screw Terminal | Panel Mount | - | IP54 - Dust Protected, Water Resistant | - |
|
MS42N0DS001VHANDGRIP JOYSTICK MS |
1,906 |
|
Datasheet |
MS | Bulk | Active | Joystick, 2 - Axis | Joystick | 2 Pushbuttons | Analog (Hall Effect) | 5VDC | 360° Directional | - | - | - | - | - | -25°C ~ 70°C | - | Wire Leads | Panel Mount | Circular - 54.40mm Dia | IP67 - Dust Tight, Waterproof | - |
|
|
XDAV11431SWITCH JOYSTICK ANALOG |
4,388 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XD2CG1111SWITCH JOYSTICK 22MM |
3,222 |
|
Datasheet |
Harmony XD2 | Box | Active | Joystick, 2 - Axis | Joystick | - | - | - | 4-Way Directional | - | - | - | - | - | -25°C ~ 70°C | - | Screw Terminal | Panel Mount | Circular - 30.00mm Dia | IP65 - Dust Tight, Water Resistant | - |
|
XKBA31207SWITCH JOYSTICK COMPLETE |
1,946 |
|
Datasheet |
Harmony XK | Box | Obsolete | Joystick, 2 - Axis | Joystick | - | - | - | 4-Way Directional | - | - | - | - | - | -20°C ~ 70°C | - | Screw Terminal | Panel Mount | - | IP54 - Dust Protected, Water Resistant | - |
|
|
XKBA11207SWITCH JOYSTICK COMPLETE |
3,064 |
|
Datasheet |
Harmony XK | Box | Obsolete | Joystick, 2 - Axis | Joystick | - | - | - | 4-Way Directional | - | - | - | - | - | -20°C ~ 70°C | - | Screw Terminal | Panel Mount | - | IP54 - Dust Protected, Water Resistant | - |
|
|
XKBA34207SWITCH JOYSTICK COMPLETE |
4,481 |
|
Datasheet |
Harmony XK | Box | Obsolete | Joystick, 2 - Axis | Joystick | - | - | - | 4-Way Directional | - | - | - | - | - | -20°C ~ 70°C | - | Screw Terminal | Panel Mount | - | IP54 - Dust Protected, Water Resistant | - |
|
|
XKBA15330SWITCH JOYSTICK COMPLETE |
4,216 |
|
Datasheet |
Harmony XK | Box | Obsolete | Joystick, 2 - Axis | Joystick | - | - | - | 4-Way Directional | - | - | - | - | - | -20°C ~ 70°C | - | Screw Terminal | Panel Mount | - | IP54 - Dust Protected, Water Resistant | - |
|
XKDF1435666SWITCH JOYSTICK COMPLETE |
2,635 |
|
Datasheet |
Harmony XK | Box | Obsolete | Joystick, 2 - Axis | Joystick | - | - | - | - | - | - | - | - | - | -20°C ~ 70°C | - | Screw Terminal | Panel Mount | - | - | - |
|

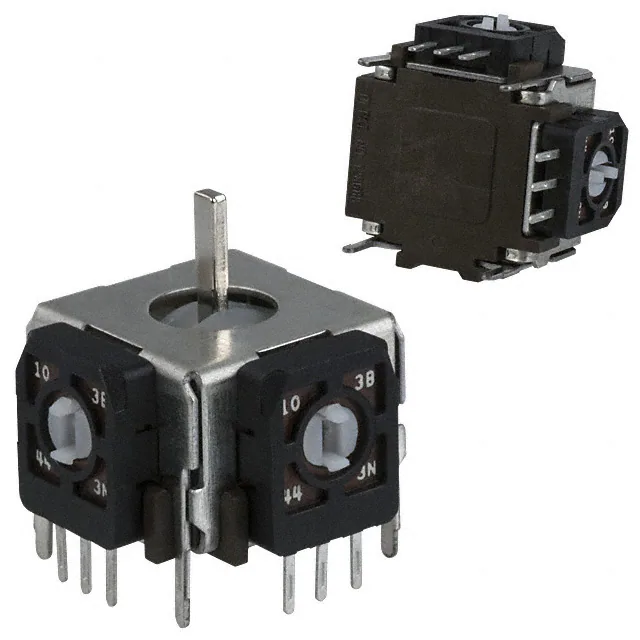

252A103B60NASWITCH JOYSTICK ANALOG 50V |
3,530 |
|
Datasheet |
252 | Bulk | Obsolete | Joystick, 2 - Axis | Joystick | - | Analog (Resistive) | - | 360° Directional | - | 50 V | 5 V | - | - | -10°C ~ 70°C | 10 kOhms | PC Pin | Through Hole | - | - | - |
|
252A103B60NBSWITCH JOYSTICK ANALOG 50V |
4,746 |
|
Datasheet |
252 | Bulk | Obsolete | Joystick, 2 - Axis | Joystick | - | Analog (Resistive) | - | 360° Directional, Center Select | - | 50 V | 5 V | - | - | -10°C ~ 70°C | 10 kOhms | PC Pin | Through Hole | - | - | - |
|

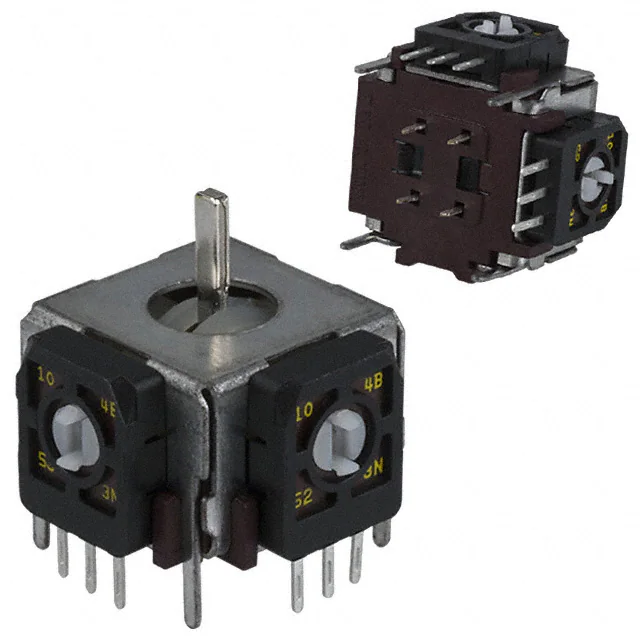

252A104B60NBSWITCH JOYSTICK ANALOG 50V |
4,138 |
|
Datasheet |
252 | Bulk | Obsolete | Joystick, 2 - Axis | Joystick | - | Analog (Resistive) | - | 360° Directional, Center Select | - | 50 V | 5 V | - | - | -10°C ~ 70°C | 100 kOhms | PC Pin | Through Hole | - | - | - |
|

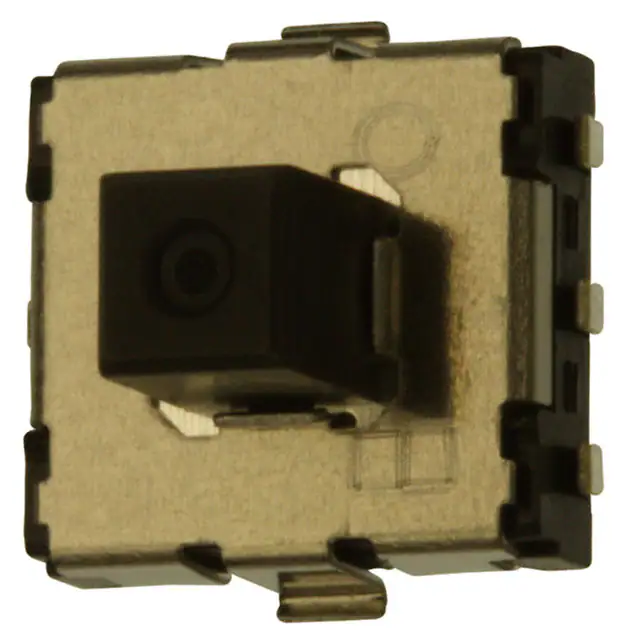

EVQ-WHA50KSWITCH MICRO STICK W/KNOB |
1,455 |
|
Datasheet |
EVQWH | Cut Tape (CT) | Obsolete | Navigation Switch, 2 - Axis | Pushbutton | - | Digital (Mechanical Switch) | - | 4-Way Directional, Center Select | 20mA (DC) | - | 15 V | - | - | -20°C ~ 70°C | - | J Lead | Surface Mount | - | - | - |
|

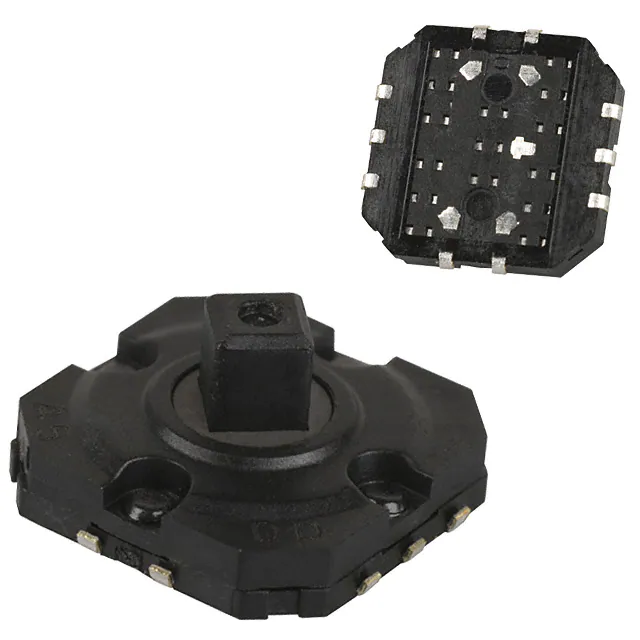

EVQ-Q5A05KSWITCH NAVIGATION DGTL 20MA 15V |
1,862 |
|
Datasheet |
EVQQ5 | Tape & Reel (TR) | Obsolete | Navigation Switch, 2 - Axis | Plunger for Cap | - | Digital (Mechanical Switch) | - | 4-Way Directional, Center Select | 20mA (DC) | - | 15 V | - | - | -40°C ~ 85°C | - | J Lead | Surface Mount | - | - | - |
|

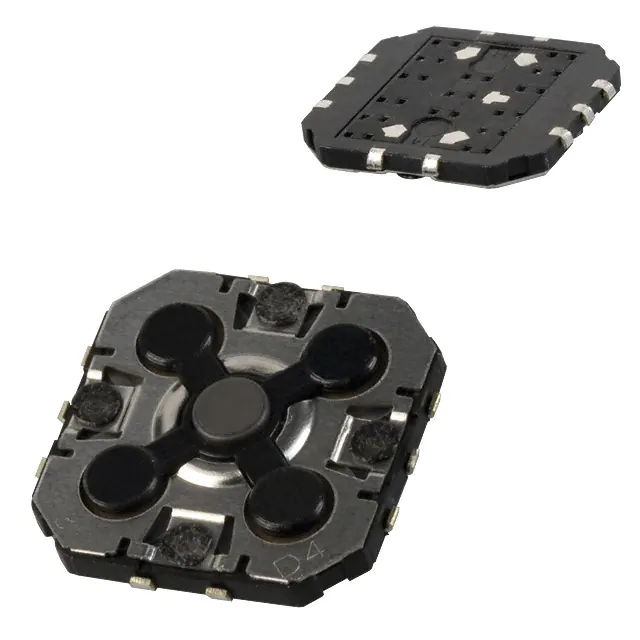

EVQ-Q3AA15SWITCH NAV TACTILE 20MA 15V |
3,946 |
|
Datasheet |
EVQQ3 | Tape & Reel (TR) | Obsolete | Navigation Switch, 2 - Axis | Tactile (5 Button) | - | Digital (Mechanical Switch) | - | 4-Way Directional, Center Select | 20mA (DC) | - | 15 V | - | - | -40°C ~ 85°C | - | J Lead | Surface Mount | - | - | - |
|
|
QSA2S3.5NH1G8SWITCH NAVIGATION DGTL 50MA 30V |
1,142 |
|
Datasheet |
QSA | Tray | Obsolete | Navigation Switch, 1 - Axis | Plunger for Cap | - | Digital (Mechanical Switch) | - | 2-Way Directional | 50mA (DC) | - | 30 V | Nickel | Gold | -40°C ~ 85°C | - | Gull Wing | Surface Mount | - | - | - |
|

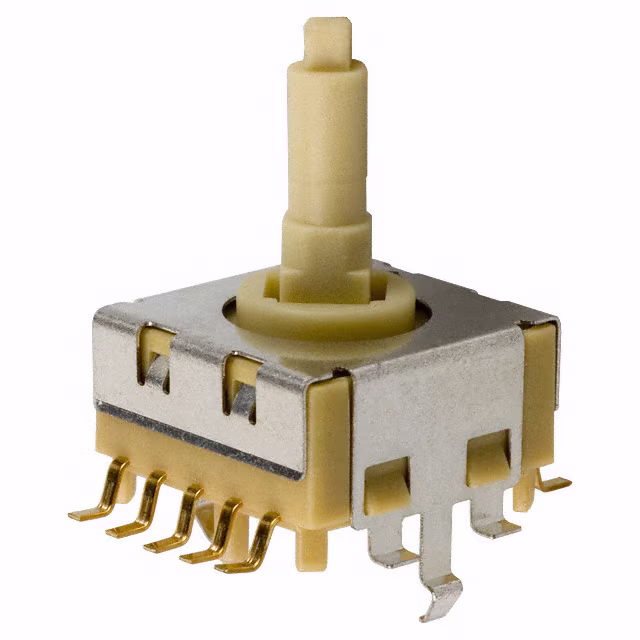

QSA4S 3.5N H1 G8SWITCH NAVIGATION DGTL 50MA 30V |
4,874 |
|
Datasheet |
QSA | Tray | Obsolete | Navigation Switch, 2 - Axis | Plunger for Cap | - | Digital (Mechanical Switch) | - | 4-Way Directional | 50mA (DC) | - | 30 V | Nickel | Gold | -40°C ~ 85°C | - | Gull Wing | Surface Mount | - | - | - |
|
TBWB2A00SWITCH TRACKBALL DGTL 50MA 32V |
3,944 |
|
Datasheet |
TB | Bulk | Obsolete | Trackball, 2 - Axis | Trackball | - | Digital (Mechanical Switch) | - | 360° Directional, Center Select | 50mA (DC) | - | 32 V | - | - | -30°C ~ 85°C | - | Cable with Connector | Panel Mount | - | IP54 - Dust Protected, Water Resistant | - |
|
|
TBWB2A01SWITCH TRACKBALL DGTL 50MA 32V |
4,098 |
|
Datasheet |
TB | - | Obsolete | Trackball, 2 - Axis | Trackball | - | Digital (Mechanical Switch) | - | 360° Directional, Center Select | 50mA (DC) | - | 32 V | - | - | -30°C ~ 85°C | - | Cable with Connector | Panel Mount | - | IP54 - Dust Protected, Water Resistant | Illuminated |
|
|
TBWB2A22SWITCH TRACKBALL DGTL 50MA 32V |
3,658 |
|
Datasheet |
TB | - | Obsolete | Trackball, 2 - Axis | Trackball | - | Digital (Mechanical Switch) | - | 360° Directional, Center Select | 50mA (DC) | - | 32 V | - | - | -30°C ~ 85°C | - | Cable with Connector | Panel Mount | - | IP54 - Dust Protected, Water Resistant | Illuminated |
