Oscillators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Base Resonator | Type | Function | Output | Voltage - Supply | Frequency | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Size / Dimension | Ratings | Supplier Device Package | Mounting Style | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASEMB-26.000MHZ-LY-TMEMS OSC XO 26.0000MHZ CMOS SMD |
6,193 |
|
Datasheet |
ASEMB, Pure Silicon™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | MEMS | XO (Standard) | Standby (Power Down) | CMOS | 1.8V ~ 3.3V | 26 MHz | ±10ppm | - | -40°C ~ 85°C | - | 16mA | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.035" (0.90mm) |
|
SIT1566AC-JV-XXE-32.768DMEMS OSC TCXO 32.7680KHZ CSP |
5,698 |
|
Datasheet |
SiT1566 | 4-UFBGA, CSPBGA | Tape & Reel (TR) | Active | MEMS | TCXO | - | LVCMOS | 1.8V ~ 3.3V | 32.768 kHz | ±3ppm | - | -20°C ~ 70°C | - | 5.3µA | 0.061" L x 0.033" W (1.54mm x 0.84mm) | - | 4-CSP (1.54x.84) | Surface Mount | 0.024" (0.60mm) |
|
LFTCXO073004XTAL OSC TCXO 26.0000MHZ SNWV |
142 |
|
Datasheet |
IQXT-350 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | - | Clipped Sine Wave | 1.8V | 26 MHz | ±500ppb | - | -30°C ~ 85°C | - | 1.5mA | 0.065" L x 0.049" W (1.65mm x 1.25mm) | - | - | Surface Mount | 0.022" (0.55mm) |
|
|
SIT1566AC-JV-18E-32.768EMEMS OSC TCXO 32.7680KHZ LVCMOS |
5,238 |
|
Datasheet |
SiT1566 | 4-UFBGA, CSPBGA | Tape & Reel (TR) | Active | MEMS | TCXO | - | LVCMOS | 1.8V | 32.768 kHz | ±3ppm | - | -20°C ~ 70°C | - | 5.3µA | 0.061" L x 0.033" W (1.54mm x 0.84mm) | - | 4-CSP (1.54x.84) | Surface Mount | 0.024" (0.60mm) |
|

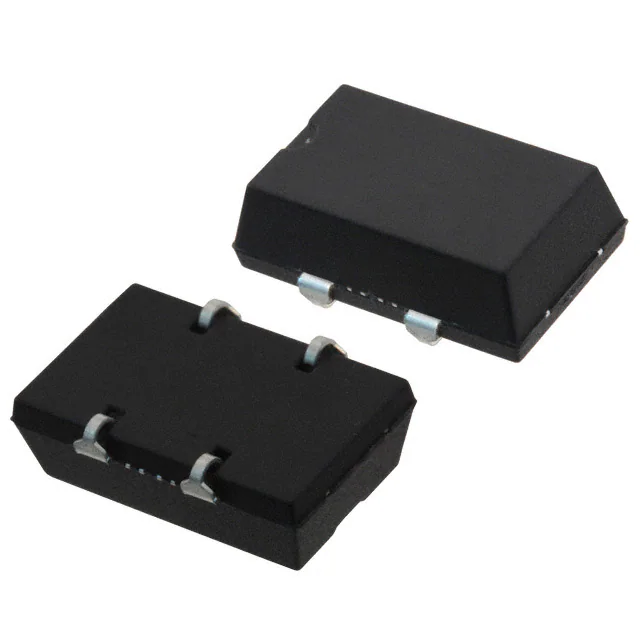

ECS-8FMX-010-TRXTAL OSC XO 1.0000MHZ CMOS TTL |
5,118 |
|
Datasheet |
ECS-8FX | 4-SOJ, 5.08mm pitch | Tape & Reel (TR) | Not For New Designs | Crystal | XO (Standard) | Enable/Disable | CMOS, TTL | 5V | 1 MHz | ±200ppm | - | -40°C ~ 85°C | - | 23mA | 0.551" L x 0.341" W (14.00mm x 8.65mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.185" (4.70mm) |
|
|
ECS-8FA3X-250-TRXTAL OSC XO 25.0000MHZ CMOS SMD |
4,477 |
|
Datasheet |
ECS-8FX | 4-SOJ, 5.08mm pitch | Tape & Reel (TR) | Not For New Designs | Crystal | XO (Standard) | Enable/Disable | CMOS | 3.3V | 25 MHz | ±200ppm | - | -40°C ~ 85°C | - | 9mA | 0.551" L x 0.341" W (14.00mm x 8.65mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.185" (4.70mm) |
|
|
ECS-8FMX-400-TRXTAL OSC XO 40.0000MHZ CMOS TTL |
1,790 |
|
Datasheet |
ECS-8FX | 4-SOJ, 5.08mm pitch | Tape & Reel (TR) | Not For New Designs | Crystal | XO (Standard) | Enable/Disable | CMOS, TTL | 5V | 40 MHz | ±200ppm | - | -40°C ~ 85°C | - | 35mA | 0.551" L x 0.341" W (14.00mm x 8.65mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.185" (4.70mm) |
|
|
ECS-8FMX-024-TRXTAL OSC XO 2.4576MHZ CMOS TTL |
7,028 |
|
Datasheet |
ECS-8FX | 4-SOJ, 5.08mm pitch | Tape & Reel (TR) | Not For New Designs | Crystal | XO (Standard) | Enable/Disable | CMOS, TTL | 5V | 2.4576 MHz | ±200ppm | - | -40°C ~ 85°C | - | 23mA | 0.551" L x 0.341" W (14.00mm x 8.65mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.185" (4.70mm) |
|
|
ECS-8FMX-160-TRXTAL OSC XO 16.0000MHZ CMOS TTL |
2,344 |
|
Datasheet |
ECS-8FX | 4-SOJ, 5.08mm pitch | Tape & Reel (TR) | Not For New Designs | Crystal | XO (Standard) | Enable/Disable | CMOS, TTL | 5V | 16 MHz | ±200ppm | - | -40°C ~ 85°C | - | 23mA | 0.551" L x 0.341" W (14.00mm x 8.65mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.185" (4.70mm) |
|
|
SIT1568AI-JE-DCC-32.768EMEMS OSC TCXO 32.7680KHZ LVCMOS |
12,360 |
|
Datasheet |
SiT1568 | 4-UFBGA, CSPBGA | Tape & Reel (TR) | Active | MEMS | TCXO | - | LVCMOS | 1.8V | 32.768 kHz | ±5ppm | - | -40°C ~ 85°C | - | 5.3µA | 0.061" L x 0.033" W (1.54mm x 0.84mm) | - | 4-CSP (1.54x.84) | Surface Mount | 0.024" (0.60mm) |
|
|
ECS-8FMX-200-TRXTAL OSC XO 20.0000MHZ CMOS TTL |
2,401 |
|
Datasheet |
ECS-8FX | 4-SOJ, 5.08mm pitch | Tape & Reel (TR) | Not For New Designs | Crystal | XO (Standard) | Enable/Disable | CMOS, TTL | 5V | 20 MHz | ±200ppm | - | -40°C ~ 85°C | - | 23mA | 0.551" L x 0.341" W (14.00mm x 8.65mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.185" (4.70mm) |
|
|
ECS-8FMX-018-TRXTAL OSC XO 1.8432MHZ CMOS TTL |
1,911 |
|
Datasheet |
ECS-8FX | 4-SOJ, 5.08mm pitch | Tape & Reel (TR) | Not For New Designs | Crystal | XO (Standard) | Enable/Disable | CMOS, TTL | 5V | 1.8432 MHz | ±200ppm | - | -40°C ~ 85°C | - | 23mA | 0.551" L x 0.341" W (14.00mm x 8.65mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.185" (4.70mm) |
|
NX3241E0100.000000XTAL OSC XO 100.0000MHZ HCSL SMD |
12,451 |
|
Datasheet |
SaRonix-eCera™ NX | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | HCSL | 3.3V | 100 MHz | ±50ppm | - | -40°C ~ 85°C | - | 70mA | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.041" (1.05mm) |
|

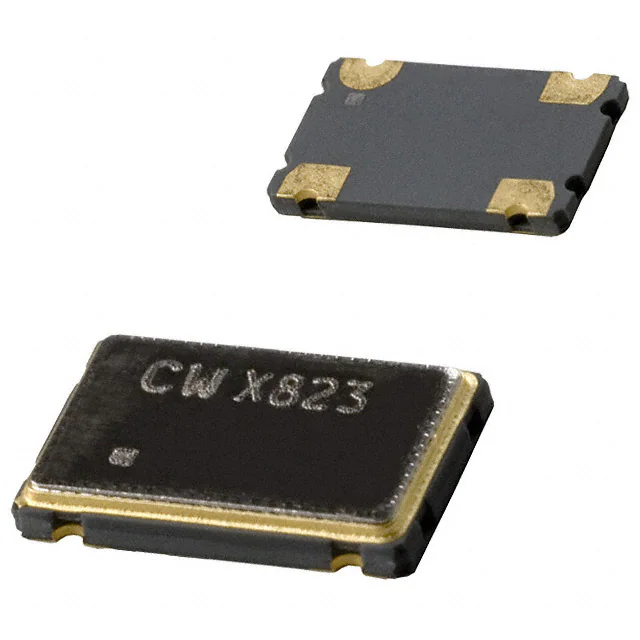

CWX823-025.0MXTAL OSC XO 25.0000MHZ LVCMOS |
10,764 |
|
Datasheet |
CWX823 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | LVCMOS | 3.3V | 25 MHz | ±50ppm | - | -20°C ~ 70°C | - | 30mA | 0.276" L x 0.197" W (7.00mm x 5.00mm) | - | - | Surface Mount | 0.051" (1.30mm) |
|
|
ECS-8FMX-049-TRXTAL OSC XO 4.9152MHZ CMOS TTL |
4,623 |
|
Datasheet |
ECS-8FX | 4-SOJ, 5.08mm pitch | Tape & Reel (TR) | Not For New Designs | Crystal | XO (Standard) | Enable/Disable | CMOS, TTL | 5V | 4.9152 MHz | ±200ppm | - | -40°C ~ 85°C | - | 23mA | 0.551" L x 0.341" W (14.00mm x 8.65mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.185" (4.70mm) |
|
CWX823-050.0MXTAL OSC XO 50.0000MHZ LVCMOS |
3,858 |
|
Datasheet |
CWX823 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | LVCMOS | 3.3V | 50 MHz | ±50ppm | - | -20°C ~ 70°C | - | 30mA | 0.276" L x 0.197" W (7.00mm x 5.00mm) | - | - | Surface Mount | 0.051" (1.30mm) |
|
|
ECS-8FMX-184-TRXTAL OSC XO 18.4320MHZ CMOS TTL |
1,622 |
|
Datasheet |
ECS-8FX | 4-SOJ, 5.08mm pitch | Tape & Reel (TR) | Not For New Designs | Crystal | XO (Standard) | Enable/Disable | CMOS, TTL | 5V | 18.432 MHz | ±200ppm | - | -40°C ~ 85°C | - | 23mA | 0.551" L x 0.341" W (14.00mm x 8.65mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.185" (4.70mm) |
|
ASDMB-25.000MHZ-LY-TMEMS OSC XO 25.0000MHZ LVCMOS |
4,711 |
|
Datasheet |
ASDMB, Pure Silicon™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | MEMS | XO (Standard) | Standby (Power Down) | LVCMOS | 1.8V ~ 3.3V | 25 MHz | ±10ppm | - | -40°C ~ 85°C | - | 16mA | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.035" (0.90mm) |
|
ASFLMB-50.000MHZ-LY-TMEMS OSC XO 50.0000MHZ LVCMOS |
1,935 |
|
Datasheet |
ASFLMB, Pure Silicon™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | MEMS | XO (Standard) | Standby (Power Down) | LVCMOS | 1.8V ~ 3.3V | 50 MHz | ±10ppm | - | -40°C ~ 85°C | - | 16mA | 0.197" L x 0.126" W (5.00mm x 3.20mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.035" (0.90mm) |
|
|
ASDMB-24.000MHZ-LY-TMEMS OSC XO 24.0000MHZ LVCMOS |
1,006 |
|
Datasheet |
ASDMB, Pure Silicon™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | MEMS | XO (Standard) | Standby (Power Down) | LVCMOS | 1.8V ~ 3.3V | 24 MHz | ±10ppm | - | -40°C ~ 85°C | - | 16mA | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.035" (0.90mm) |
