Oscillators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Base Resonator | Type | Function | Output | Voltage - Supply | Frequency | Frequency Stability | Absolute Pull Range (APR) | Operating Temperature | Spread Spectrum Bandwidth | Current - Supply (Max) | Size / Dimension | Ratings | Supplier Device Package | Mounting Style | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASDMB-19.200MHZ-LY-TMEMS OSC XO 19.2000MHZ LVCMOS |
163 |
|
Datasheet |
ASDMB, Pure Silicon™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | MEMS | XO (Standard) | Standby (Power Down) | LVCMOS | 1.8V ~ 3.3V | 19.2 MHz | ±10ppm | - | -40°C ~ 85°C | - | 16mA | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.035" (0.90mm) |
|
ECS-327TXO-33-TRXTAL OSC TCXO 32.7680KHZ 3.3V SM |
18,963 |
|
Datasheet |
ECS-327TXO | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | Enable/Disable | CMOS | 3.3V | 32.768 kHz | ±5ppm | - | -40°C ~ 85°C | - | 1.37µA | 0.129" L x 0.098" W (3.28mm x 2.50mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.055" (1.40mm) |
|
TG2016SMN 26.0000M-MCGNNM3XTAL OSC TCXO 26.0000MHZ CSWV |
1,815 |
|
Datasheet |
TG2016SMN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | - | Clipped Sine Wave | 2.8V ~ 3.3V | 26 MHz | ±500ppb | - | -40°C ~ 85°C | - | 1.5mA | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.029" (0.73mm) |
|
ASFLMB-25.000MHZ-LY-TMEMS OSC XO 25.0000MHZ LVCMOS |
2,753 |
|
Datasheet |
ASFLMB, Pure Silicon™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | MEMS | XO (Standard) | Standby (Power Down) | LVCMOS | 1.8V ~ 3.3V | 25 MHz | ±10ppm | - | -40°C ~ 85°C | - | 16mA | 0.197" L x 0.126" W (5.00mm x 3.20mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.035" (0.90mm) |
|
SG3225VAN 156.250000M-KEGA3XTAL OSC XO 156.2500MHZ LVDS SMD |
8,510 |
|
Datasheet |
SG3225VAN | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | LVDS | 2.5V ~ 3.3V | 156.25 MHz | ±30ppm | - | -40°C ~ 85°C | - | 30mA | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.047" (1.20mm) |
|
|
SG3225VAN 200.000000M-KEGA3XTAL OSC XO 200.0000MHZ LVDS SMD |
1,962 |
|
Datasheet |
SG3225VAN | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | LVDS | 2.5V ~ 3.3V | 200 MHz | ±30ppm | - | -40°C ~ 85°C | - | 30mA | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.047" (1.20mm) |
|
XLL735125.000000IXTAL OSC XO 125.0000MHZ LVDS SMD |
1,864 |
|
Datasheet |
XPRESSO™ FXO-LC73 | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | LVDS | 3.3V | 125 MHz | ±50ppm | - | -40°C ~ 85°C | - | 100mA | 0.295" L x 0.205" W (7.50mm x 5.20mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.055" (1.40mm) |
|
ASEMB-100.000MHZ-LY-TMEMS OSC XO 100.0000MHZ CMOS SMD |
2,726 |
|
Datasheet |
ASEMB, Pure Silicon™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | MEMS | XO (Standard) | Standby (Power Down) | CMOS | 1.8V ~ 3.3V | 100 MHz | ±10ppm | - | -40°C ~ 85°C | - | 16mA | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.035" (0.90mm) |
|

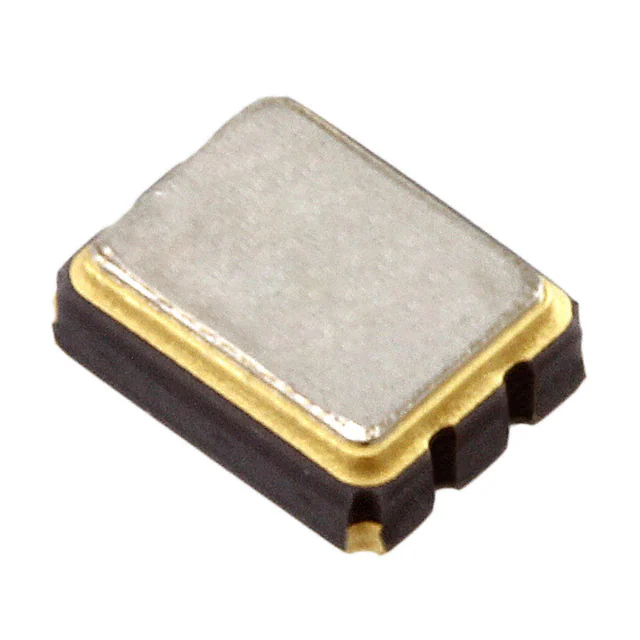

ASTX-H11-12.000MHZ-TXTAL OSC TCXO 12.0000MHZ HCMOS |
2,089 |
|
Datasheet |
ASTX-H11 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | Enable/Disable | HCMOS | 3.3V | 12 MHz | ±2.5ppm | - | -30°C ~ 75°C | - | 4.8mA | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.043" (1.10mm) |
|
|
ASTX-H11-24.000MHZ-TXTAL OSC TCXO 24.0000MHZ HCMOS |
1,803 |
|
Datasheet |
ASTX-H11 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | Enable/Disable | HCMOS | 3.3V | 24 MHz | ±2.5ppm | - | -30°C ~ 75°C | - | 5.5mA | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.043" (1.10mm) |
|
|
ASDMB-25.000MHZ-XY-TMEMS OSC XO 25.0000MHZ LVCMOS |
960 |
|
Datasheet |
ASDMB, Pure Silicon™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | MEMS | XO (Standard) | Standby (Power Down) | LVCMOS | 1.8V ~ 3.3V | 25 MHz | ±10ppm | - | -40°C ~ 105°C | - | 16mA | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.035" (0.90mm) |
|
|
ASDMB-33.333MHZ-XY-TMEMS OSC XO 33.3330MHZ LVCMOS |
370 |
|
Datasheet |
ASDMB, Pure Silicon™ | 4-SMD, No Lead | Tape & Reel (TR) | Active | MEMS | XO (Standard) | Standby (Power Down) | LVCMOS | 1.8V ~ 3.3V | 33.333 MHz | ±10ppm | - | -40°C ~ 105°C | - | 16mA | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.035" (0.90mm) |
|
|
ASTX-H11-24.576MHZ-TXTAL OSC TCXO 24.5760MHZ HCMOS |
1,301 |
|
Datasheet |
ASTX-H11 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | Enable/Disable | HCMOS | 3.3V | 24.576 MHz | ±2.5ppm | - | -30°C ~ 75°C | - | 5.5mA | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.043" (1.10mm) |
|
ECS-2532HS-500-3-GXTAL OSC XO 50.0000MHZ CMOS SMD |
22,688 |
|
Datasheet |
ECS-2532HS | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | CMOS | 3.3V | 50 MHz | ±10ppm | - | -40°C ~ 85°C | - | 10mA | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.043" (1.10mm) |
|
CWX823-033.0MXTAL OSC XO 33.0000MHZ LVCMOS |
10,270 |
|
Datasheet |
CWX823 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | LVCMOS | 3.3V | 33 MHz | ±50ppm | - | -20°C ~ 70°C | - | 30mA | 0.276" L x 0.197" W (7.00mm x 5.00mm) | - | - | Surface Mount | 0.051" (1.30mm) |
|
CWX823-024.0MXTAL OSC XO 24.0000MHZ LVCMOS |
4,295 |
|
Datasheet |
CWX823 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | LVCMOS | 3.3V | 24 MHz | ±50ppm | - | -20°C ~ 70°C | - | 30mA | 0.276" L x 0.197" W (7.00mm x 5.00mm) | - | - | Surface Mount | 0.051" (1.30mm) |
|
|
CWX823-040.0MXTAL OSC XO 40.0000MHZ LVCMOS |
3,819 |
|
Datasheet |
CWX823 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | LVCMOS | 3.3V | 40 MHz | ±50ppm | - | -20°C ~ 70°C | - | 30mA | 0.276" L x 0.197" W (7.00mm x 5.00mm) | - | - | Surface Mount | 0.051" (1.30mm) |
|
|
CWX823-020.0MXTAL OSC XO 20.0000MHZ LVCMOS |
2,334 |
|
Datasheet |
CWX823 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | LVCMOS | 3.3V | 20 MHz | ±50ppm | - | -20°C ~ 70°C | - | 30mA | 0.276" L x 0.197" W (7.00mm x 5.00mm) | - | - | Surface Mount | 0.051" (1.30mm) |
|
ASTX-H12-25.000MHZ-TXTAL OSC TCXO 25.0000MHZ HCMOS |
725 |
|
Datasheet |
ASTX-H12 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | Enable/Disable | HCMOS | 3.3V | 25 MHz | ±2.5ppm | - | -30°C ~ 75°C | - | 5.5mA | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | 4-VDFN (3.2x2.5) | Surface Mount | 0.037" (0.95mm) |
|

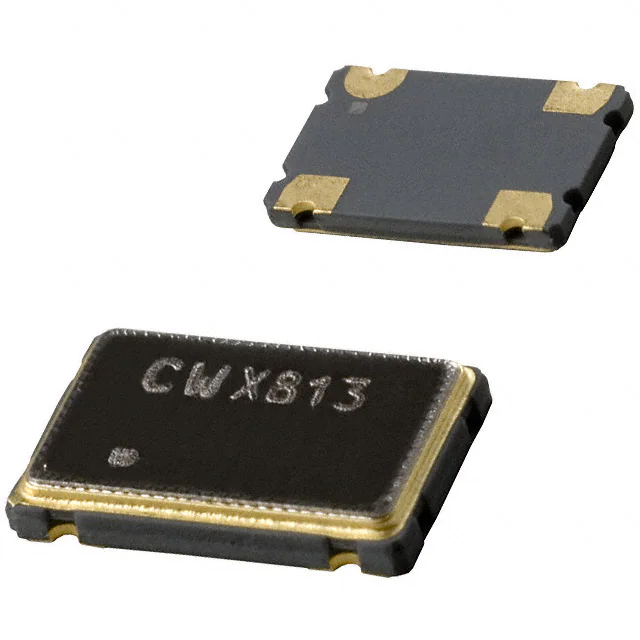

CWX813-060.0MXTAL OSC XO 60.0000MHZ LVCMOS |
4,680 |
|
Datasheet |
CWX813 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | Enable/Disable | LVCMOS | 3.3V | 60 MHz | ±25ppm | - | -20°C ~ 70°C | - | 30mA | 0.276" L x 0.197" W (7.00mm x 5.00mm) | - | - | Surface Mount | 0.051" (1.30mm) |
