Power Driver Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Configuration | Voltage | Voltage - Isolation | Grade | Current | Qualification | Mounting Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FSB50760SFMODULE SPM 600V 3.6A 23PWRDIP |
4,522 |
|
Datasheet |
Motion SPM® 5 SuperFET® | 23-PowerDIP Module (0.573", 14.56mm) | Bulk | Obsolete | MOSFET | 3 Phase | 600 V | 1500Vrms | - | 3.6 A | - | Through Hole |
|
IRAM630-1062F2MOD IPM PWR HYBRID |
8,883 |
|
Datasheet |
- | - | Tube | Obsolete | - | - | - | - | - | - | - | - |
|
|
IRAM136-0461GIC MOD PWR HYBRID 600V 4A MOTOR |
7,943 |
|
Datasheet |
iMOTION™ | 23-PowerSSIP Module, 22 Leads, Formed Leads | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2000Vrms | - | 9.4 A | - | Through Hole |
|
|
FSBS3CH60MODULE SPM 600V 3A SPMBA |
3,063 |
|
Datasheet |
Motion SPM® 3 | 27-PowerDIP Module (1.205", 30.60mm) | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2500Vrms | - | 3 A | - | Through Hole |
|
IKCM15R60GDXKMA1IFPS MODULE 600V 30A 24PWRDIP |
5,488 |
|
Datasheet |
CIPOS™ | 24-PowerDIP Module (1.028", 26.10mm) | Bulk | Active | IGBT | 2 Phase | 600 V | 2000Vrms | - | 30 A | - | Through Hole |
|
|
FCBB20CH60SFMODULE SPM 600V -20A SPM-27CD |
600 |
|
Datasheet |
- | Module | Tube | Obsolete | - | - | - | - | - | - | - | Through Hole |
|

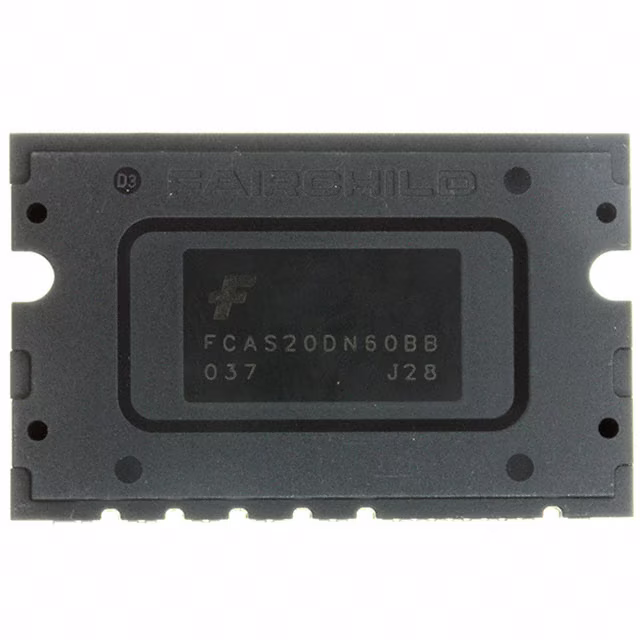

FCAS20DN60BBAC MOTOR CONTROLLER, 30A |
130 |
|
Datasheet |
SPM® | 20-PowerSIP Module, Formed Leads | Tube | Obsolete | IGBT | 2 Phase | 600 V | 1500Vrms | - | 20 A | - | Through Hole |
|
|
FSB50450SIC SMART POWER MOD 3A SPM23-BA |
397 |
|
Datasheet |
Motion SPM® 5 | 23-PowerSMD Module, Gull Wing | Tape & Reel (TR) | Not For New Designs | MOSFET | 3 Phase | 500 V | 1500Vrms | - | 1.5 A | - | Surface Mount |
|
|
FSBF5CH60BAC MOTOR CONTROLLER, 10A |
300 |
|
Datasheet |
Motion SPM® 3 | 27-PowerDIP Module (1.205", 30.60mm) | Bulk | Active | IGBT | 3 Phase | 600 V | 2500Vrms | - | 5 A | - | Through Hole |
|
|
FPDB20PH60AC MOTOR CONTROLLER, HYBRID |
3,791 |
|
Datasheet |
- | 27-PowerDIP Module (1.205", 30.60mm) | Tube | Obsolete | IGBT | 2 Phase | 600 V | 2500Vrms | - | 12 A | - | Through Hole |
|
FPAB30PH60AC MOTOR CONTROLLER, 30A, HYBRID |
275 |
|
Datasheet |
SPM® | 27-PowerDIP Module (1.205", 30.60mm) | Tube | Obsolete | IGBT | 2 Phase | 600 V | 2500Vrms | - | 20 A | - | Through Hole |
|
|
IRAM136-1061A2-IRAC MOTOR CONTROLLER, 15A |
536 |
|
Datasheet |
iMOTION™ | 23-SIP, 19 Leads, Formed Leads | Bulk | Active | IGBT | 3 Phase Inverter | 600 V | 2000Vrms | - | 12 A | - | Through Hole |
|
FSBS15CH60AC MOTOR CONTROLLER, 15A, HYBRID |
7,315 |
|
Datasheet |
Motion SPM® 3 | 27-PowerDIP Module (1.205", 30.60mm) | Bulk | Active | IGBT | 3 Phase Inverter | 600 V | 2500Vrms | - | 15 A | - | Through Hole |
|
IRAM136-1060AAC MOTOR CONTROLLER, 10A, HYBRID |
110 |
|
Datasheet |
- | 29-PowerSSIP Module, 21 Leads, Formed Leads | Bulk | Active | IGBT | 3 Phase | 600 V | 2000Vrms | - | 10 A | - | Through Hole |
|
|
FCBS0550AC MOTOR CONTROLLER, 7A |
19,553 |
|
Datasheet |
SPM® | 27-PowerDIP Module (1.205", 30.60mm) | Bulk | Active | MOSFET | 3 Phase | 500 V | 2500Vrms | - | 5 A | - | Through Hole |
|
|
FSBB15CH60SMART POWER MODULE 15A SPM27-CA |
8,252 |
|
Datasheet |
Motion SPM® 3 | 27-PowerDIP Module (1.205", 30.60mm) | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2500Vrms | - | 15 A | - | Through Hole |
|
|
FSBB15CH60AC MOTOR CONTROLLER, 30A, HYBRID |
301 |
|
Datasheet |
Motion SPM® 3 | 27-PowerDIP Module (1.205", 30.60mm) | Bulk | Active | IGBT | 3 Phase | 600 V | 2500Vrms | - | 15 A | - | Through Hole |
|
|
FSBF15CH60BTHAC MOTOR CONTROLLER, 60A, HYBRID |
159 |
|
Datasheet |
Motion-SPM® | 27-PowerDIP Module (1.205", 30.60mm) | Bulk | Active | IGBT | 3 Phase | 600 V | 2500Vrms | - | 15 A | - | Through Hole |
|
STK554U392C-E3 PHASE INVERTER IPM |
6,795 |
|
Datasheet |
- | 29-SSIP Module, 21 Leads, Formed Leads | Tube | Obsolete | IGBT | 3 Phase Inverter | 600 V | - | - | 15 A | - | Through Hole |
|
|
FSBS15SM60ISMART POWER MODULE |
120 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - |
