Power Driver Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Configuration | Voltage | Voltage - Isolation | Grade | Current | Qualification | Mounting Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FSAM10SM60AAC MOTOR CONTROLLER |
141 |
|
Datasheet |
SPM® | 32-PowerDIP Module (1.370", 34.80mm) | Bulk | Active | IGBT | 3 Phase | 600 V | 2500Vrms | - | 10 A | - | Through Hole |
|
FSBB20CH60SLSMART POWER MODULE |
240 |
|
Datasheet |
Motion-SPM® | 27-PowerDIP Module (1.205", 30.60mm) | Bulk | Active | IGBT | 3 Phase | 600 V | 2500Vrms | - | 20 A | - | Through Hole |
|
|
FPAB30BH60AC MOTOR CONTROLLER, 30A, HYBRID |
17,475 |
|
Datasheet |
PFC SPM® 3 | 27-PowerDIP Module (1.205", 30.60mm) | Bulk | Active | IGBT | 1 Phase | 600 V | 2500Vrms | - | 25 A | - | Through Hole |
|
|
FPAB50PH60AC MOTOR CONTROLLER, 50A, HYBRID |
180 |
|
Datasheet |
- | 27-PowerDIP Module (1.205", 30.60mm) | Tube | Obsolete | IGBT | 2 Phase | 600 V | 2500Vrms | - | 30 A | - | Through Hole |
|
|
FVP18030IM3LSG1BUFFER/INVERTER PERIPHL DRIVER |
315 |
|
Datasheet |
SPM® | 19-PowerDIP Module (1.205", 30.60mm) | Tray | Obsolete | IGBT | Half Bridge | 300 V | 1500Vrms | - | 180 A | - | Through Hole |
|
|
FSAM20SL60AC MOTOR CONTROLLER, 40A, HYBRID |
171 |
|
Datasheet |
SPM® | 32-PowerDIP Module (1.370", 34.80mm) | Bulk | Active | IGBT | 3 Phase | 600 V | 2500Vrms | - | 20 A | - | Through Hole |
|
FSBS5CH60AC MOTOR CONTROLLER, 5A, HYBRID |
180 |
|
Datasheet |
Motion SPM® 3 | 27-PowerDIP Module (1.205", 30.60mm) | Bulk | Active | IGBT | 3 Phase | 600 V | 2500Vrms | - | 5 A | - | Through Hole |
|
FSAM15SM60AAC MOTOR CONTROLLER, 30A, HYBRID |
150 |
|
Datasheet |
Motion SPM® 2 | 32-PowerDIP Module (1.370", 34.80mm) | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2500Vrms | - | 15 A | - | Through Hole |
|
|
FSBB30CH60FIC SMART PWR MODULE SPM27-EA |
7,221 |
|
Datasheet |
Motion SPM® 3 | 27-PowerDIP Module (1.205", 30.60mm) | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2500Vrms | - | 30 A | - | Through Hole |
|

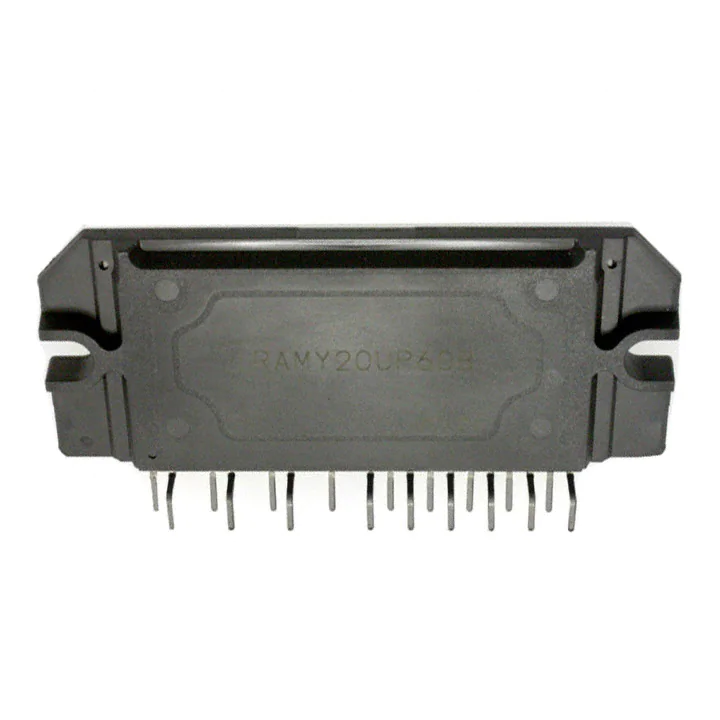

IRAMY20UP60BIC PWR HYBRID 600V 20A SIP3 |
5,718 |
|
Datasheet |
iMOTION™ | 22-PowerSIP Module, 18 Leads, Formed Leads | Bulk | Obsolete | IGBT | 3 Phase | 600 V | 2000Vrms | - | 20 A | - | Through Hole |
|
|
LMG3526R030RQSR650-V 30-M GAN FET WITH INTEGRAT |
1,799 |
|
Datasheet |
- | 52-VQFN Exposed Pad | Tape & Reel (TR) | Active | MOSFET | Half Bridge Inverter | 650 V | - | - | 55 A | - | Surface Mount, Wettable Flank |
|
|
FPDB30PH60AC MOTOR CONTROLLER, HYBRID |
2,731 |
|
Datasheet |
PFC SPM® 3 | 27-PowerDIP Module (1.205", 30.60mm) | Bulk | Active | IGBT | 2 Phase | 600 V | 2500Vrms | - | 20 A | - | Through Hole |
|
|
FPDB30PH60MODULE SPM 600V 20A SPMGA |
4,931 |
|
Datasheet |
PFC SPM® 3 | 27-PowerDIP Module (1.205", 30.60mm) | Tube | Obsolete | IGBT | 2 Phase | 600 V | 2500Vrms | - | 20 A | - | Through Hole |
|
|
LMG3522R030RQST650-V 30-M GAN FET WITH INTEGRAT |
523 |
|
Datasheet |
- | 52-VQFN Exposed Pad | Tape & Reel (TR) | Obsolete | MOSFET | Half Bridge Inverter | 650 V | - | - | 55 A | - | Surface Mount |
|
|
FSB32560AC MOTOR CONTROLLER, 25A, HYBRID |
4,010 |
|
Datasheet |
Motion SPM® 3 | 27-PowerDIP Module (1.205", 30.60mm) | Bulk | Active | IGBT | 3 Phase Inverter | 600 V | 2500Vrms | - | 25 A | - | Through Hole |
|
|
FPAM50LH60GPFC SPM 2 SERIES FOR 2-PHASE INT |
66,536 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - |
|
|
IRAM136-3063B2AC MOTOR CONTROLLER, 30A |
7,252 |
|
Datasheet |
iMOTION™ | 22-PowerSIP Module, 18 Leads, Formed Leads | Bulk | Active | IGBT | 3 Phase | 600 V | 2000Vrms | - | 30 A | - | Through Hole |
|
|
IRAM136-3063B2IC MOD PWR HYBRID 600V 30A |
5,500 |
|
Datasheet |
iMOTION™ | 22-PowerSIP Module, 18 Leads, Formed Leads | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2000Vrms | - | 30 A | - | Through Hole |
|
STGIPS35K60L1MODULE IPM SLLIMM SDIP-22L |
111 |
|
Datasheet |
SLLIMM™ | 22-PowerDIP Module (0.993", 25.23mm) | Tube | Obsolete | IGBT | 1 Phase | 600 V | 2500Vrms | - | 35 A | - | Through Hole |
|
FNA21012AMODULE SPM 1.2V 10A 34PWRDIP |
2,707 |
|
Datasheet |
Motion SPM® 2 | 34-PowerDIP Module (1.480", 37.60mm) | Tube | Obsolete | IGBT | 3 Phase | 1.2 kV | 2500Vrms | - | 10 A | - | Through Hole |
