Power Driver Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Configuration | Voltage | Voltage - Isolation | Grade | Current | Qualification | Mounting Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FSBF3CH60BMODULE SPM 600V 3A 3PH SPM27-JA |
8,184 |
|
Datasheet |
Motion-SPM® | 27-PowerDIP Module (1.205", 30.60mm) | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2500Vrms | - | 3 A | - | Through Hole |
|
FSBF5CH60BMODULE SPM 600V 5A 3PH SPM27-JA |
5,066 |
|
Datasheet |
Motion SPM® 3 | 27-PowerDIP Module (1.205", 30.60mm) | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2500Vrms | - | 5 A | - | Through Hole |
|
FSB50450TIC SPM 500V 3.0A 3PH SPM23AC |
6,778 |
|
Datasheet |
SPM® | 23-PowerDIP Module (0.748", 19.00mm) | Tube | Obsolete | MOSFET | 3 Phase | 500 V | 1500Vrms | - | 1.5 A | - | Through Hole |
|
FSBF10CH60BTLMODULE SPM 600V 10A 3PH SPM27-JB |
8,692 |
|
Datasheet |
Motion SPM® 3 | 27-PowerDIP Module (1.205", 30.60mm) | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2500Vrms | - | 10 A | - | Through Hole |
|
|
FSB52006SMODULE SPM 60V 2.6A SPM5D |
5,128 |
|
Datasheet |
Motion SPM® 5 | 23-PowerSMD Module, Gull Wing | Tube | Obsolete | MOSFET | 3 Phase | 60 V | 1500Vrms | - | 2.6 A | - | Surface Mount |
|
|
IRAM136-3023BIC INTEGRATD PWR HYBRID 30A 150V |
5,566 |
|
Datasheet |
iMOTION™ | 22-PowerSIP Module, 18 Leads, Formed Leads | Tube | Obsolete | MOSFET | 3 Phase | 150 V | 2000Vrms | - | 30 A | - | Through Hole |
|
FSB32560MODULE SPM 600V 25A 27SPMBA |
2,443 |
|
Datasheet |
Motion SPM® 3 | 27-PowerDIP Module (1.205", 30.60mm) | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2500Vrms | - | 25 A | - | Through Hole |
|
|
FSB50325TMODULE SPM 250V 3A SPM23-AC |
9,520 |
|
Datasheet |
Motion SPM® 5 | 23-PowerDIP Module (0.748", 19.00mm) | Tube | Obsolete | MOSFET | 3 Phase | 250 V | 1500Vrms | - | 1.5 A | - | Through Hole |
|
|
FSBB15CH60FMODULE SPM 600V SPM27-CA |
6,269 |
|
Datasheet |
Motion SPM® 3 | 27-PowerDIP Module (1.205", 30.60mm) | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2500Vrms | - | 15 A | - | Through Hole |
|
FSBS10CH60FMODULE SPM 600V 10A SPM27-BA |
8,788 |
|
Datasheet |
SPM® | 27-PowerDIP Module (1.205", 30.60mm) | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2500Vrms | - | 10 A | - | Through Hole |
|
|
FVP12030IM3LEG1MODULE SPM 300V VPM19-BA |
7,132 |
|
Datasheet |
SPM® | 19-PowerDIP Module (1.205", 30.60mm) | Tray | Obsolete | IGBT | Half Bridge | 300 V | 1500Vrms | - | 120 A | - | Through Hole |
|
|
FVP18030IM3LSG1MODULE SPM 300V VPM19-AA |
7,297 |
|
Datasheet |
SPM® | 19-PowerDIP Module (1.205", 30.60mm) | Tray | Obsolete | IGBT | Half Bridge | 300 V | 1500Vrms | - | 180 A | - | Through Hole |
|
FSBF15CH60BTLMODULE SPM 600V 15A SPM27-JB |
5,089 |
|
Datasheet |
Motion-SPM® | 27-PowerDIP Module (1.205", 30.60mm) | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2500Vrms | - | 15 A | - | Through Hole |
|
IRAM136-3063BIC HYBRID PWR 30A 600V RES SIP3 |
9,553 |
|
Datasheet |
iMOTION™ | 22-PowerSIP Module, 18 Leads, Formed Leads | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2000Vrms | - | 30 A | - | Through Hole |
|
|
IRAMS06UP60A-2IC PWR MOD PLUG-N-DRIVE 600V 6A |
6,502 |
|
Datasheet |
iMOTION™ | 23-PowerSIP Module, 19 Leads, Formed Leads | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2000Vrms | - | 6 A | - | Through Hole |
|
|
IRAMX16UP60BIC PWR HYBRID 600V 16A 23PWRSIP |
9,848 |
|
Datasheet |
iMOTION™ | 23-PowerSIP Module, 19 Leads, Formed Leads | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2000Vrms | - | 16 A | - | Through Hole |
|

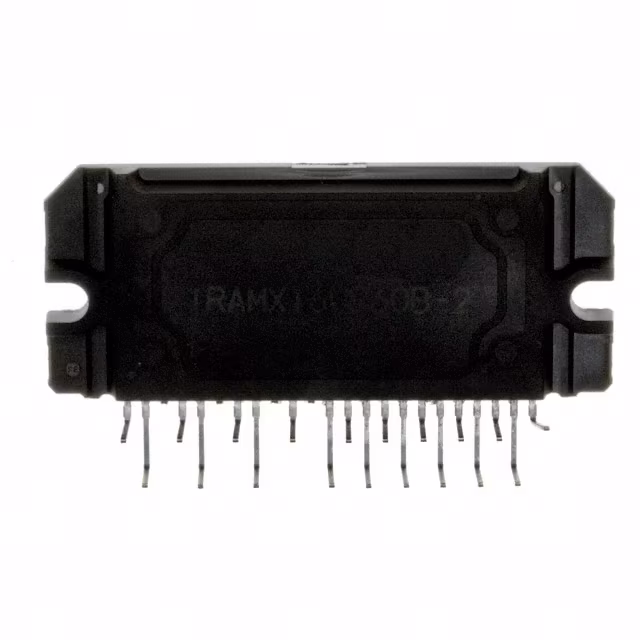

IRAMX16UP60B-2IC PWR HYBRID 600V 16A SIP2 |
3,737 |
|
Datasheet |
iMOTION™ | 23-PowerSIP Module, 19 Leads, Formed Leads | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2000Vrms | - | 16 A | - | Through Hole |
|
IRAMX20UP60AIC PWR HYBRID 600V 20A SIP2 |
3,139 |
|
Datasheet |
iMOTION™ | 23-PowerSIP Module, 19 Leads, Formed Leads | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2000Vrms | - | 20 A | - | Through Hole |
|
IRAMX20UP60A-2IC PWR HYBRID 600V 20A 23PWRSIP |
2,485 |
|
Datasheet |
iMOTION™ | 23-PowerSIP Module, 19 Leads, Formed Leads | Tube | Obsolete | IGBT | 3 Phase | 600 V | 2000Vrms | - | 20 A | - | Through Hole |
|

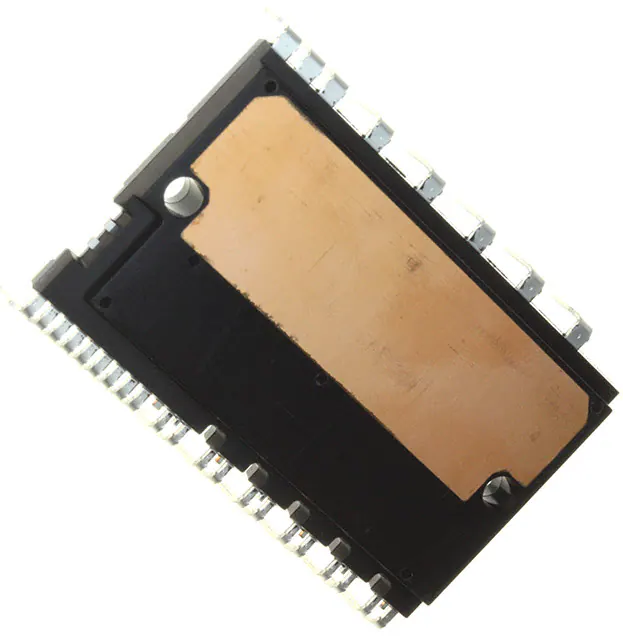

PS21767MOD IPM 600V 30A MINI DIP |
9,008 |
|
Datasheet |
Intellimod™ | 38-PowerDIP Module (1.413", 35.90mm) | Bulk | Discontinued | IGBT | 3 Phase | 600 V | 2500VDC | - | 30 A | - | Through Hole |
