Power Driver Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Configuration | Voltage | Voltage - Isolation | Grade | Current | Qualification | Mounting Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

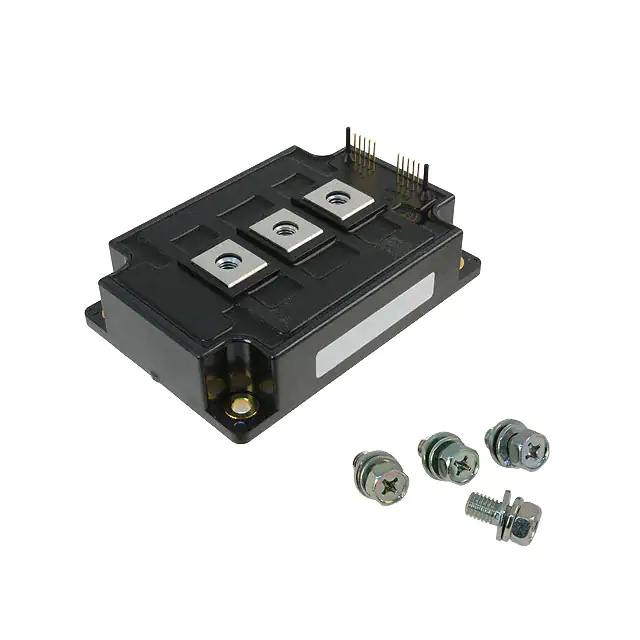

PM300DSA120MOD IPM DUAL 1200V 300A |
4,213 |
|
Datasheet |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | 1 Phase Inverter | 1.2 kV | 2500Vrms | - | 300 A | - | Chassis Mount |
|
PM300DVA120MOD IPM V-SER DUAL 1200V 300A |
7,240 |
|
Datasheet |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | 1 Phase Inverter | 1.2 kV | 2500Vrms | - | 300 A | - | Chassis Mount |
|
|
PM300RLA060MOD IPM L-SER 7PAC 600V 300A |
5,562 |
|
Datasheet |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | 3 Phase | 600 V | 2500VDC | - | 300 A | - | Chassis Mount |
|
PM30CSJ060MOD IPM 6PAC 600V 30A |
4,090 |
|
Datasheet |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | 3 Phase | 600 V | 2500Vrms | - | 30 A | - | Chassis Mount |
|
|
PM400DSA060MOD IPM DUAL 600V 400A |
9,765 |
|
Datasheet |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | 1 Phase Inverter | 600 V | 2500Vrms | - | 400 A | - | Chassis Mount |
|
|
PM400DVA060MOD IPM V-SER DUAL 600V 400A |
2,554 |
|
Datasheet |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | 1 Phase Inverter | 600 V | 2500Vrms | - | 400 A | - | Chassis Mount |
|
|
PM400HSA120MOD IPM SGL 1200V 400A |
5,478 |
|
Datasheet |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | Half Phase Inverter | 1.2 kV | 2500Vrms | - | 400 A | - | Chassis Mount |
|
|
PM450CLA060MOD IPM L-SER 6PAC 600V 450A |
9,729 |
|
Datasheet |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | 3 Phase | 600 V | 2500VDC | - | 450 A | - | Chassis Mount |
|
|
PM450CLA120MOD IPM L-SER 6PAC 1200V 450A |
6,212 |
|
Datasheet |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | 3 Phase | 1.2 kV | 2500VDC | - | 450 A | - | Chassis Mount |
|
PM50CLA060MOD IPM L-SER 6PAC IPM 600V 50A |
7,873 |
|
Datasheet |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | 3 Phase | 600 V | 2500VDC | - | 50 A | - | Chassis Mount |
|
|
PM50CLA120MOD IPM L-SER 6PAC IPM 1200V 50A |
2,731 |
|
Datasheet |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | 3 Phase | 1.2 kV | 2500VDC | - | 50 A | - | Chassis Mount |
|
|
PM50RLA060MOD IPM L-SER 7PAC 600V 50A |
4,034 |
|
Datasheet |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | 3 Phase | 600 V | 2500VDC | - | 50 A | - | Chassis Mount |
|
|
PM50RLA120MOD IPM L-SER 7PAC 1200V 50A |
9,976 |
|
Datasheet |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | 3 Phase | 1.2 kV | 2500VDC | - | 50 A | - | Chassis Mount |
|
|
PM50RSA120MOD IPM 7PAC 1200V 50A |
3,782 |
|
Datasheet |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | 3 Phase | 1.2 kV | 2500Vrms | - | 50 A | - | Chassis Mount |
|
|
PM50RSK060MOD IPM 7PAC 600V 50A |
2,980 |
|
Datasheet |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | 3 Phase | 600 V | 2500Vrms | - | 50 A | - | Chassis Mount |
|
|
PM600CLA060MOD IPM L-SER 6PAC IPM 600V 600A |
9,557 |
|
Datasheet |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | 3 Phase | 600 V | 2500VDC | - | 600 A | - | Chassis Mount |
|
|
PM600DSA060MOD IPM DUAL HF 600V 600A |
4,845 |
|
Datasheet |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | 1 Phase Inverter | 600 V | 2500Vrms | - | 600 A | - | Chassis Mount |
|
|
PM600DVA060MOD IPM HF 600V 600A |
9,555 |
|
Datasheet |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | 1 Phase Inverter | 600 V | 2500Vrms | - | 600 A | - | Chassis Mount |
|
|
PM600HSA120MOD IPM HF 1200V 600A |
7,241 |
|
Datasheet |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | Half Phase Inverter | 1.2 kV | 2500Vrms | - | 600 A | - | Chassis Mount |
|
|
PM75CLA060MOD IPM L-SERIES 600V 75A |
5,538 |
|
Datasheet |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | 3 Phase | 600 V | 2500VDC | - | 75 A | - | Chassis Mount |
