Power Driver Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Configuration | Voltage | Voltage - Isolation | Grade | Current | Qualification | Mounting Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM75CLA120MOD IPM L-SERIES 1200V 75A |
3,967 |
|
Datasheet |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | 3 Phase | 1.2 kV | 2500VDC | - | 75 A | - | Chassis Mount |
|
|
PM75CSA120MOD IPM 3-PHASE IGBT 1200V 75A |
9,222 |
|
Datasheet |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | 3 Phase | 1.2 kV | 2500Vrms | - | 75 A | - | Chassis Mount |
|
|
PM75DSA120MOD IPM 3PHASE IGB HF 1200V 75A |
8,209 |
|
Datasheet |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | 1 Phase Inverter | 1.2 kV | 2500Vrms | - | 75 A | - | Chassis Mount |
|
|
PM75RLA060MOD IPM L-SERIES 600V 75A |
3,381 |
|
Datasheet |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | 3 Phase | 600 V | 2500VDC | - | 75 A | - | Chassis Mount |
|
|
PM75RLB060MOD IPM L-SERIES 600V 75A |
6,280 |
|
Datasheet |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | 3 Phase | 600 V | 2500VDC | - | 75 A | - | Chassis Mount |
|
|
PM75RLB120MOD IPM L-SERIES 1200V 75A |
3,255 |
|
Datasheet |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | 3 Phase | 1.2 kV | 2500VDC | - | 75 A | - | Chassis Mount |
|
|
PM75RSA060MOD IPM 3PHASE IGBT 600V 75A |
3,436 |
|
Datasheet |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | 3 Phase | 600 V | 2500Vrms | - | 75 A | - | Chassis Mount |
|
|
PM75RSK060MOD IPM HF 600V 75A |
5,415 |
|
Datasheet |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | 3 Phase | 600 V | 2500Vrms | - | 75 A | - | Chassis Mount |
|
|
PM800HSA120MOD IPM SINGLE HF 1200V 800A |
6,768 |
|
Datasheet |
Intellimod™ | Power Module | Bulk | Obsolete | IGBT | Half Phase Inverter | 1.2 kV | 2500Vrms | - | 800 A | - | Chassis Mount |
|
|
PS11011MOD IPM 3PHASE IGBT 600V 2A |
7,595 |
|
Datasheet |
- | 40-PowerDIP Module (2.835", 72.00mm), 33 Leads | Bulk | Obsolete | IGBT | 3 Phase | 600 V | 2500Vrms | - | 2 A | - | Through Hole |
|
|
PS11012MOD IPM 3PHASE IGBT 600V 4A |
7,670 |
|
Datasheet |
- | 40-PowerDIP Module (2.835", 72.00mm), 33 Leads | Bulk | Obsolete | IGBT | 3 Phase | 600 V | 2500Vrms | - | 4 A | - | Through Hole |
|
|
PS11013MOD IPM 3PHASE IGBT 600V 8A |
5,567 |
|
Datasheet |
- | 40-PowerDIP Module (2.835", 72.00mm), 33 Leads | Bulk | Obsolete | IGBT | 3 Phase | 600 V | 2500Vrms | - | 8 A | - | Through Hole |
|
|
PS11014MOD IPM 3PHASE IGBT 600V 15A |
2,823 |
|
Datasheet |
- | 40-PowerDIP Module (2.835", 72.00mm), 33 Leads | Bulk | Obsolete | IGBT | 3 Phase | 600 V | 2500Vrms | - | 15 A | - | Through Hole |
|
|
PS11015MOD IPM 3PHASE IGBT 600V 20A |
3,418 |
|
Datasheet |
- | 40-PowerDIP Module (2.835", 72.00mm), 33 Leads | Bulk | Obsolete | IGBT | 3 Phase | 600 V | 2500Vrms | - | 20 A | - | Through Hole |
|
|
PS11016MOD IPM 3PHASE IGBT 600V 30A |
6,619 |
|
Datasheet |
- | 36-PowerDIP Module (3.100", 78.75mm) | Bulk | Obsolete | IGBT | 3 Phase | 600 V | 2500Vrms | - | 30 A | - | Through Hole |
|
|
PS11017MOD IPM 3PHASE IGBT 600V 50A |
4,843 |
|
Datasheet |
- | 36-PowerDIP Module (2.480", 63.00mm) | Bulk | Obsolete | IGBT | 3 Phase | 600 V | 2500Vrms | - | 50 A | - | Through Hole |
|
|
PS11032MOD IPM 3PHASE IGBT 600V 4A |
2,356 |
|
Datasheet |
Intellimod™ | 30-PowerDIP Module (1.996", 50.70mm) | Bulk | Obsolete | IGBT | 3 Phase | 600 V | 2500VDC | - | 4 A | - | Through Hole |
|

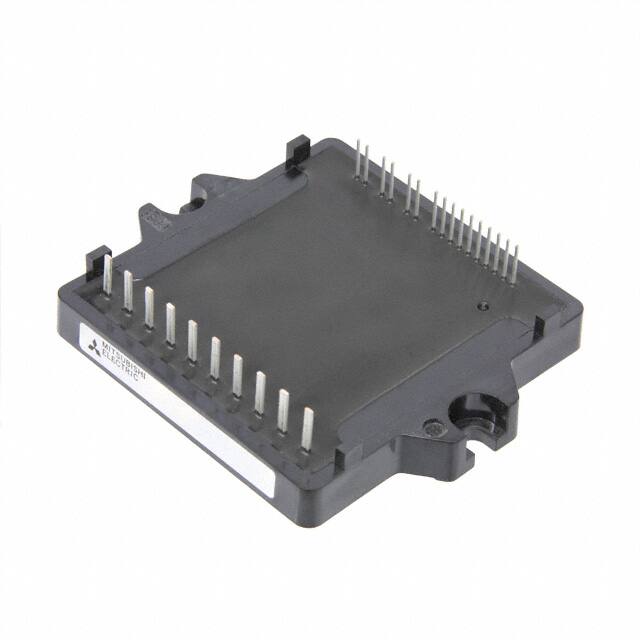

PS11033MOD IPM 3PHASE IGBT 600V 8A |
3,254 |
|
Datasheet |
Intellimod™ | 30-PowerDIP Module (1.996", 50.70mm) | Bulk | Obsolete | IGBT | 3 Phase | 600 V | 2500VDC | - | 8 A | - | Through Hole |
|
|
PS11034MOD IPM 3PHASE IGBT 600V 15A |
7,201 |
|
Datasheet |
Intellimod™ | 30-PowerDIP Module (1.996", 50.70mm) | Bulk | Obsolete | IGBT | 3 Phase | 600 V | 2500VDC | - | 15 A | - | Through Hole |
|
|
PS11035MOD IPM 3PHASE IGBT 600V 20A |
8,242 |
|
Datasheet |
Intellimod™ | 30-PowerDIP Module (1.996", 50.70mm) | Bulk | Obsolete | IGBT | 3 Phase | 600 V | 2500VDC | - | 20 A | - | Through Hole |
