| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Filter Type | Configuration | Voltage - Rated AC | Voltage - Rated AC (Phase to Ground/Neutral) | Voltage - Rated AC (Phase to Phase) | Voltage - Rated DC | Current | Frequency - Operating | Applications | Approval Agency | Operating Temperature | Mounting Style | Inductance | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

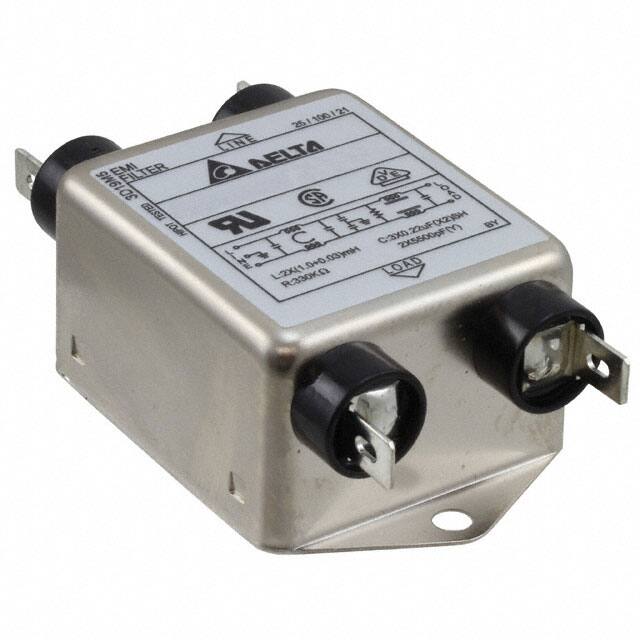

03DVCG5LINE FILTER 115V/250VAC 3A CHASS |
3,378 |
|
Datasheet |
DV | Box | Active | Single Phase | Two Stage | 115V, 250V | - | - | - | 3 A | 50/60Hz | General Purpose | CSA, UR, VDE | - | Chassis Mount | L1 - 1mH, L2 - 30mH | Quick Connect |
|
AMI-M12D-1-10-D-1LINE FILTER 250VAC 10A CHASS MNT |
3,294 |
|
Datasheet |
AMI-M12D | Box | Active | Single Phase | Single Stage | 250V | - | - | - | 10 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | 7.178mH | Quick Connect |
|
|
AMI-M11O-1-6-CLINE FILTER 250VAC 6A CHASS MNT |
1,337 |
|
Datasheet |
AMI-M11O | Box | Active | Single Phase | Single Stage | 250V | - | - | - | 6 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | 1mH | Quick Connect |
|
|
3-130-939LINE FILTER 250VAC 10A PANEL MNT |
3,806 |
|
Datasheet |
5124 | Box | Active | Single Phase | Single Stage | 250V | - | - | - | 10 A | 50/60Hz | Medical | CQC, cURus, ENEC | -25°C ~ 85°C | Panel Mount | 1.5mH | IEC 320-C14, Quick Connect |
|
|
AMI-M12R-1-20-B-2LINE FILTER 250VAC 20A CHASS MNT |
2,017 |
|
Datasheet |
AMI-M12R | Box | Active | Single Phase | Two Stage | 250V | - | - | - | 20 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | 880µH | Quick Connect |
|
|
AMI-M11H-1-20-ALINE FILTER 250VAC 20A CHASS MNT |
1,670 |
|
Datasheet |
AMI-M11H | Box | Active | Single Phase | Single Stage | 250V | - | - | - | 20 A | 50/60Hz | Medical | - | -10°C ~ 40°C | Chassis Mount | 10mH | Quick Connect |
|

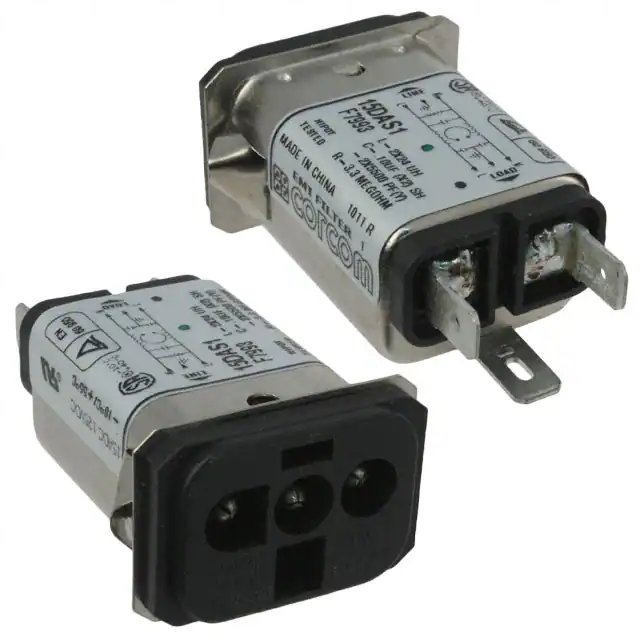

2-6609075-9LINE FILTER 125VDC 15A PANEL MNT |
1,300 |
|
Datasheet |
DA, Corcom | Bulk | Active | DC | - | - | 2.25 kV | 1.45 kV | 125V | 15 A | - | General Purpose | CSA, TUV, UL | -10°C ~ 40°C | Panel Mount | 24µH | SMD (SMT) Tab |
|
AMI-21B-20-3LINE FILTER 250VAC 20A CHASS MNT |
4,488 |
|
Datasheet |
AMI-21 | Box | Active | Single Phase | Single Stage | 250V | - | - | - | 20 A | DC ~ 400Hz | Medical | CE, cURus | -25°C ~ 100°C | Chassis Mount | 700µH | Quick Connect |
|
|
AMI-21A-20-6LINE FILTER 250VAC 20A CHASS MNT |
1,540 |
|
Datasheet |
AMI-21 | Box | Active | Single Phase | Single Stage | 250V | - | - | - | 20 A | DC ~ 400Hz | Safety | CE, cURus | -25°C ~ 100°C | Chassis Mount | 700µH | Quick Connect |
|
|
AMI-M11L-6-30-BLINE FILTER 250VAC 30A CHASS MNT |
1,239 |
|
Datasheet |
AMI-M11L | Box | Active | Single Phase | Single Stage | 250V | - | - | - | 30 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | 690µH | Threaded Post (8-32) |
|
FMAB-N7PH-0446LINE FLTR 277/400VDC 277VAC CHAS |
4,572 |
|
Datasheet |
FMAB | Box | Active | Single Phase | Single Stage | 277V | - | - | 277V, 400V | 4 A | 50/60Hz | Medical | cURus, ENEC, VDE | -40°C ~ 100°C | Chassis Mount | - | Quick Connect |
|
|
AMI-M11N-1-3-BLINE FILTER 250VAC 3A CHASS MNT |
2,147 |
|
Datasheet |
AMI-M11N | Box | Active | Single Phase | Single Stage | 250V | - | - | - | 3 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | 7mH | Quick Connect |
|
|
FN2010A-10-07LINE FILTER 250VAC/VDC 10A CHASS |
4,016 |
|
Datasheet |
FN 2010 | Bulk | Active | Single Phase | Single Stage | 250V | - | - | 250V | 10 A | DC ~ 400Hz | Safety | CE, CSA, ENEC, UKCA, UR | -25°C ~ 100°C | Chassis Mount | 800µH | Wire Leads |
|
FN2020B-1-06LINE FILTER 250VAC 1A CHASS MNT |
4,643 |
|
Datasheet |
FN 2020 | Tray | Active | Single Phase | Single Stage | 250V | - | - | - | 1 A | DC ~ 400Hz | General Purpose | CSA, ENEC, UR | -25°C ~ 100°C | Chassis Mount | 12mH | Quick Connect |
|
|
AMI-M12B-3-3-BLINE FILTER 250VAC 3A CHASS MNT |
2,164 |
|
Datasheet |
AMI-M12B | Box | Active | Single Phase | Two Stage | 250V | - | - | - | 3 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | 14.12mH | Wire Leads |
|
|
AMI-M12U-1-20-BLINE FILTER 250VAC 20A CHASS MNT |
3,894 |
|
Datasheet |
AMI-M12U | Box | Active | Single Phase | Two Stage | 250V | - | - | - | 20 A | 50/60Hz | General Purpose | - | -10°C ~ 40°C | Chassis Mount | 900µH | Quick Connect |
|
AH-L03LINE FILTER 110V/250VAC 3A CHASS |
3,978 |
|
Datasheet |
AHL | Box | Obsolete | Single Phase | Two Stage | 110V, 250V | - | - | - | 3 A | 50/60Hz | General Purpose | cCSAus, CE, UR | -25°C ~ 85°C | Chassis Mount | - | Quick Connect |
|
|
20DKCG5BLINE FILTER 115V/250VAC 20A CHAS |
3,209 |
|
Datasheet |
DK | Bulk | Active | Single Phase | Single Stage | 115V, 250V | - | - | - | 20 A | 50/60Hz | General Purpose | CSA, UR, VDE | - | Chassis Mount | 600µH | Quick Connect |
|
|
FMAB-N6PH-0646LINE FLTR 277/400VDC 277VAC CHAS |
3,110 |
|
Datasheet |
FMAB | Box | Active | Single Phase | Single Stage | 277V | - | - | 277V, 400V | 6 A | 50/60Hz | Medical | cURus, ENEC, VDE | -40°C ~ 100°C | Chassis Mount | - | Quick Connect |
|
|
6DAFPLINE FILTER 125VDC 10A PANEL MNT |
4,925 |
|
Datasheet |
DA, Corcom | Bulk | Active | Single Phase | Single Stage | - | - | - | 125V | 10 A | - | General Purpose | CSA, UL, VDE | -10°C ~ 40°C | Panel Mount | 100µH | Quick Connect |
